Engine, Exhaust System replacement parts for 2019 Polaris ACE 570 (R04)

OEM Parts Polaris 2019 Polaris ACE 570 (R04) Engine, Exhaust System

ENGINE, EXHAUST SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

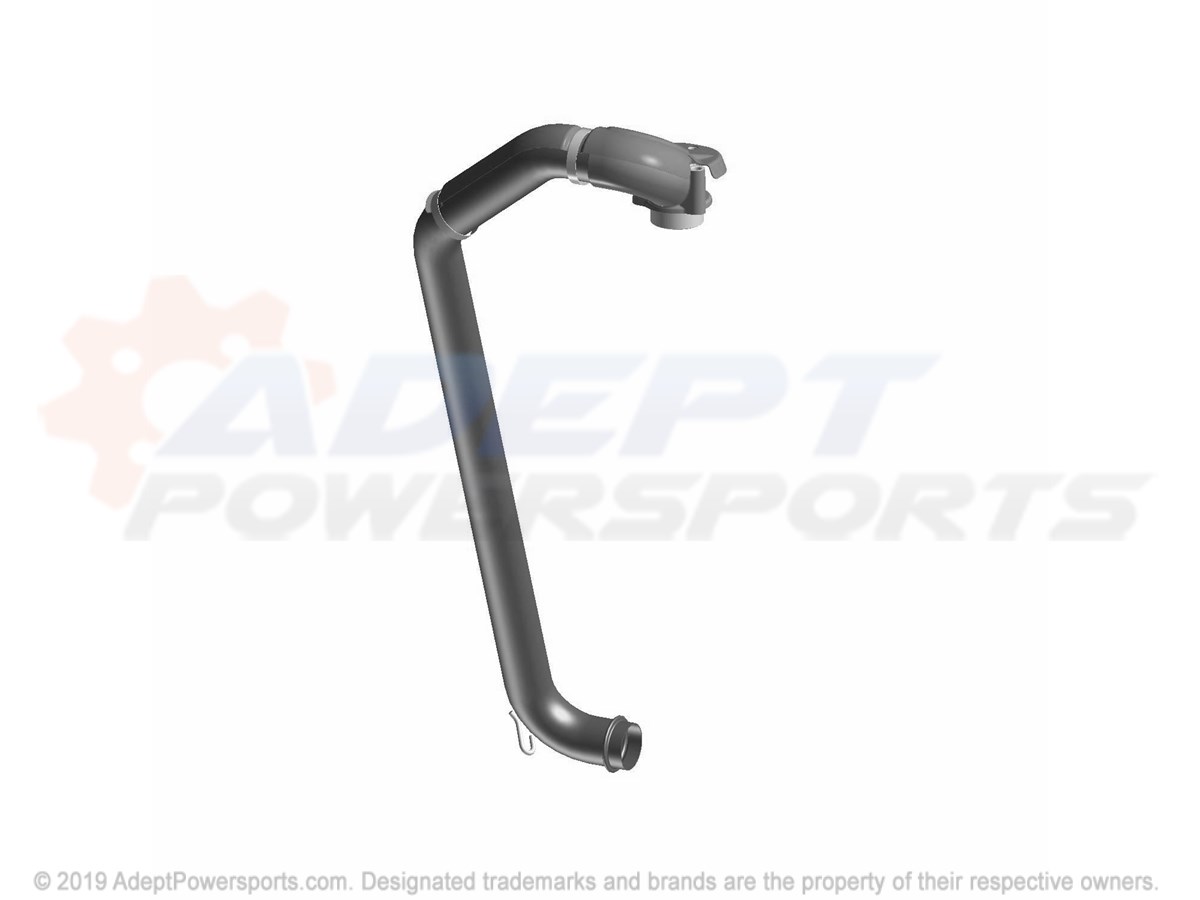

1	ASM-EXHAUST PIPE Part #: 1263115 Required per assembly: 1 Currently Not Available

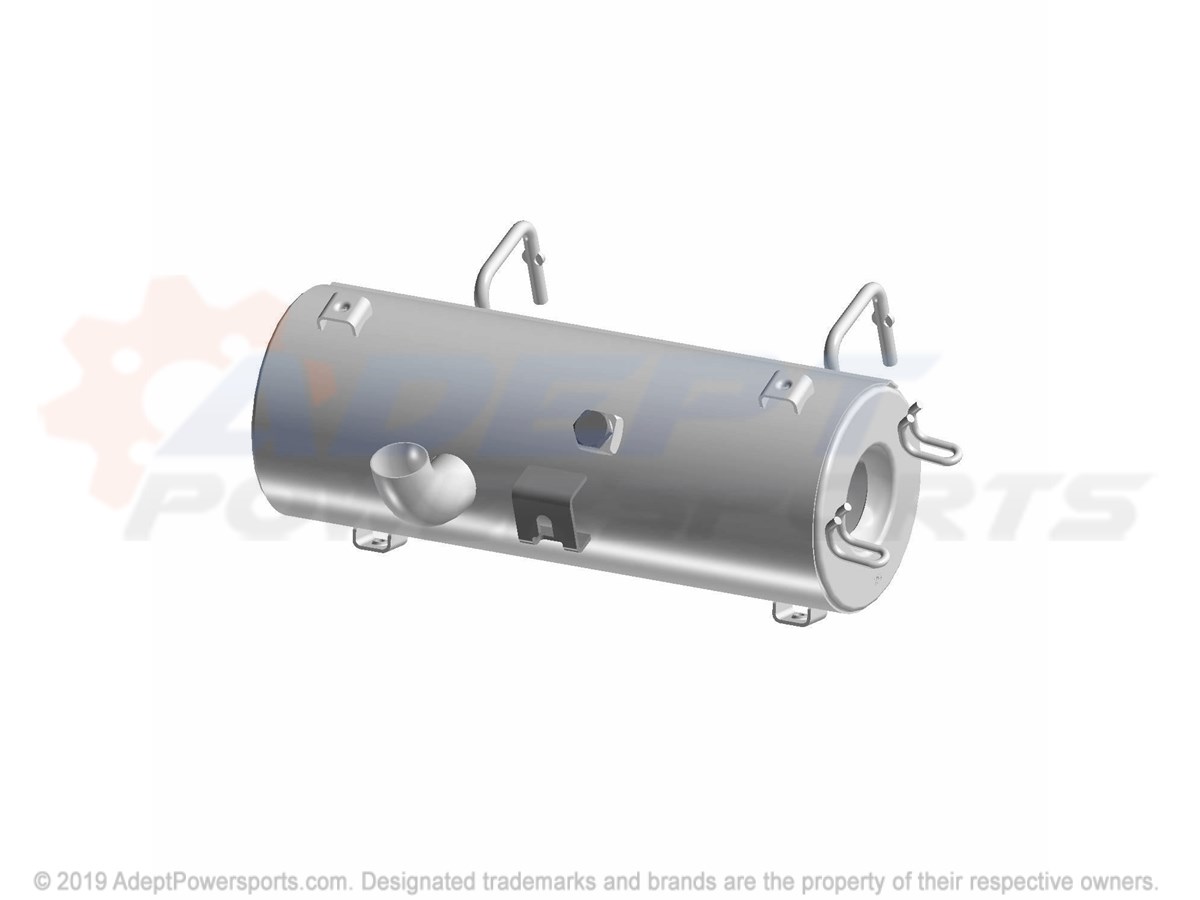

2	WELD-EXHAUST SILENCER Part #: 1263118 Required per assembly: 1 Note: INCL. 2,3 Currently Not Available
3	BOLT Part #: 7520756 Required per assembly: 1 Currently Not Available
4	WASHER, CLEAN, OUT Part #: 7557077 Required per assembly: 1 Currently Not Available
5	WASHER, RUBBER Part #: 5414945 Required per assembly: 1 Currently Not Available
6	SEAL-EXHAUST SOCKET Part #: 3610181 Required per assembly: 1 Currently Not Available

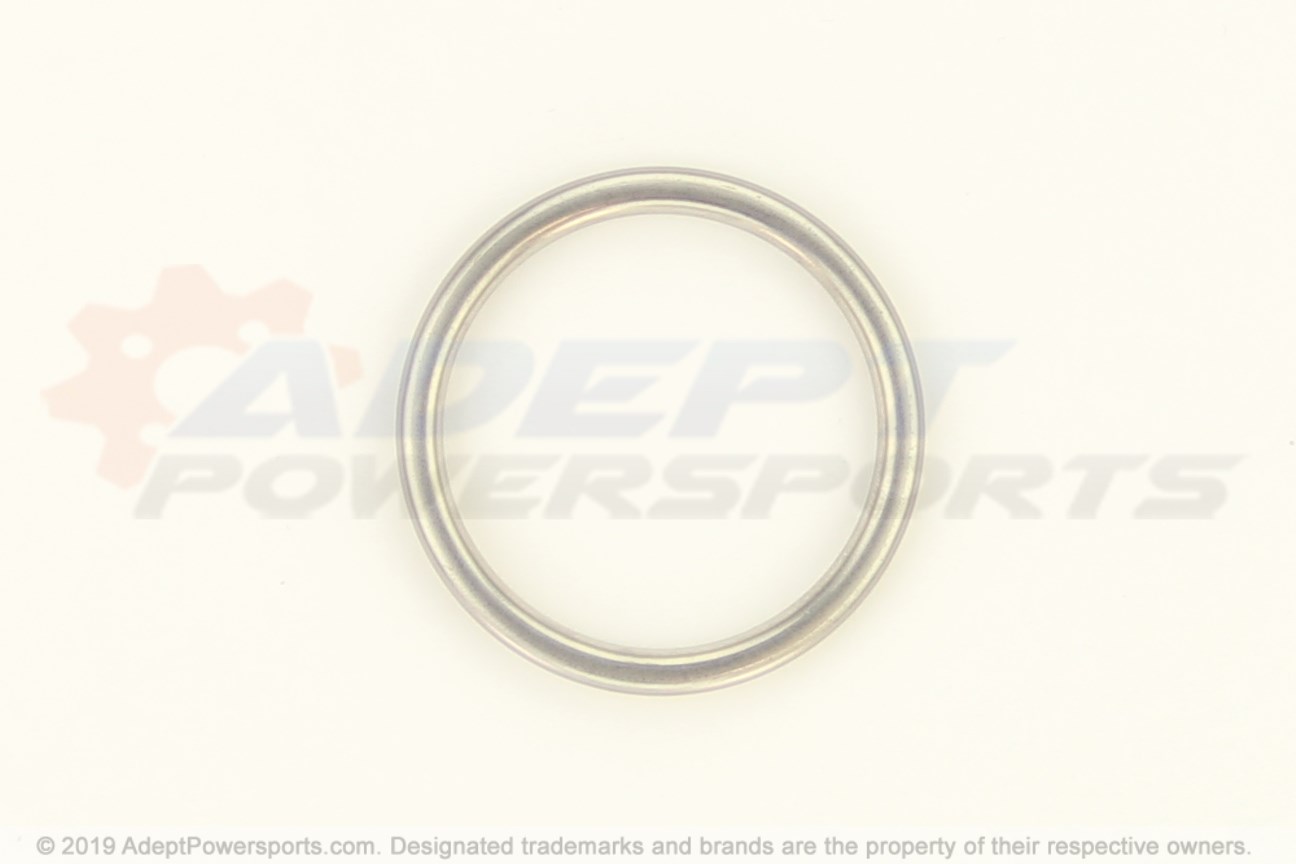

7	GASKET-EXHAUST SEALING Part #: 5253989 Required per assembly: 1 Currently Not Available
8	NUT Part #: 7542324 Required per assembly: 1 Currently Not Available
9	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust $6.99 $4.03 - + Add to cart
10	M8X60 HEX FLANGE BOLT Part #: 7520828 Required per assembly: 3 Currently Not Available
11	WASHER Part #: 7555716 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518529 Required per assembly: 2 $2.99 $1.73 - + Add to cart
13	GROMMET, SILENCER, MOUNT Part #: 5413383 Required per assembly: 2 Currently Not Available
14	BOLT Part #: 7515316 Required per assembly: 1 Currently Not Available

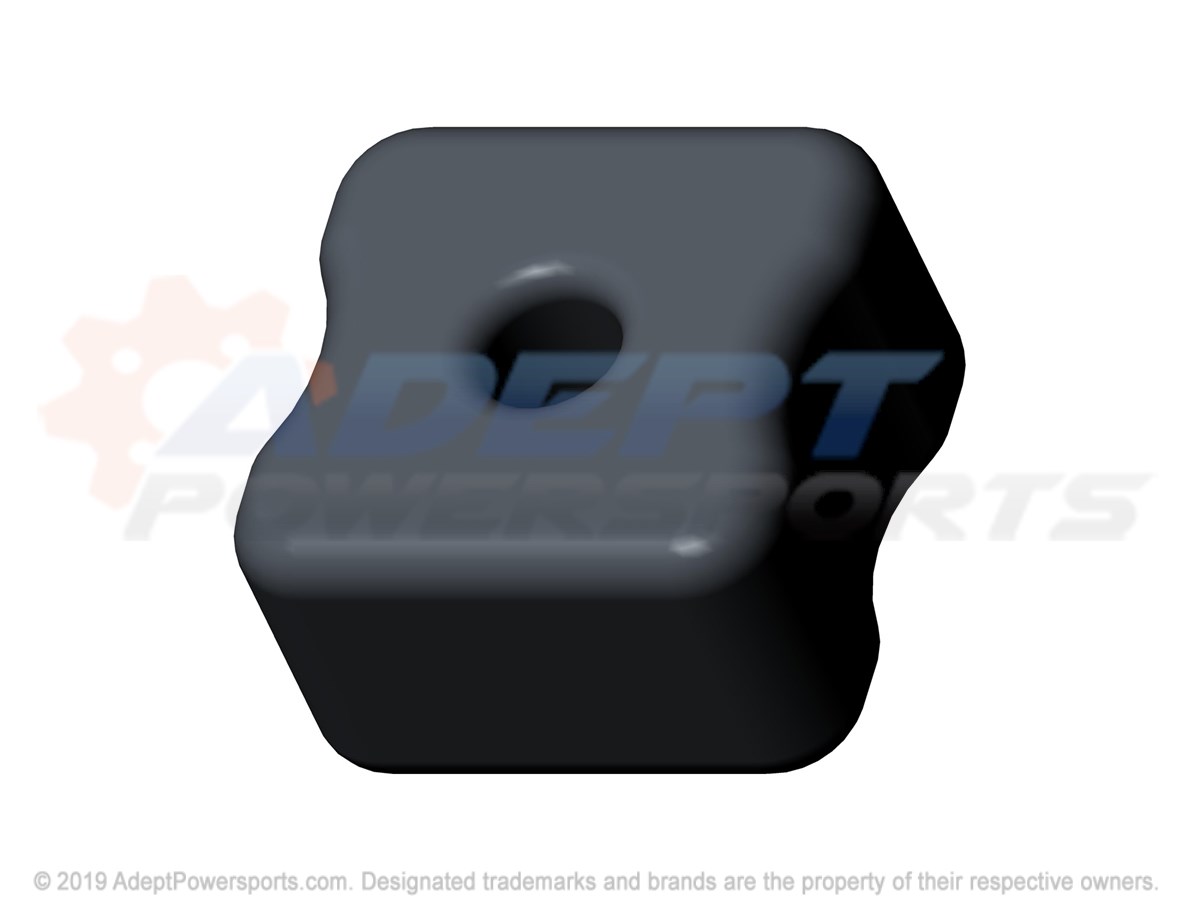

15	DAMPER, VIBRATION Part #: 5414946 Required per assembly: 1 Currently Not Available
16	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 1 Currently Not Available
17	MOUNT-EXHAUST, LOWER Part #: 5258177 Required per assembly: 1 Currently Not Available
