Steering Asm. replacement parts for 2019 Polaris ACE 570 (R04)

OEM Parts Polaris 2019 Polaris ACE 570 (R04) Steering Asm.

STEERING ASM. Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

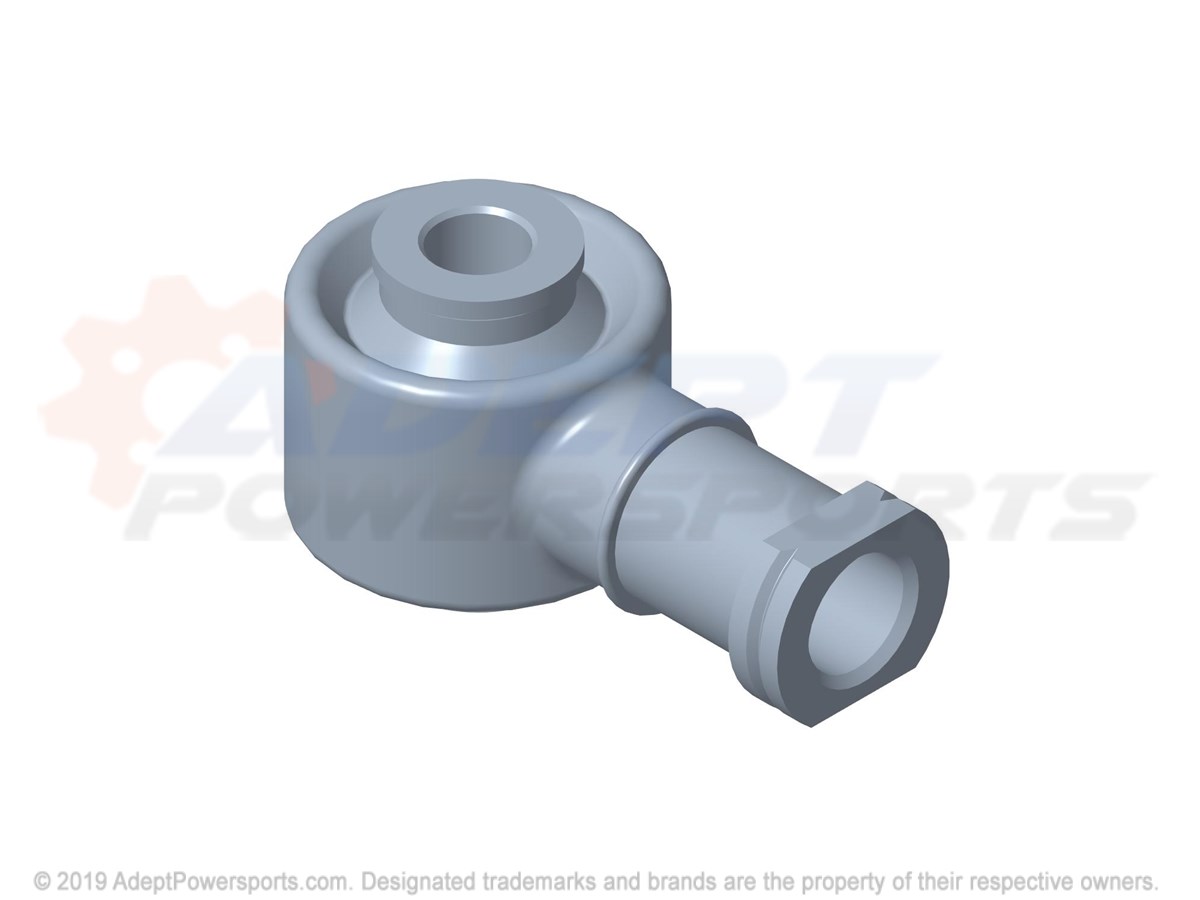

2	TIE, ROD, OUTER Part #: 7061189 Required per assembly: 2 Currently Not Available

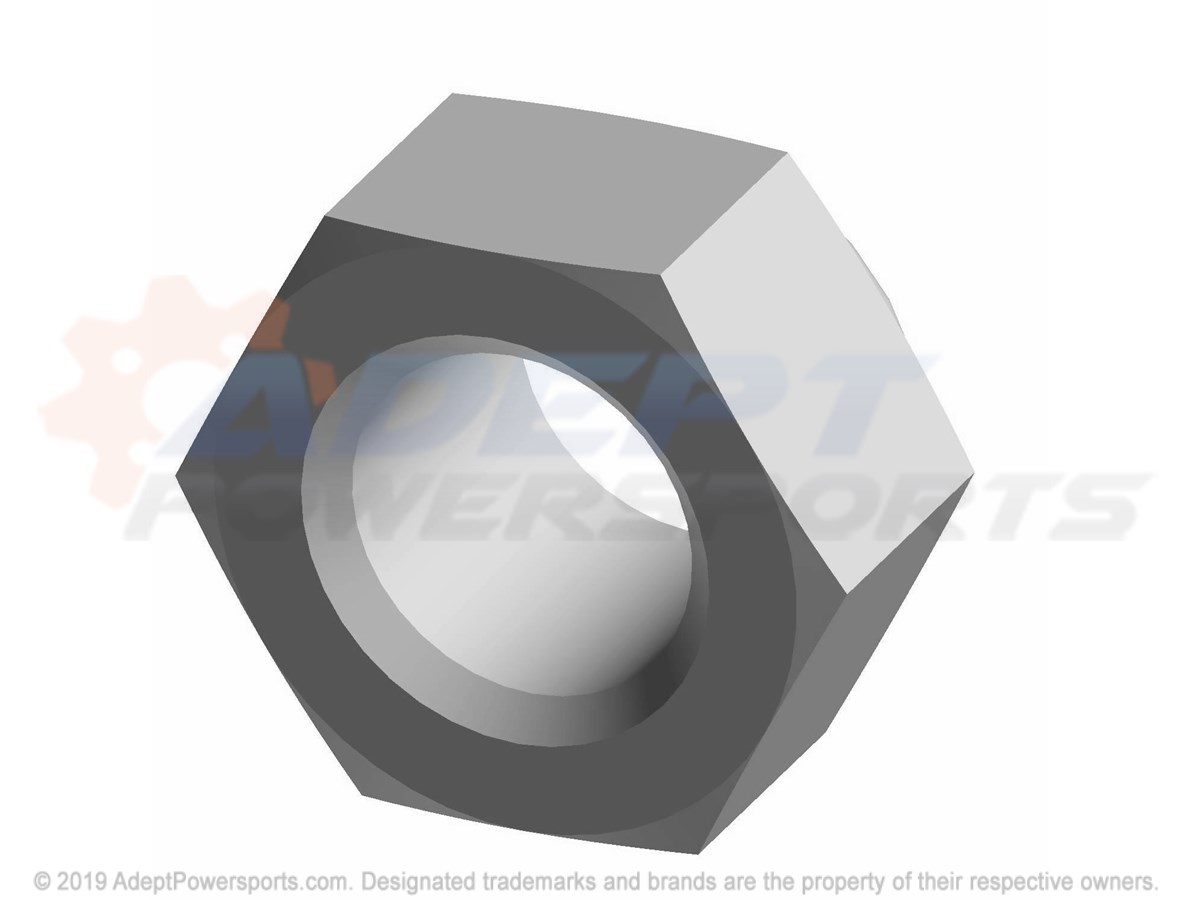

3	NUT, JAM Part #: 2205058 Required per assembly: 2 Currently Not Available
5	CLAMP, BOOT, SMALL Part #: 7080978 Required per assembly: 2 $4.79 $2.30 - + Add to cart
6	BOOT, DRIVER, SIDE, RACK Part #: 5412012 Required per assembly: 1 $74.99 $36.99 - + Add to cart
7	CLAMP, BOOT, LARGE Part #: 7080979 Required per assembly: 2 Currently Not Available

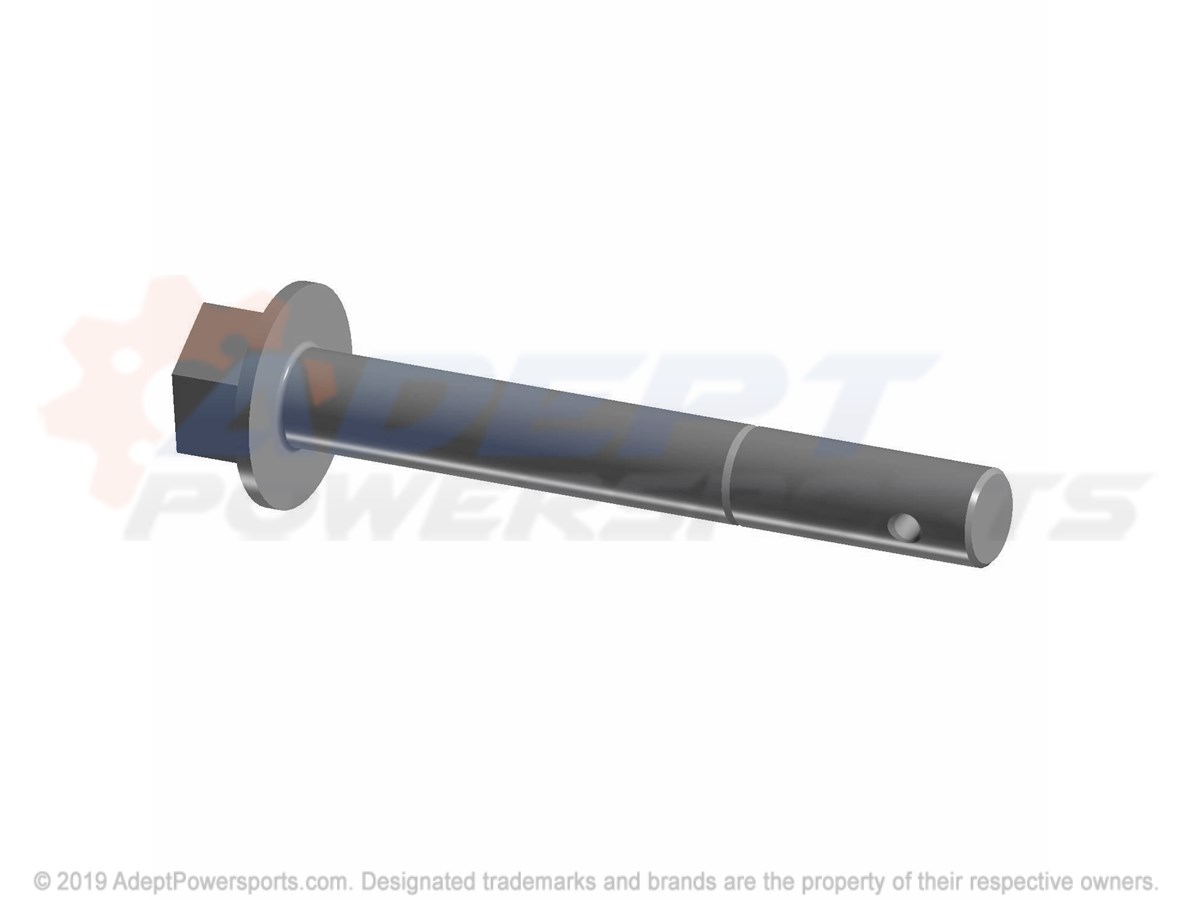

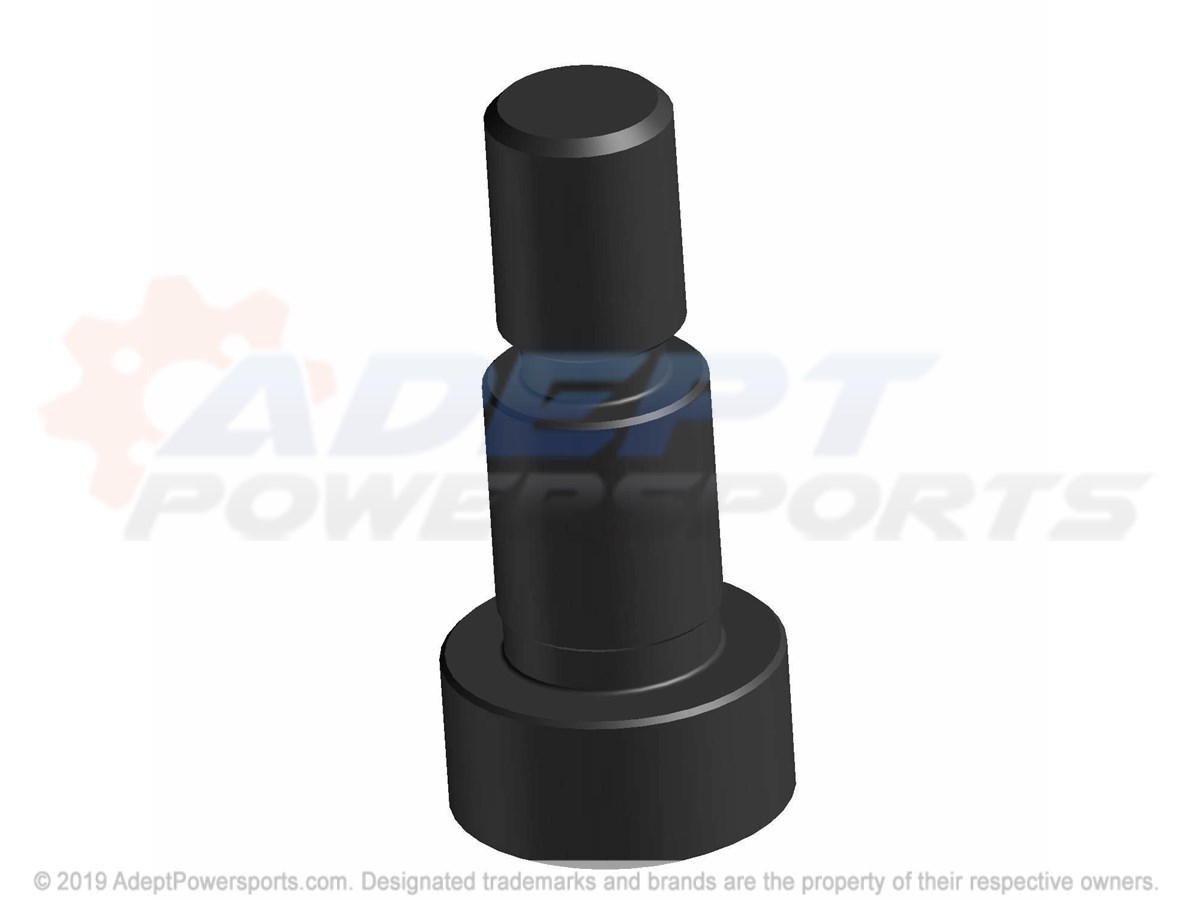

8	BOLT, SHOULDER Part #: 7518786 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7518644 Required per assembly: 1 Currently Not Available

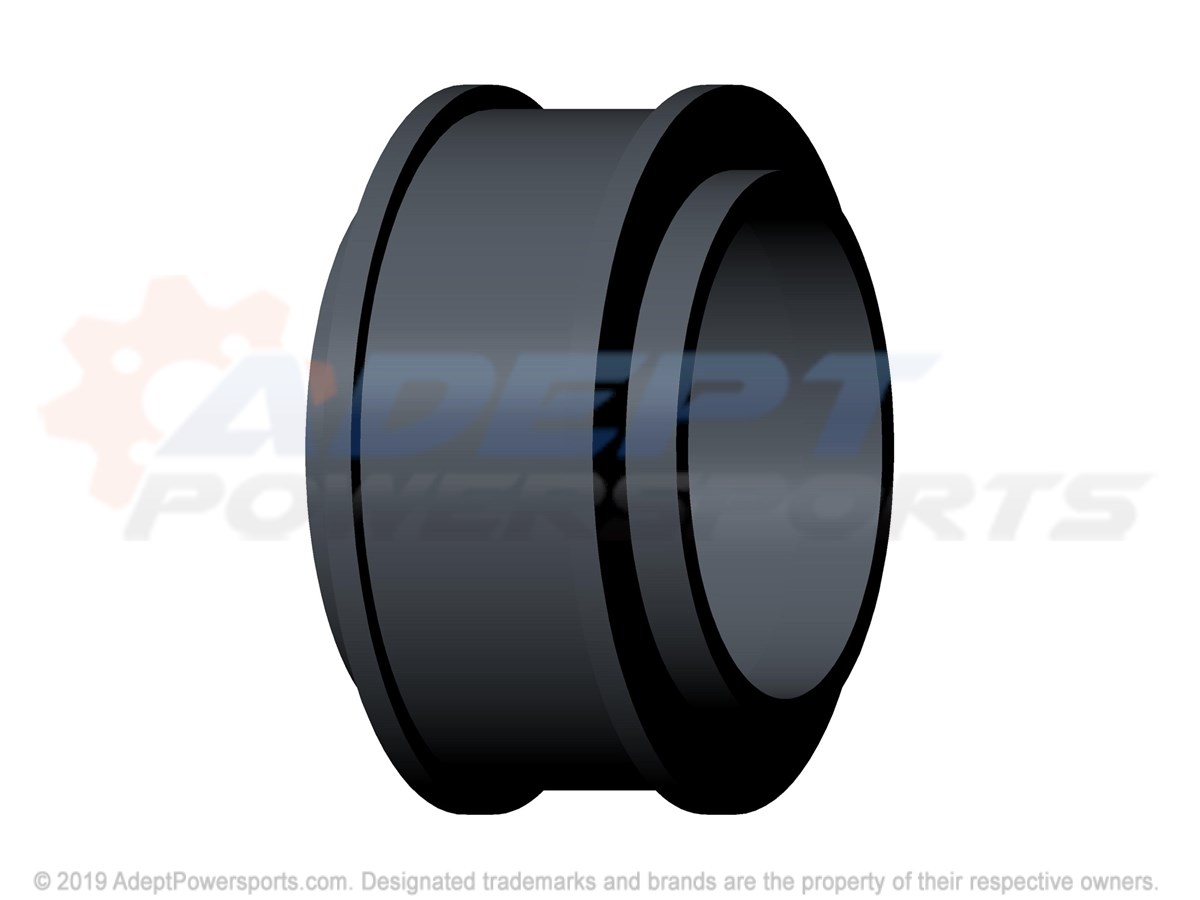

10	BUSHING, TILT, STEERING Part #: 5439154 Required per assembly: 2 Currently Not Available

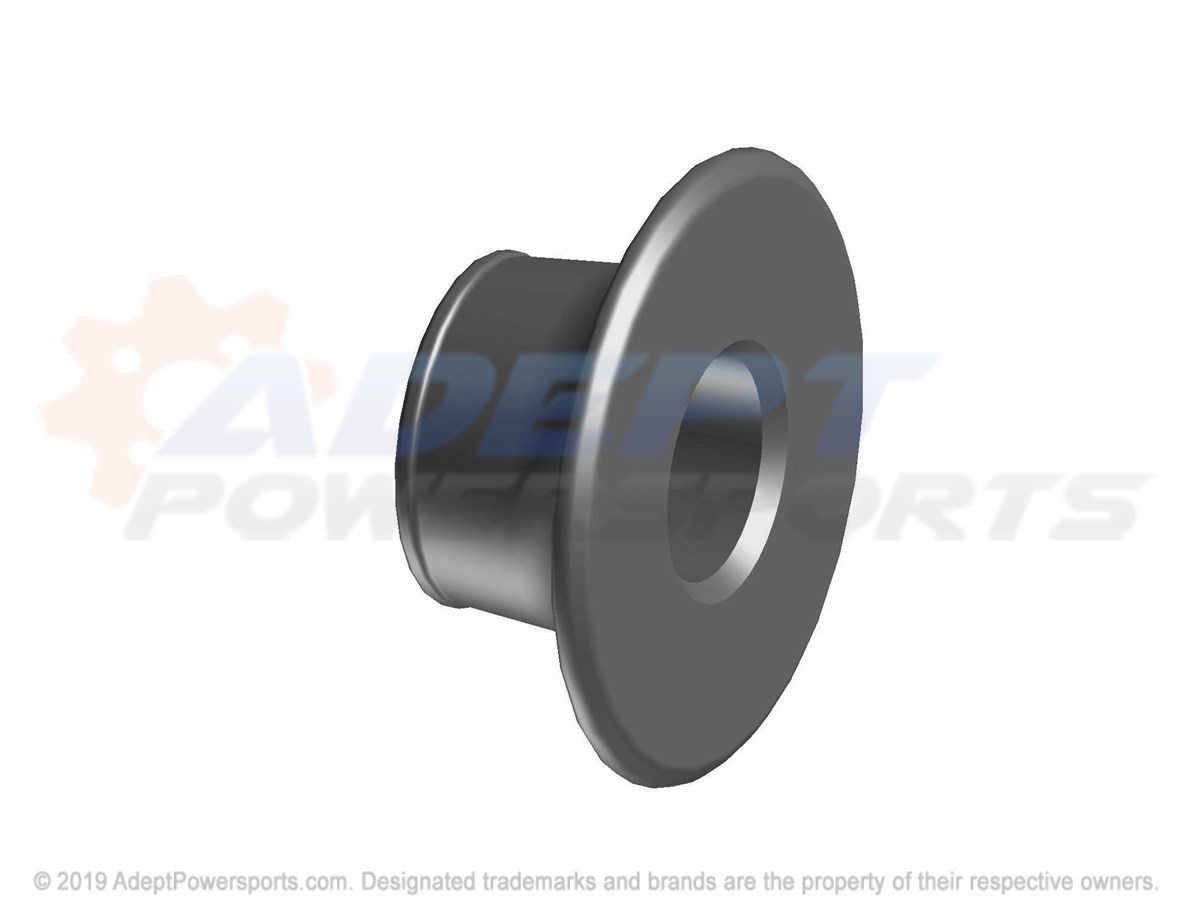

11	BUSHING, STEERING Part #: 7556675 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519217 Required per assembly: 4 Currently Not Available
13	BEARING-STEERING Part #: 3514686 Required per assembly: 2 Currently Not Available

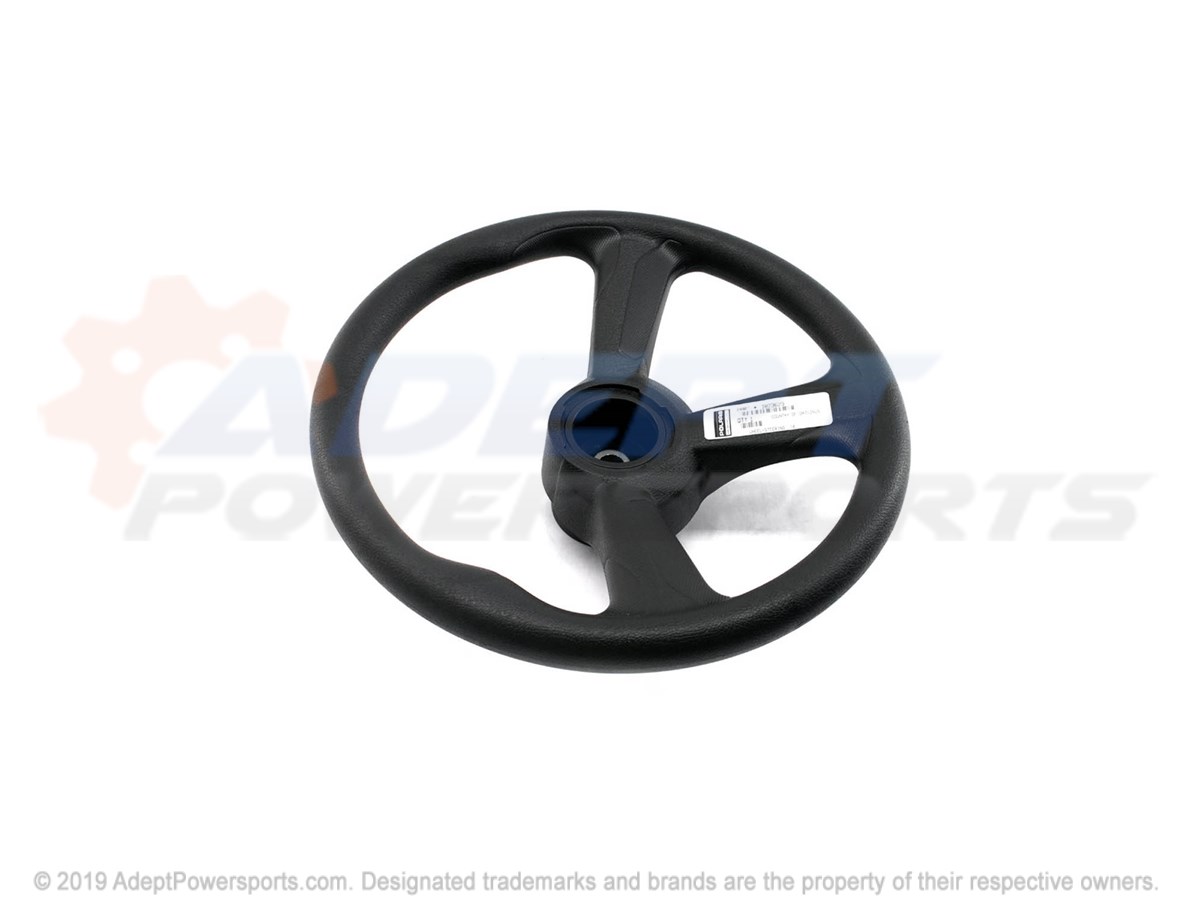

14	WHEEL, STEERING Part #: 1823623 Required per assembly: 1 Currently Not Available
15	NUT-HEX-M16X2 8 ZC NYL Part #: 7547506 Required per assembly: 1 Currently Not Available
16	CAP, STEERING, WHEEL Part #: 5436536 Required per assembly: 1 Note: Cap, Steering Wheel Currently Not Available
17	ASM-PIVOT, TUBE, M.BLK Part #: 1022896-458 Required per assembly: 1 Note: INCL. 13 Currently Not Available
18	NUT, FLANGE Part #: 7547332 Required per assembly: 7 Note: Nut, Nylok Currently Not Available
19	SHAFT-STEERING, EPS, UPPER Part #: 1824286 Required per assembly: 1 Currently Not Available
20	WASHER, FLAT Part #: 7555960 Required per assembly: 4 Currently Not Available
21	NUT, NYLOK Part #: 7547385 Required per assembly: 1 Currently Not Available
22	NUT, METRIC Part #: 7546703 Required per assembly: 2 $1.99 $1.15 - + Add to cart
23	BOOT, DRIVER, SIDE, RACK Part #: 5412012 Required per assembly: 1 $74.99 $36.99 - + Add to cart
24	SCREW Part #: 7519854 Required per assembly: 2 $24.99 $14.38 - + Add to cart
25	WASHER Part #: 7555919 Required per assembly: 4 Note: Washer Currently Not Available
26	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
27	PIN COTTER Part #: 7661203 Required per assembly: 2 $1.99 $1.15 - + Add to cart
28	ASM-GEARBOX, STEERING, 17T Part #: 1824540 Required per assembly: 1 Note: INCL. 2-7,23 Currently Not Available

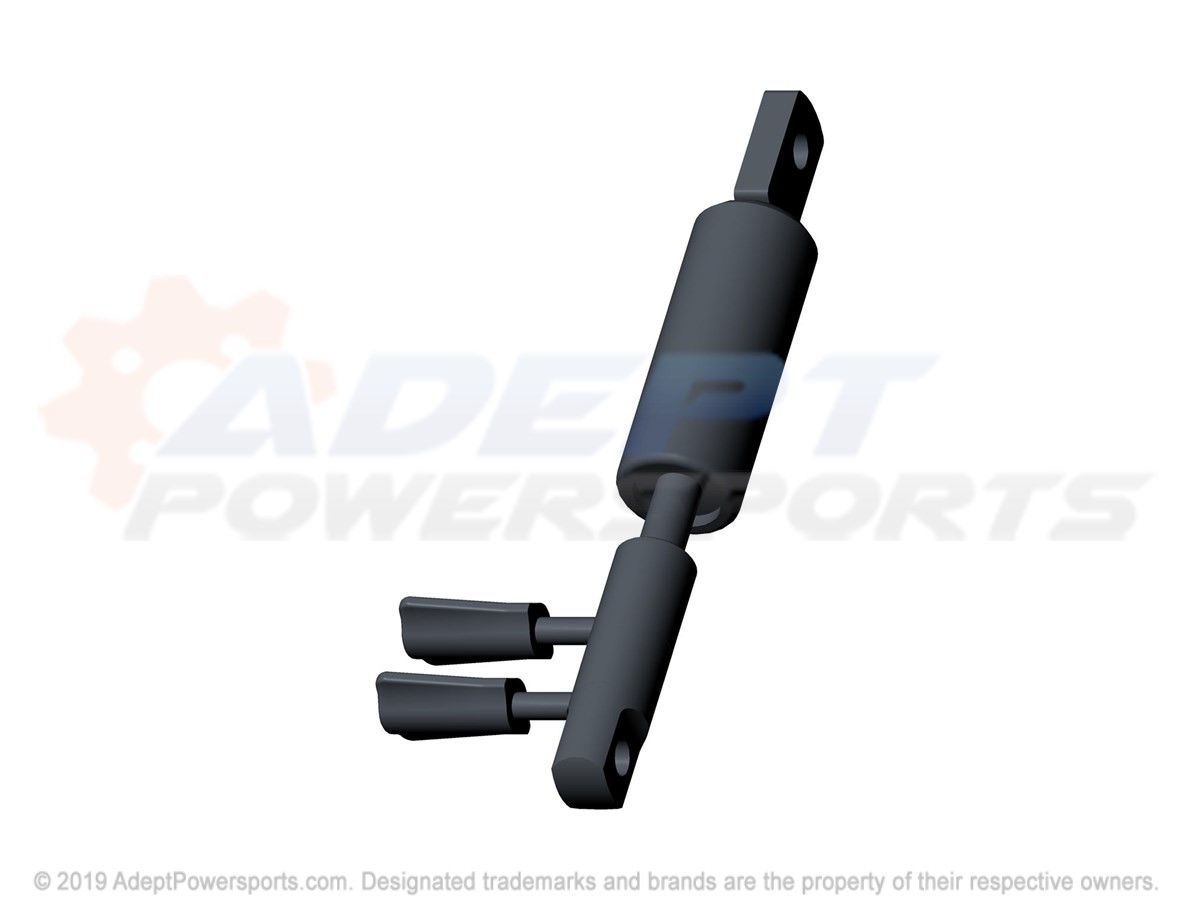

29	ASM-SHOCK, TILT, STEERING, SHORT Part #: 7044699 Required per assembly: 1 Currently Not Available
30	SCREW Part #: 7519355 Required per assembly: 2 Currently Not Available
31	NUT, NYLOK Part #: 7547442 Required per assembly: 2 Currently Not Available

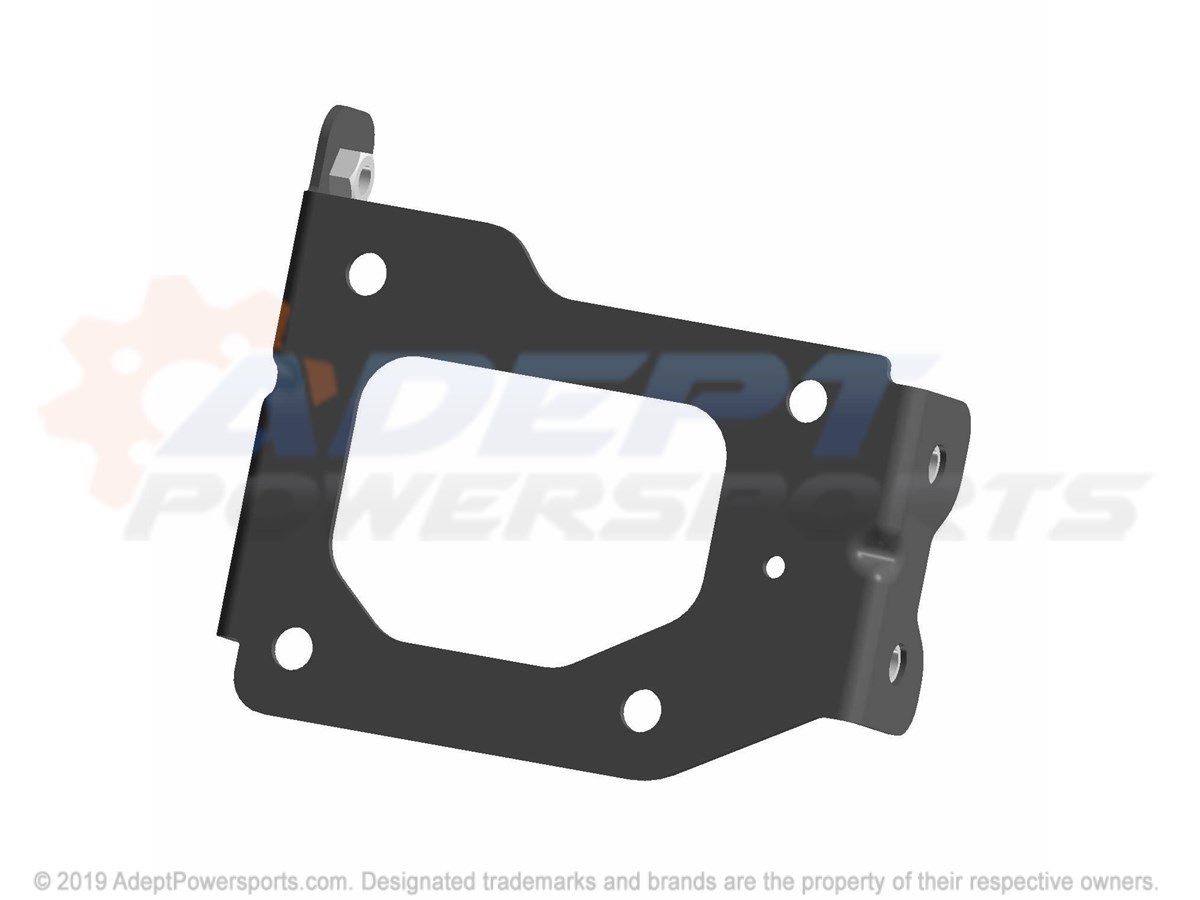

32	WELD-BRKT, BASE, EPS, E-COAT Part #: 1020912-329 Required per assembly: 1 Currently Not Available

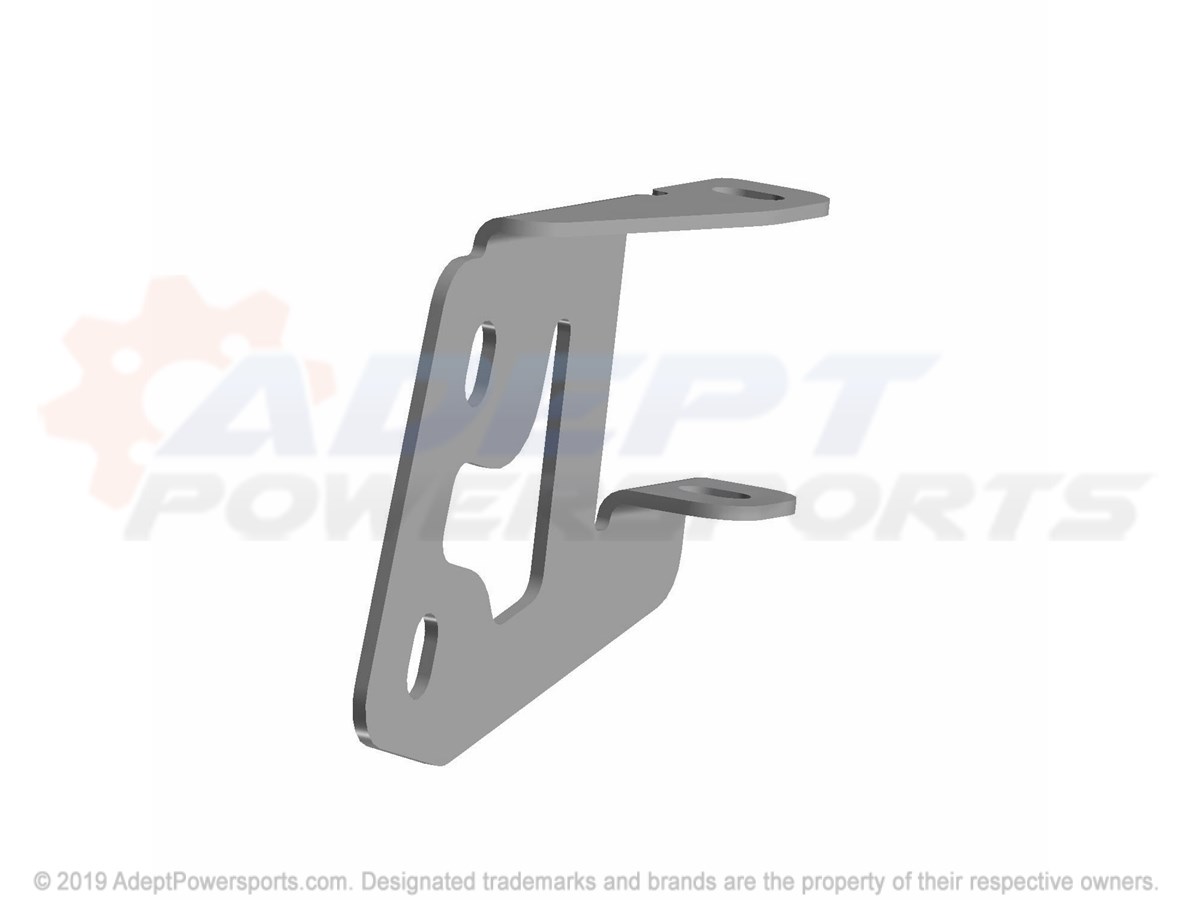

33	BRKT-EPS, LH, E-COAT Part #: 5260034-329 Required per assembly: 1 Currently Not Available
34	SHAFT-STEERING, EPS, LOWER, 17T Part #: 1824549 Required per assembly: 1 Currently Not Available
35	ASM-POWER, STEERING, G2, ACE Part #: 2414684 Required per assembly: 1 Currently Not Available
36	SCREW, FLANGE Part #: 7518450 Required per assembly: 4 Currently Not Available
37	SCREW Part #: 7518558 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
38	SCREW, FLANGE Part #: 7518955 Required per assembly: 1 Currently Not Available
39	SCREW Part #: 7519052 Required per assembly: 2 Currently Not Available
