OEM Parts Polaris 2019 Polaris ACE 570 (R04) Valve Cover

2019 Polaris ACE 570 (R04) A19DAE57A4 - Valve Cover

VALVE COVER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

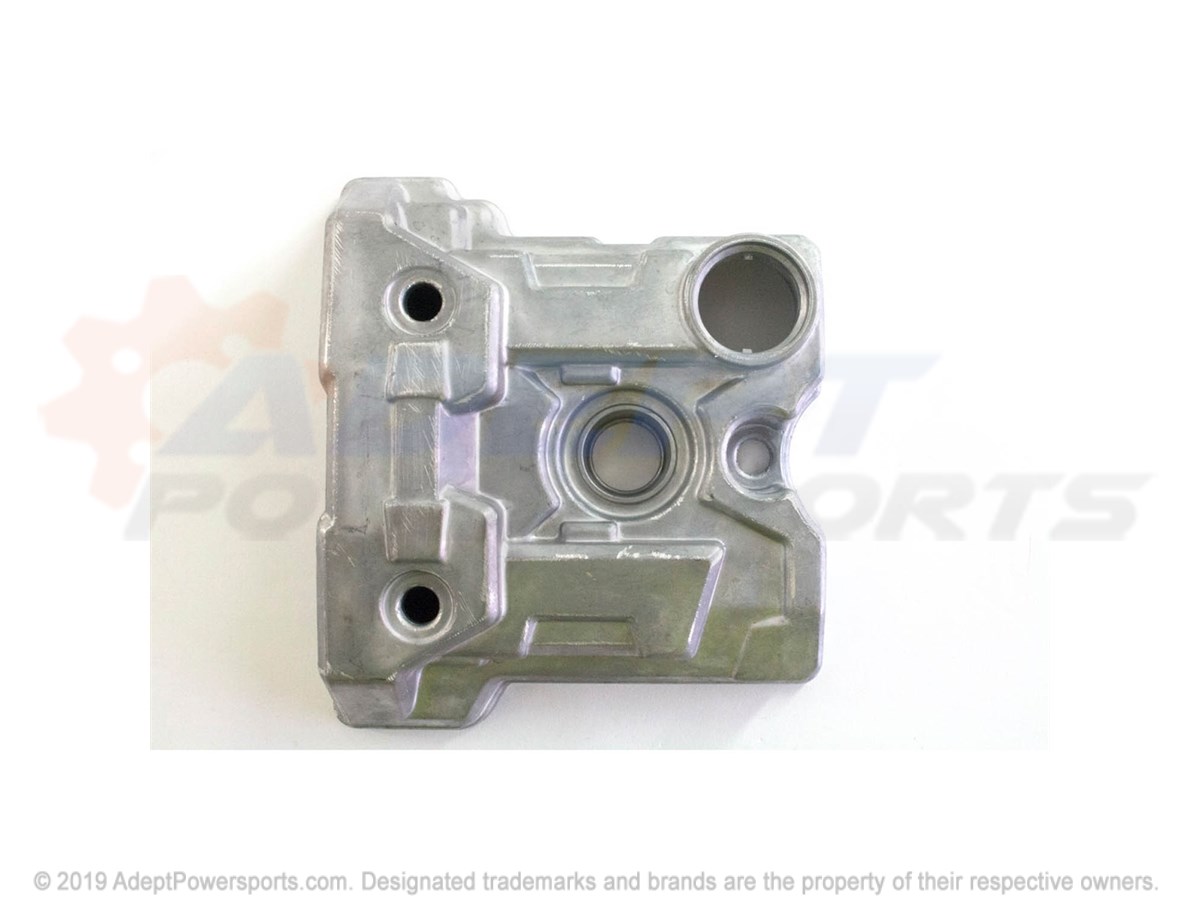

COVER, VALVE

Part #: 5632598 Required per assembly: 1
Currently Not Available
2

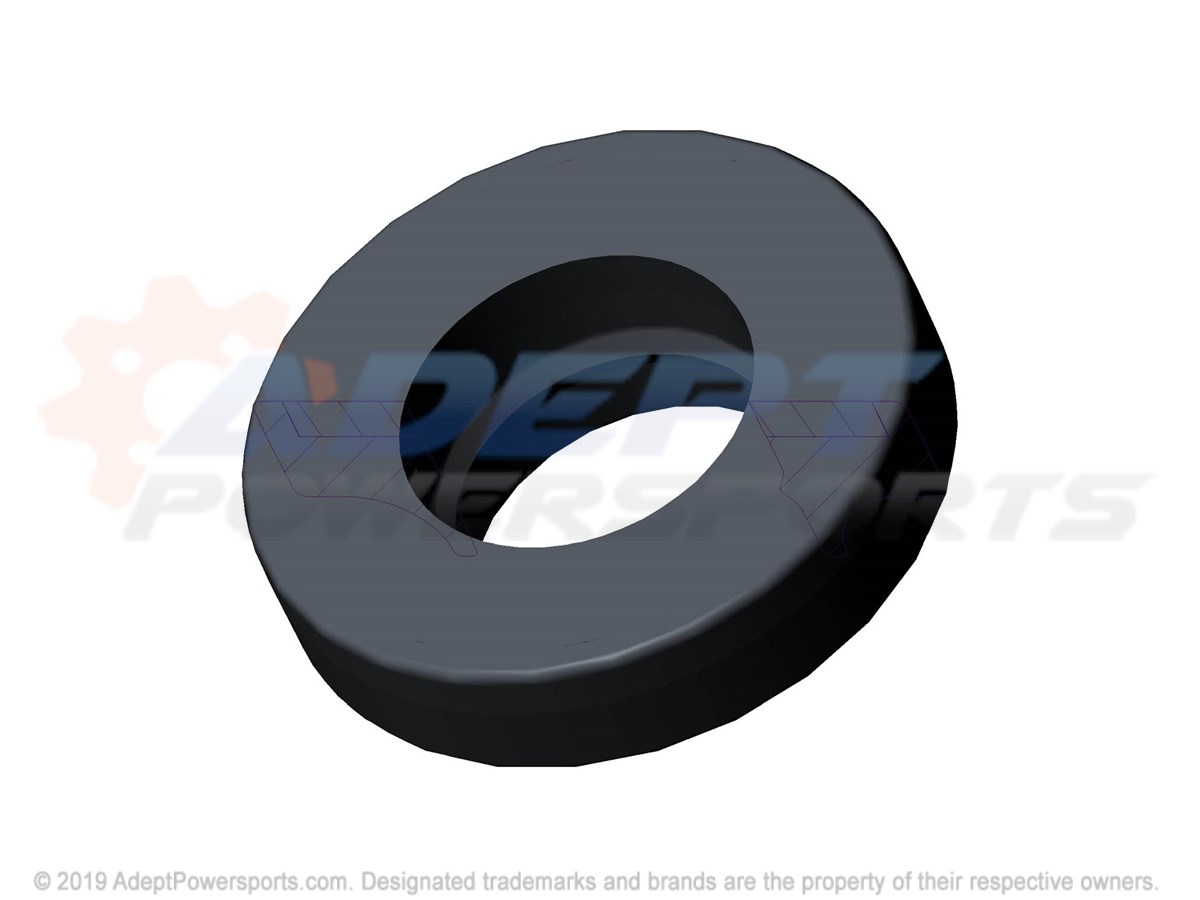

ISOLATOR-VALVE COVER

Part #: 5413806 Required per assembly: 3
Currently Not Available
3

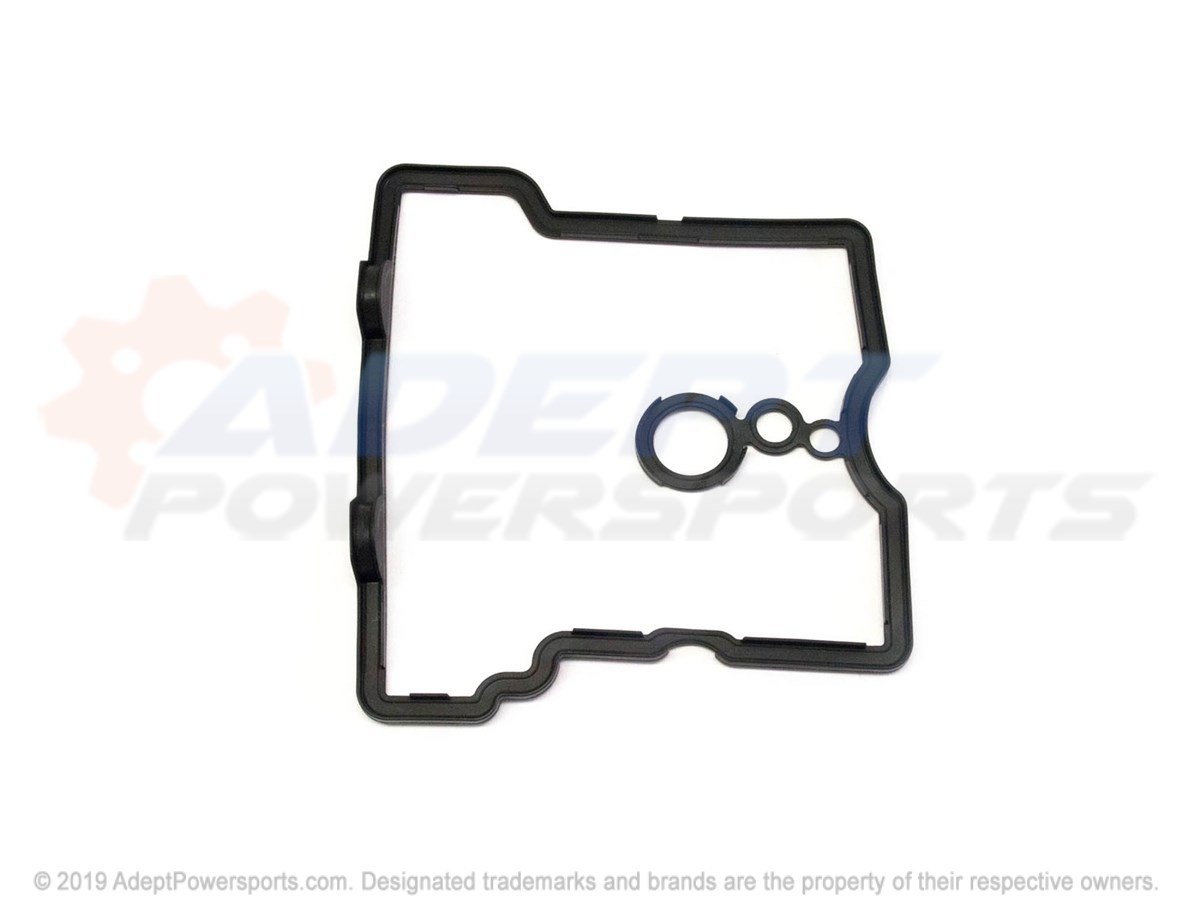

SEAL-VALVE, COVER, 1CYL, DOHC

Part #: 5415279 Required per assembly: 1
Currently Not Available
4

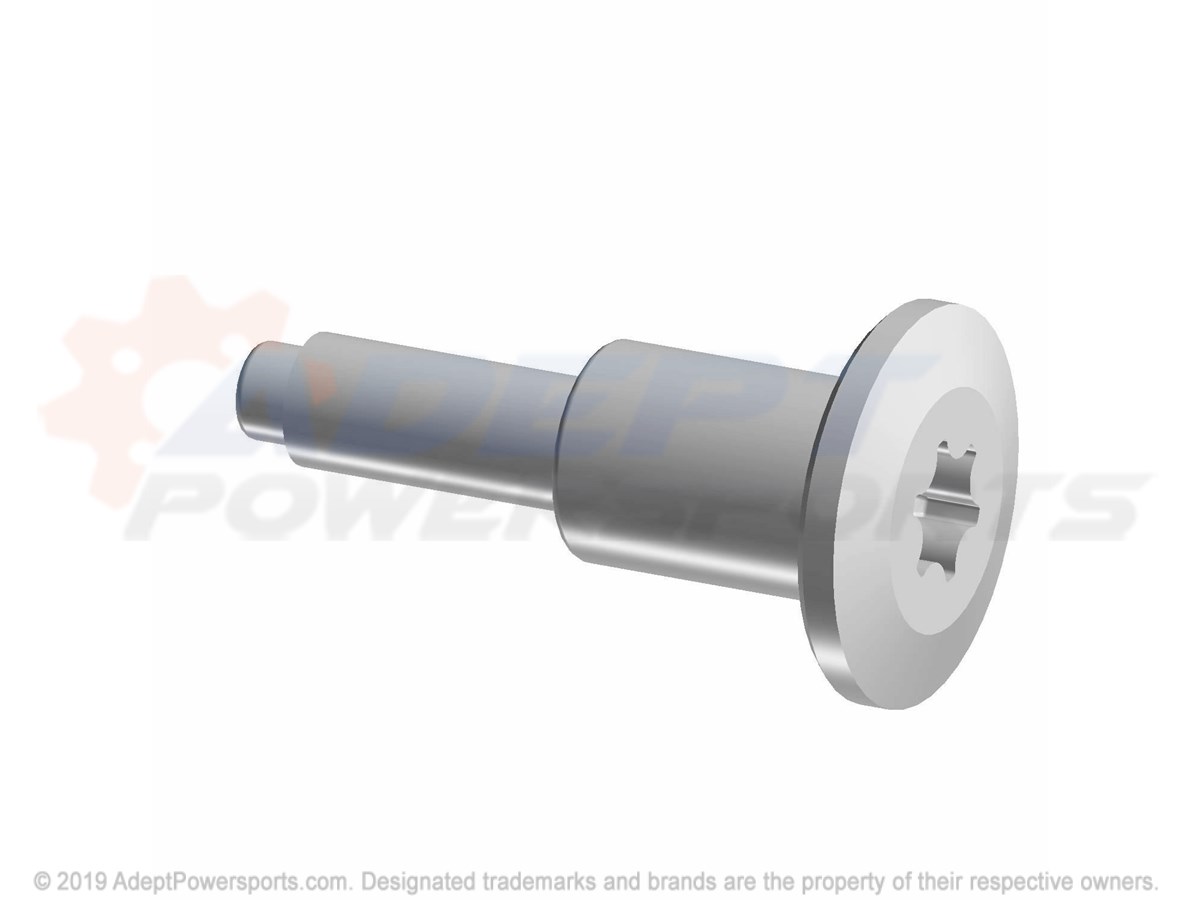

BOLT-SHLDR M6X12X15

Part #: 7519165 Required per assembly: 3
Currently Not Available
