Air Intake System replacement parts for 2019 Polaris ACE 570 (R04)

OEM Parts Polaris 2019 Polaris ACE 570 (R04) Air Intake System

AIR INTAKE SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOOT-ENGINE, INTAKE Part #: 5417998 Required per assembly: 1 Currently Not Available
2	BOX-AIR INTAKE Part #: 5450495 Required per assembly: 1 Currently Not Available
3	CLIP-AIRBOX Part #: 7081707 Required per assembly: 2 Currently Not Available

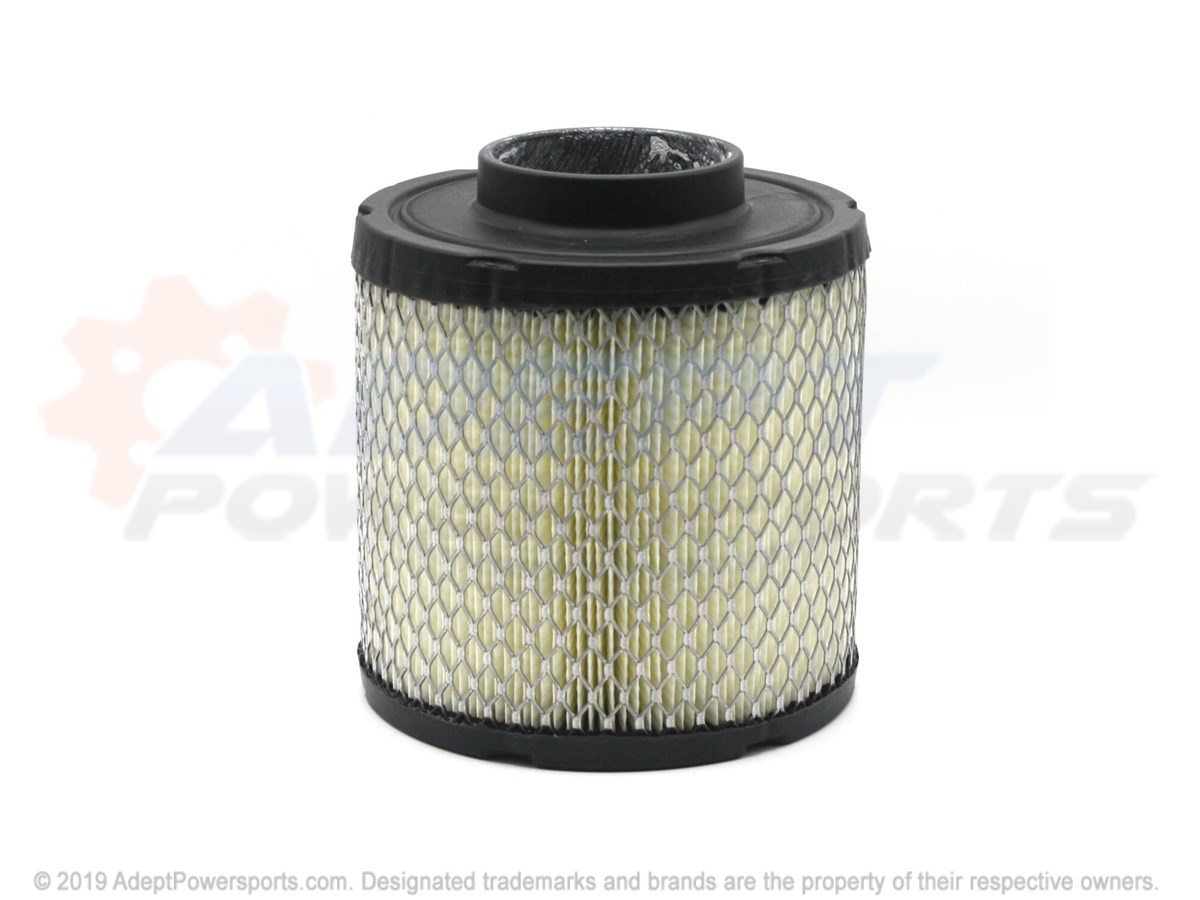

4	FILTER, AIRBOX, MAIN Part #: 7082037 Required per assembly: 1 Currently Not Available
5	SHAFT, COMPRESSION Part #: 5138987 Required per assembly: 1 Currently Not Available
6	PLUG, DRAIN Part #: 5414472 Required per assembly: 2 Currently Not Available
7	DUCT-INTAKE, ENGINE Part #: 5452665 Required per assembly: 1 Currently Not Available

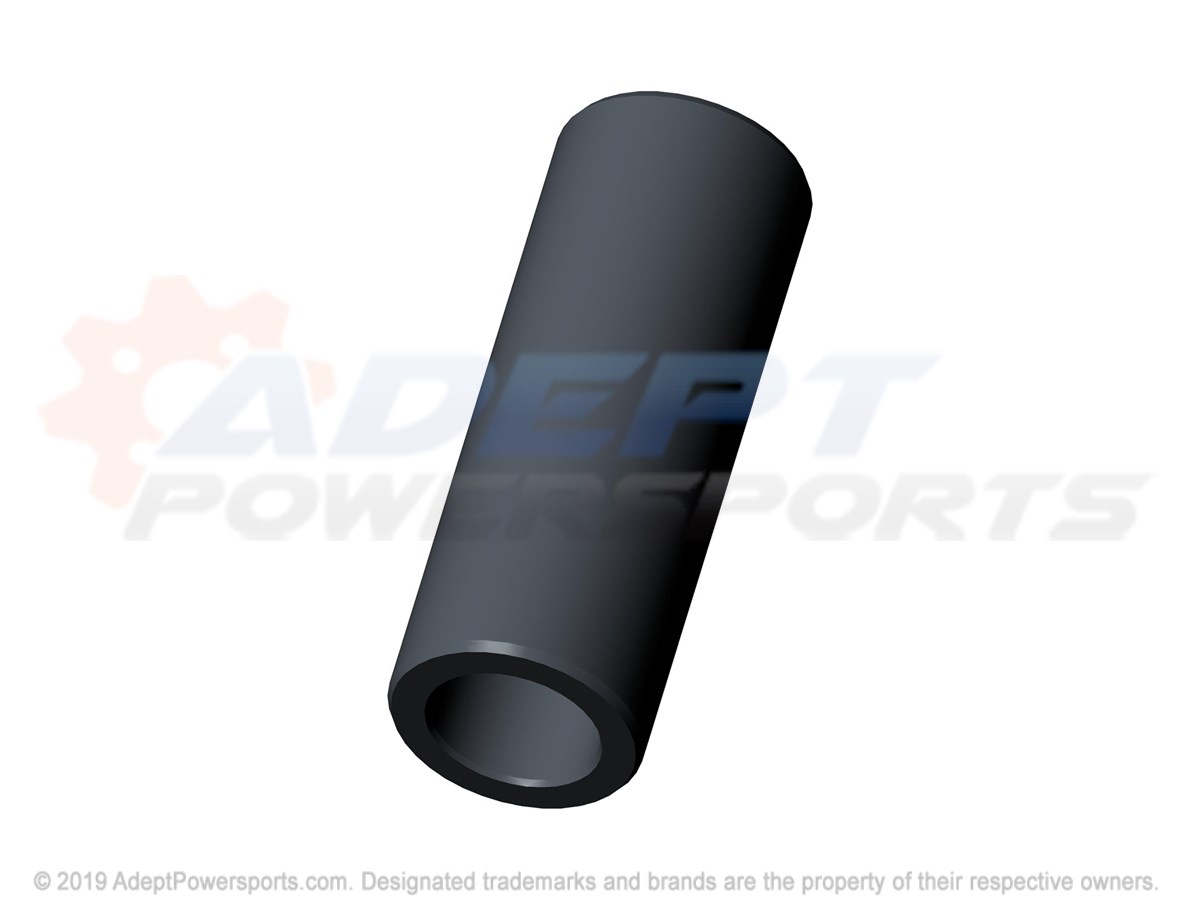

8	BUSHING, MOUNT Part #: 5414719 Required per assembly: 2 Currently Not Available
9	HOSE-INTAKE, ENGINE Part #: 5414582 Required per assembly: 1 Currently Not Available

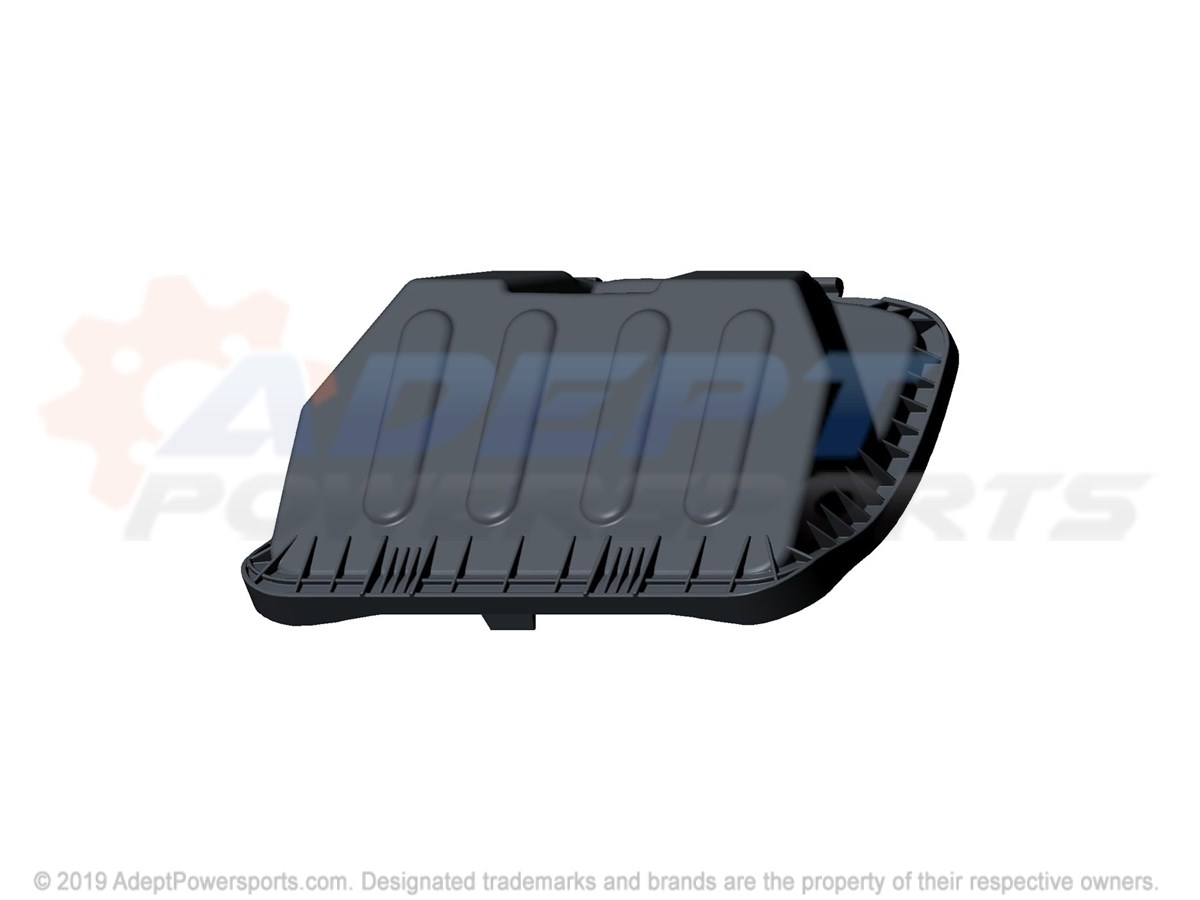

10	COVER, AIRBOX Part #: 5450175 Required per assembly: 1 Currently Not Available
11	BOX-INTAKE, ENGINE, RH Part #: 5450728 Required per assembly: 1 Currently Not Available
12	SEAL-AIR BOX COVER Part #: 5814106 Required per assembly: 1 Currently Not Available
13	SEAL-FOAM, ADHESIVE Part #: 5814033 Required per assembly: 1 $24.99 $14.65 - + Add to cart
14	CLAMP, HOSE Part #: 7081623 Required per assembly: 3 Currently Not Available

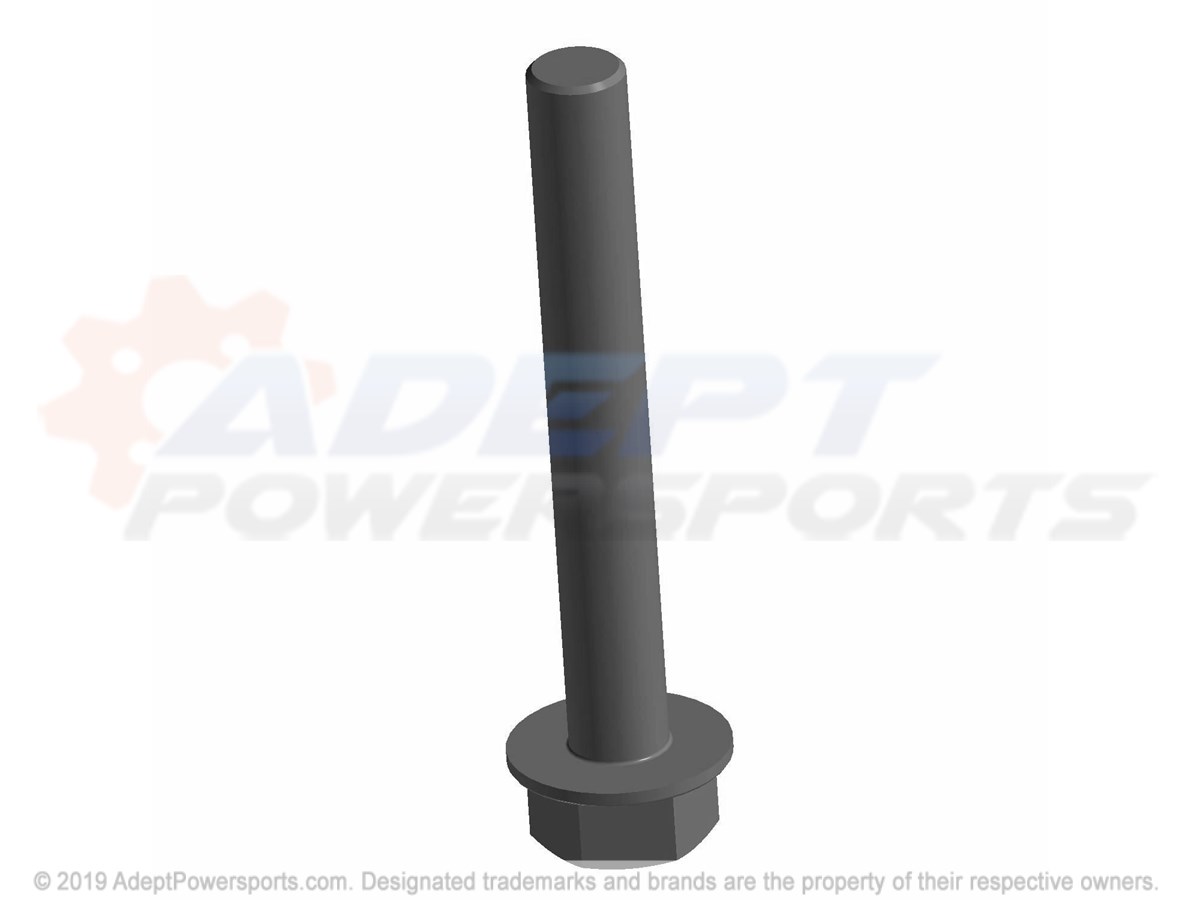

15	SCREW, FLANGE Part #: 7519298 Required per assembly: 1 Currently Not Available
16	NUT, FLANGE Part #: 7547332 Required per assembly: 1 Note: Nut, Nylok Currently Not Available
17	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 1 Note: Clamp, Narrow Band $4.99 $2.88 - + Add to cart
18	FILTER-INTAKE, FOAM Part #: 5814026 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7518529 Required per assembly: 1 $2.99 $1.73 - + Add to cart
20	CLIP, PLASTIC, DART, NYLON Part #: 7670088 Required per assembly: 1 Currently Not Available
21	SHIELD-SLEEVE Part #: 5814546 Required per assembly: 1 Currently Not Available
22	HOSE-BREATHER Part #: 5415578 Required per assembly: 1 Currently Not Available
23	CLAMP, HOSE, 1.25, WORM, DRIVE Part #: 7080696 Required per assembly: 1 Note: Clamp, Hose Currently Not Available
24	RIVET Part #: 7661855 Required per assembly: 1 $2.99 $1.73 - + Add to cart
