2019 Polaris ACE 900 EPS XC (R05) A19DCE87AK - Fuel Tank

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2522048 Asm-Fuel Tank

ASM-FUEL TANK

Part #: 2522048 Required per assembly: 1 Note: INCL. PUMP
Currently Not Available
1
Polaris 2522049 Asm-Fuel Pump

ASM-FUEL PUMP

Part #: 2522049 Required per assembly: 1
Currently Not Available
2
Polaris 2522024 Asm-Fuel, Line, Rail, To, Tank

ASM-FUEL, LINE, RAIL, TO, TANK

Part #: 2522024 Required per assembly: 1
Currently Not Available
3
Polaris 2521934 Cap-Gas Tank

CAP-GAS TANK

Part #: 2521934 Required per assembly: 1
Currently Not Available
4

CLIP, ROUTING, .472, B.D., HINGED

Part #: 7670116 Required per assembly: 2 Note: Clip, Routing
Currently Not Available
5

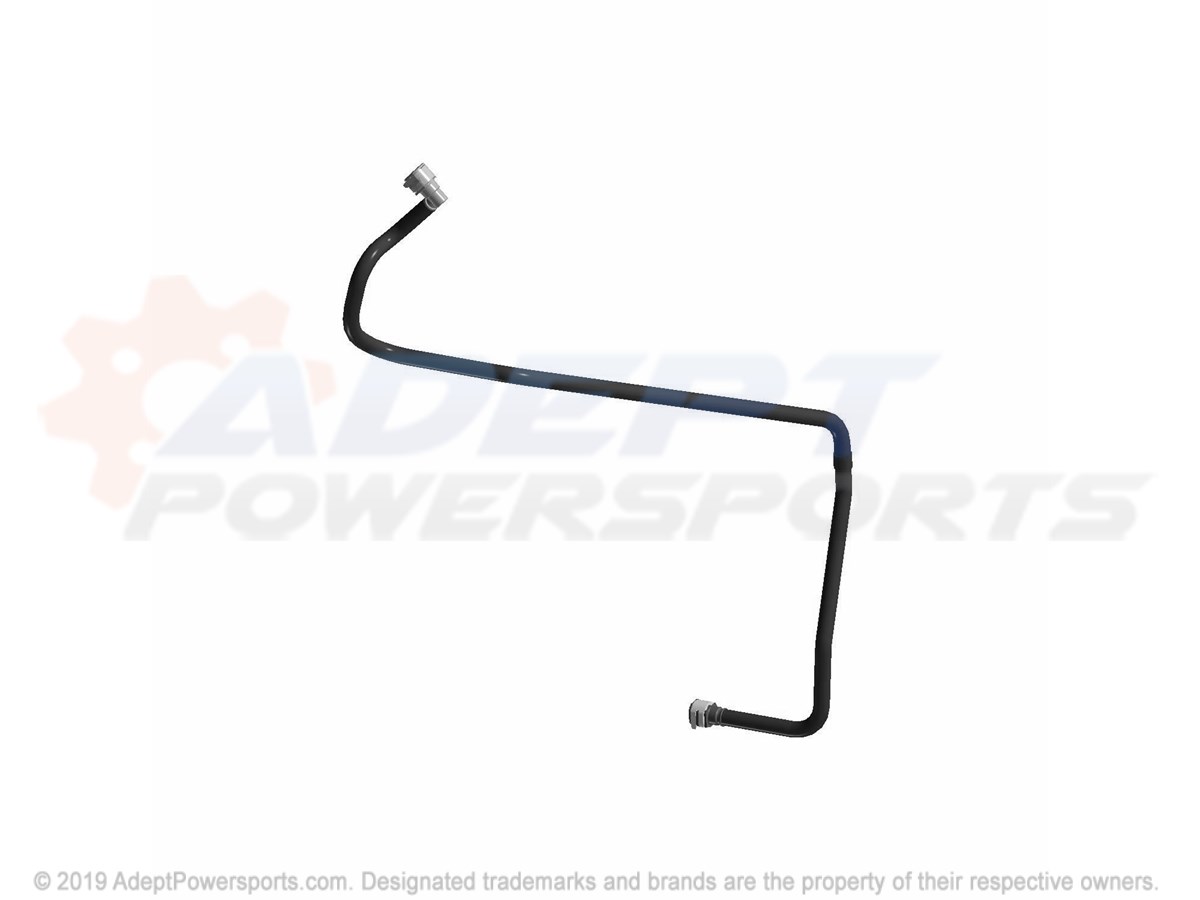

FUEL, LINE, 1/4"SAE, #30R7, 175CM

Part #: 8450040-175 Required per assembly: 1
Currently Not Available
6
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 1
Currently Not Available
7
Polaris 7081689 T-Clip T15

T-CLIP T15

Part #: 7081689 Required per assembly: 1
Currently Not Available
8

STRAP-CABLE TIE W/EDGE CLIP

Part #: 7082038 Required per assembly: 1
Currently Not Available
9
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 2
Currently Not Available
10

SCREW

Part #: 7518552 Required per assembly: 1
Currently Not Available
11
Polaris 5453464 Fitting-Vent, Line, 90

FITTING-VENT, LINE, 90

Part #: 5453464 Required per assembly: 1
Currently Not Available
12
Polaris 5455491-070 Cover-Pfa, Ace, Blk

COVER-PFA, ACE, BLK

Part #: 5455491-070 Required per assembly: 1
Currently Not Available
