Engine Mounting replacement parts for 2019 Polaris ACE 900 EPS XC (R05)

OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Engine Mounting

ENGINE MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

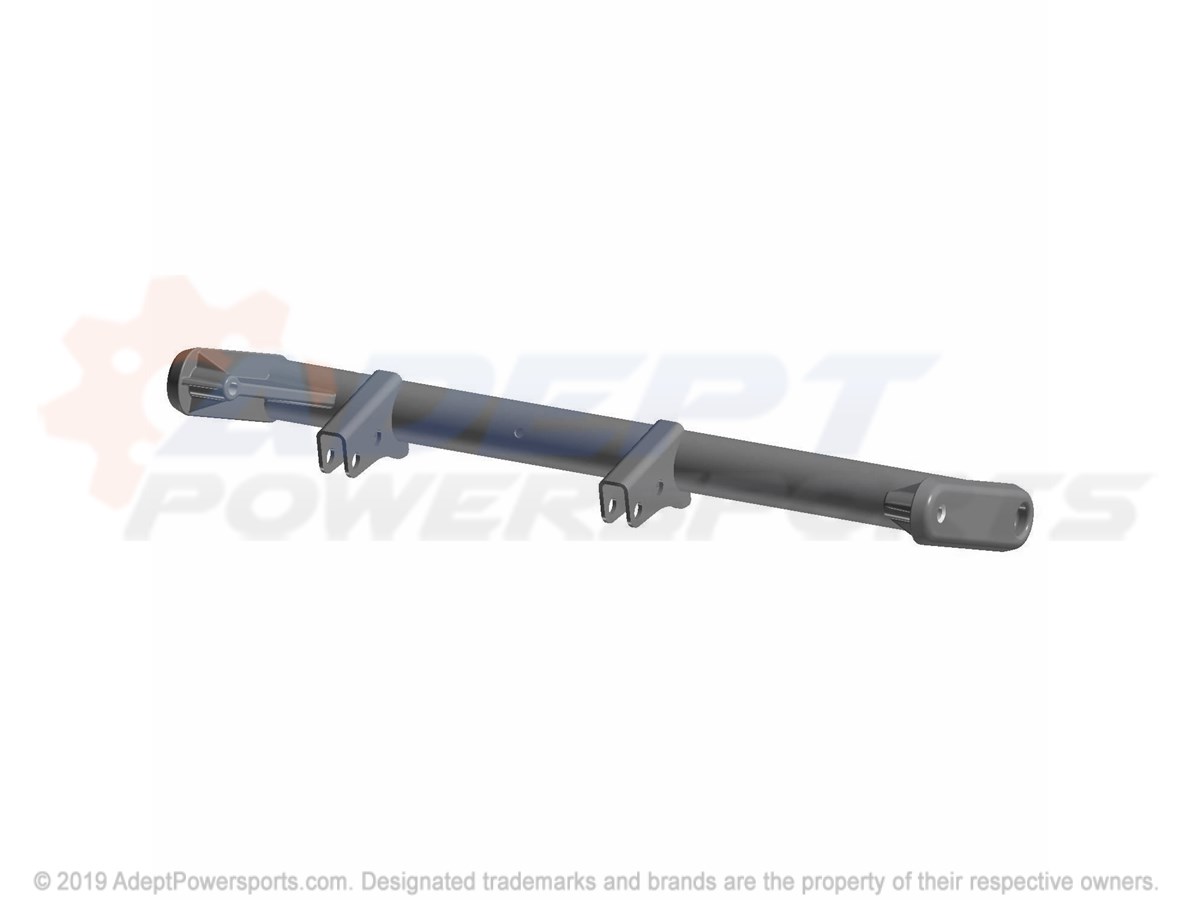

1	WELD-MOUNT, ENGINE, FRONT, E-COAT Part #: 1021392-329 Required per assembly: 1 Currently Not Available
2	BRKT-TRANSJOINT, MACH Part #: 5143718 Required per assembly: 1 Currently Not Available
3	BRACKET, COUPLER, TRANS Part #: 5255238 Required per assembly: 1 Currently Not Available
4	MOUNT-ISOLATOR DRIVELINE Part #: 1332955 Required per assembly: 3 Currently Not Available
5	BOLT, FLANGE Part #: 7518826 Required per assembly: 3 Currently Not Available
6	BOLT-M10X1.5X60MM8.8HEXDRILOCK Part #: 7520467 Required per assembly: 6 Currently Not Available
7	SCREW Part #: 7519097 Required per assembly: 6 Currently Not Available
8	SCR-HXFL-M10X1.25X40 8.8 ZOD Part #: 7519332 Required per assembly: 4 Currently Not Available
9	PALNUT Part #: 7547030 Required per assembly: 6 Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 6 Note: Nut, Nylok Currently Not Available
11	NUT, FLANGE Part #: 7547333 Required per assembly: 5 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
12	SCREW Part #: 7519043 Required per assembly: 2 Note: Bolt $9.99 $5.75 - + Add to cart
13	SCREW, FLANGE Part #: 7519298 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7518595 Required per assembly: 4 Note: Bolt, Flange Currently Not Available

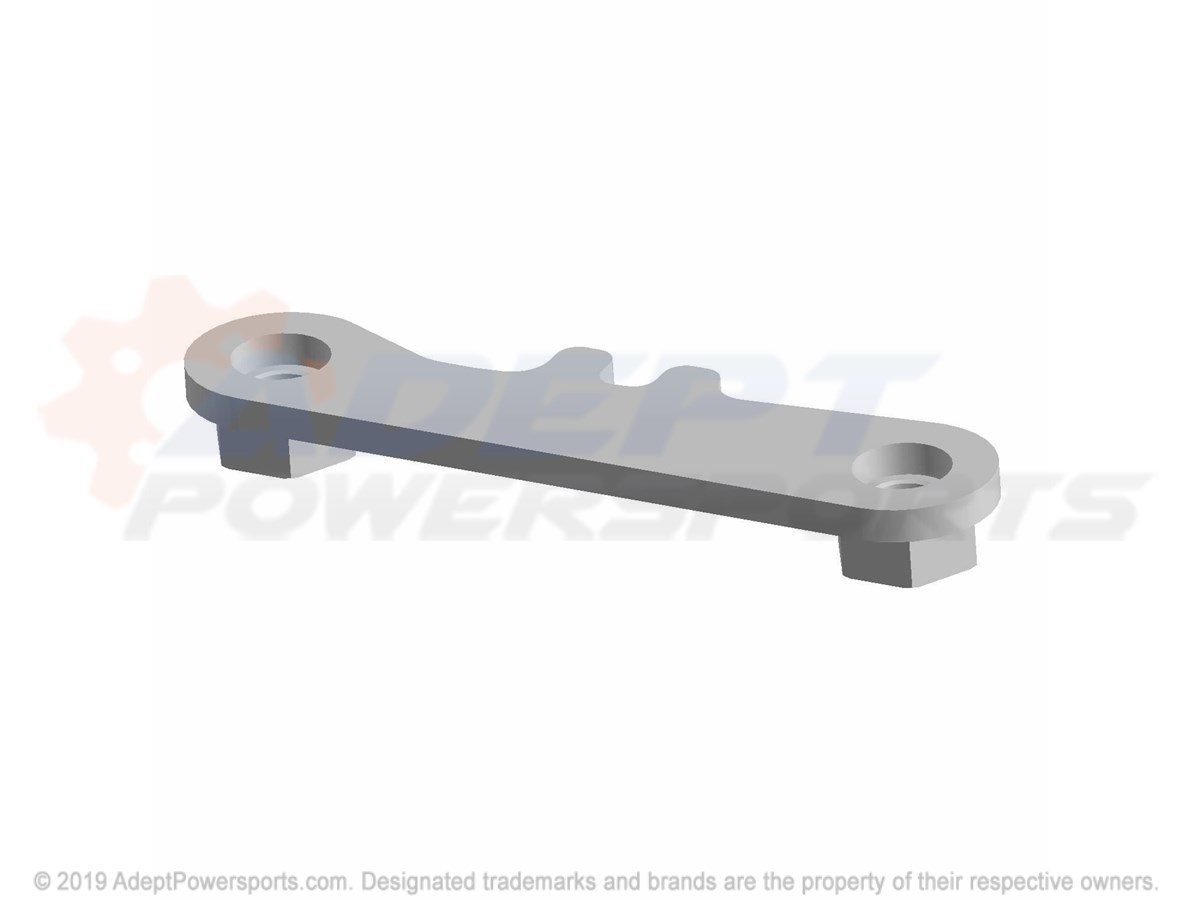

15	WELD-NUT, PLATE Part #: 5259964 Required per assembly: 1 Currently Not Available
16	K-LONG BLOCK 875 ACE Part #: 2207362 Required per assembly: 1 Currently Not Available
17	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer $3.99 $2.30 - + Add to cart

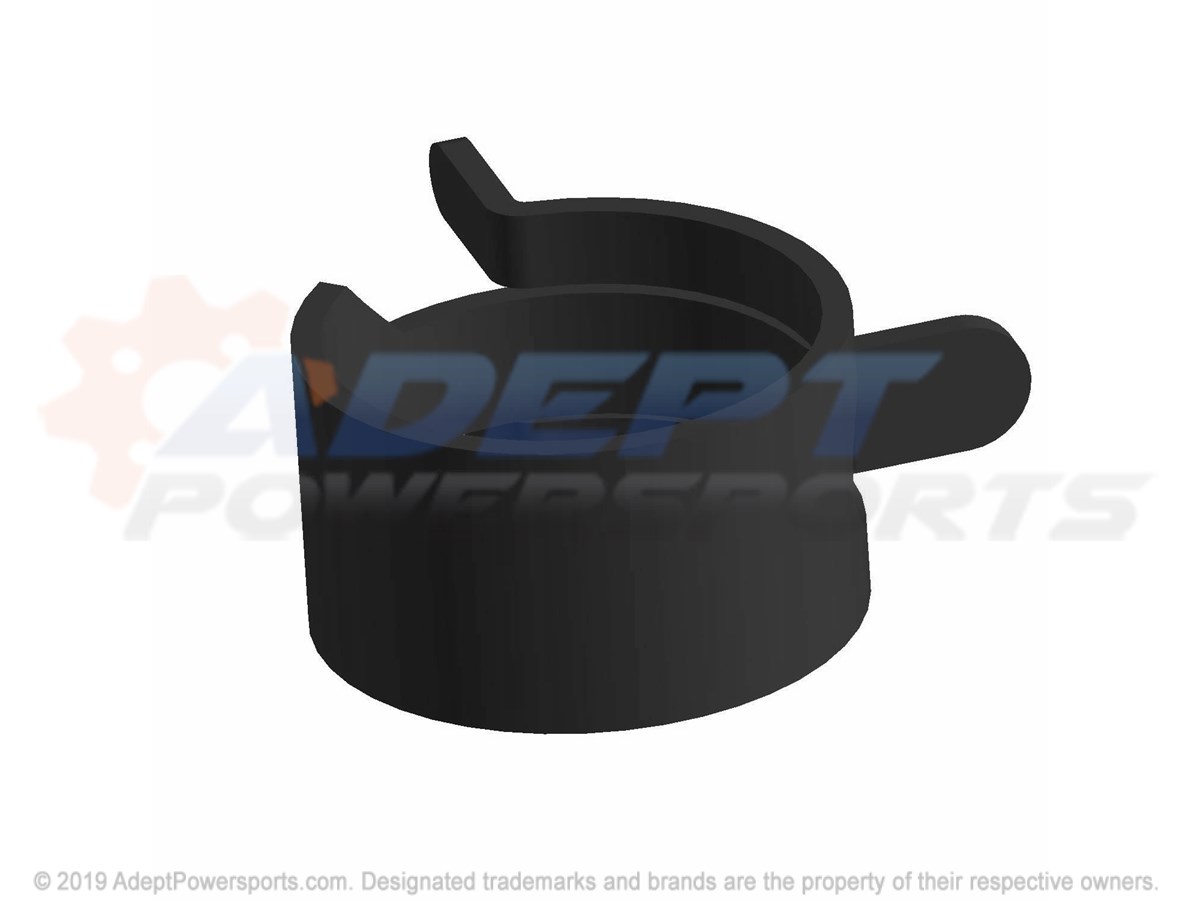

18	CLAMP, HOSE Part #: 7081432 Required per assembly: 1 Currently Not Available
19	FUEL, LINE, 1/4, ID(600, CM.) Part #: 8450040-600 Currently Not Available
20	FITTING-VENT, LINE, 90 Part #: 5453464 Required per assembly: 1 Currently Not Available
