Air Intake System replacement parts for 2019 Polaris ACE 900 EPS XC (R05)

OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Air Intake System

AIR INTAKE SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

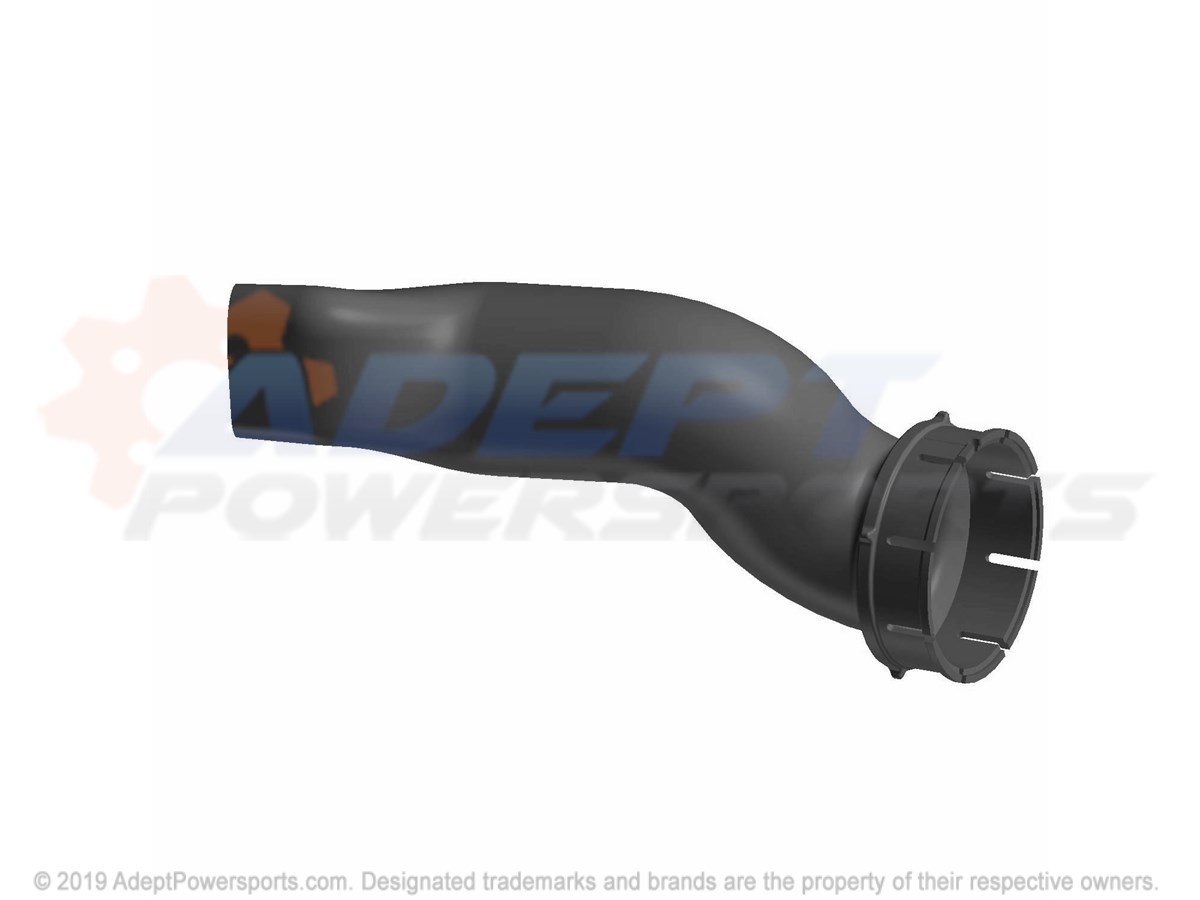

1	DUCT-INTAKE, AIRBOX Part #: 5452344 Required per assembly: 1 Currently Not Available
2	BOX-INTAKE, ENGINE, RH Part #: 5450728 Required per assembly: 1 Currently Not Available
3	CLAMP, HOSE Part #: 7080439 Required per assembly: 2 Currently Not Available
4	PLUG, DRAIN Part #: 5414472 Required per assembly: 2 Currently Not Available
5	SEAL-INTAKE, AIRBOX Part #: 5415155 Required per assembly: 1 Currently Not Available
6	COVER-AIRBOX Part #: 5451097 Required per assembly: 1 Currently Not Available
7	AIRBOX Part #: 5451098 Required per assembly: 1 Currently Not Available
8	STRAP-AIRBOX Part #: 5451099 Required per assembly: 2 Currently Not Available
9	SEAL-AIRBOX Part #: 5815300 Required per assembly: 1 Currently Not Available
10	K-FILTER, AIR, ULTRA, PERF, APX Part #: 2882233 Required per assembly: 1 Note: OPT Currently Not Available
10	FILTER-AIR Part #: 7082115 Required per assembly: 1 Note: STD Currently Not Available
11	NUT, U-TYPE Part #: 7547674 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
12	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
13	SCREW Part #: 7519650 Required per assembly: 1 Currently Not Available

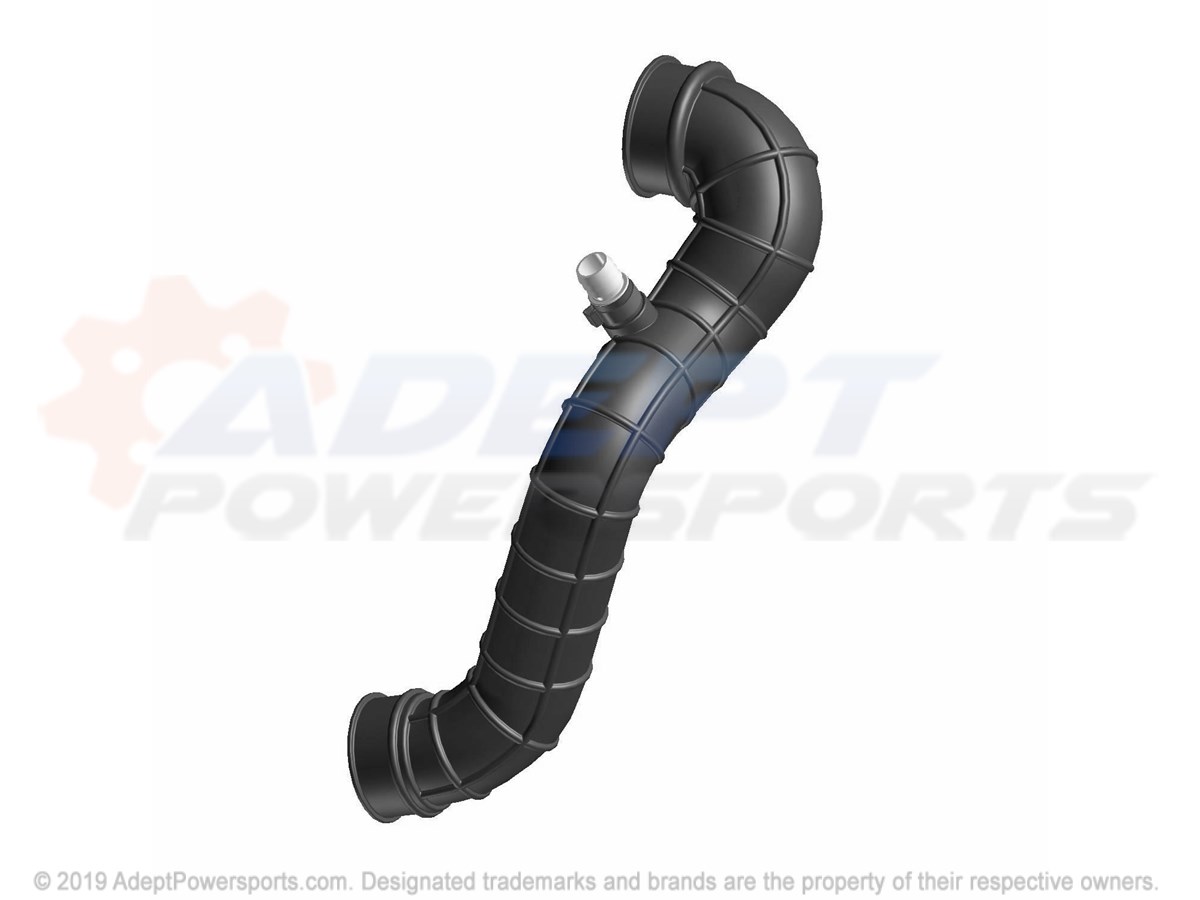

14	ASM-INTAKE DUCT Part #: 1240975 Required per assembly: 1 Currently Not Available
15	DUCT-INTAKE, ENG Part #: 5452345 Required per assembly: 1 Currently Not Available
16	FITTING-3/4 DOUBLE BARB Part #: 7052580 Required per assembly: 1 Currently Not Available
17	CLAMP-HOSE Part #: 7081903 Required per assembly: 1 Currently Not Available

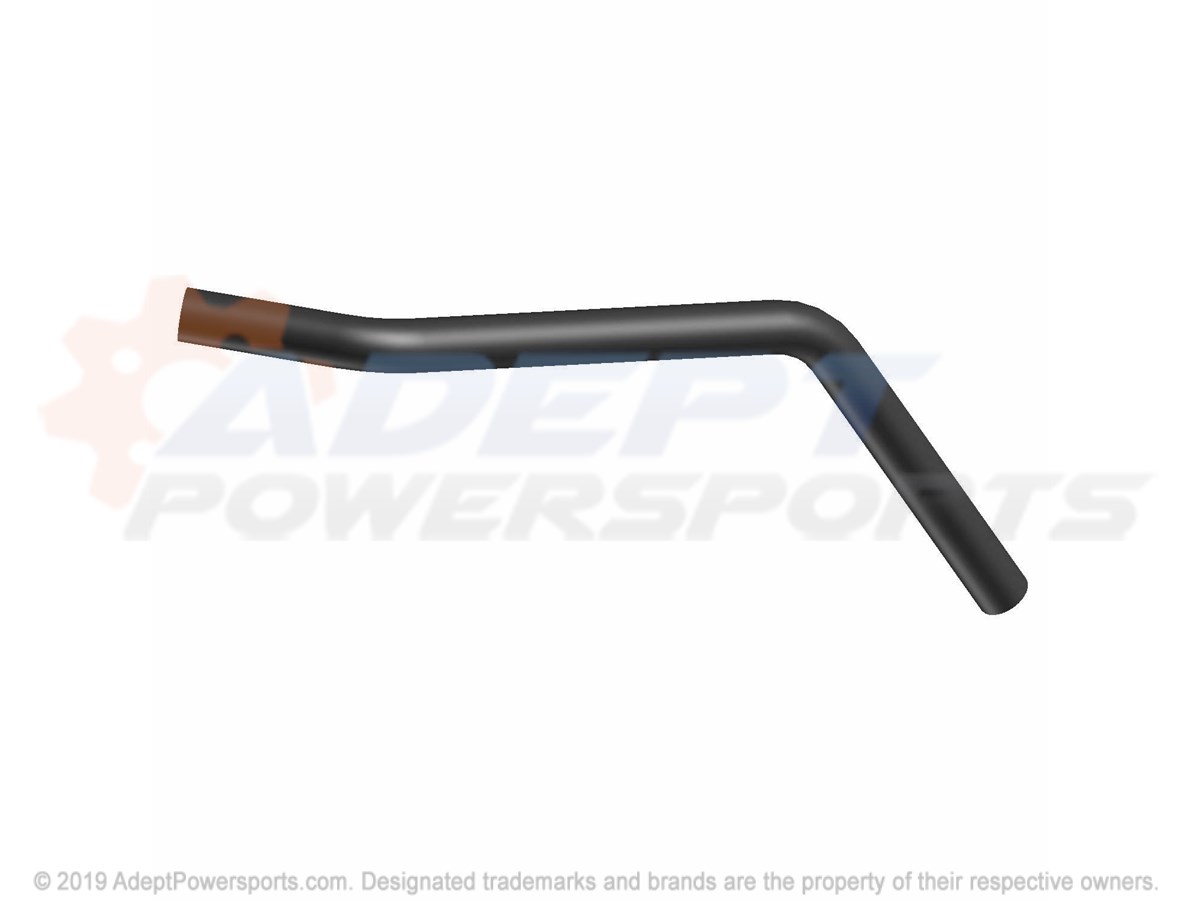

18	HOSE-VENT, ENG Part #: 5415564 Required per assembly: 1 Currently Not Available
19	CLAMP, HOSE, Part #: 7080614 Required per assembly: 1 Note: Clamp, Hose Currently Not Available
20	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 1 Currently Not Available
21	SEAL-FOAM, ADHESIVE Part #: 5814033 Required per assembly: 1 ~~$24.99~~ $14.65 - + Add to cart
22	FILTER-INTAKE, FOAM Part #: 5814026 Required per assembly: 1 Currently Not Available
23	CLIP, PLASTIC, DART, NYLON Part #: 7670088 Required per assembly: 1 Currently Not Available
24	CLAMP, HOSE Part #: 7080446 Required per assembly: 1 Currently Not Available
25	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
