OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Rear Half Shaft

2019 Polaris ACE 900 EPS XC (R05) A19DCE87AK - Rear Half Shaft

REAR HALF SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

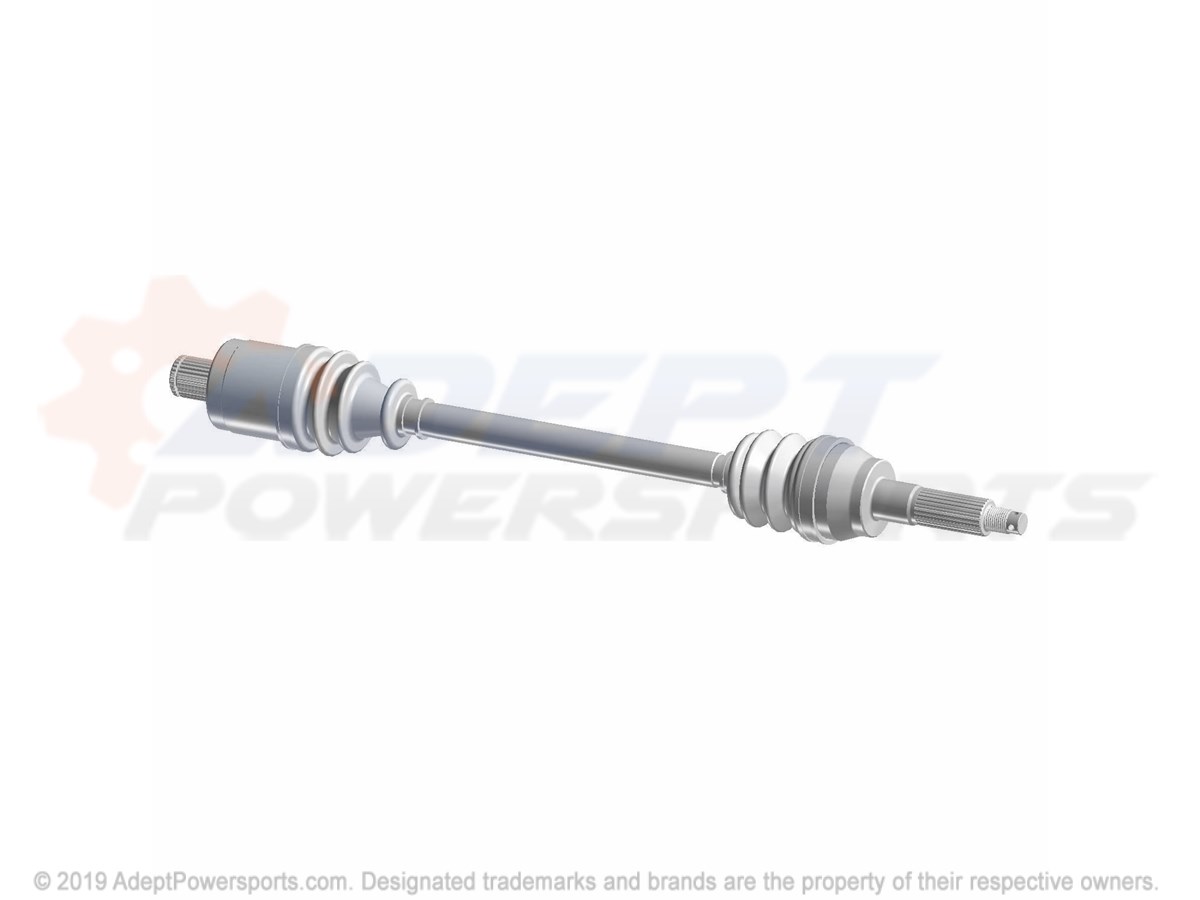

Polaris 1333789 Asm-Halfshaft, Rear, Hs

ASM-HALFSHAFT, REAR, HS

Part #: 1333789 Required per assembly: 2
Currently Not Available
2

BOOT KIT(LCM-20190F1)

Part #: 2206590 Required per assembly: 1
Currently Not Available
3

BAR(LCM-20190F2)

Part #: 2206591 Required per assembly: 1
Currently Not Available
4

INNER JOINT(LCM-6112)

Part #: 2206592 Required per assembly: 1
Currently Not Available
5

CLIP-INNER JOINT

Part #: 3235780 Required per assembly: 1
Currently Not Available
6

CLIP-INNER JOINT

Part #: 3236015 Required per assembly: 1
Currently Not Available
7

BOOT KIT(SP ONLY)

Part #: 3235934 Required per assembly: 1
Currently Not Available
8

K-CV OUTER JOINT

Part #: 2207668 Required per assembly: 1
Currently Not Available
