Cooling System replacement parts for 2019 Polaris ACE 900 EPS XC (R05)

OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Cooling System

COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-RADIATOR, CORE Part #: 1241093 Required per assembly: 1 Currently Not Available
2	ASSEMBLY, FAN Part #: 2410413 Required per assembly: 1 Currently Not Available
3	SHROUD-FAN, RADIATOR Part #: 5453434 Required per assembly: 1 Currently Not Available
5	U-CLIP Part #: 7547366 Required per assembly: 4 Note: Clip, U $5.39 $3.89 - + Add to cart
6	CAP, PRESSURE Part #: 1240300 Required per assembly: 1 Currently Not Available

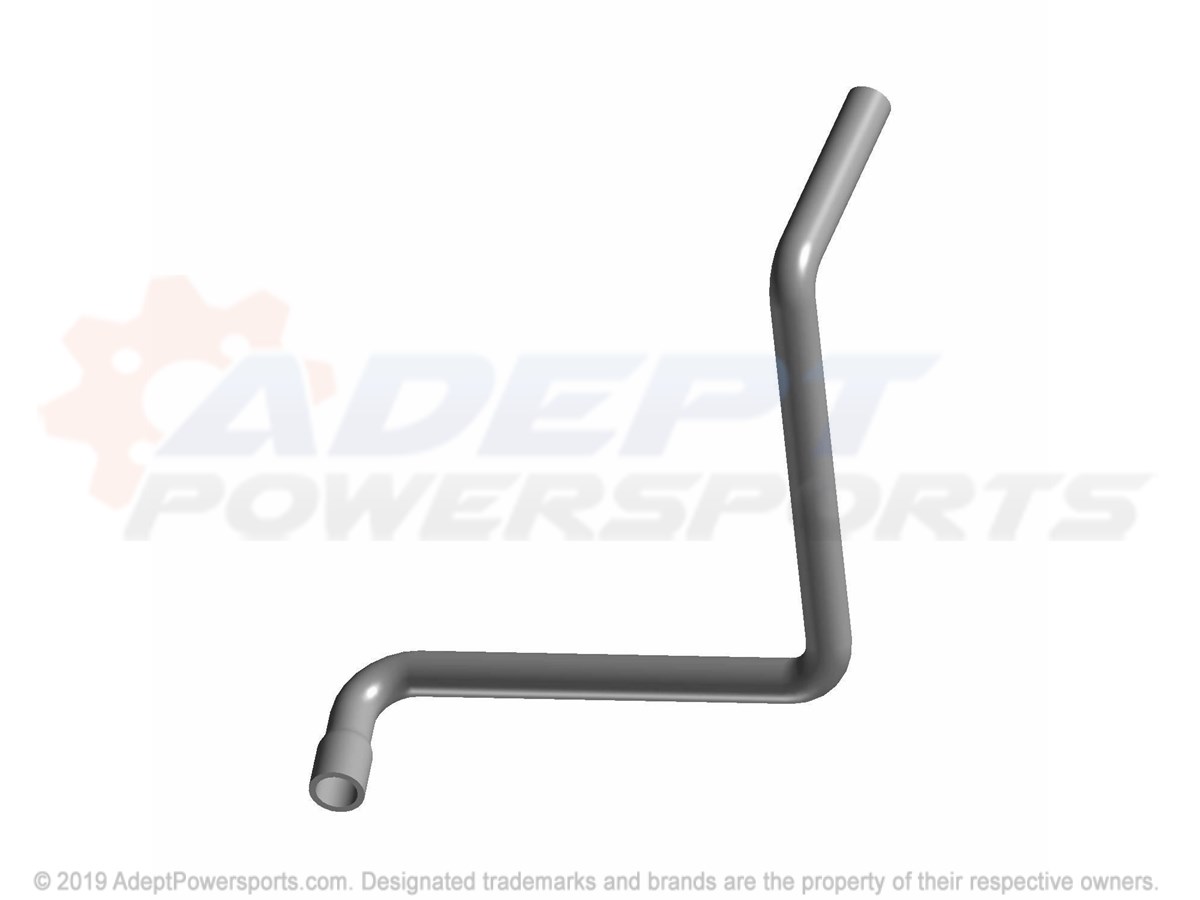

7	TUBE-COOLANT, 3/4, ENG, IN Part #: 5140812 Required per assembly: 1 Currently Not Available
8	HOSE-RADIATOR, COOLANT, IN Part #: 5416015 Required per assembly: 1 Currently Not Available
9	HOSE-COOLANT, FRONT Part #: 5416006 Required per assembly: 1 Currently Not Available
10	HOSE-COOLANT, FRONT Part #: 5416053 Required per assembly: 1 Currently Not Available
11	HOSE-COOLANT, REAR, ENG, IN Part #: 5415528 Required per assembly: 1 Currently Not Available
12	CONNECTOR, TEE, 3/4" Part #: 7052093 Required per assembly: 1 Currently Not Available
13	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 7 Currently Not Available
14	TUBE-COOLANT, 3/4, ENG, OUT Part #: 5140811 Required per assembly: 1 Currently Not Available
15	HOSE-RADIATOR, COOLANT, OUT Part #: 5416014 Required per assembly: 1 Currently Not Available
16	HOSE-COOLANT, REAR, ENG, OUT Part #: 5415527 Required per assembly: 1 Currently Not Available
17	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 2 Currently Not Available
18	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
19	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart
20	TANK-COOLANT Part #: 5452401 Required per assembly: 1 Currently Not Available
21	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart

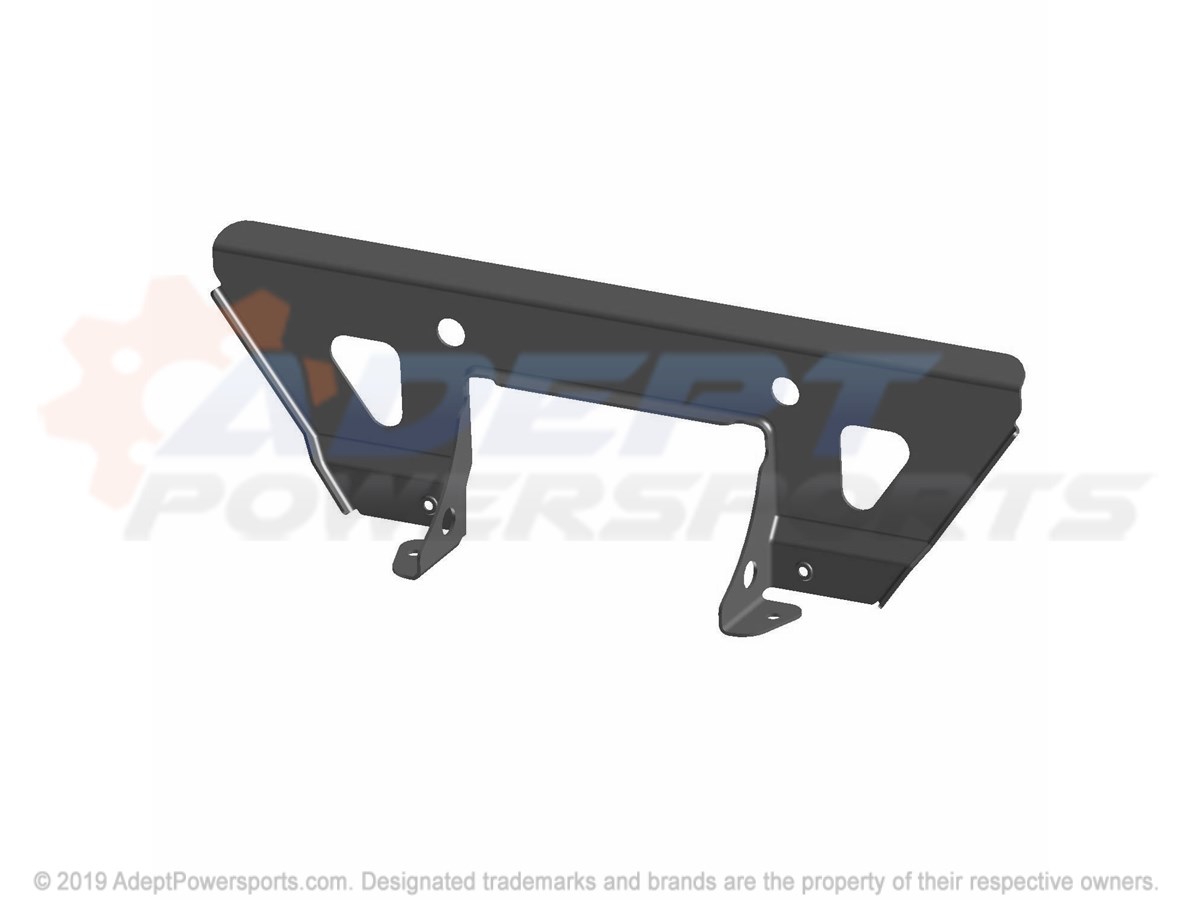

23	MNT-RADIATOR, LOWER, ECOAT Part #: 5262812-329 Required per assembly: 1 Currently Not Available
24	CLAMP-COOLANT LINES Part #: 5258169 Required per assembly: 1 Currently Not Available
25	PAD, BATTERY Part #: 5810290 Required per assembly: 1 Currently Not Available
26	MNT-RADIATOR, UPPER, E-COAT Part #: 5262813-329 Required per assembly: 1 Currently Not Available
27	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available

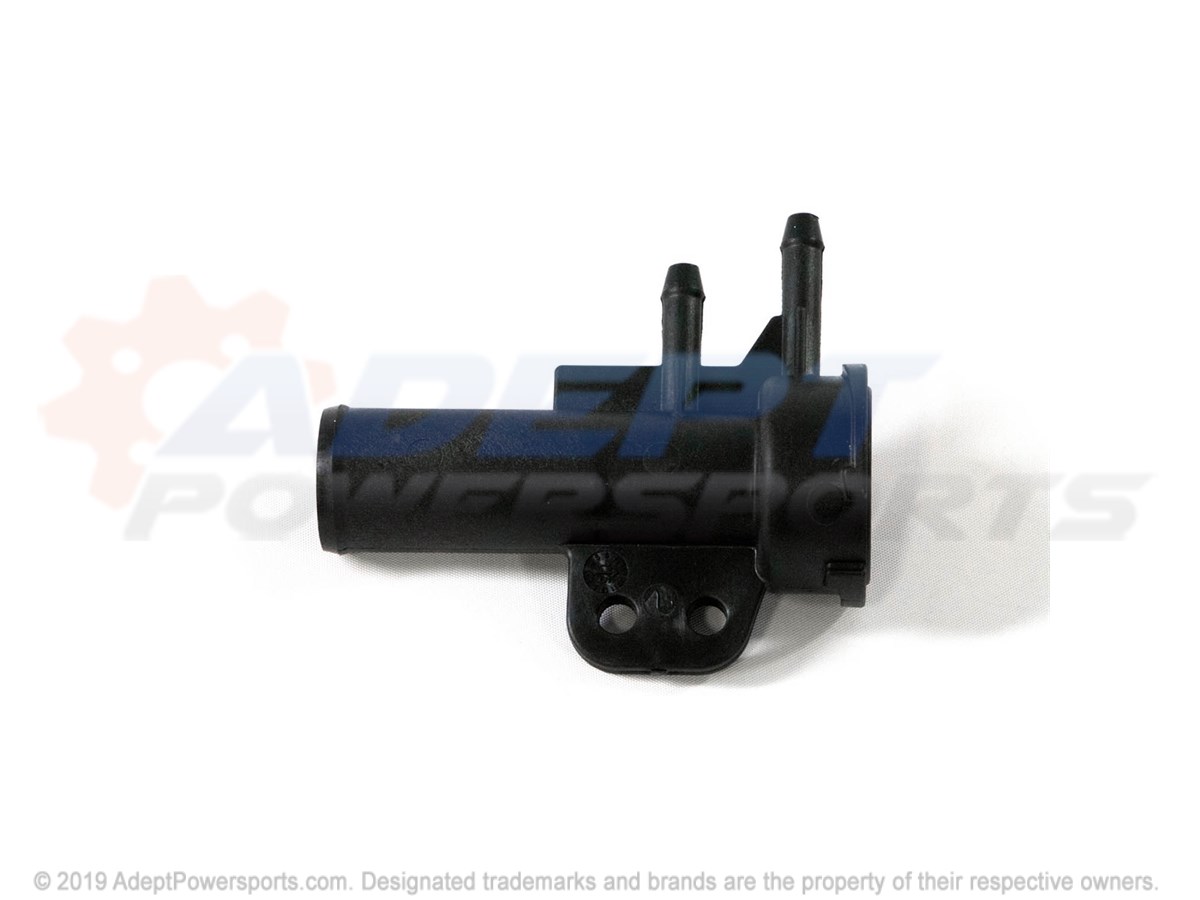

28	FILLER-REMOTE COOLANT SMALL Part #: 5439079 Required per assembly: 1 Currently Not Available
29	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 3 Note: Cable Tie Currently Not Available
30	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 3 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
32	SCREW Part #: 7518529 Required per assembly: 14 $2.99 $1.73 - + Add to cart
33	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 $4.04 $2.91 - + Add to cart

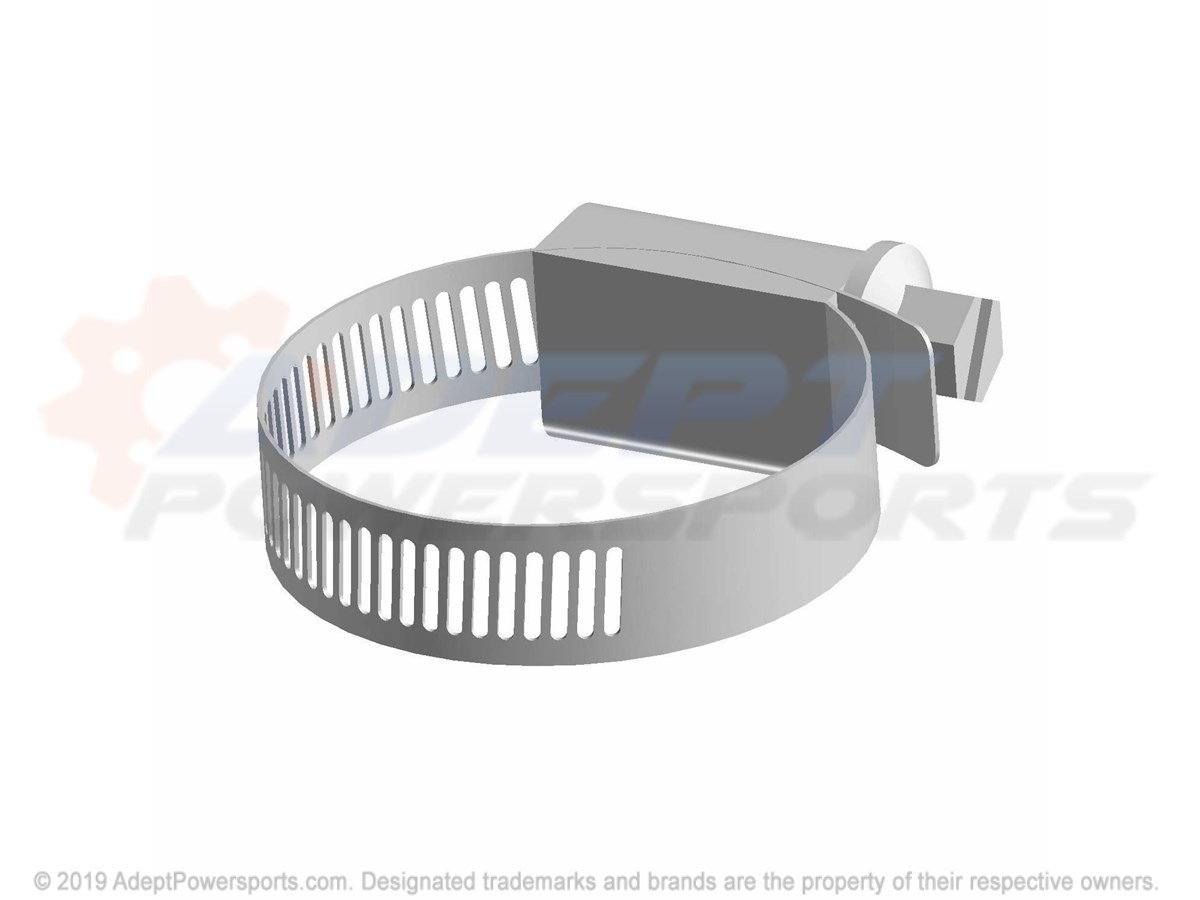

34	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
35	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
36	LINE, FUEL Part #: 8450120-40 Required per assembly: 1 Currently Not Available
37	CABLE, TIE, EVAP Part #: 7080924 Required per assembly: 1 Currently Not Available
38	SCR-TXPH-#14X3/4 HI/LO CLR Part #: 7519290 Required per assembly: 2 Currently Not Available

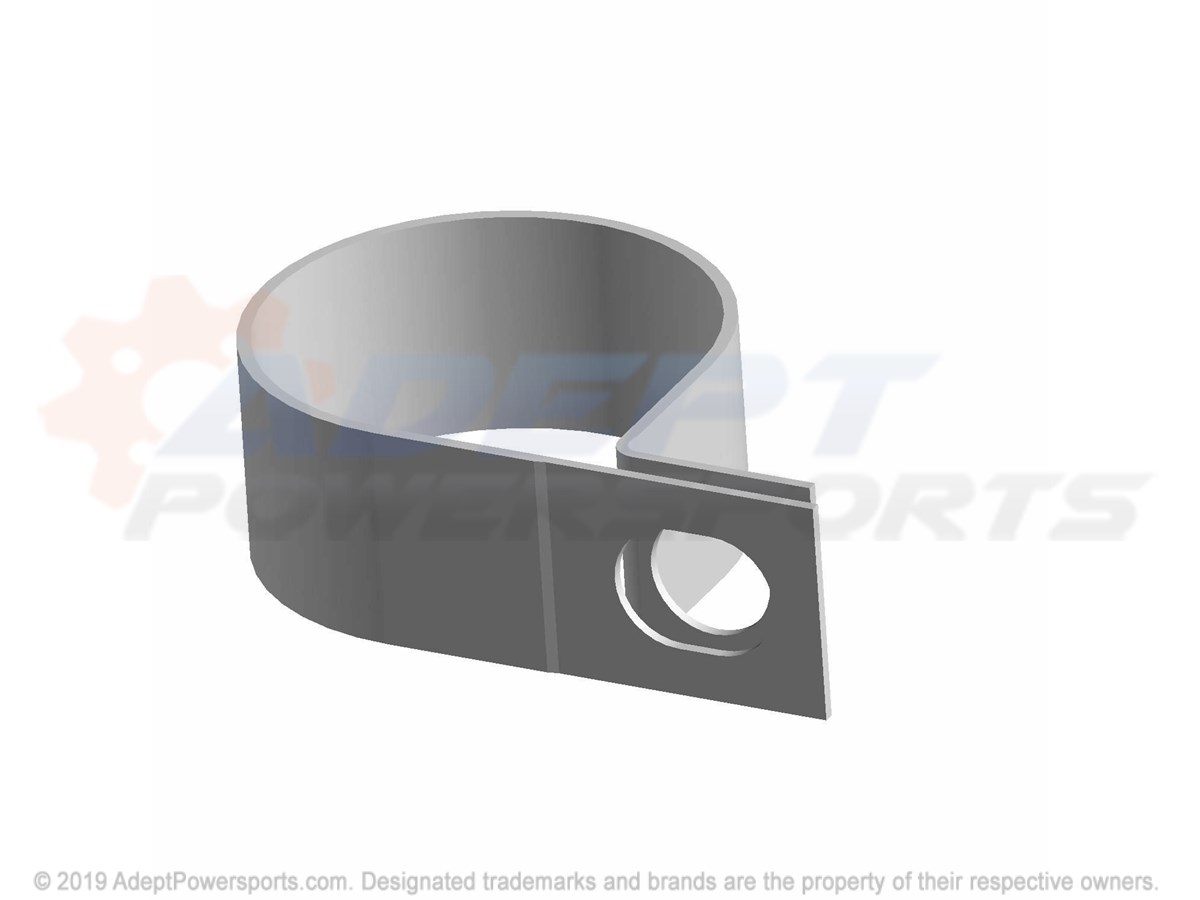

39	CLAMP, VINYL, COATED Part #: 7081854 Required per assembly: 1 Currently Not Available
40	BRKT-HOSE, COOLANT, ACE Part #: 5267081 Required per assembly: 1 Currently Not Available
