Rear Control Arms replacement parts for 2019 Polaris ACE 900 EPS XC (R05)

OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Rear Control Arms

REAR CONTROL ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

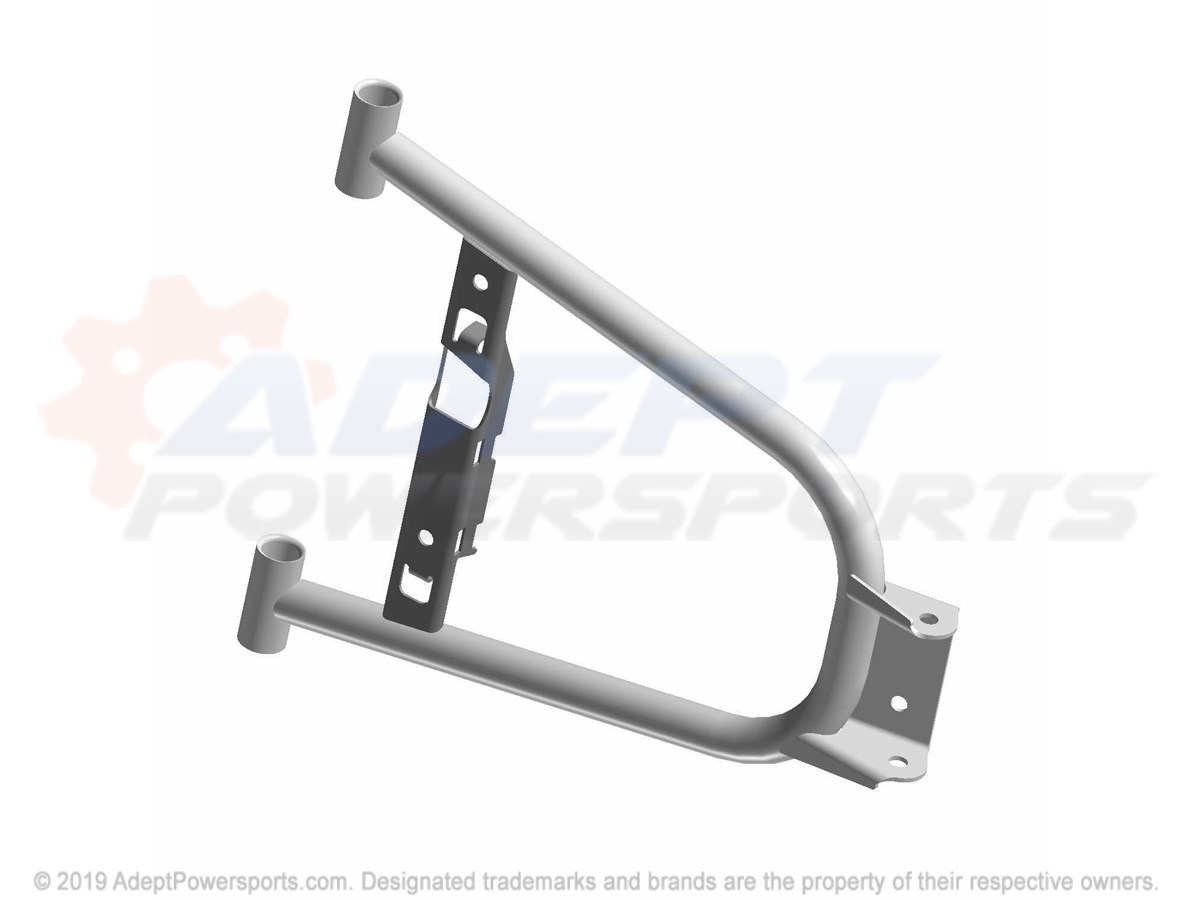

1	WELD-CONTROL, ARM, RR, UPR, LH, RED Part #: 1022819-293 Required per assembly: 1 Currently Not Available

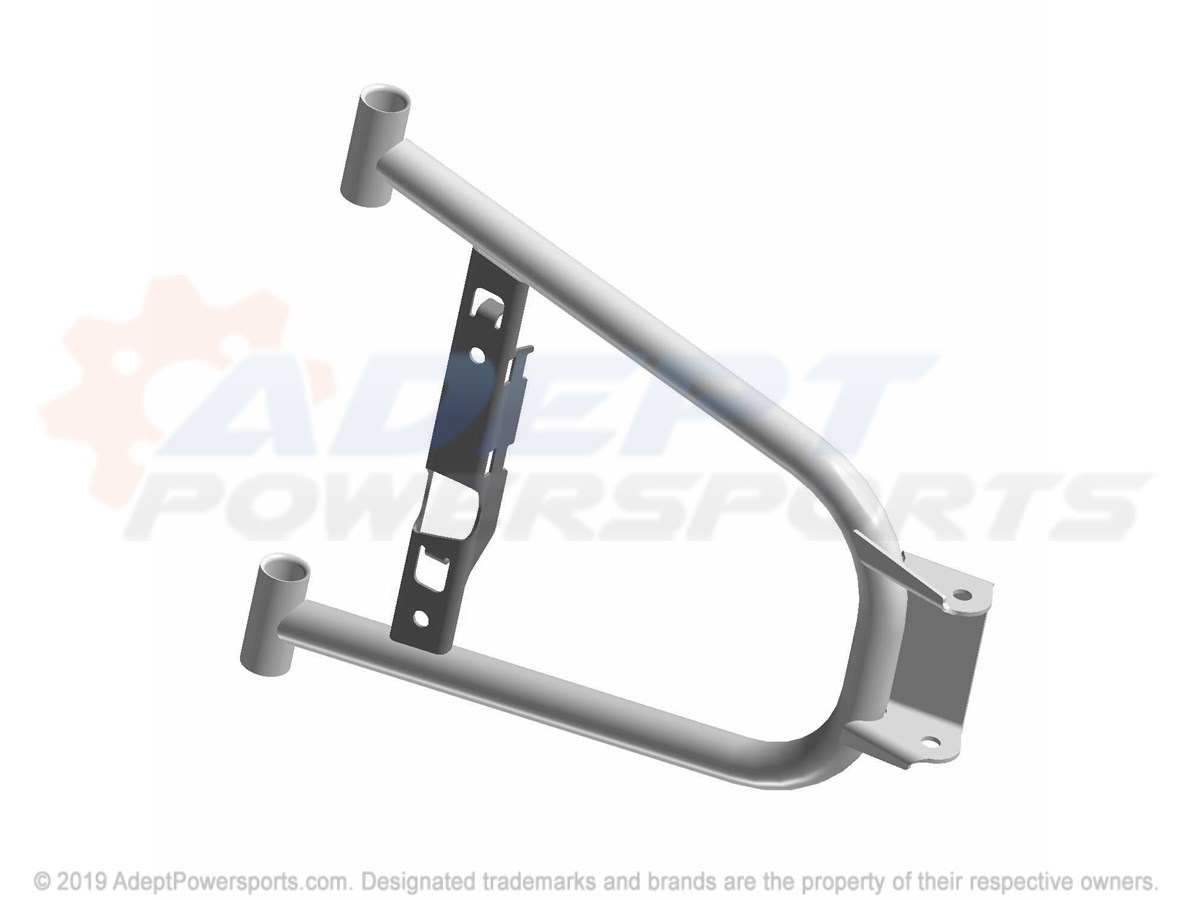

2	WELD-CONTROL, ARM, RR, UPR, RH, RED Part #: 1022820-293 Required per assembly: 1 Currently Not Available
3	SHAFT, PIVOT Part #: 5138794 Required per assembly: 2 Currently Not Available
4	WASHER, FLAT Part #: 7556153 Required per assembly: 12 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
5	SCREW Part #: 7519365 Required per assembly: 2 Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart

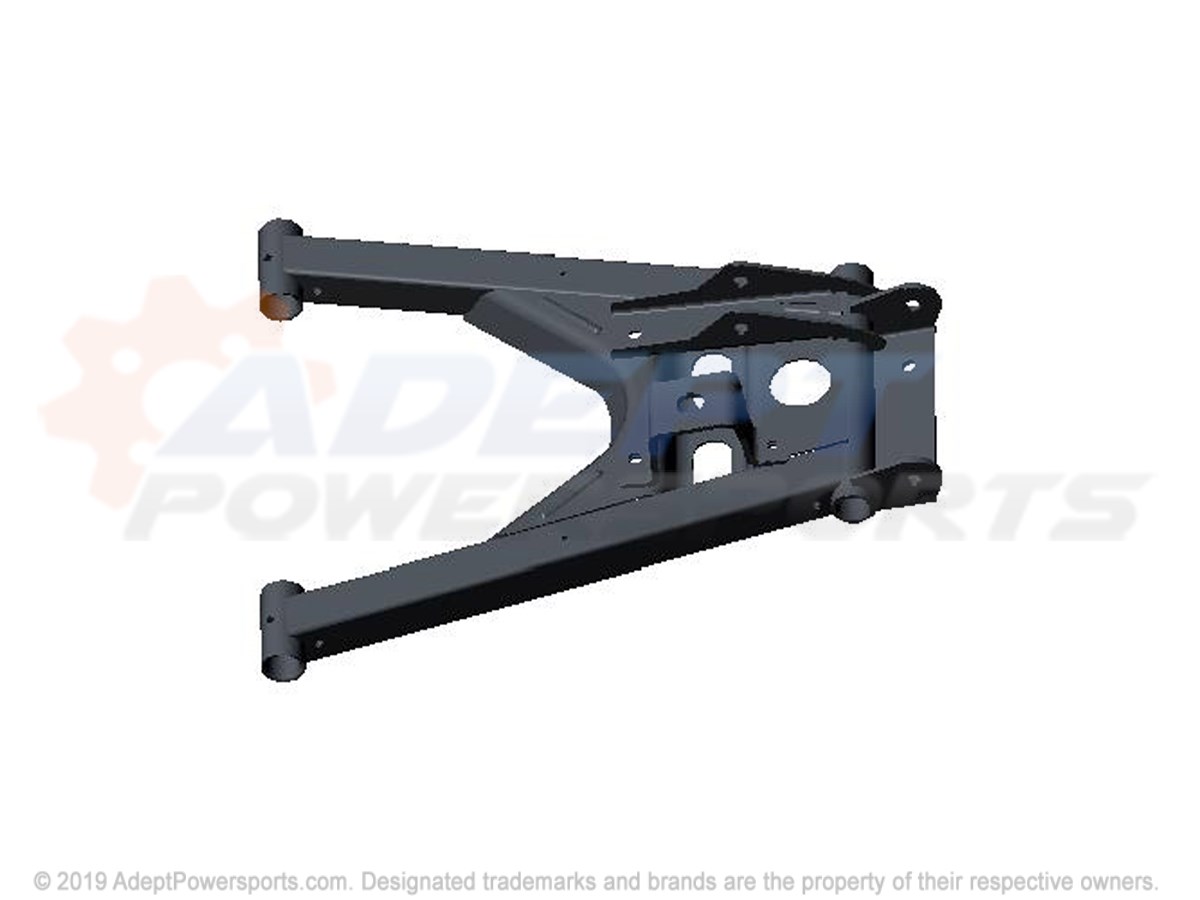

7	WELD-CNTRL, ARM, REAR, LWR, LH, RED Part #: 1018460-293 Required per assembly: 1 Currently Not Available
8	WELD-CNTRL, ARM, REAR, LWR, RH, RED Part #: 1018461-293 Required per assembly: 1 Currently Not Available
9	SHAFT, PIVOT Part #: 5138797 Required per assembly: 8 Currently Not Available
10	BUSHING Part #: 5439874 Required per assembly: 24 Currently Not Available
11	SCREW Part #: 7519043 Required per assembly: 8 Note: Bolt Currently Not Available
12	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 8 Note: FITTING, ZERK (90o) Currently Not Available
13	SCREW Part #: 7519042 Required per assembly: 2 Currently Not Available
14	SHAFT, PIVOT Part #: 5138796 Required per assembly: 2 Currently Not Available
