Rear Rack And Fenders replacement parts for 2019 Polaris ACE 900 EPS XC (R05)

OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Rear Rack And Fenders

REAR RACK AND FENDERS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOX-CARGO, REAR, BLK Part #: 5454129-070 Required per assembly: 1 Currently Not Available

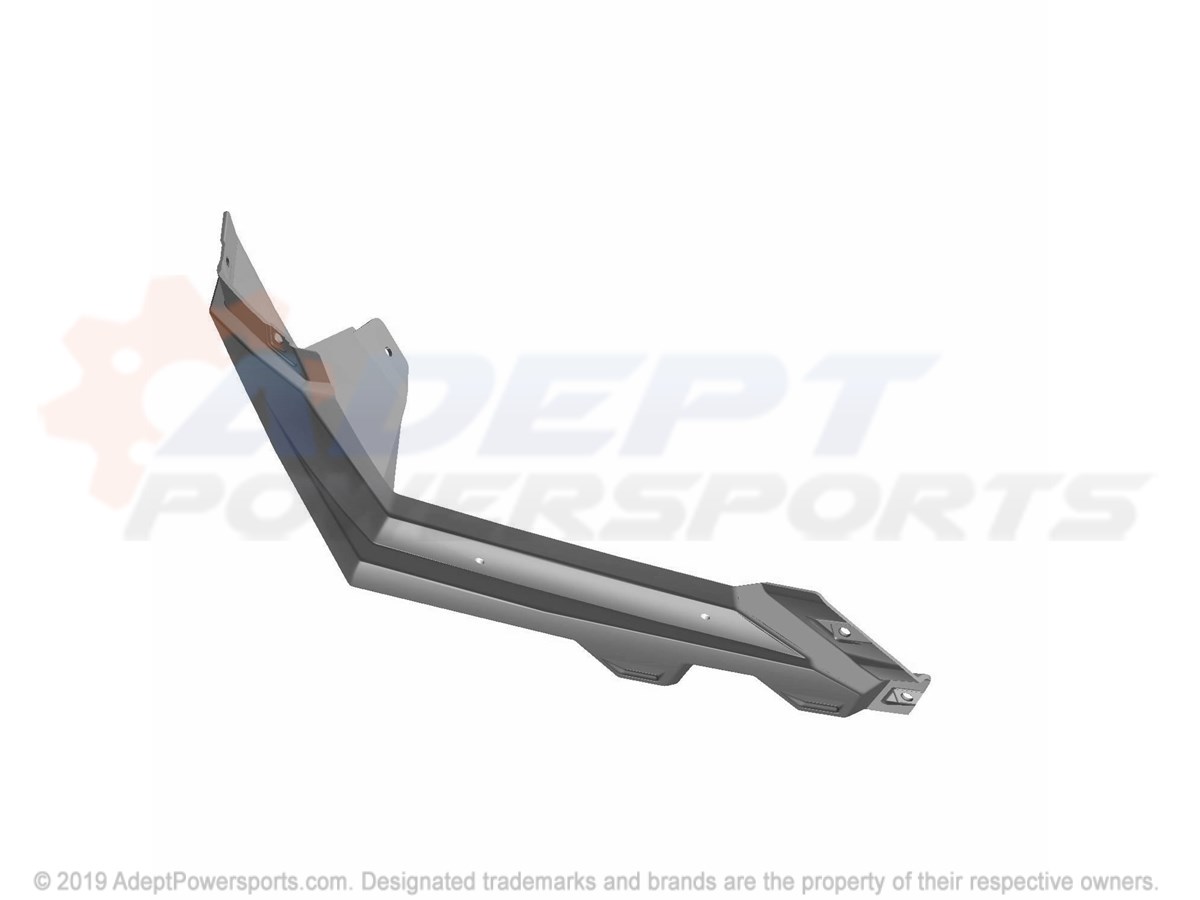

2	FENDER-RR, LH, MOD, PNTD, BLK, PRL Part #: 5453700-666 Required per assembly: 1 Currently Not Available

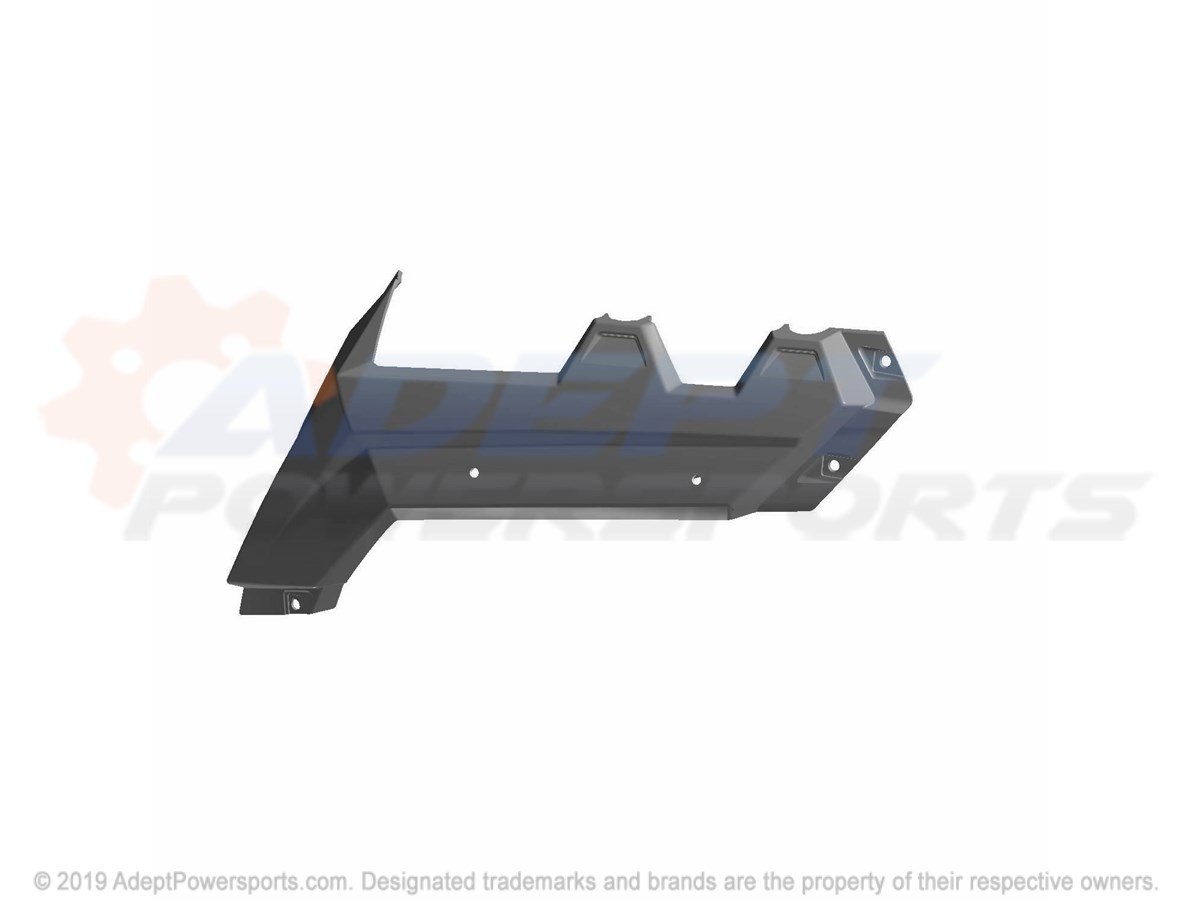

3	FENDER-RR, RH, MOD, PNTD, BLK, PRL Part #: 5453701-666 Required per assembly: 1 Currently Not Available
4	ASM-PANEL, CLOSE-OFF Part #: 2636632 Required per assembly: 1 Note: INCl. 12,15,16,17 Currently Not Available
5	BOX-MAINT, PANEL, REMOVABLE, BLK Part #: 5452377-070 Required per assembly: 1 Currently Not Available
6	PANEL-UNDERSEAT, COVER, LH, BLK Part #: 5450299-070 Required per assembly: 1 Currently Not Available
7	PANEL-UNDERSEAT, COVER, RH, BLK Part #: 5454089-070 Required per assembly: 1 Currently Not Available
8	GRILL-INTAKE, COVER, LH, BLK Part #: 5450392-070 Required per assembly: 1 Currently Not Available
9	GRILL-INTAKE, COVER, RH, BLK Part #: 5450393-070 Required per assembly: 1 Currently Not Available
10	GROMMET Part #: 5412507 Required per assembly: 2 Currently Not Available
11	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
12	SHIELD-CLOSE OFF PANEL Part #: 5814322 Required per assembly: 4 Currently Not Available
13	SCREW Part #: 7519650 Required per assembly: 21 Currently Not Available
14	NUT, U-TYPE Part #: 7547674 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
15	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
16	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
17	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
