2019 Polaris ACE 900 EPS XC (R05) A19DCE87AK - Rear Shock Mounting

REAR SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5137876 Bushing-Reducer .500X.398 Zyw

BUSHING-REDUCER .500X.398 ZYW

Part #: 5137876 Required per assembly: 4
$7.99
$4.60
-
+
Add to cart
2
Polaris 5137877 Bushing-Reducer 10Mm Wide Zyw

BUSHING-REDUCER 10MM WIDE ZYW

Part #: 5137877 Required per assembly: 4
Currently Not Available
3
Polaris 5416057 O-Ring, 0.591Idx.171, Blk

O-RING, 0.591IDX.171, BLK

Part #: 5416057 Required per assembly: 8
Currently Not Available
4

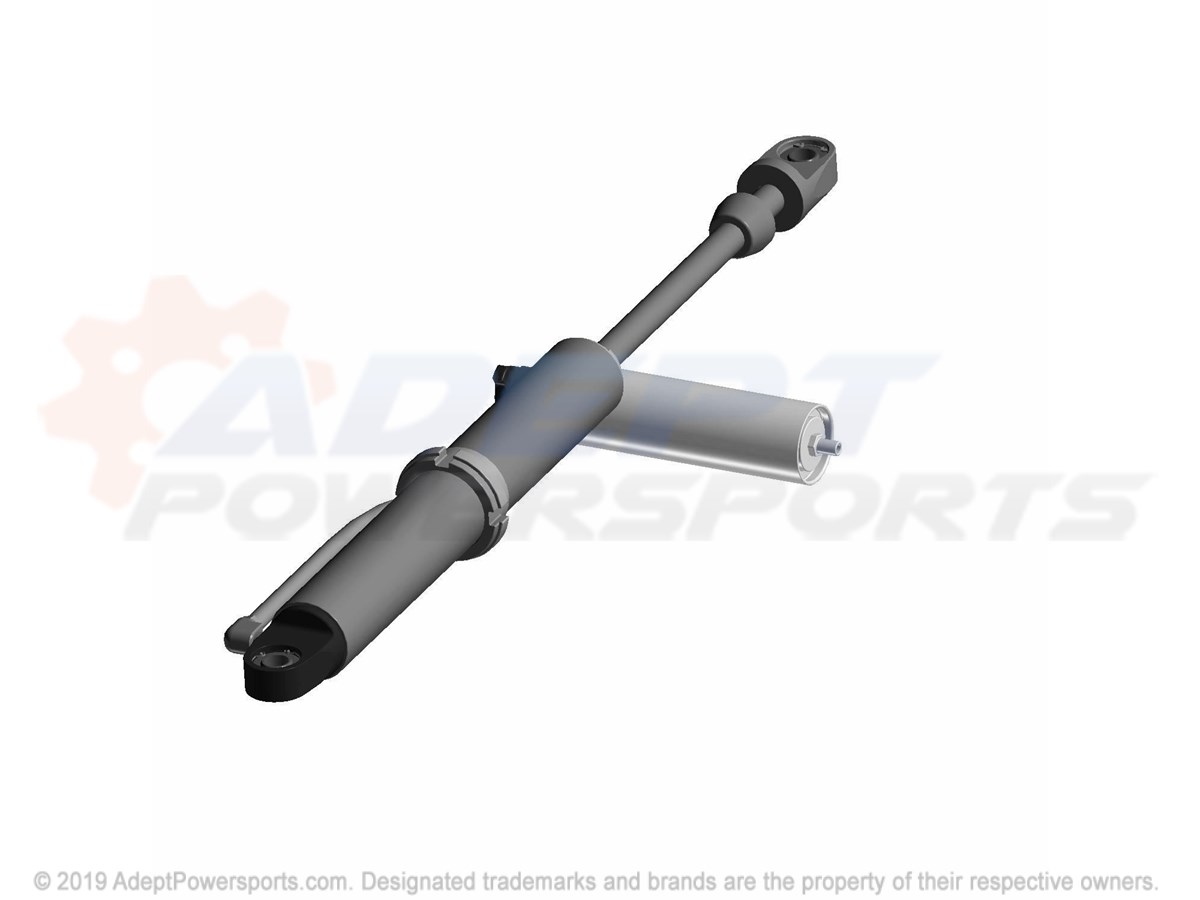

Polaris 7044676 Shock-Rear, We, 1.5"

SHOCK-REAR, WE, 1.5"

Part #: 7044676 Required per assembly: 2
Currently Not Available
5
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
6
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
7
Polaris 5436643 Spacer, Nylon

SPACER, NYLON

Part #: 5436643 Required per assembly: 4 Note: Spacer, Spring
Currently Not Available
8
Polaris 5020618 Retainer, Spring, Slotted

RETAINER, SPRING, SLOTTED

Part #: 5020618 Required per assembly: 2
$41.86
$27.16
-
+
Add to cart
9

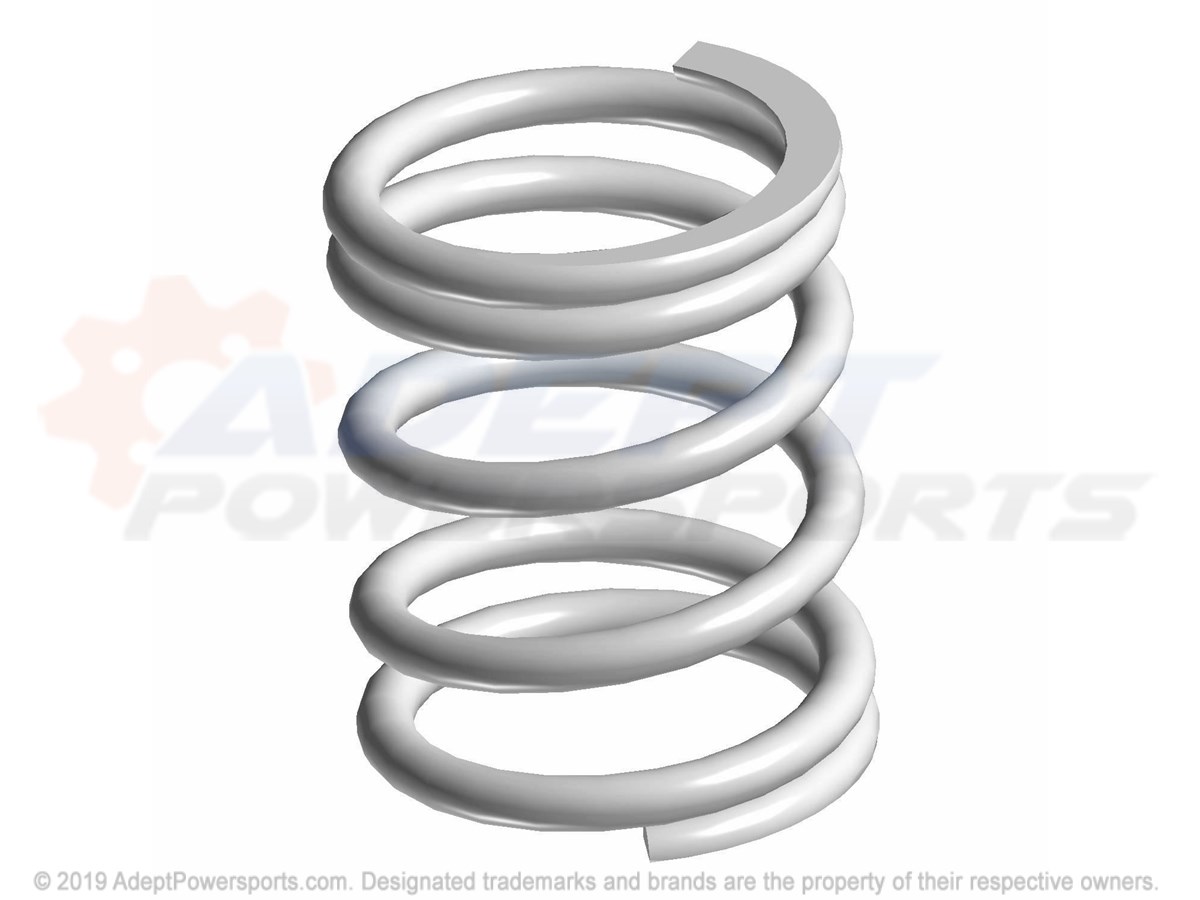

Polaris 7044678-293 Spr-210#, 11.05Fl, 1.88, I.Red

SPR-210#, 11.05FL, 1.88, I.RED

Part #: 7044678-293 Required per assembly: 2
Currently Not Available
10
Polaris 7044693-293 Spr-210#, 3.06Fl, 1.88, I.Red

SPR-210#, 3.06FL, 1.88, I.RED

Part #: 7044693-293 Required per assembly: 2
Currently Not Available
11

CLAMP, S.S.

Part #: 7080560 Required per assembly: 4 Note: Clamp, Hose
Currently Not Available
