OEM Parts Polaris 2019 Polaris ACE 900 EPS XC (R05) Seat Asm.

2019 Polaris ACE 900 EPS XC (R05) A19DCE87AK - Seat Asm.

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

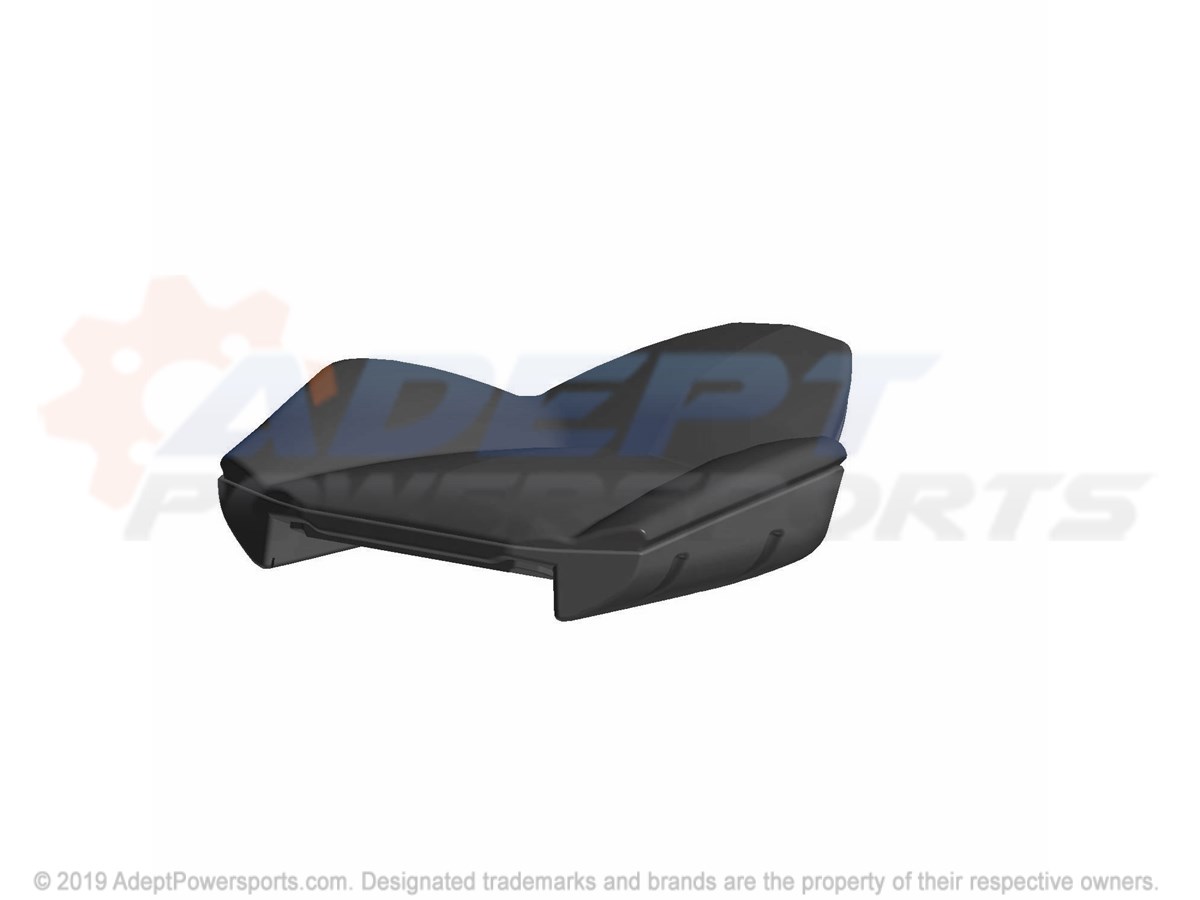

Polaris 2688897 Asm-Seat, Btm, Red, Wv, Blk, St

ASM-SEAT, BTM, RED, WV, BLK, ST

Part #: 2688897 Required per assembly: 1 Note: INCL. INSERTS
Currently Not Available
1
Polaris 7547392 Insert-1/4-20, Wedge, Head

INSERT-1/4-20, WEDGE, HEAD

Part #: 7547392 Required per assembly: 4
Currently Not Available
2
Polaris 7515177 Screw

SCREW

Part #: 7515177 Required per assembly: 8
Currently Not Available
3

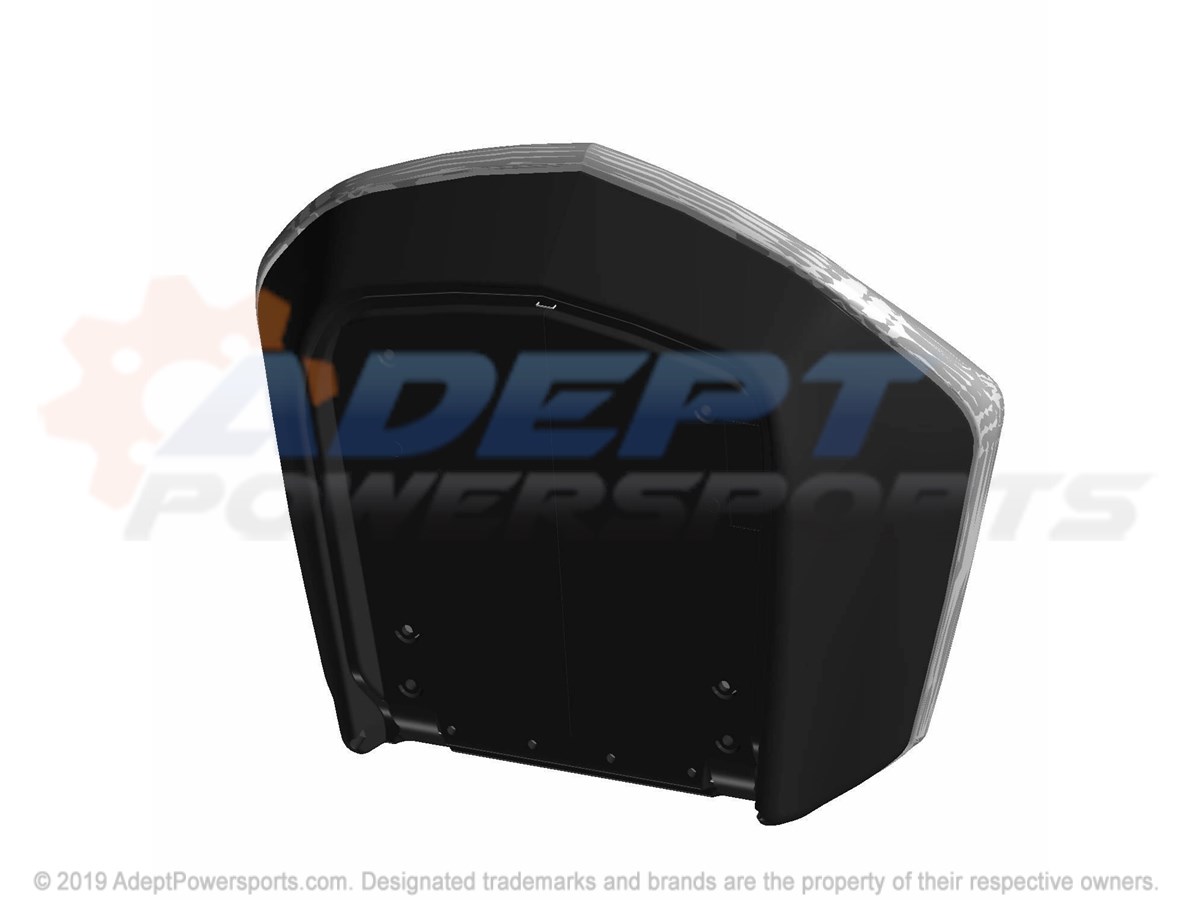

Polaris 2688893 Asm-Seat, Back, Red, Blkwv, Blkst

ASM-SEAT, BACK, RED, BLKWV, BLKST

Part #: 2688893 Required per assembly: 1 Note: INCL. INSERTS
Currently Not Available
3

COVER-BACK, RED, BLK, WV, BLK, ST

Part #: 2688895 Required per assembly: 1
Currently Not Available
3
Polaris 7547392 Insert-1/4-20, Wedge, Head

INSERT-1/4-20, WEDGE, HEAD

Part #: 7547392 Required per assembly: 4
Currently Not Available
