Car Tool replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Car Tool

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SET: CAR TOOL - R1150RT/RS (TO 10/04) Part #: 71117659924 Required per assembly: 1 Currently Not Available
01	SET: CAR TOOL - R1150RT/RS (FROM 10/04) Part #: 71117691428 Required per assembly: 1 Currently Not Available
02	TOOL BAG Part #: 71117660162 Required per assembly: 1 Currently Not Available
02	TOOL BAG Part #: 71117692709 Required per assembly: 1 Currently Not Available
03	OPEN END SPANNER - 8-10 Part #: 71111112893 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
03	KEY - 10X13 Part #: 07119908041 Required per assembly: 1 Not Available
05	INNER HEX SPANNER - 6 Part #: 71111237850 Required per assembly: 1 Currently Not Available
06	INNER HEX SPANNER - 5 Part #: 71111237851 Required per assembly: 1 Currently Not Available
08	INNER HEX SPANNER - 3 Part #: 71111237853 Required per assembly: 1 Currently Not Available
09	SCREWDRIVER Part #: 71111179629 Required per assembly: 1 Currently Not Available
12	SOCKET WRENCH - 17 Part #: 71111240891 Required per assembly: 1 Note: FOR VEHICLES WITH CENTER STAND (CODE: X636A) Not Available

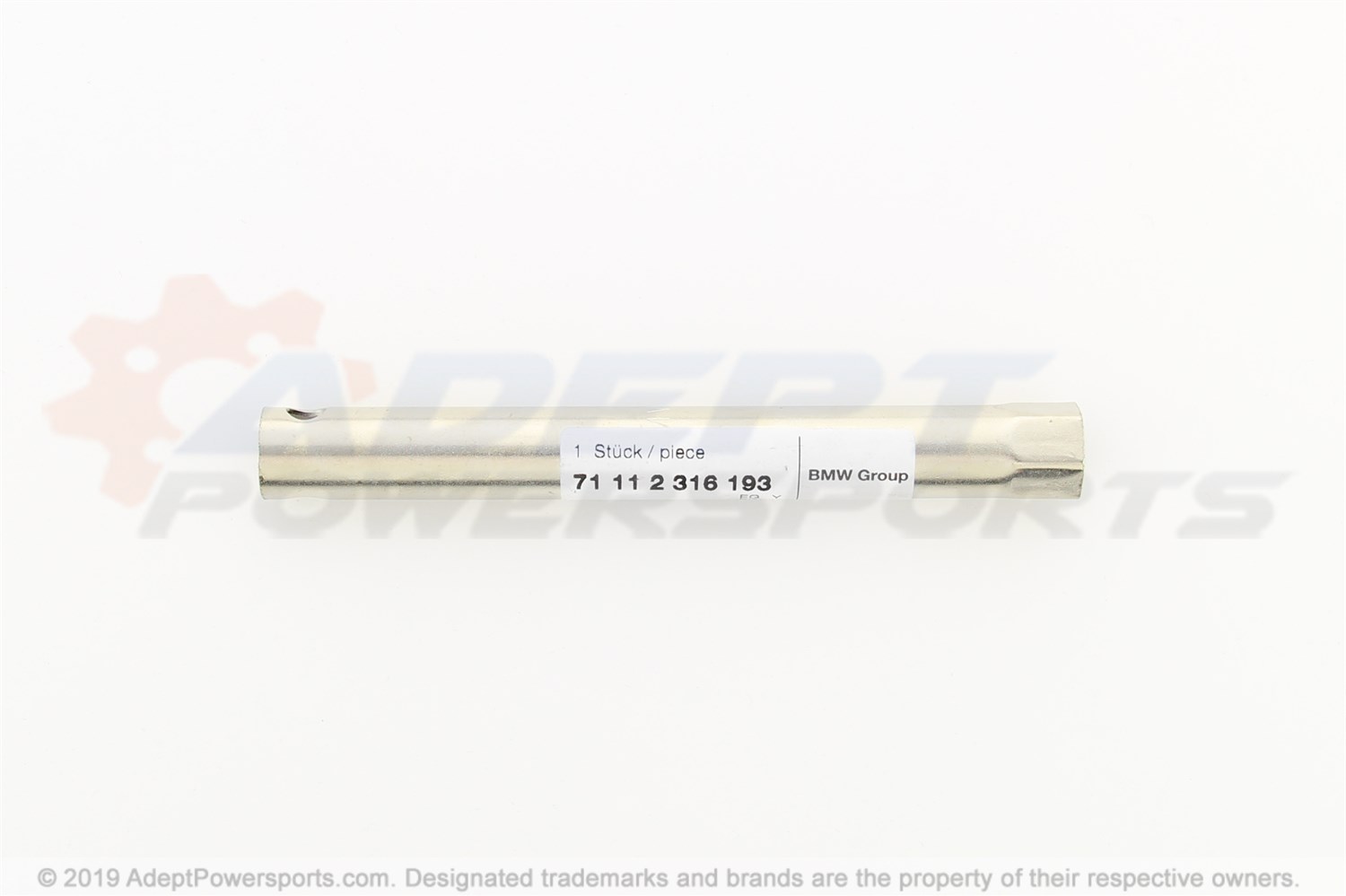

14	SPARK PLUG WRENCH - 16 Part #: 71112316193 Required per assembly: 1 Currently Not Available
15	ADAPTER Part #: 12122306064 Required per assembly: 1 Currently Not Available
16	HOLDING STRAP Part #: 71112316481 Required per assembly: 1 Currently Not Available
