Horn replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Horn

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

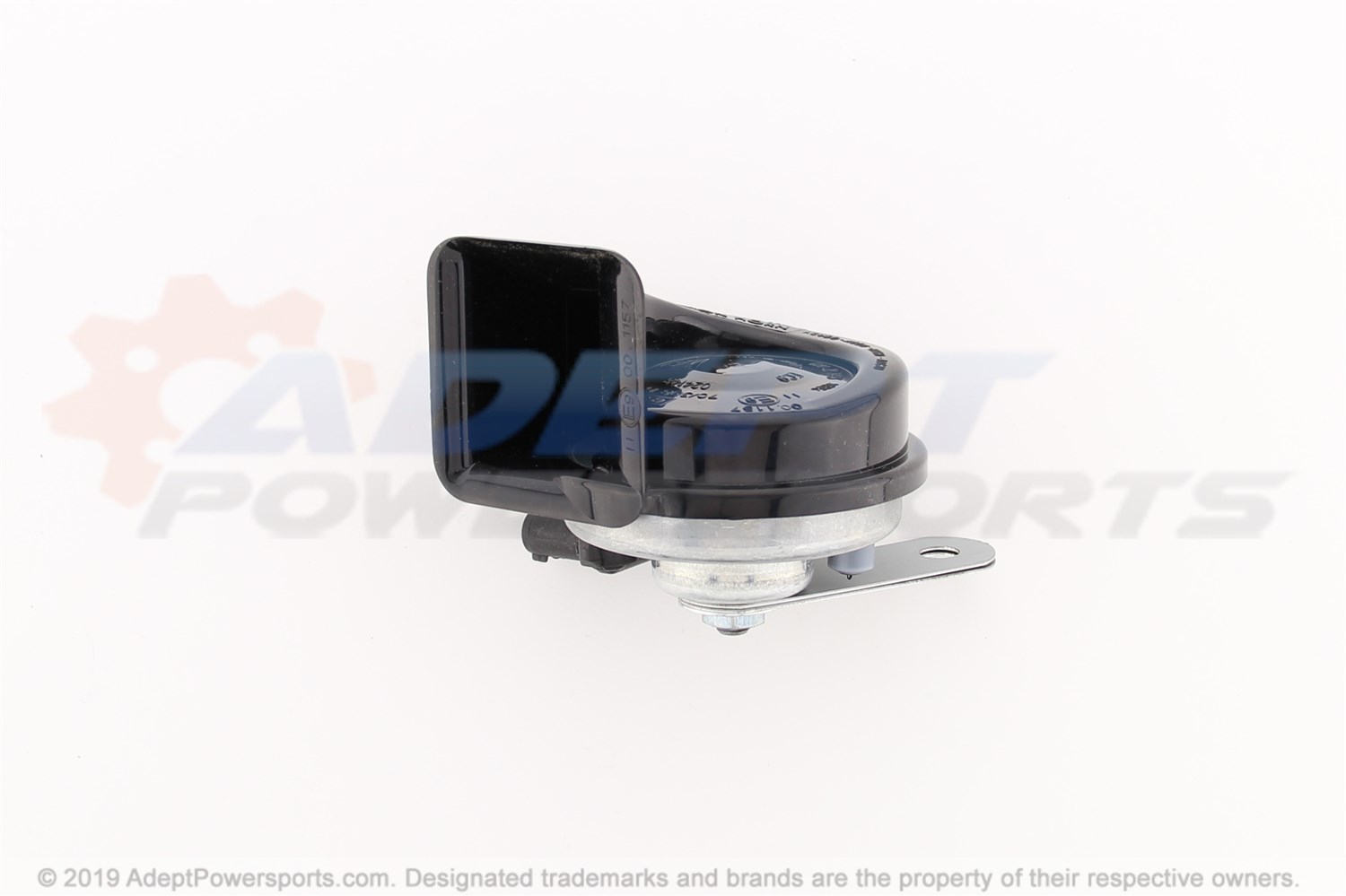

01	HORN - 335HZ Part #: 61337653740 Required per assembly: 1 Currently Not Available
02	SELF-LOCKING HEX NUT - M8-8-ZNNI SI Part #: 07129906196 Required per assembly: 1 Currently Not Available
03	BRACKET Part #: 61332306084 Required per assembly: 1 Currently Not Available
04	WASHER - 18X8,4X3 Part #: 13512243795 Required per assembly: 1 Currently Not Available
05	ISA SCREW - M8X35 Part #: 07129904068 Required per assembly: 1 Currently Not Available
06	HORN, LOW PITCH - 420HZ Part #: 61337655881 Required per assembly: 1 Note: FOR VEHICLES WITH DUAL HORN (CODE: X563A) Currently Not Available
06	HORN, HIGH PITCH - 510HZ (TO 01/06) Part #: 61337655882 Required per assembly: 1 Currently Not Available
07	FILLISTER-HEAD SCREW - M8X20-8.8-ZNS3 Part #: 07119904375 Required per assembly: 2 Note: ONLY FOR RIGHT SIDE Currently Not Available
08	WASHER - 18X8,4X3 Part #: 13512243795 Required per assembly: 2 Currently Not Available
09	SELF-LOCKING HEX NUT - M8-8-ZNNI SI Part #: 07129906196 Required per assembly: 2 Currently Not Available
10	UNIVERSAL SOCKET HOUSING UNCODED - 2 POL. Part #: 61138365340 Required per assembly: 1 Currently Not Available
--	BUSHING CONTACT - 0, 2- 0, 5MM² Part #: 61130005199 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH $3.18 $2.66 - + Add to cart
--	BUSHING CONTACT - 0, 75MM² Part #: 61130006665 Required per assembly: 1 $3.27 $2.73 - + Add to cart
