Cast Rim, Front replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Cast Rim, Front

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

PAINT, SILVER 131
01	SILVER FRONT WHEEL - 3,50X17 Part #: 36312333465 Required per assembly: 1 Currently Not Available
02	GROOVED BALL BEARING - 20X47X14 Part #: 36318534835 Required per assembly: 1 Currently Not Available
03	PIPE - L=58MM Part #: 36312312485 Required per assembly: 1 Currently Not Available

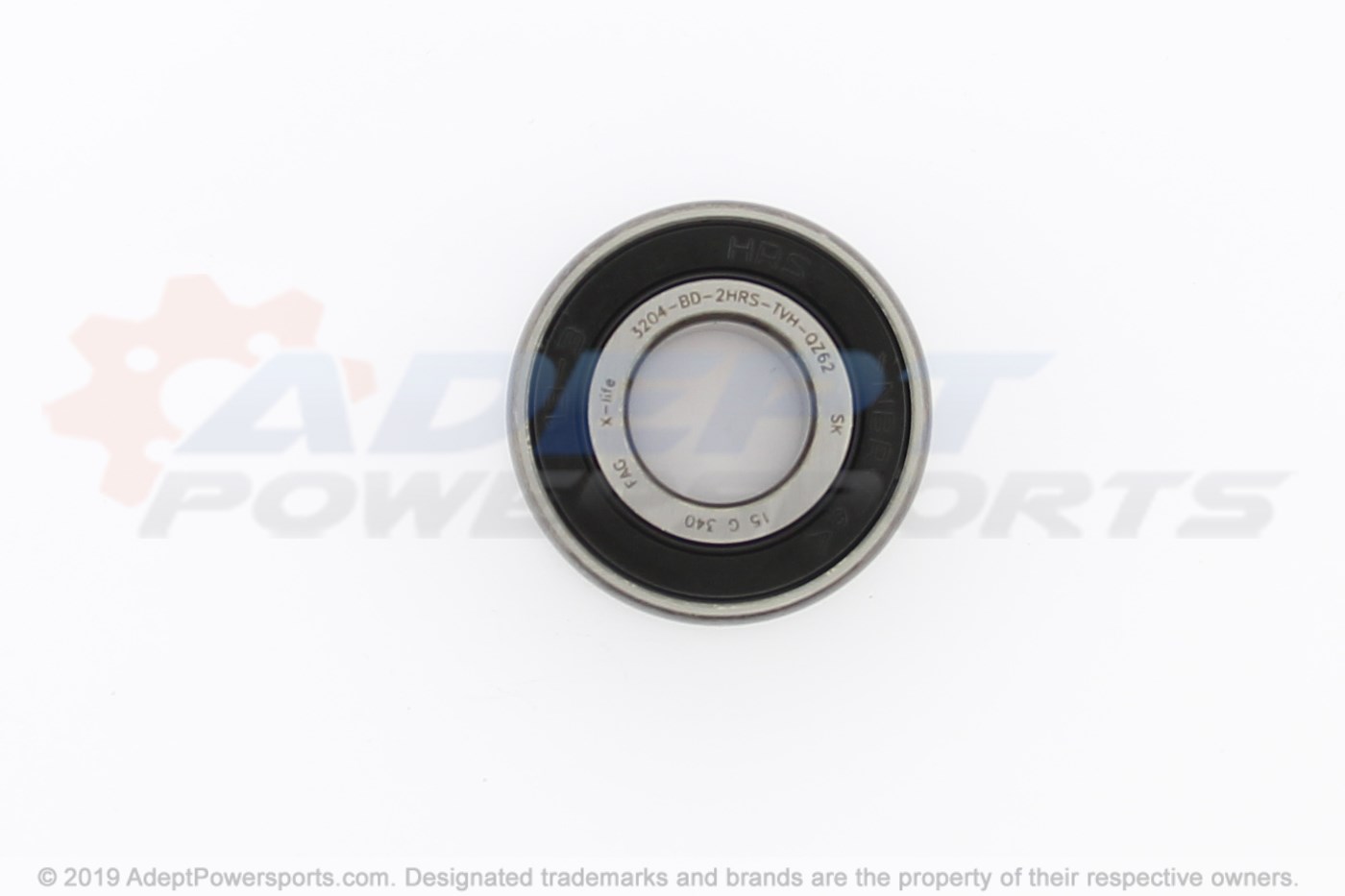

04	ANGULAR CONTACT BALL BEARING - 20X47X20, 6 Part #: 31422335824 Required per assembly: 1 Currently Not Available
05	LOCK RING - 47X1,75 Part #: 36312311032 Required per assembly: 1 Currently Not Available
06	SHAFT SEAL Part #: 36312312287 Required per assembly: 1 Currently Not Available
07	DRIVING DOG Part #: 36312333509 Required per assembly: 1 Currently Not Available
08	HEX BOLT - M14X1.5 Part #: 36317705315 Required per assembly: 1 Currently Not Available
09	BUSH Part #: 36312312513 Required per assembly: 1 Currently Not Available
10	AXLE SHAFT Part #: 36312335577 Required per assembly: 1 Currently Not Available
11	VALVE - D=15MM Part #: 36317653064 Required per assembly: 1 Note: NOT FOR VEHICLES WITH RDC (CODE: X530A) Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G Part #: 36317720635 Required per assembly: 1 Note: ONLY FOR WHEEL FLANGE WITH THREADED SLEEVE Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G Part #: 36317720636 Required per assembly: 1 Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G Part #: 36317720637 Required per assembly: 1 Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G Part #: 36317720638 Required per assembly: 1 Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G Part #: 36317720639 Required per assembly: 1 Currently Not Available
12	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G Part #: 36317720640 Required per assembly: 1 Currently Not Available
13	SPRAY SILVER - 131 Part #: 51911240868 Required per assembly: 1 Note: FOR CAST RIMS Not Available
14	SPEEDOMETER DRIVE - I=2,6 Part #: 62127650348 Required per assembly: 1 Currently Not Available
15	SET: VALVE CAPS CHROME Part #: 71607654671 Required per assembly: 1 Currently Not Available
