Tail Trim replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Tail Trim

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	TAIL PART PRIME COATED Part #: 52532313702 Required per assembly: 1 Note: NOT FOR VEHICLES WITH SINGLE SEAT WITH RADIO COMPARTMENT (CODE: X642A) Currently Not Available

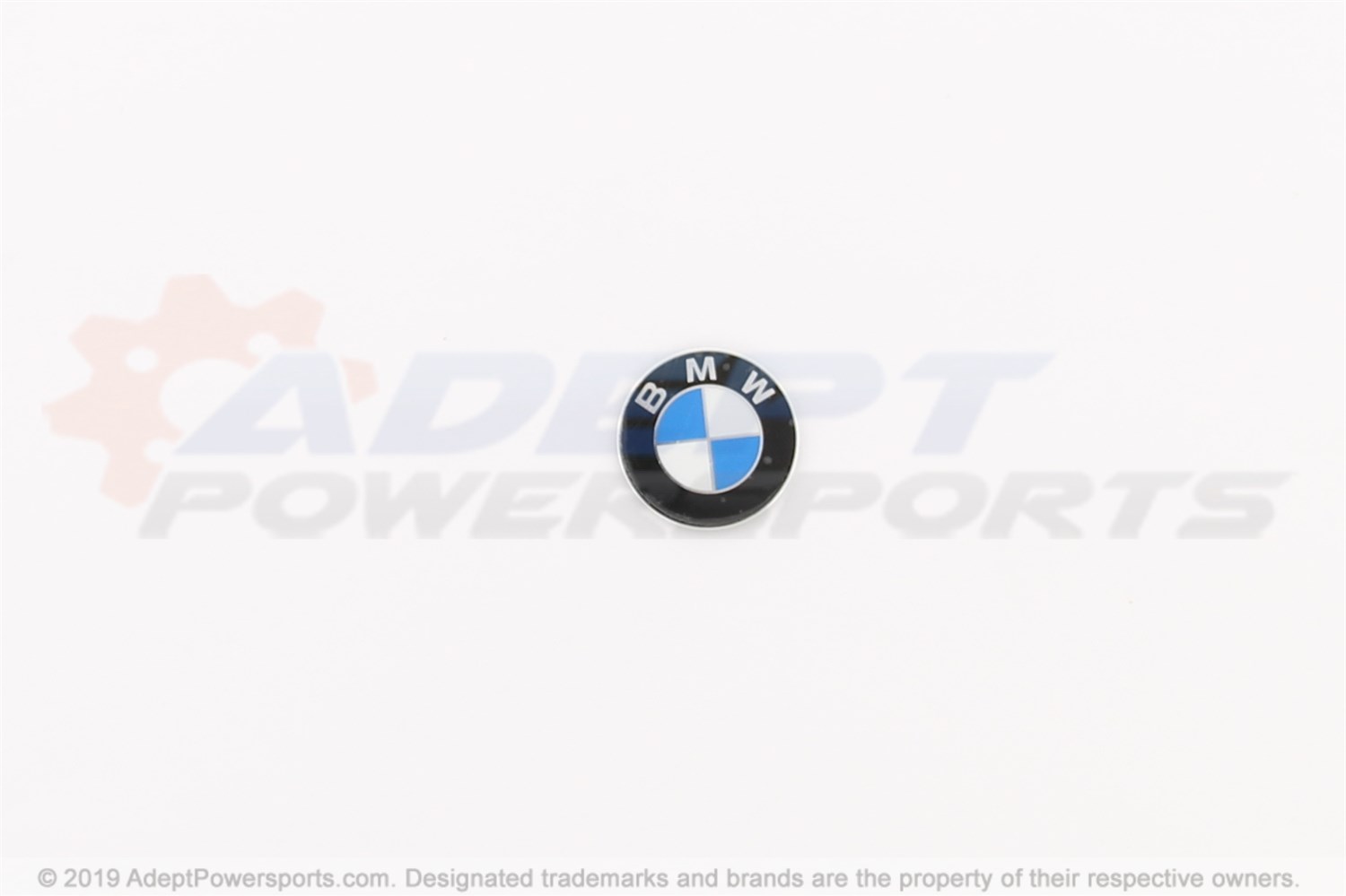

02	BADGE - D=27MM Part #: 52537686463 Required per assembly: 1 Currently Not Available
04	BODY NUT - M5 Part #: 61131372033 Required per assembly: 4 $1.11 $0.85 - + Add to cart
05	LATERAL PART LEFT PRIME COATED Part #: 52532313703 Required per assembly: 1 Note: NOT FOR VEHICLES WITH SINGLE SEAT WITH RADIO COMPARTMENT (CODE: X642A) Currently Not Available
05	LATERAL PART RIGHT PRIME COATED Part #: 52532313704 Required per assembly: 1 Currently Not Available
06	GASKET - 60X15X4 (TO 07/93) Part #: 62211459439 Required per assembly: 1 Currently Not Available
07	EXPANDING NUT Part #: 52531451393 Required per assembly: 6 Currently Not Available
09	FOIL Part #: 46542315901 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
11	LEFT PROTECTION FOIL Part #: 52532313431 Required per assembly: 1 Currently Not Available
11	RIGHT PROTECTION FOIL Part #: 52532313432 Required per assembly: 1 Currently Not Available
