Fairing Side Section replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Fairing Side Section

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	LATERAL PART RIGHT PRIME COATED Part #: 46632313690 Required per assembly: 1 Currently Not Available
01	LATERAL PART LEFT PRIME COATED Part #: 46637655770 Required per assembly: 1 Currently Not Available
02	MOTOR SPOILER PRIME COATED Part #: 46632313685 Required per assembly: 1 Currently Not Available
03	LEFT PRIMED CONNECTING PIECE Part #: 46632313631 Required per assembly: 1 Currently Not Available
03	RIGHT PRIMED CONNECTING PIECE Part #: 46632313632 Required per assembly: 1 Currently Not Available
04	BRACKET LEFT Part #: 46632313673 Required per assembly: 1 Currently Not Available
04	BRACKET RIGHT Part #: 46632313674 Required per assembly: 1 Currently Not Available
05	BUSH Part #: 46632313404 Required per assembly: 4 Currently Not Available
06	WASHER - 6,4 Part #: 07119931035 Required per assembly: 4 Not Available
07	FILLISTER-HEAD SCREW - M6X55 Part #: 46632313663 Required per assembly: 4 Currently Not Available
08	BODY NUT - M5 Part #: 61131372033 Required per assembly: 8 $1.11 $0.85 - + Add to cart
09	FILLISTER HEAD SCREW - M5X16 A4/80 SW Part #: 46622307956 Required per assembly: 1 Currently Not Available
10	FILLISTER HEAD SCREW - M5X16MK Part #: 06327657949 Required per assembly: 6 Note: ONLY IN CONJUNCTION WITH Currently Not Available
10	OVAL HEAD SCREW WITH WASHER - M5X20 Part #: 46632313439 Required per assembly: 6 Currently Not Available
11	OVAL HEAD SCREW WITH WASHER - M5X16 SW Part #: 46632313314 Required per assembly: 2 Currently Not Available
12	CIRCLIP Part #: 52532313563 Required per assembly: 2 Currently Not Available
13	LOCK Part #: 46632313591 Required per assembly: 2 Currently Not Available

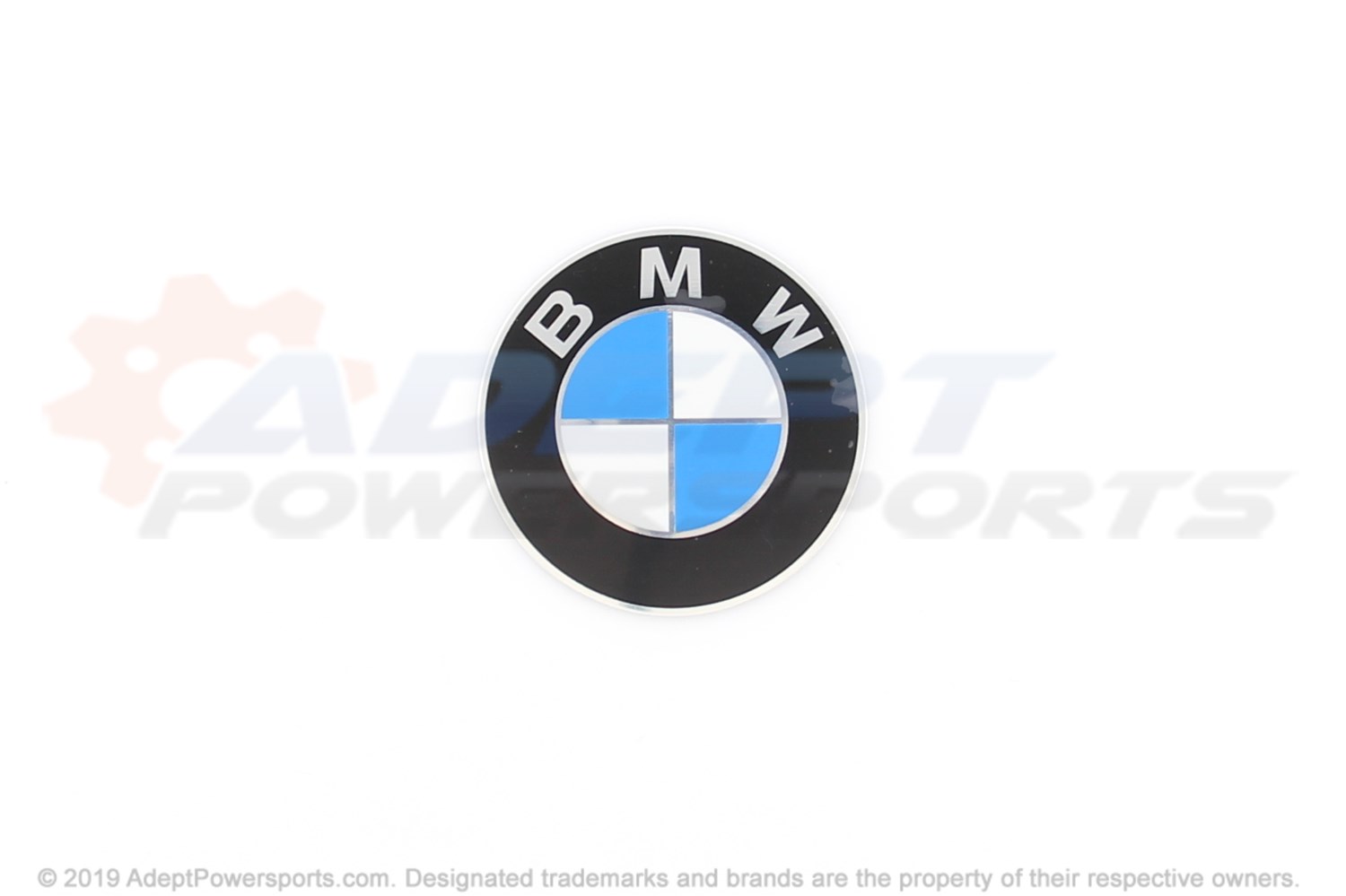

14	BADGE - D=60MM Part #: 52537686464 Required per assembly: 2 Currently Not Available
15	FOIL Part #: 46542315901 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
--	WASHER Part #: 46612308593 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
--	GASKET Part #: 46637653984 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
