Tail Light Mounting Parts replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Tail Light Mounting Parts

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

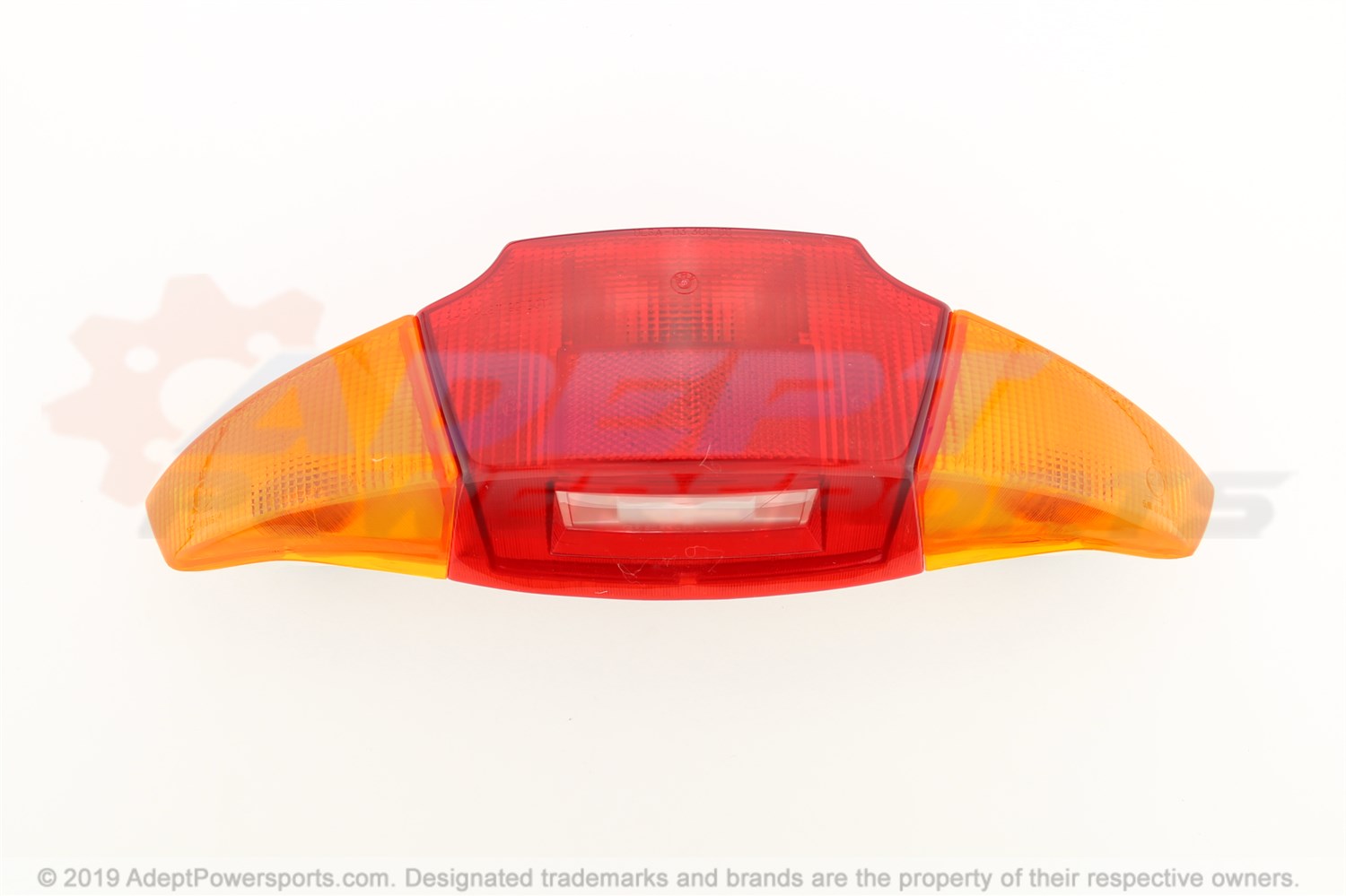

01	TAIL LIGHT WITH TURN INDICATOR Part #: 63212306050 Required per assembly: 1 Currently Not Available
02	BULB SOCKET Part #: 63132306630 Required per assembly: 4 Currently Not Available
03	BULB - P12V/21W Part #: 63217160789 Required per assembly: 3 Currently Not Available
04	BULB - 12V 10W Part #: 07119905337 Required per assembly: 1 Currently Not Available
05	RING NUT Part #: 61211233457 Required per assembly: 2 Currently Not Available
06	WASHER - 8-200 Part #: 07119904826 Required per assembly: 2 Currently Not Available
07	RUBBER MOUNTING LEFT Part #: 52532313321 Required per assembly: 1 Currently Not Available
07	RUBBER MOUNTING RIGHT Part #: 52532313322 Required per assembly: 1 Currently Not Available
08	CSK.FILLISTER HEAD SCREW - M5X40 Part #: 07119928562 Required per assembly: 2 Currently Not Available
