Clutch Control replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Clutch Control

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CLUTCH CONTROL ASSEMBLY Part #: 32717657183 Required per assembly: 1 Note: ONLY APPLIES TO Currently Not Available
02	CLUTCH LEVER, ADJUSTABLE Part #: 32727657147 Required per assembly: 1 Currently Not Available
03	BANJO BOLT, BLACK - M10X1 Part #: 34322331540 Required per assembly: 1 Currently Not Available
04	GASKET RING - A10X13,5-CU Part #: 07119963072 Required per assembly: 2 Currently Not Available
05	CLUTCH CABLE, INPUT/OUTPUT CYLINDER Part #: 21527663712 Required per assembly: 1 Currently Not Available

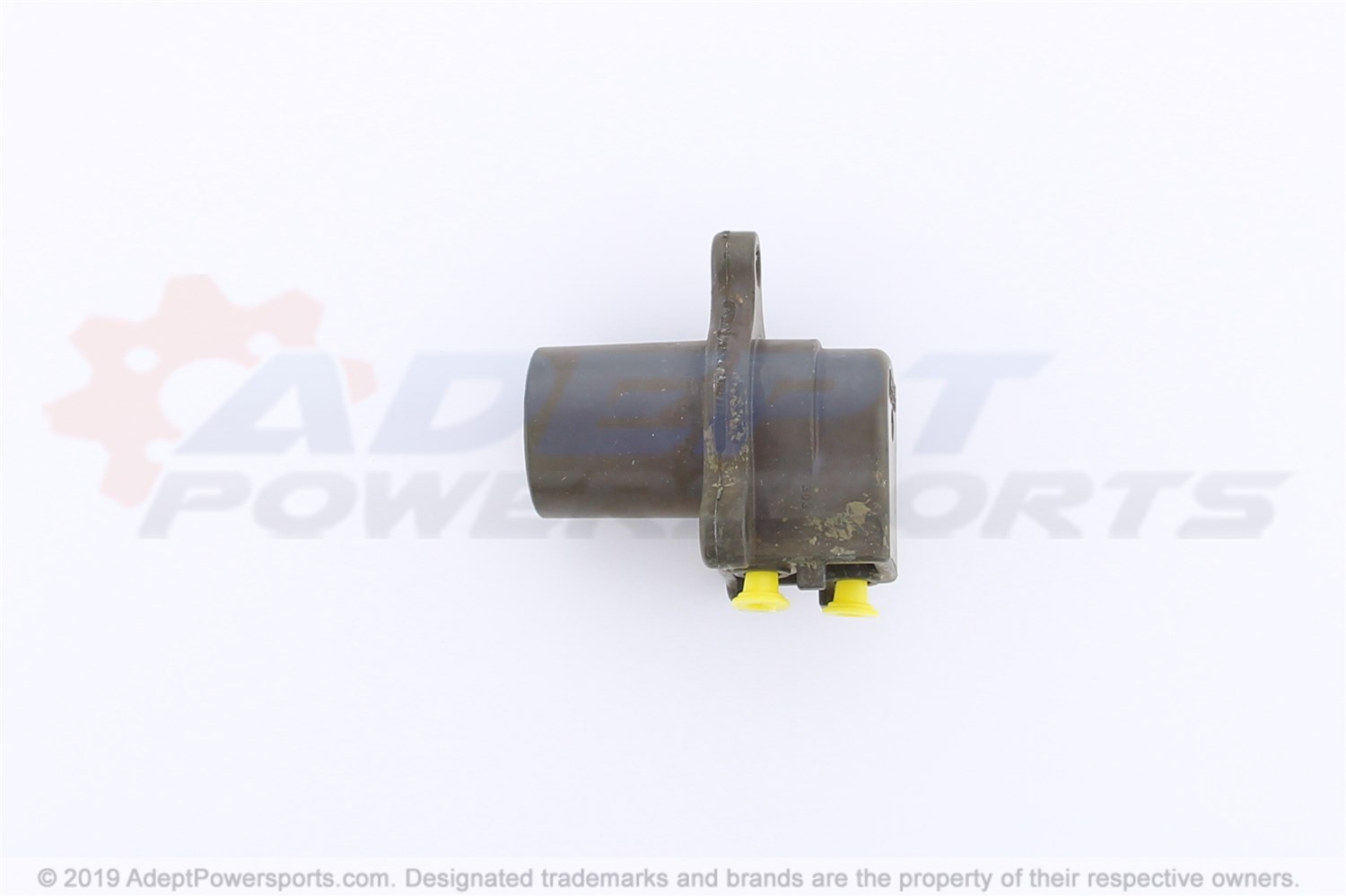

06	OUTPUT CYLINDER CLUTCH - D=24 Part #: 21522335061 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
07	ROD - L=270MM Part #: 21527659113 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
08	FILLISTER-HEAD SCREW - M 6X18 Part #: 23002332975 Required per assembly: 3 Currently Not Available
09	HOLLOW BOLT - M 6X17 Part #: 21522332605 Required per assembly: 2 Currently Not Available
10	GASKET RING Part #: 21522332604 Required per assembly: 4 Note: ONLY IN CONJUNCTION WITH Currently Not Available
11	CLUTCH VENT PIPE Part #: 21522333455 Required per assembly: 1 Note: NOT FOR VEHICLES WITH SPECIAL MODEL COMFORT R850R (CODE: X115A) Currently Not Available
12	VENTILATION SCREW Part #: 32722333158 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
13	CABLE STRAP - L=200MM/B=3,6MM Part #: 61131367599 Required per assembly: 5 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available

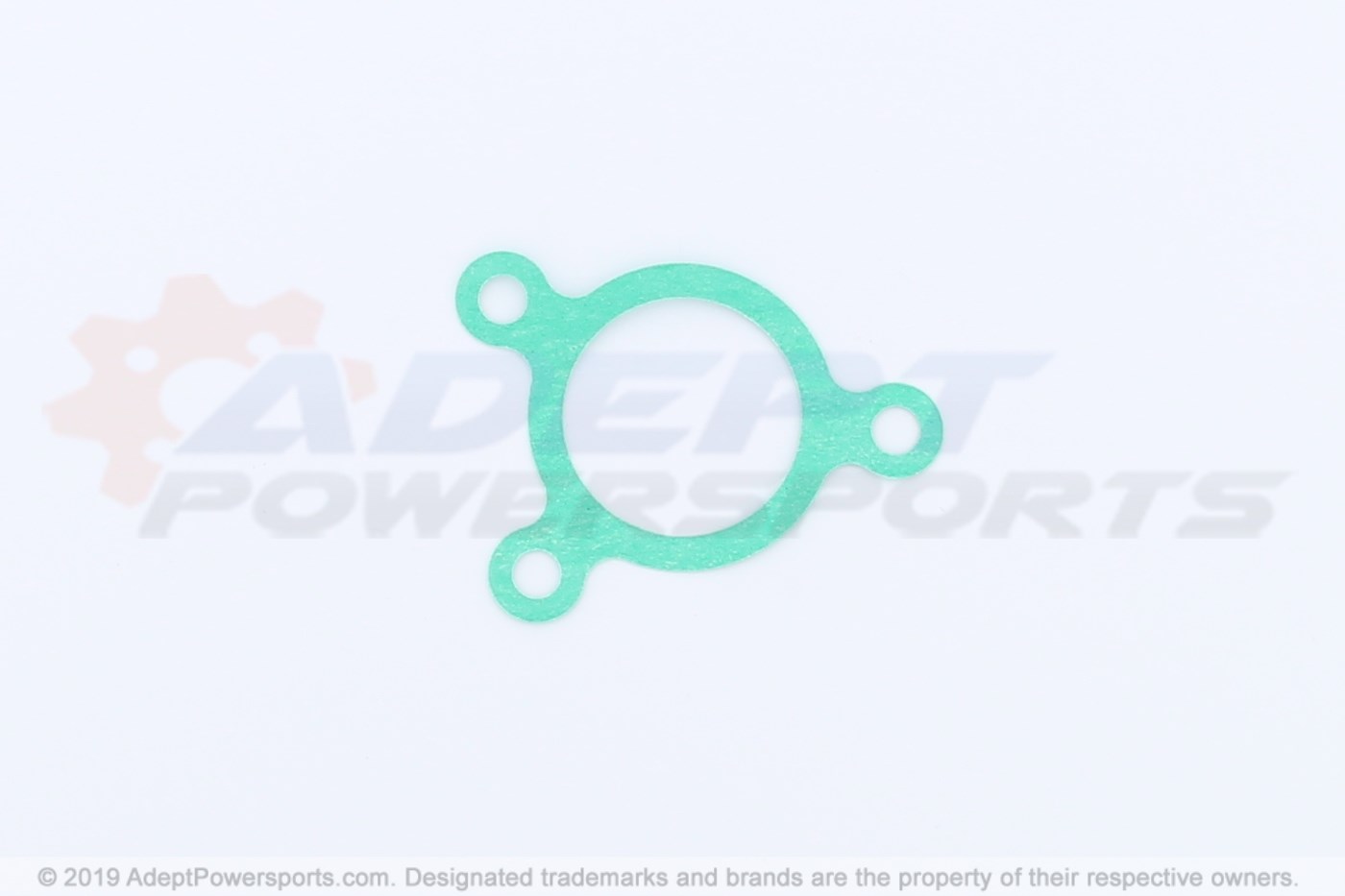

14	GASKET Part #: 23122352156 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available

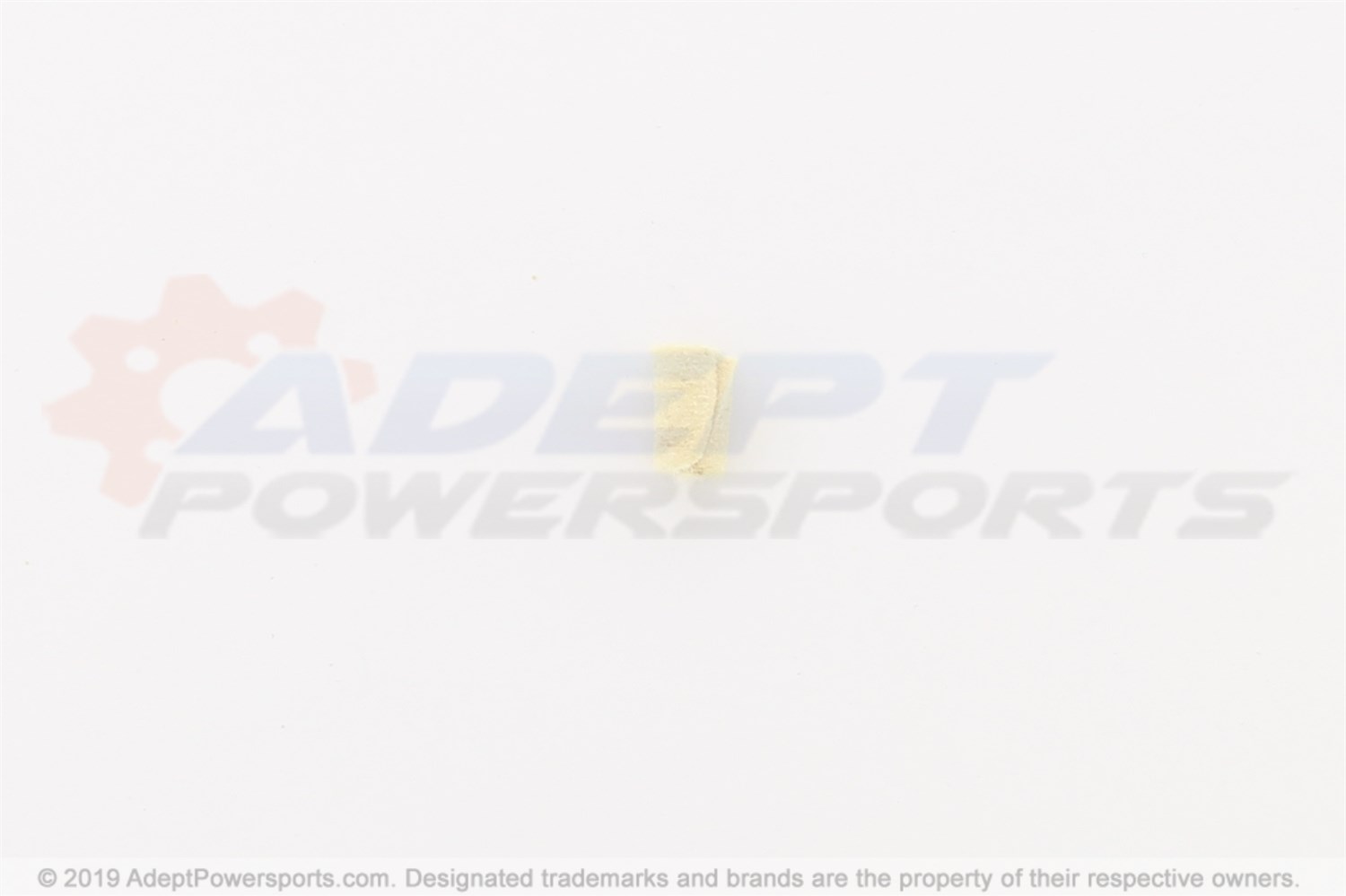

15	FELTRING Part #: 23211230440 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
	VENT SCREW - M10 Part #: 34212330310 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
--	VENT SCREW - M10 Part #: 34212330310 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
--	FELTRING Part #: 23211230440 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
