Fork Slider/Lower Fork Bridge replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Fork Slider/Lower Fork Bridge

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	FORK SLIDER EVO LEFT Part #: 31427651477 Required per assembly: 1 Note: FOR VEHICLES WITH INTEGRAL ABS (CODE: X645A) Currently Not Available
01	FORK SLIDER EVO RIGHT Part #: 31427651478 Required per assembly: 1 Currently Not Available
02	BUSH Part #: 31422311986 Required per assembly: 2 Note: RECOMMENDED TO PREVENT COLOR DIFFERENCES IN INNER SLIDE TUBES. RECOMMENDED TO PREVENT COLOR DIFFERENCES IN INNER SLIDE TUBES. Currently Not Available
03	RING Part #: 31422314630 Required per assembly: 2 Currently Not Available

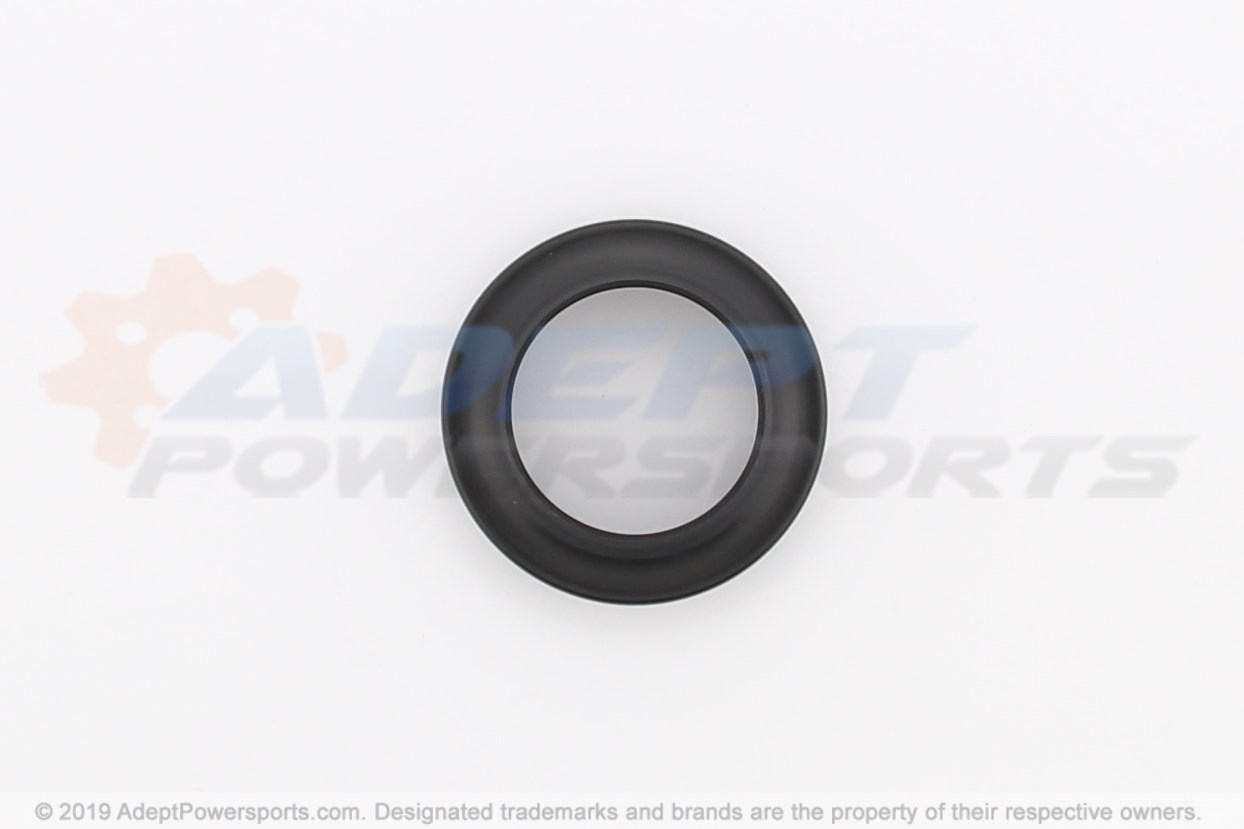

04	SHAFT SEAL Part #: 31422311988 Required per assembly: 2 Currently Not Available
06	LOCK RING Part #: 31422311989 Required per assembly: 2 Currently Not Available
07	CUP Part #: 31422311980 Required per assembly: 2 Currently Not Available
08	FILLISTER-HEAD SCREW - M8X40 Part #: 31422312035 Required per assembly: 2 Currently Not Available
09	FILLISTER-HEAD SCREW - M8X18 Part #: 31422312711 Required per assembly: 2 Currently Not Available
10	O-RING (FROM 08/91) Part #: 31422312714 Required per assembly: 2 Currently Not Available
11	LOWER FORK CROSS BRACE Part #: 31427654745 Required per assembly: 1 Currently Not Available
12	FILLISTER-HEAD SCREW - M8X25 Part #: 31422312049 Required per assembly: 4 Currently Not Available
13	BALL JOINT Part #: 31422311409 Required per assembly: 1 Currently Not Available
14	COLLAR NUT - M14X1,5 Part #: 31422330996 Required per assembly: 1 Currently Not Available
15	COVER, BLACK Part #: 31427658697 Required per assembly: 1 Currently Not Available
