Cylinder Head Double-Ignition replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Cylinder Head Double-Ignition

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CYLINDER HEAD LEFT - SILVER (FROM 12/02) Part #: 11127670707 Required per assembly: 1 Currently Not Available
01	CYLINDER HEAD RIGHT - SILVER (FROM 12/02) Part #: 11127670708 Required per assembly: 1 Currently Not Available
02	O-RING Part #: 11121341784 Required per assembly: 2 Currently Not Available
03	COVER Part #: 11121341873 Required per assembly: 2 Currently Not Available
04	FILLISTER HEAD WITH WASHER - M6X16 Part #: 46512311713 Required per assembly: 4 Currently Not Available
05	STUD BOLT Part #: 07129903964 Required per assembly: 6 Currently Not Available
06	ISA SCREW WITH WASHER - M6X30- ZNNIV SI Part #: 07129905537 Required per assembly: 6 Currently Not Available
07	FILLISTER HEAD WITH WASHER - M10X70 Part #: 11121342244 Required per assembly: 2 Currently Not Available
08	WASHER Part #: 11121464026 Required per assembly: 2 Currently Not Available
09	BLIND PLUG Part #: 11111460828 Required per assembly: 2 Currently Not Available

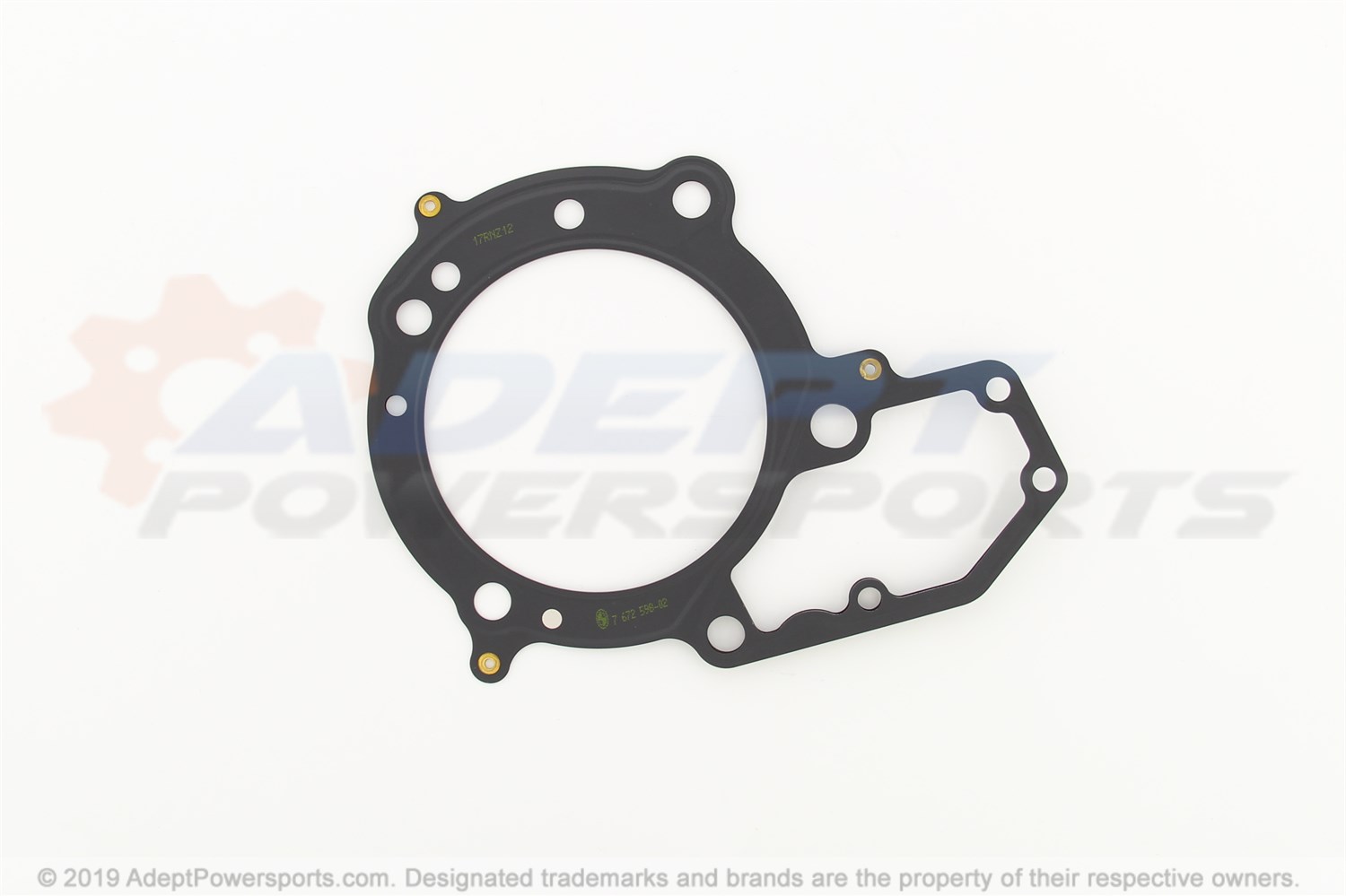

10	CYL. HEAD GASKET, 3 COMPONENTS Part #: 11127672598 Required per assembly: 2 Currently Not Available
11	COVER, AUXILIARY SPARK PLUG, LEFT - BLACK (FROM 12/02) Part #: 11127672853 Required per assembly: 1 Currently Not Available
11	COVER, AUXILIARY SPARK PLUG, RIGHT - BLACK (FROM 12/02) Part #: 11127672854 Required per assembly: 1 Currently Not Available
12	ISA SCREW - M6X16-Z1 Part #: 07129902330 Required per assembly: 1 Currently Not Available
13	TORX-BOLT WITH WASHER - M6X20-U1-8.8 Part #: 07129905516 Required per assembly: 1 Currently Not Available
14	FILLISTER-HEAD SCREW - M6X10-8.8-ZNS3 Part #: 07119903804 Required per assembly: 2 Not Available
15	CAP Part #: 61137678214 Required per assembly: 2 Currently Not Available
16	EARTH PIN - M6X10 (FROM 08/03) Part #: 61137671354 Required per assembly: 1 Currently Not Available
17	HOLDING STRAP LEFT Part #: 11117672355 Required per assembly: 1 Currently Not Available
17	RETAINING BRACKET, RIGHT Part #: 11117672356 Required per assembly: 1 Currently Not Available
18	FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI Part #: 07119906058 Required per assembly: 2 Currently Not Available
