Suction Silencer/Filter Cartridge replacement parts for 2000-2006 BMW R1150RT (R22)

OEM Parts Bmw 2000-2006 Bmw R1150RT (R22) Suction Silencer/Filter Cartridge

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	AIR CLEANER HOUSING Part #: 13711341527 Required per assembly: 1 Currently Not Available

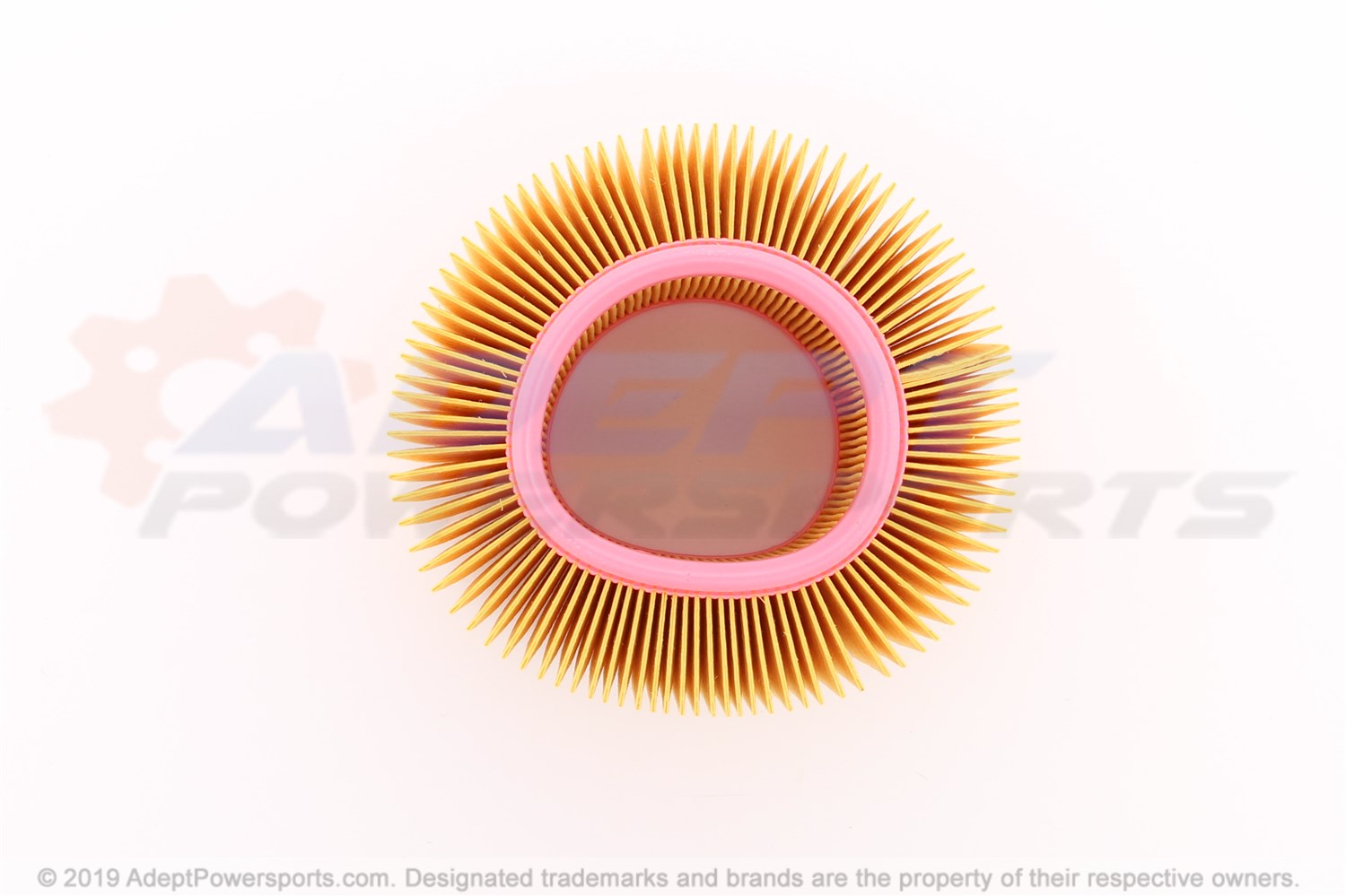

02	AIR FILTER ELEMENT Part #: 13711341528 Required per assembly: 1 Currently Not Available
03	COVER F SUCTION FILTER (FROM 12/99) Part #: 13717655663 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
05	TEMPERATURE SENSOR AIR Part #: 13621465108 Required per assembly: 1 Currently Not Available
06	RUBBER GROMMET Part #: 13711341317 Required per assembly: 2 Currently Not Available
07	INTAKE MANIFOLD Part #: 13711341210 Required per assembly: 2 Currently Not Available
08	RUBBER GROMMET Part #: 31421236240 Required per assembly: 3 Currently Not Available
09	BUSH Part #: 31421236241 Required per assembly: 3 Currently Not Available
10	FILLISTER HEAD SCREW Part #: 18221464332 Required per assembly: 3 Currently Not Available
11	HOSE CLAMP - D=66 Part #: 13311460941 Required per assembly: 2 Currently Not Available
12	HOSE CLAMP - D=58MM Part #: 13721338650 Required per assembly: 2 Currently Not Available
13	O-RING Part #: 13711340778 Required per assembly: 1 Currently Not Available
14	BLIND PLUG Part #: 13711340752 Required per assembly: 1 Currently Not Available
--	SCREW Part #: 13711465048 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
