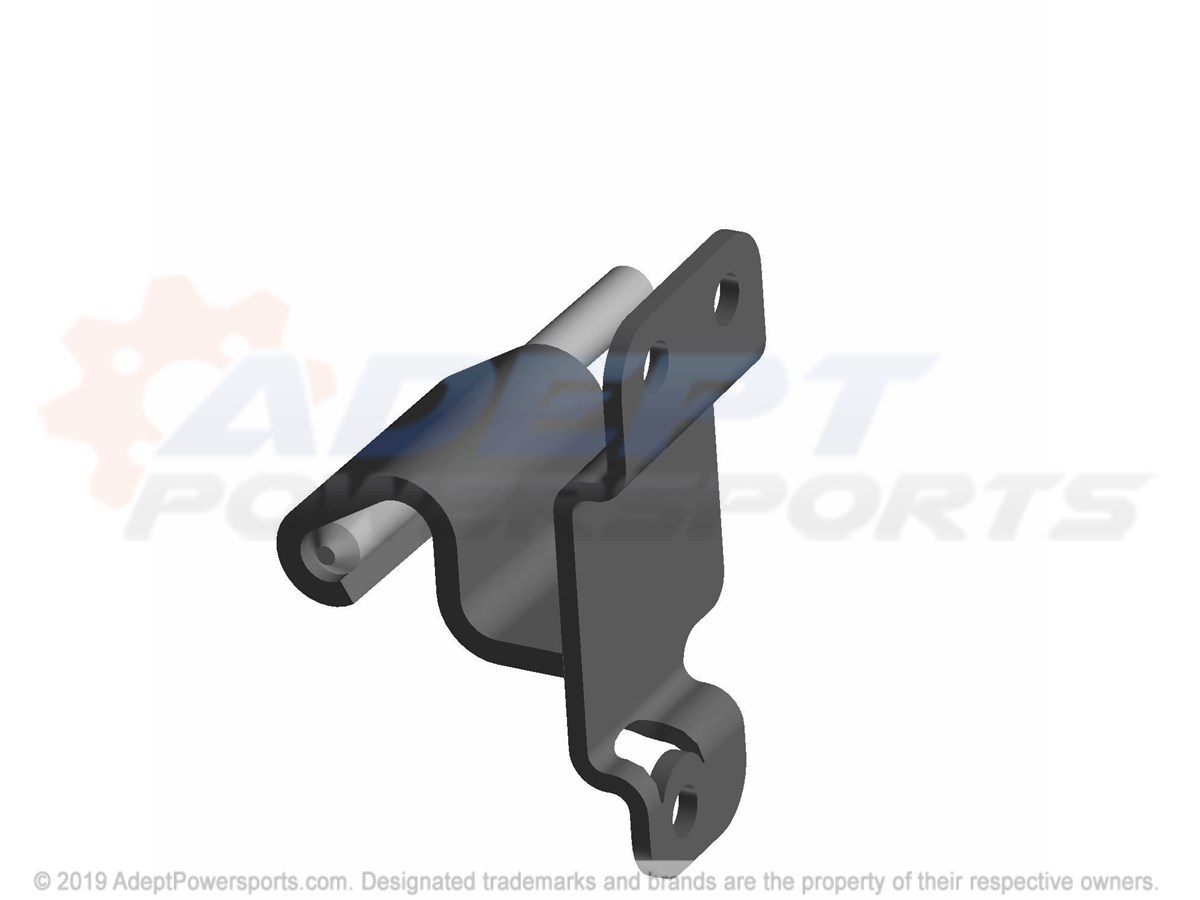

DOOR, HALF MOUNTING - R17RTM99AM/BM (701540) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-HINGE, LH, BLK Part #: 1023161-458 Required per assembly: 1 Note: INCL 6,7,8 Currently Not Available
1	WELD-HINGE, LOWER, LH, BLK Part #: 1022990-458 Required per assembly: 1 Note: INCL 6,7,8 Currently Not Available
2	WELD-HINGE, LOWER, RH, BLK Part #: 1022991-458 Required per assembly: 1 Note: TO 8/11/16 Currently Not Available
2	WELD-HINGE, RH, BLK Part #: 1023162-458 Required per assembly: 1 Note: FROM 8/11/16 Currently Not Available
3	WELD-HINGE, UPPER, LH, M.BLK Part #: 1022988-458 Required per assembly: 1 Currently Not Available
4	WELD-HINGE, UPPER, RH, M.BLK Part #: 1022989-458 Required per assembly: 1 Currently Not Available
5	WELD-DOOR, FRONT, MAIN, LH, BLK Part #: 1022878-458 Required per assembly: 1 Currently Not Available
5	WELD-DOOR, FRONT, MAIN, RH, BLK Part #: 1022879-458 Required per assembly: 1 Currently Not Available
6	WASHER Part #: 5439712 Required per assembly: 4 Currently Not Available
6	WASHER Part #: 5439712 Required per assembly: 4 Currently Not Available
7	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 6 Currently Not Available
7	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 6 Currently Not Available
8	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
8	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
