Rear Drive Shaft (To 7/17/2017) - R17rtm99am/Bm/U99at/Bt (700903) replacement parts for 2017 Polaris Ranger 1000 XP All Options (R30)

OEM Parts Polaris 2017 Polaris Ranger 1000 XP All Options (R30) Rear Drive Shaft (To 7/17/2017) - R17rtm99am/Bm/U99at/Bt (700903)

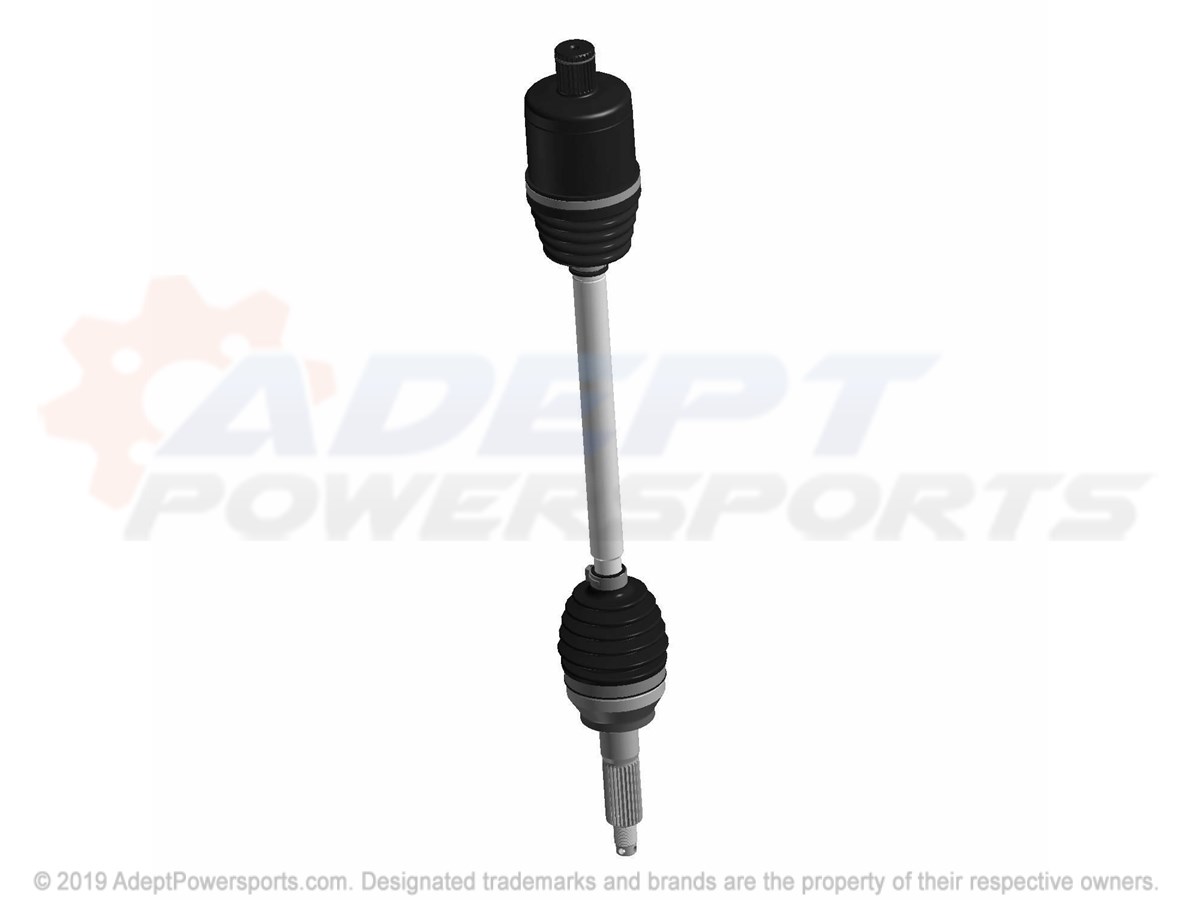

REAR DRIVE SHAFT (TO 7/17/2017) - R17RTM99AM/BM/U99AT/BT (700903) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVESHAFT, REAR Part #: 1333589 Required per assembly: 2 Note: INCL. ALL Currently Not Available
2	SPRING-RING (93-8395) Part #: 7710665 Required per assembly: 1 Currently Not Available
3	JOINT PLUNGING Part #: 2204364 Required per assembly: 1 Currently Not Available
4	SPRING-RING (93-8388) Part #: 7710664 Required per assembly: 2 Currently Not Available
4	SPRING-RING (93-8388) Part #: 7710664 Required per assembly: 2 Currently Not Available
5	KIT-BOOT INBOARD (85-1500) Part #: 2204361 Required per assembly: 1 Currently Not Available
6	K-OUTER CV BOOT Part #: 3235940 Required per assembly: 1 Currently Not Available
7	K-OUTER CV JOINT Part #: 3235941 Required per assembly: 1 Currently Not Available
