Rear Bumper - R17rtm99am/Bm/U99at/Bt (49Rgrbumperrr15900xp) replacement parts for 2017 Polaris Ranger 1000 XP All Options (R30)

OEM Parts Polaris 2017 Polaris Ranger 1000 XP All Options (R30) Rear Bumper - R17rtm99am/Bm/U99at/Bt (49Rgrbumperrr15900xp)

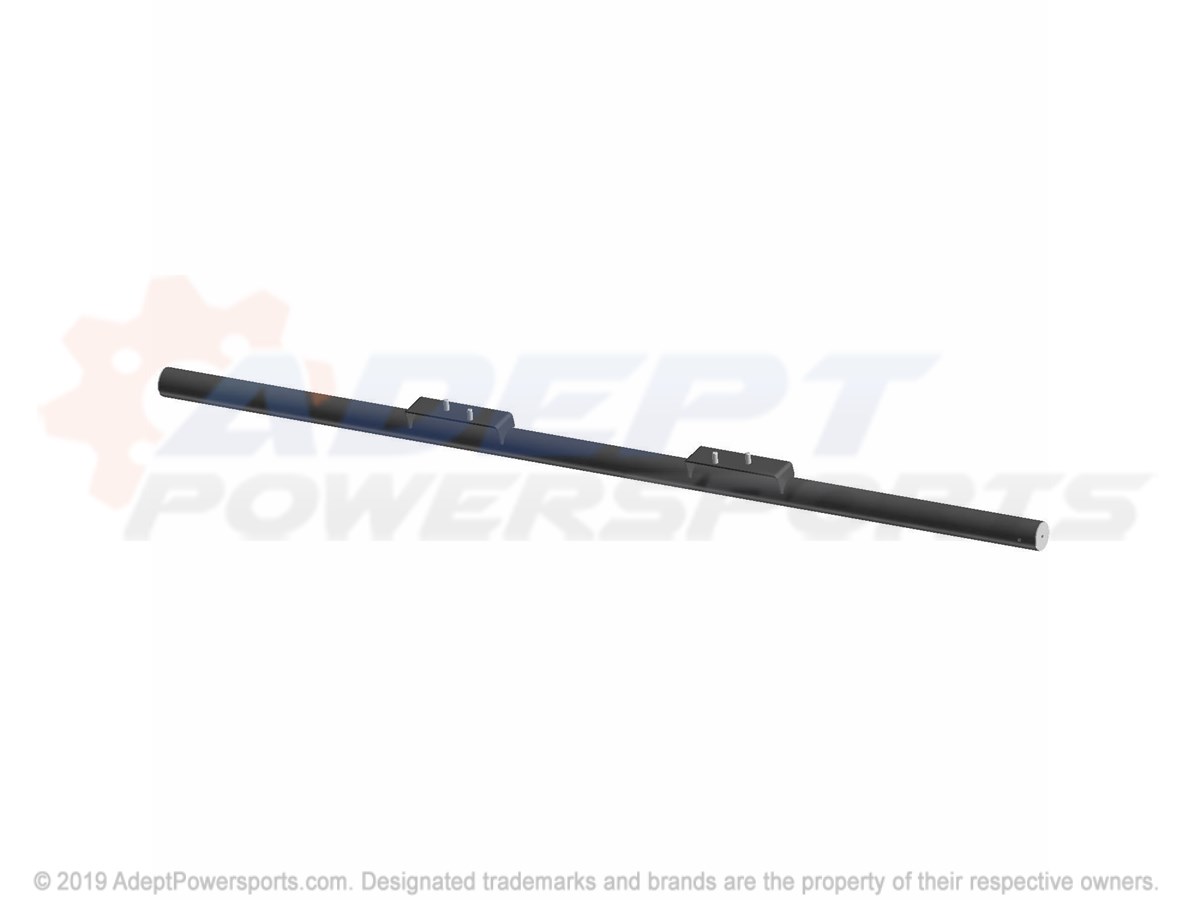

REAR BUMPER - R17RTM99AM/BM/U99AT/BT (49RGRBUMPERRR15900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	REAR BRUSHGUARD Part #: 2878840 Required per assembly: 1 Note: (Description) Currently Not Available
2	REAR BRUSHGUARD Part #: 2878840 Required per assembly: 1 Note: (Description) Currently Not Available
3	WELD-BUMPER, REAR, VL, BL Part #: 1022039-689 Required per assembly: 1 Currently Not Available
4	KIT-HARDWARE Part #: 2204789 Required per assembly: 1 Note: INCL. 5-7 Currently Not Available
5	SCR-RHCAR-M8X1.25X85 8.8 ZPB Part #: 7520351 Required per assembly: 2 Currently Not Available
6	BOLT, CARRIAGE Part #: 7518479 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547317 Required per assembly: 10 Currently Not Available
