Front Wheel - R17rtm99am/Bm (700402) replacement parts for 2017 Polaris Ranger 1000 XP All Options (R30)

OEM Parts Polaris 2017 Polaris Ranger 1000 XP All Options (R30) Front Wheel - R17rtm99am/Bm (700402)

FRONT WHEEL - R17RTM99AM/BM (700402) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518978 Required per assembly: 8 Currently Not Available
2	DISC-BRAKE FRONT Part #: 5254999 Required per assembly: 2 Currently Not Available
3	STUD, WHEEL Part #: 7519753 Required per assembly: 8 ~~$4.49~~ $2.80 - + Add to cart
4	HUB, WHEEL, FRONT, BLACK Part #: 5137387-067 Required per assembly: 2 Currently Not Available
5	WHEEL-14X7, +4, BUCKLE, CST, FLBLK Part #: 1522544-458 Required per assembly: 1 Currently Not Available

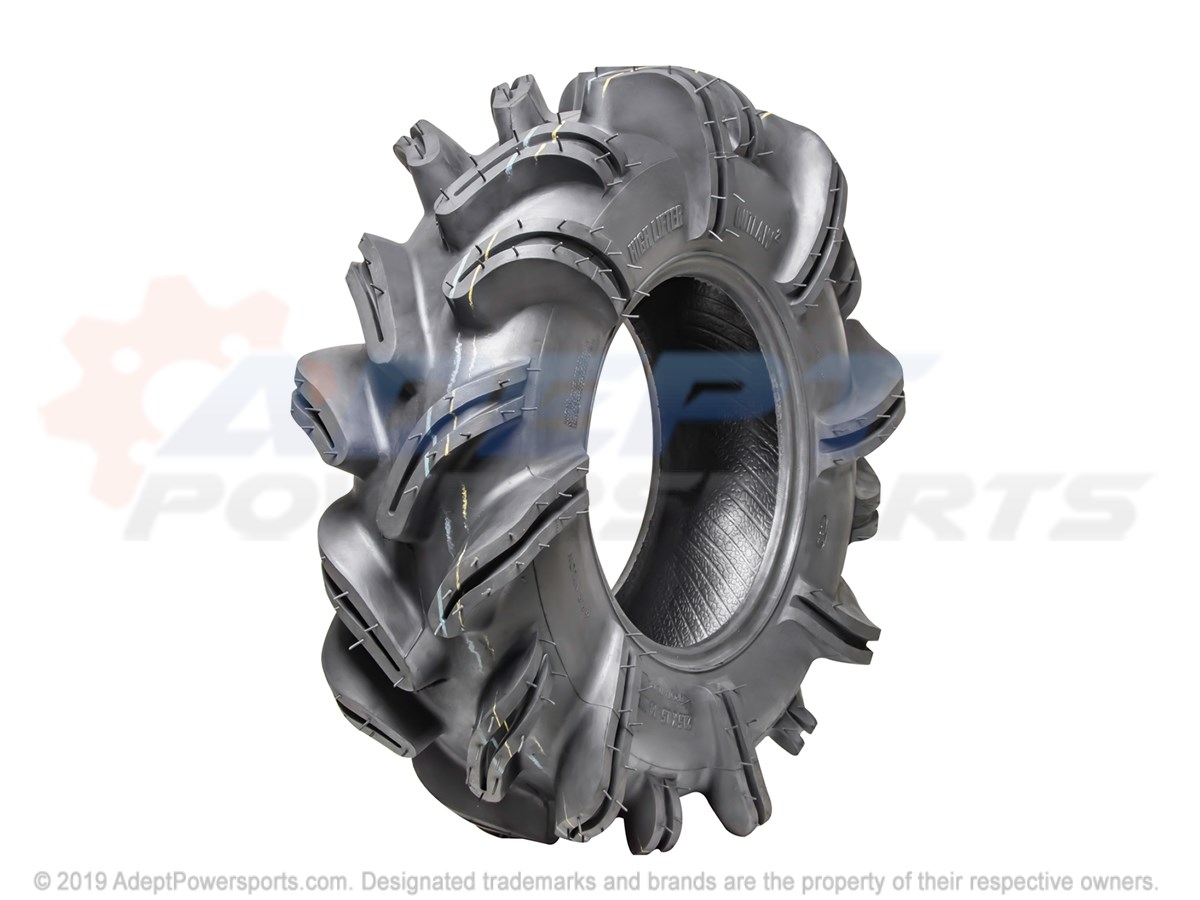

6	TIRE-FRONT, 28X9.5X14, OUTLAW, 2 Part #: 5415641 Required per assembly: 2 Currently Not Available
7	BEARING-BALL SEALED 44X72X33.1 Part #: 3514699 Required per assembly: 2 Currently Not Available
8	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Currently Not Available
9	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
10	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
11	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
12	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
13	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
