Harness - R17rtm99am/Bm (49Rgrharness15900xp) replacement parts for 2017 Polaris Ranger 1000 XP All Options (R30)

OEM Parts Polaris 2017 Polaris Ranger 1000 XP All Options (R30) Harness - R17rtm99am/Bm (49Rgrharness15900xp)

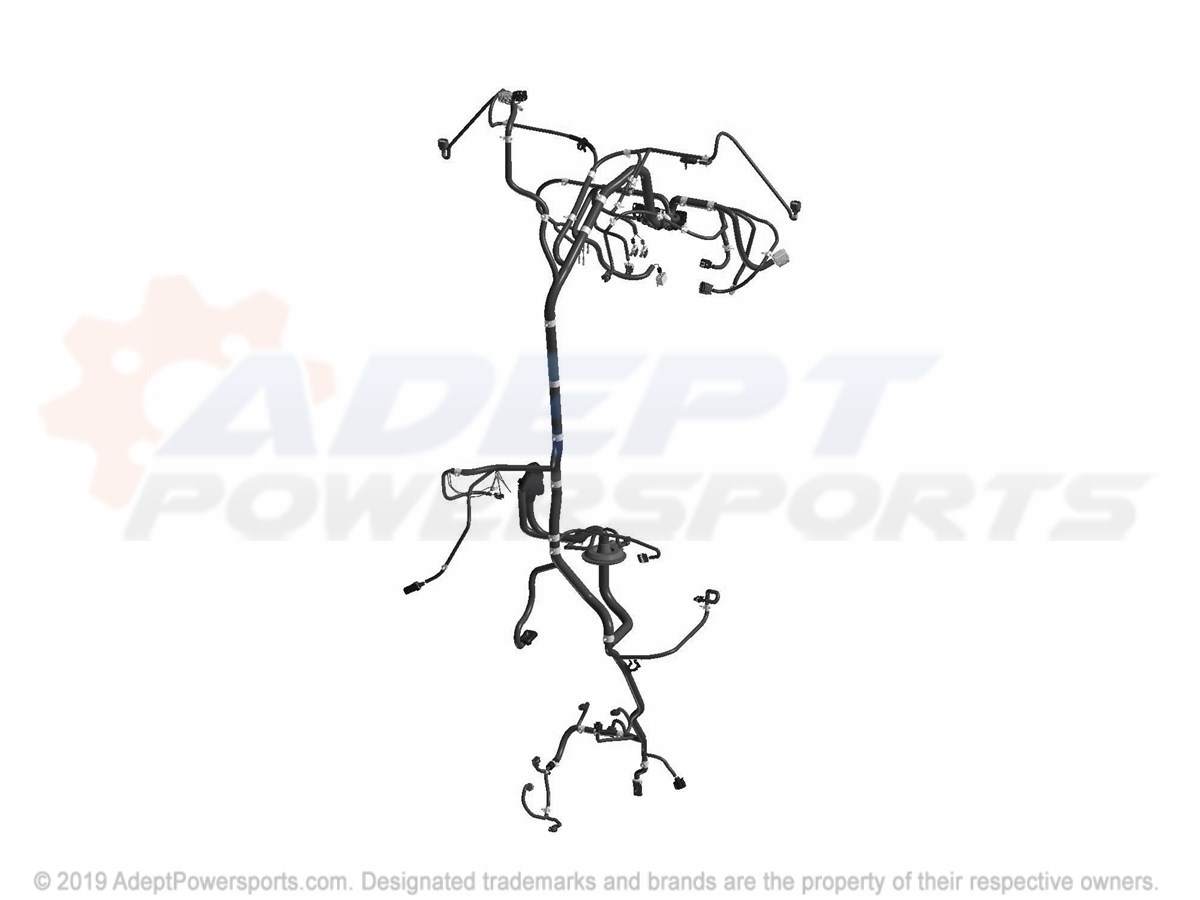

HARNESS - R17RTM99AM/BM (49RGRHARNESS15900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, MUD, RGR Part #: 2413732 Required per assembly: 1 Note: INCL 2-11 Currently Not Available
2	DECAL, RELAY/FUSE, BOX Part #: 7177866 Required per assembly: 1 Currently Not Available
3	CLIP-ROUTING Part #: 7081496 Currently Not Available
4	GROMMET Part #: 5414435 Required per assembly: 1 Currently Not Available
5	COVER-FUSEHOLDER Part #: 4012260 Required per assembly: 1 Currently Not Available
6	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
7	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 5 Currently Not Available
8	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 4 Currently Not Available
9	FUSE, 10AMP Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
10	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 1 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
11	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
12	HARNESS, BOX Part #: 2411801 Required per assembly: 1 Currently Not Available
13	BRKT-FUSE BOX MNT Part #: 5261800 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
15	SCR-HXFLGHD, M6X16, 0600086 Part #: 7518591 Required per assembly: 2 Currently Not Available
