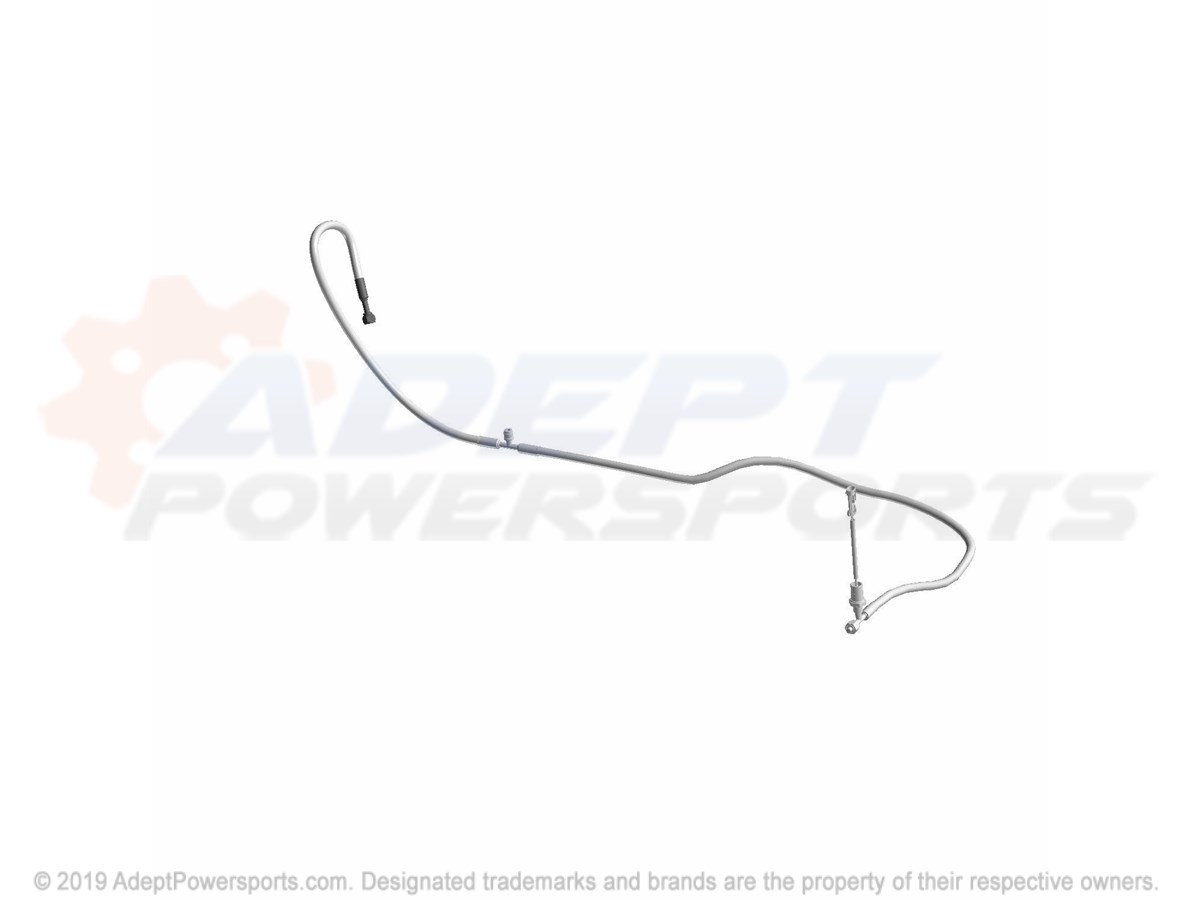

HVAC ROUTINGS - R17RTU99AV/BV (701118) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	MOUNT, CONDENSER Part #: 3120179 Required per assembly: 1 Currently Not Available
2	CONDENSOR-A/C, RGR Part #: 2413722 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7518555 Required per assembly: 3 Note: Bolt, Flange Currently Not Available
3	SCREW Part #: 7518555 Required per assembly: 3 Note: Bolt, Flange Currently Not Available
4	SCREW Part #: 7519145 Required per assembly: 2 Currently Not Available
5	HOSE-AC, RGR Part #: 5415913 Required per assembly: 1 Currently Not Available
6	HOSE-AC, RGR, BASE Part #: 5416178 Required per assembly: 1 Currently Not Available
7	HOSE-AC Part #: 3121055 Required per assembly: 1 Currently Not Available
8	HOSE-COOLANT, ENG, OIL-OUT Part #: 5415933 Required per assembly: 1 Currently Not Available
9	HOSE-COOLANT, 3WAY-ENG Part #: 5415934 Required per assembly: 1 Currently Not Available
10	HOSE-COOLANT, 3WAY-HEATER Part #: 5415935 Required per assembly: 1 Currently Not Available
11	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
12	CLAMP-HOSE SPRING 20MM Part #: 7081719 Required per assembly: 4 Currently Not Available
13	CLIP-ROUTING Part #: 7081496 Required per assembly: 7 Currently Not Available
14	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 2 Currently Not Available
15	BRKT-MNT, 3WAY, VALVE, BLK Part #: 5263112-329 Required per assembly: 1 Currently Not Available
16	ASM-VALVE, 3-WAY Part #: 2415244 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
18	SCREW Part #: 7519121 Required per assembly: 4 Currently Not Available
19	NUT, METRIC Part #: 7546703 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
20	BRKT-SUPPORT, HOSE Part #: 5263099 Required per assembly: 2 Currently Not Available
21	CLIP, PLASTIC, DART, NYLON Part #: 7670090 Required per assembly: 2 Note: Clip, Dart ~~$2.99~~ $1.73 - + Add to cart
22	HOSE-COOLANT, HEATER-RETURN Part #: 5415938 Required per assembly: 1 Currently Not Available
23	HOSE-HEATER Part #: 3121053 Required per assembly: 1 Currently Not Available
24	ASM-TUBELINE, AC Part #: 3121057 Required per assembly: 1 Currently Not Available
25	ASM-TUBELINE, AC Part #: 3121058 Required per assembly: 1 Currently Not Available
