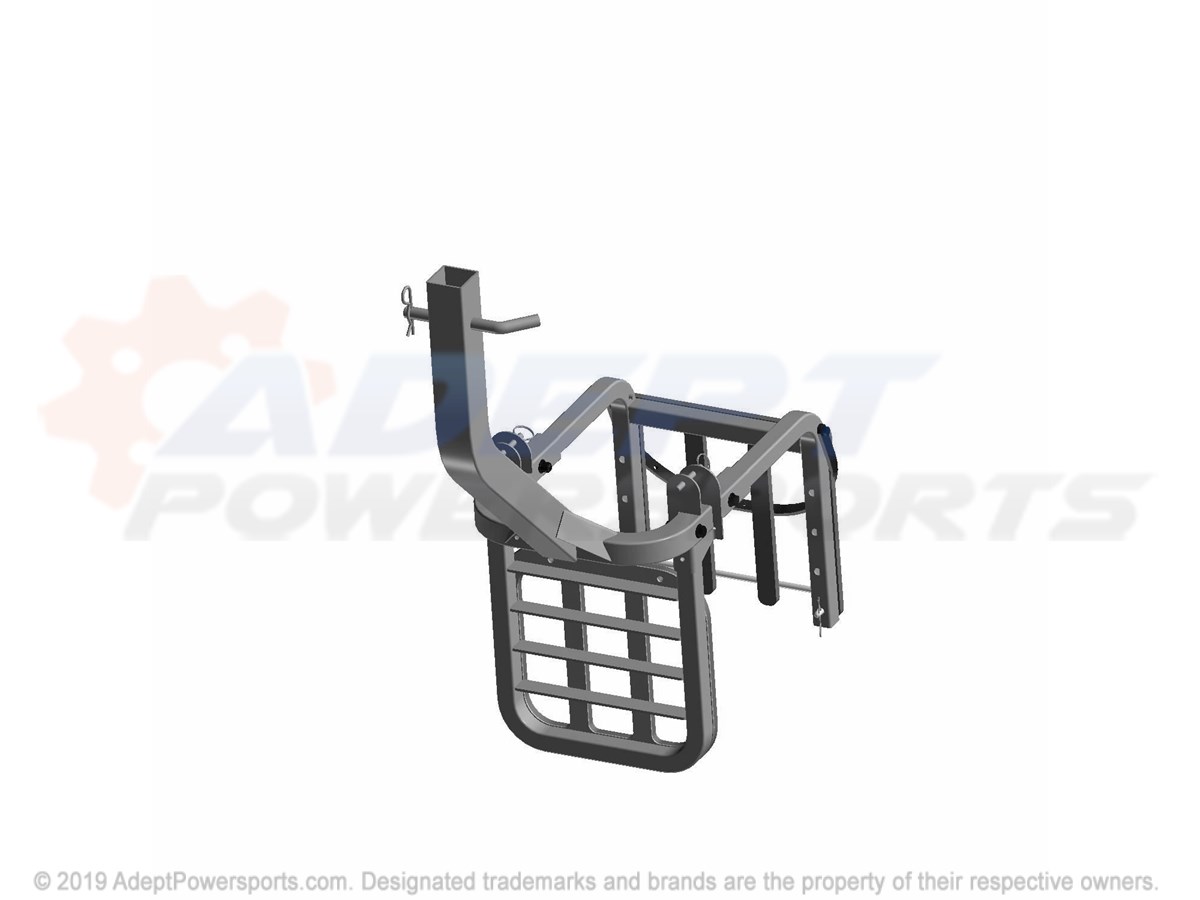

K-FENCE RACK,RANCH,RGR - R17RTU99AT/BT (701550) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-FENCE, RACK, RANCH, RGR Part #: 2636544 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	K-FENCE, RACK, RANCH, RGR Part #: 2636544 Required per assembly: 1 Currently Not Available
1	INST-ACCY, FENCE, TTN Part #: 9927352 Required per assembly: 1 Currently Not Available
