FRONT BUMPER - R17RTM99AM/BM (701887) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-FRT, BUMPER, RGR, VB Part #: 1025341-689 Required per assembly: 1 Currently Not Available

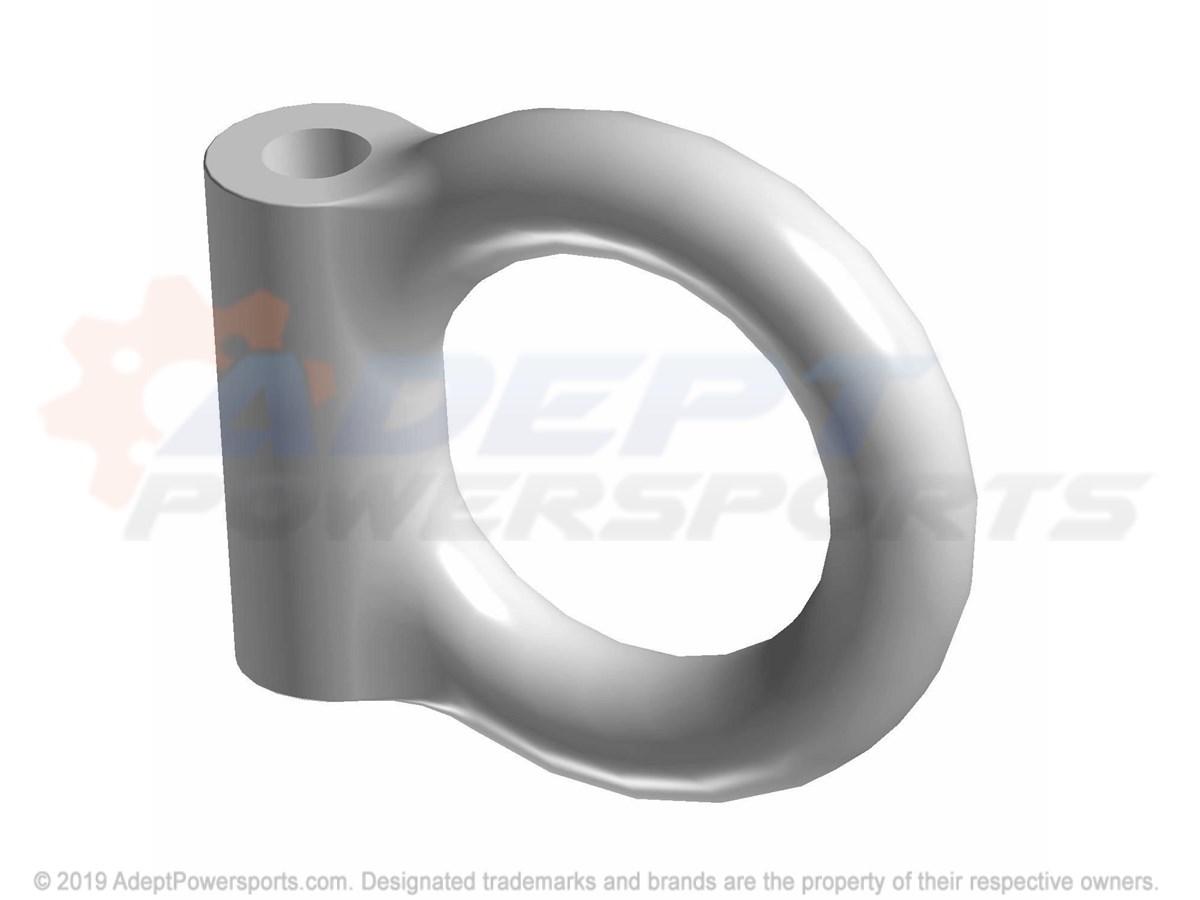

2	FORGING-D-RING, VELOCITY, BLUE Part #: 5632152-689 Required per assembly: 1 Note: FROM 2/20/2017 Currently Not Available
3	BOLT-M10X1.25X60 HXFLG-OLIVE D Part #: 7519210 Required per assembly: 2 Currently Not Available
4	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
4	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	SCREW Part #: 7519059 Required per assembly: 2 Currently Not Available
6	LOCK WASHER Part #: 7552901 Required per assembly: 2 Note: FROM 2/20/2017 ~~$1.99~~ $1.15 - + Add to cart
7	SCREW Part #: 7518911 Required per assembly: 1 Note: FROM 2/20/2017 Currently Not Available
8	NUT Part #: 7542324 Required per assembly: 1 Note: FROM 2/20/2017 Currently Not Available
