Floor And Fenders - R17rt_99 All Options (701113) replacement parts for 2017 Polaris Ranger 1000 XP All Options (R30)

OEM Parts Polaris 2017 Polaris Ranger 1000 XP All Options (R30) Floor And Fenders - R17rt_99 All Options (701113)

FLOOR and FENDERS - R17RT_99 ALL OPTIONS (701113) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

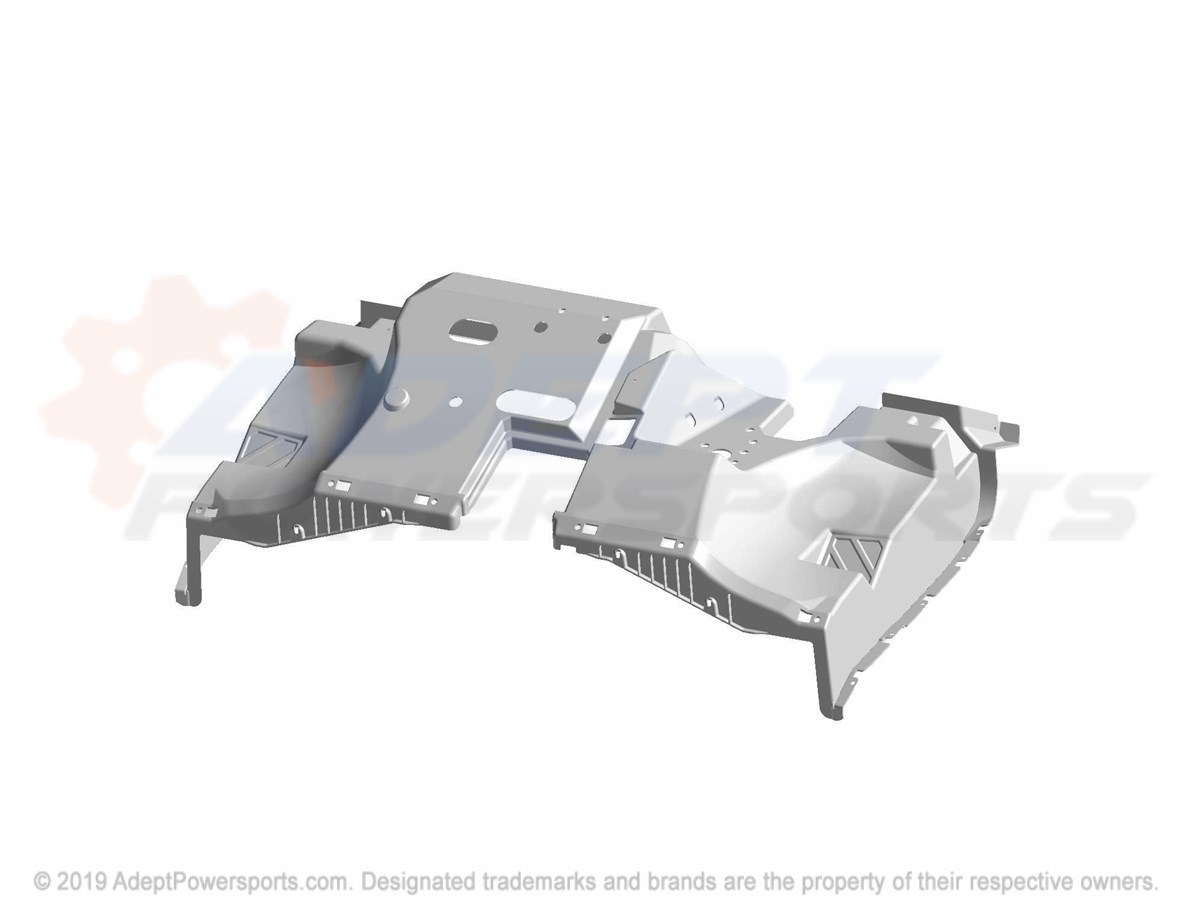

1	FLOOR, BLACK Part #: 5439109-070 Required per assembly: 1 Currently Not Available

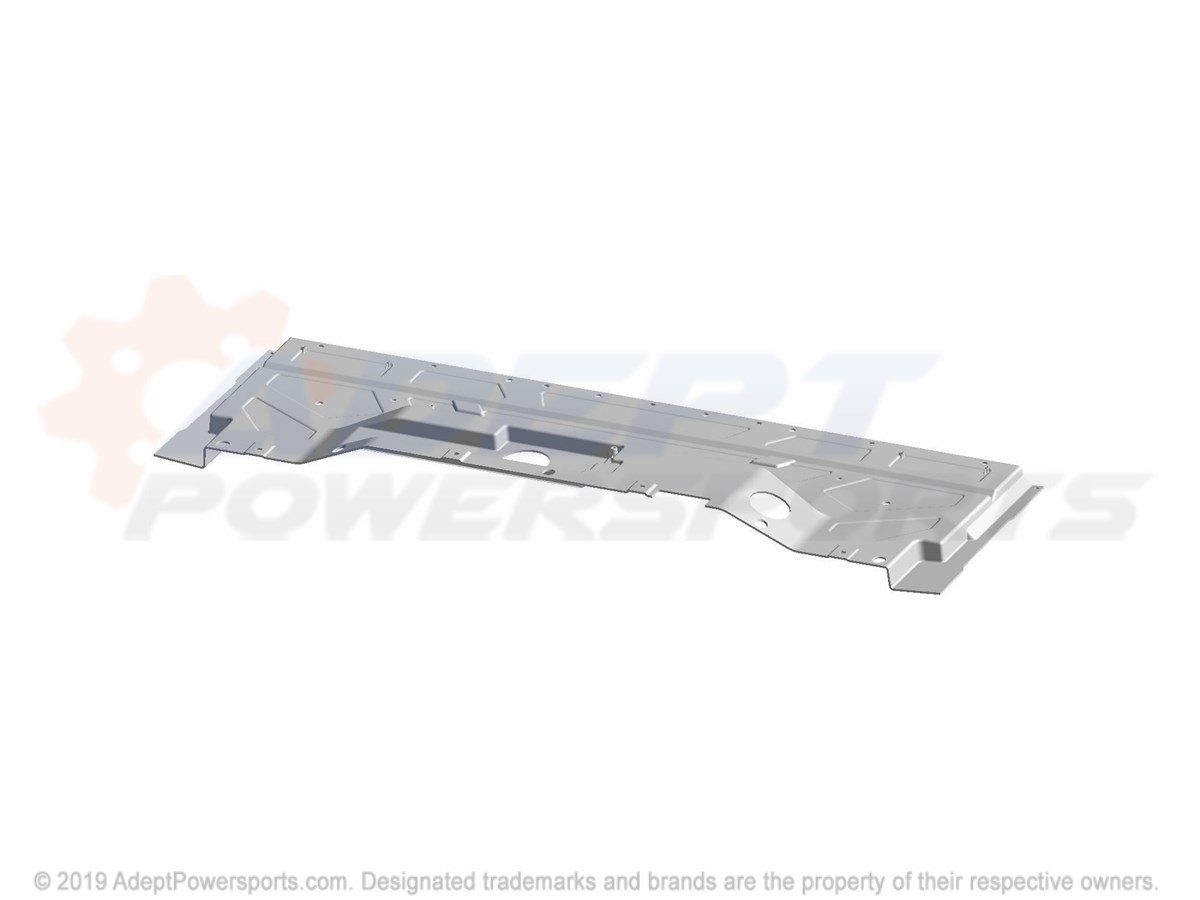

2	FLOOR, FRONT, BLACK Part #: 5439108-070 Required per assembly: 1 Currently Not Available
2	FLOOR-FRONT, HVAC, ROUTER, BLK Part #: 5453231-070 Required per assembly: 1 Note: U99AV,BV Currently Not Available
3	COVER, DRIVE, SHAFT, FLOOR, BLACK Part #: 5439215-070 Required per assembly: 1 Currently Not Available
4	FENDER, REAR, W/ROCKER, LH, BLACK Part #: 5439007-070 Required per assembly: 1 Note: E99AS,BS,AW,BW,AY,BY,A9,B9 Currently Not Available
4	FENDER, REAR, UPPER, LH, ROUTER, BLACK Part #: 5439591-070 Required per assembly: 1 Note: U99AV,BV Currently Not Available
5	FENDER, REAR, W/ROCKER, RH, BLACK Part #: 5439008-070 Required per assembly: 1 Currently Not Available
6	ASM-FENDER-REAR, UPPER, LH, BLK Part #: 2635503-070 Required per assembly: 1 Note: E99AS,BS,AW,BW,AY,BY,A9,B9 ~~$233.41~~ $155.75 - + Add to cart
6	ASM-FENDER-REAR, UPPER, LH, BLK Part #: 2635505-070 Required per assembly: 1 Note: U99AV,BV Currently Not Available
6	FENDER-REAR, UPPER, LH, DOOR, BLK Part #: 5451969-070 Required per assembly: 1 Note: E99AS,BS,AW,BW,AY,BY,A9,B9 Currently Not Available
7	FENDER-REAR, UPPER, RH, DOOR, BLK Part #: 5451970-070 Required per assembly: 1 Note: M99AM,BM Currently Not Available
7	ASM-FENDER-REAR, UPPER, RH, BLK Part #: 2635504-070 Required per assembly: 1 Note: M99AM,BM Currently Not Available
7	ASM-FENDER-REAR, UPPER, RH, BLK Part #: 2635506-070 Required per assembly: 1 Note: U99AV,BV Currently Not Available
8	SCREW Part #: 7518529 Required per assembly: 9 ~~$2.99~~ $1.73 - + Add to cart
9	PLATE, SKID, BLACK Part #: 5438878-070 Required per assembly: 1 Currently Not Available
10	PANEL, CLOSEOFF, REAR, BLACK Part #: 5439115-070 Required per assembly: 1 Note: E99AS,BS,AW,BW,AY,BY,AP,B9 Currently Not Available
10	PANEL-BOX, CLOSE, OFF, MUDDER Part #: 5452500 Required per assembly: 1 Note: M99AM,BM Currently Not Available
10	PANEL-CLOSEOFF, REAR, HVAC, BLK Part #: 5454087-070 Required per assembly: 1 Note: U99AV,BV Currently Not Available
11	PANEL, CLOSEOFF, LOWER, BLACK Part #: 5450843-070 Required per assembly: 1 Currently Not Available
12	GROMMET, STEERING, FLOOR Part #: 5439298 Required per assembly: 1 Currently Not Available
13	U-TYPE, SPEED, NUT Part #: 7081305 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
13	U-TYPE, SPEED, NUT Part #: 7081305 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
14	SCREW Part #: 7519650 Currently Not Available
14	SCREW Part #: 7519650 Currently Not Available
14	SCREW Part #: 7519650 Currently Not Available
14	SCREW Part #: 7519650 Currently Not Available
14	SCREW Part #: 7519650 Currently Not Available
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
15	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
16	WASHER-SKID PLATE Part #: 7556065 Required per assembly: 9 Note: Washer Currently Not Available
17	SCREEN, GRASS, MATTE, BLACK Part #: 5256290-458 Required per assembly: 1 Note: U99AV,BV Currently Not Available
18	SPACER, GROMMET Part #: 5414586 Required per assembly: 2 Note: U99AV,BV Currently Not Available
19	STUD-1/4 TURN 6MMX16MM Part #: 7661969 Required per assembly: 2 Note: U99AV,BV Currently Not Available
20	CLIP, 1/4, TURN Part #: 7710630 Required per assembly: 2 Note: U99AV,BV Currently Not Available
21	RETAINER, 1/4, TURN Part #: 7710634 Required per assembly: 2 Note: U99AV,BV Currently Not Available
22	CLOSE-OFF, CONDENSER, BLK Part #: 5453870-070 Required per assembly: 1 Currently Not Available
