SENSORS and MODULES - R17RT_99 ALL OPTIONS (701124) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
2	NUT, FLANGE Part #: 7547339 Required per assembly: 1 Currently Not Available

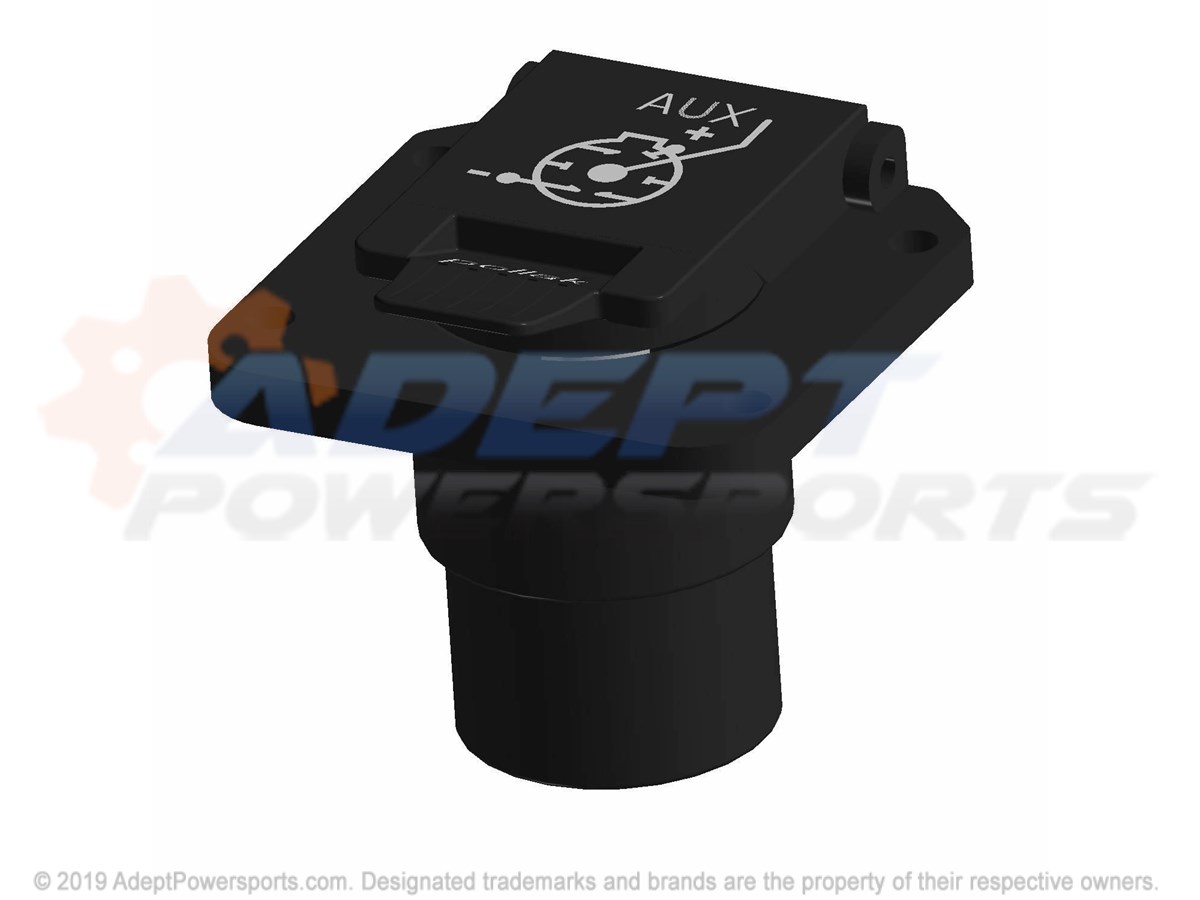

3	SWITCH-SOCKET, AUX, RGR Part #: 4016407 Required per assembly: 1 Note: U99AT, BT Currently Not Available

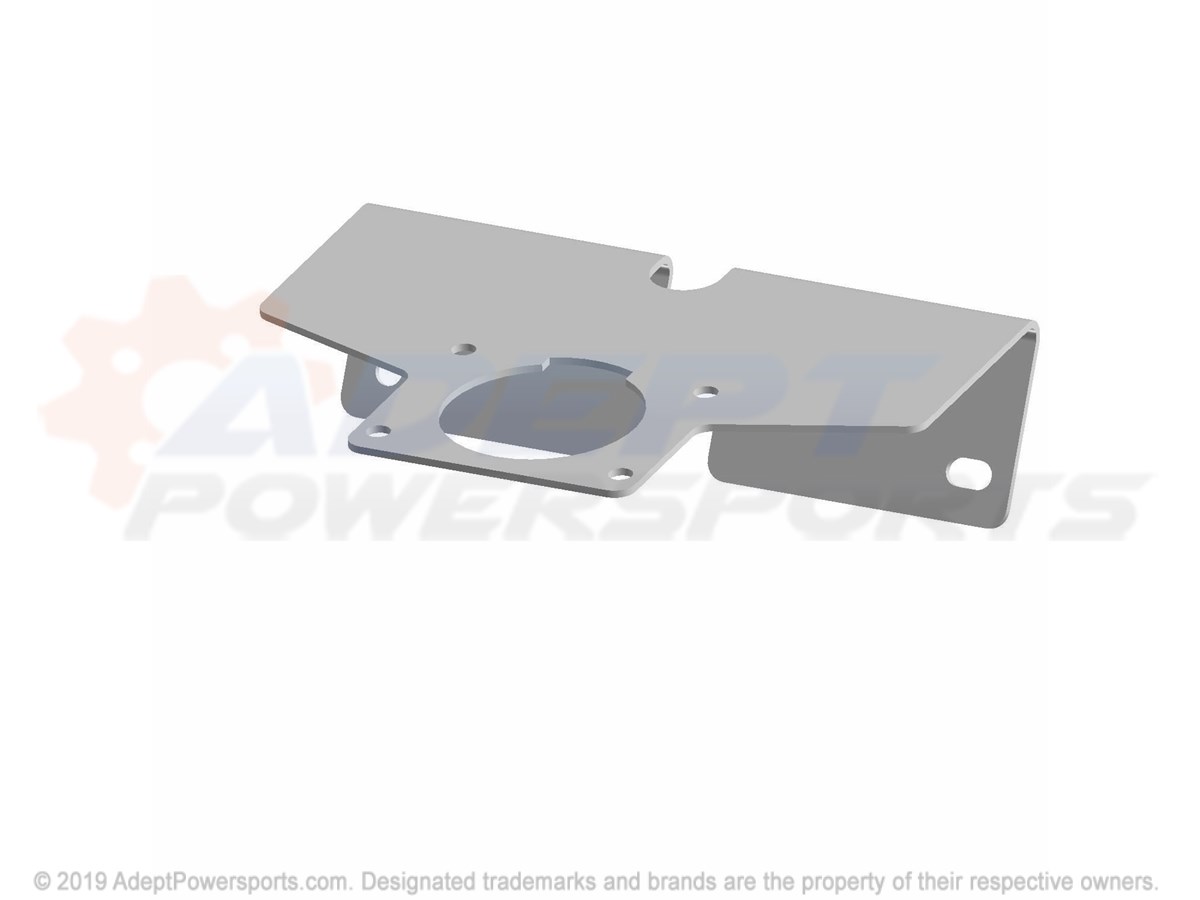

4	BRKT-PLUG, RR, ACCY, PWR, M.BLK Part #: 5263280-458 Required per assembly: 1 Note: U99AT, BT Currently Not Available
5	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
6	RELAY, SOLID, STATE, 9, AMP Part #: 4012829 Required per assembly: 1 Note: Relay, Solid State Currently Not Available
7	BOLT, FLANGE Part #: 7518612 Required per assembly: 1 Note: Bolt Currently Not Available
8	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Note: FROM 2/27/2017 Currently Not Available
8	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Note: TO 2/27/2017 Currently Not Available
