Body, Box Mounting replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Body, Box Mounting

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518375 Required per assembly: 7 Currently Not Available
2	WASHER Part #: 7556329 Required per assembly: 7 Currently Not Available

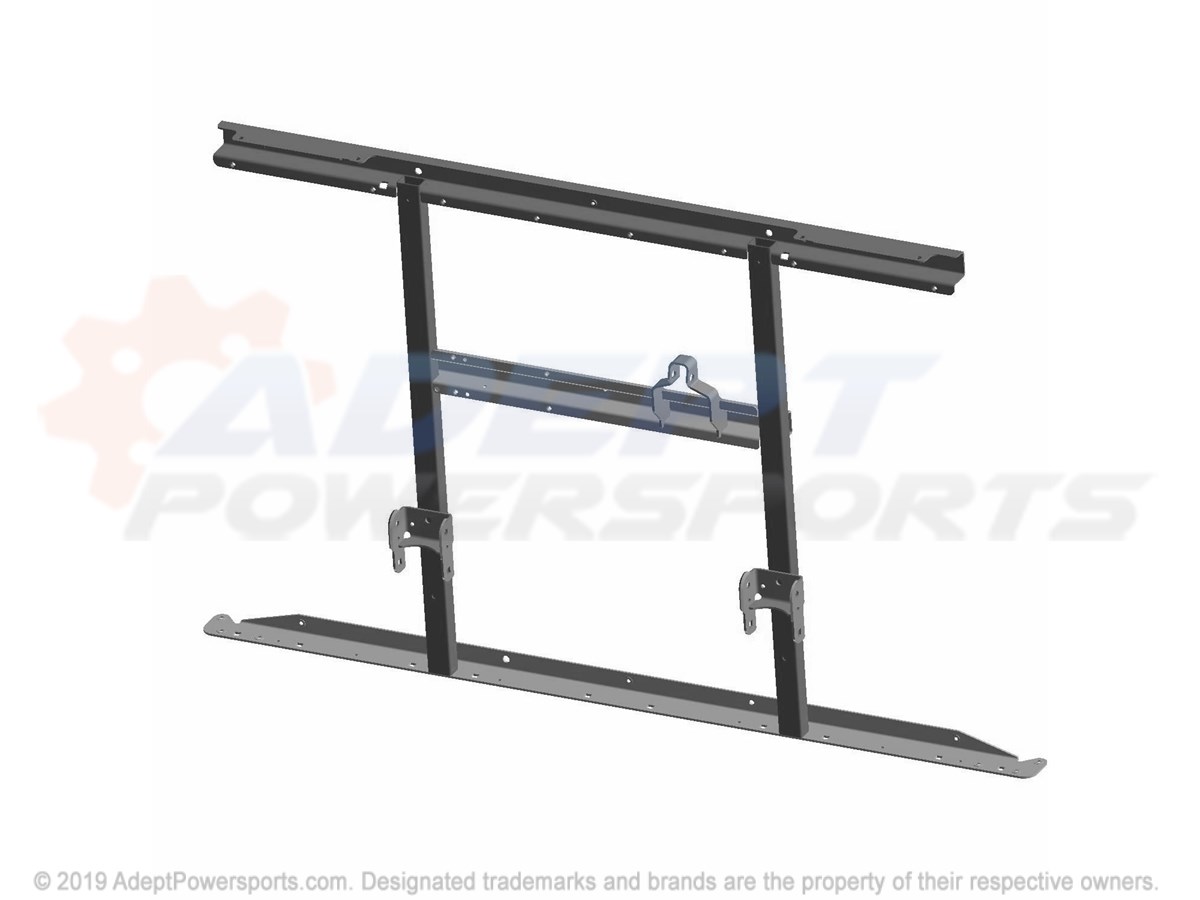

3	WELD-BOX SUPPORT SHORT BLK Part #: 1017521-329 Required per assembly: 1 Currently Not Available
4	LATCH, BOX, BLACK Part #: 1017305-067 Required per assembly: 1 Currently Not Available

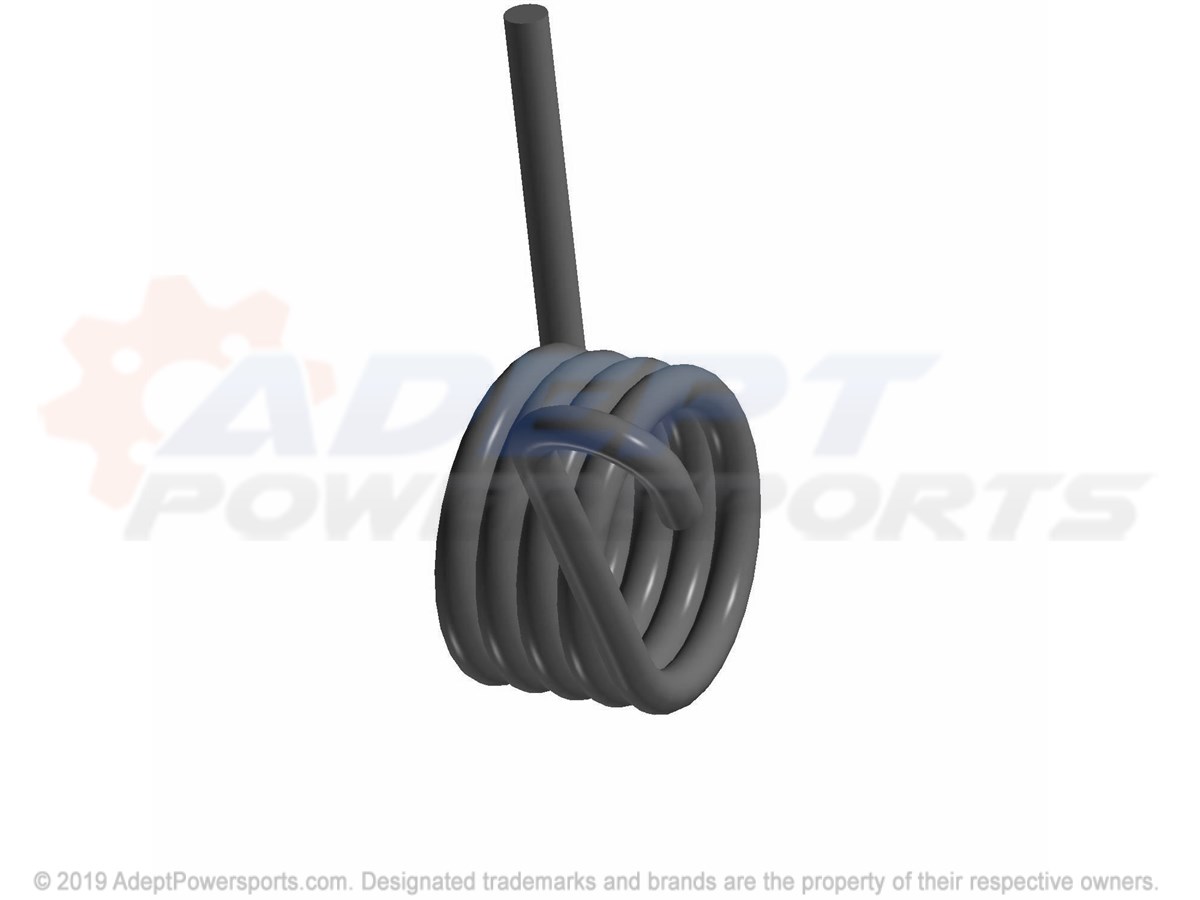

5	SPRING, LATCH Part #: 7043576 Required per assembly: 1 Currently Not Available
6	PIN, CLEVIS Part #: 7661878 Required per assembly: 2 Currently Not Available

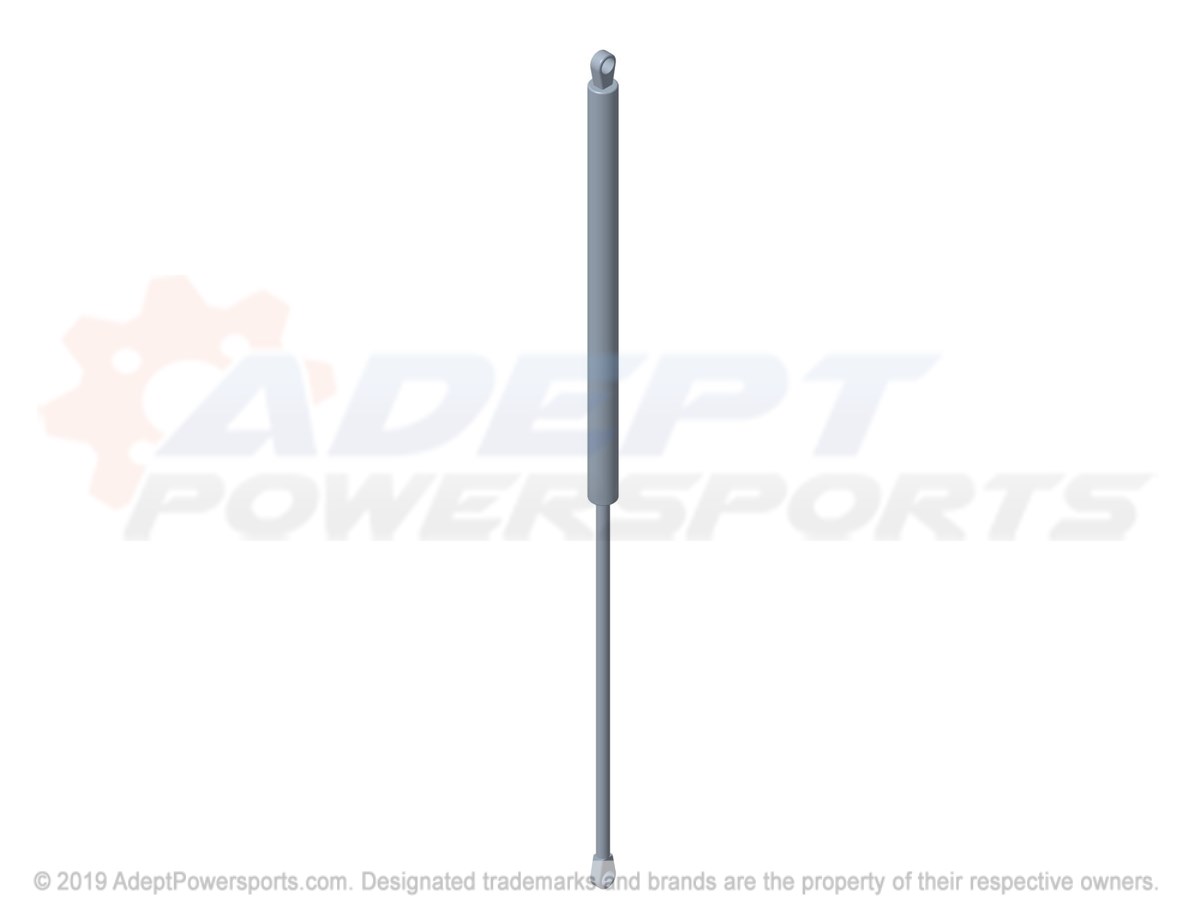

7	SHOCK, DUMP, BOX Part #: 7043187 Required per assembly: 1 Currently Not Available
8	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 2 Note: Clip Currently Not Available
9	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available
10	WASHER STEEL Part #: 7558402 Required per assembly: 4 $1.34 $0.97 - + Add to cart
11	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 8 Currently Not Available
12	BOLT Part #: 7515319 Required per assembly: 4 Note: Bolt Currently Not Available
13	SCREW Part #: 7518280 Required per assembly: 2 Currently Not Available

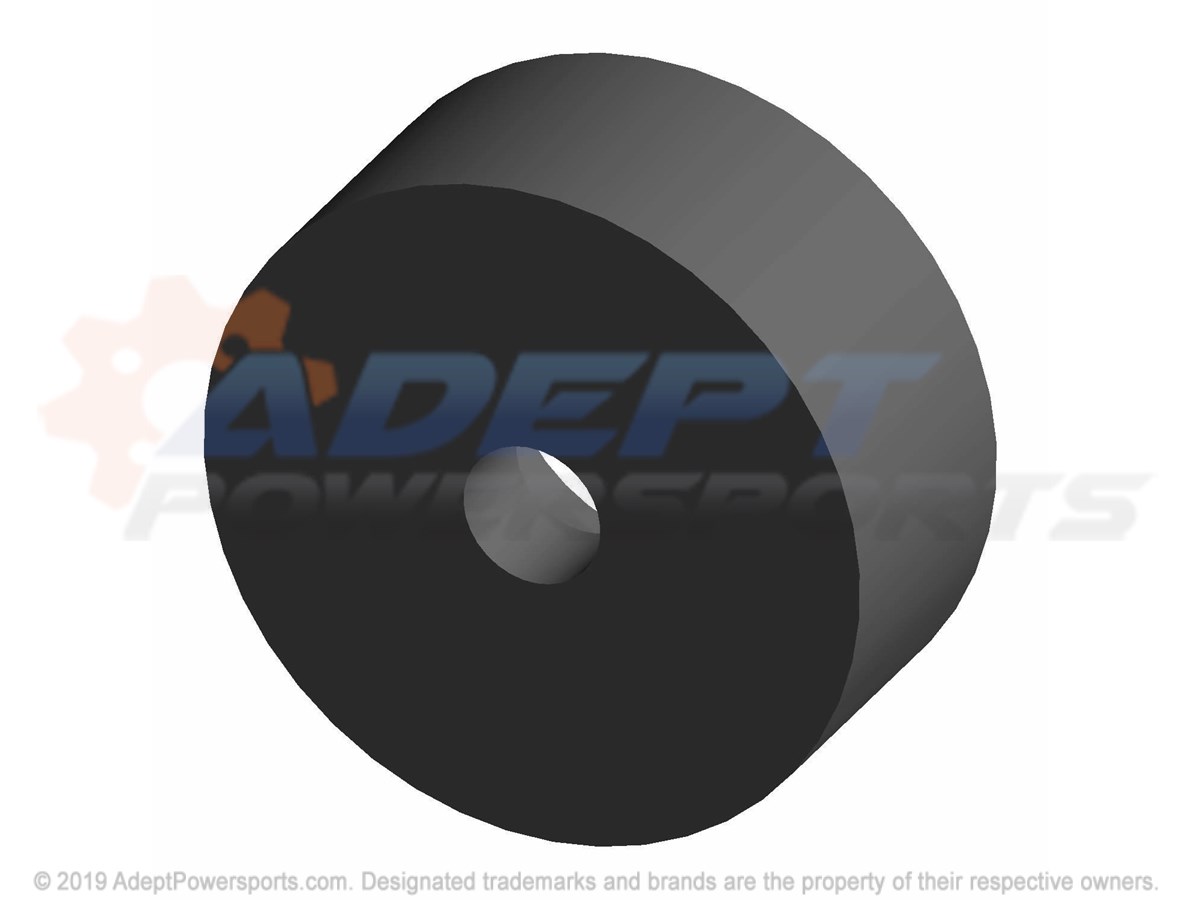

14	BUMPER, BOX Part #: 5413833 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7517386 Required per assembly: 8 Note: Screw $2.99 $1.73 - + Add to cart
16	SHIELD, HEAT, EXHAUST Part #: 5253903 Required per assembly: 1 Currently Not Available
17	SHAFT-PIVOT 73.96MM ZINC OLIVE Part #: 5137591 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available

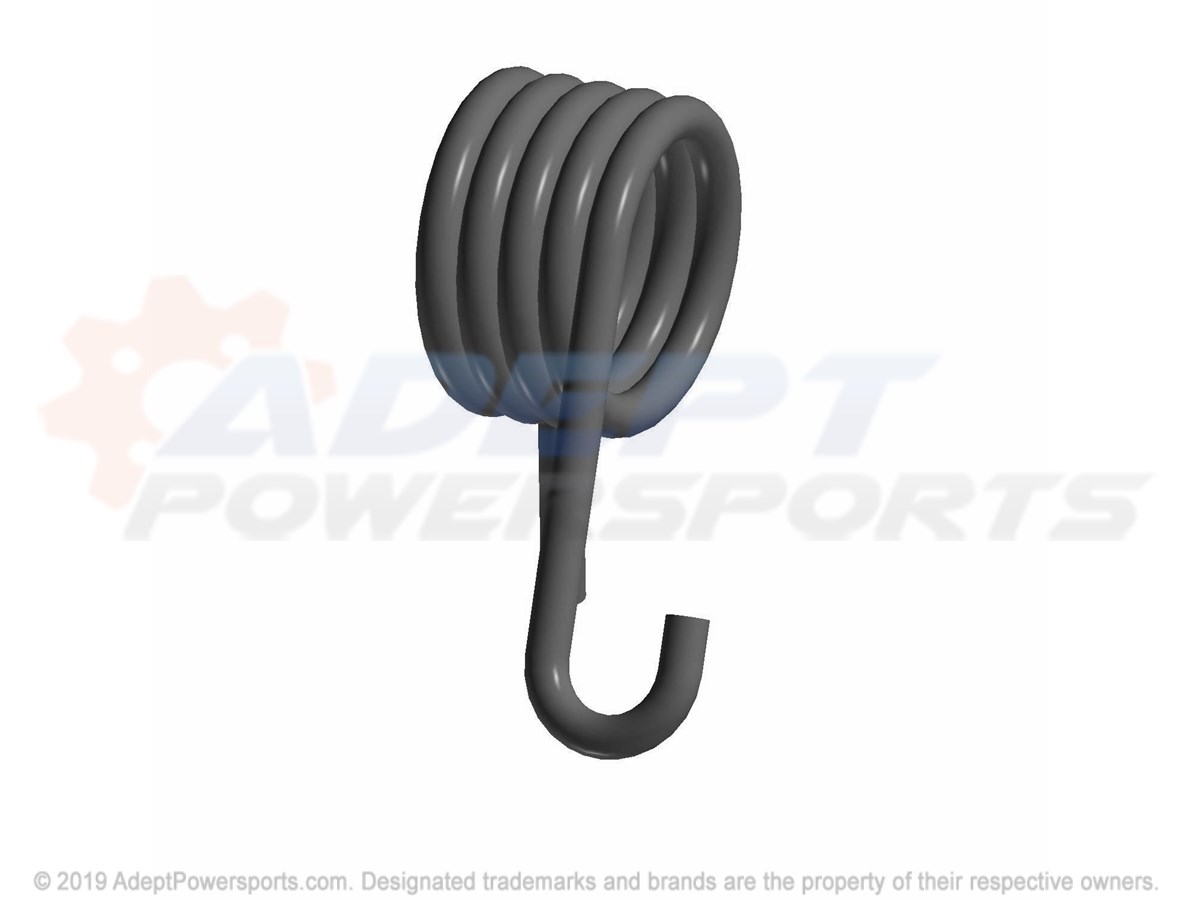

18	SPRING, LATCH Part #: 7043607 Required per assembly: 1 Currently Not Available
19	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 4 $4.99 $3.56 - + Add to cart
20	SCREW Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
21	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
