Drive Train, Main Gearcase Internal replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Drive Train, Main Gearcase Internal

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEARCASE MAIN Part #: 1332961 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 3234267 Required per assembly: 6 Currently Not Available
3	CARRIER, SUB, ASM. Part #: 3234473 Required per assembly: 1 Currently Not Available
4	SIDE, GEAR, 36T, SUBASSEMBLY Part #: 3234363 Required per assembly: 1 Note: Side Gear, 36T, Sub Asm. Currently Not Available
5	PIN, DOWEL Part #: 3234238 Required per assembly: 6 $14.99 $8.63 - + Add to cart
6	GEAR, SUB, ASM. Part #: 3234469 Required per assembly: 6 Currently Not Available
7	SIDE, GEAR, 36T, DISCONNECT, Part #: 3234362 Required per assembly: 1 Note: Side Gear, 36T, Disconnect Currently Not Available
8	CARRIER, SUB, ASM. Part #: 3234472 Required per assembly: 1 Currently Not Available
9	WASHER Part #: 3234268 Required per assembly: 2 Currently Not Available

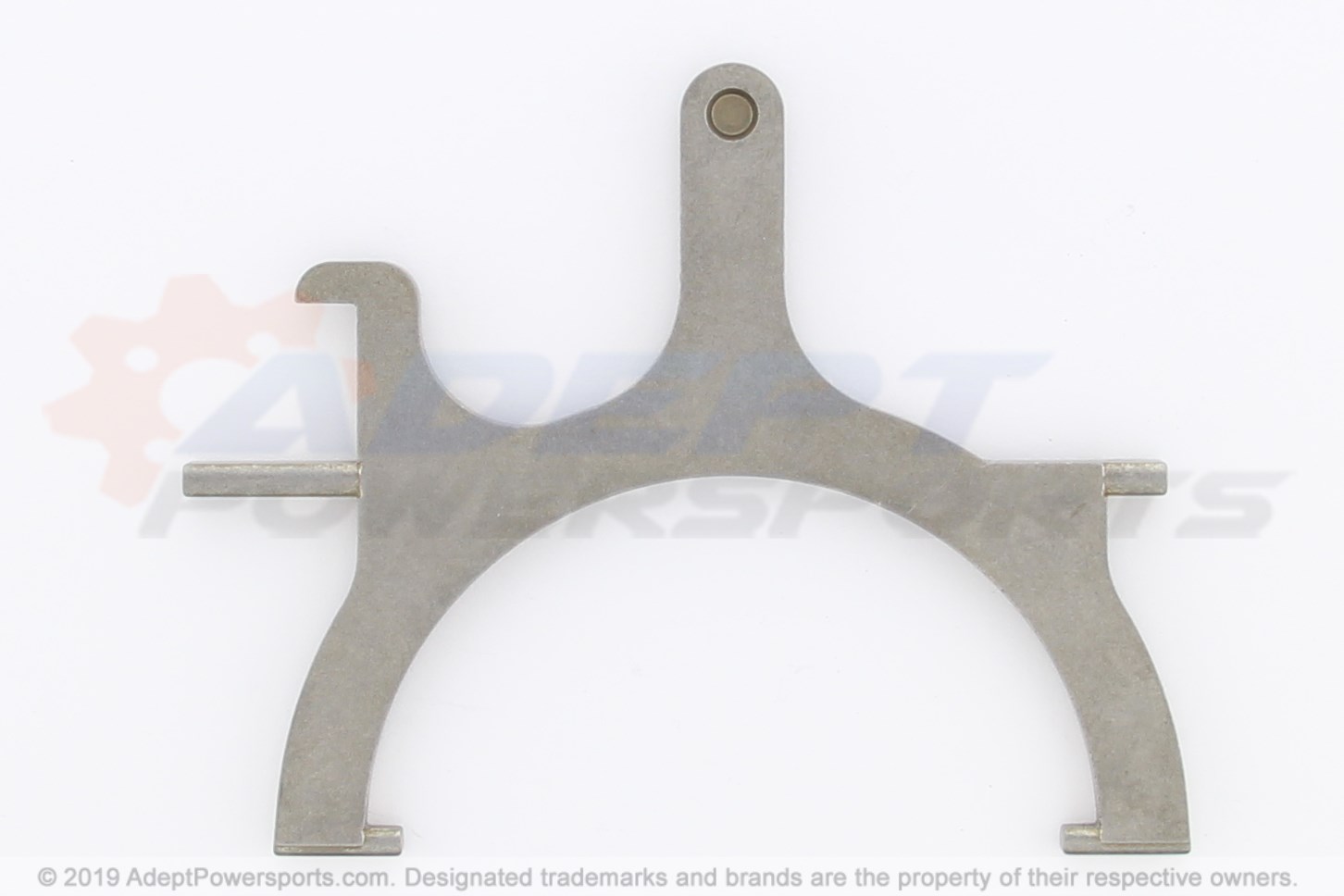

10	FORK, SHIFT Part #: 3234285 Required per assembly: 1 Currently Not Available
11	DOG-ENGAGEMENT Part #: 3234928 Required per assembly: 1 Currently Not Available
12	CHAIN, 86P Part #: 3234442 Required per assembly: 1 Note: Chain Currently Not Available
13	SCREW Part #: 3234086 Required per assembly: 7 Currently Not Available

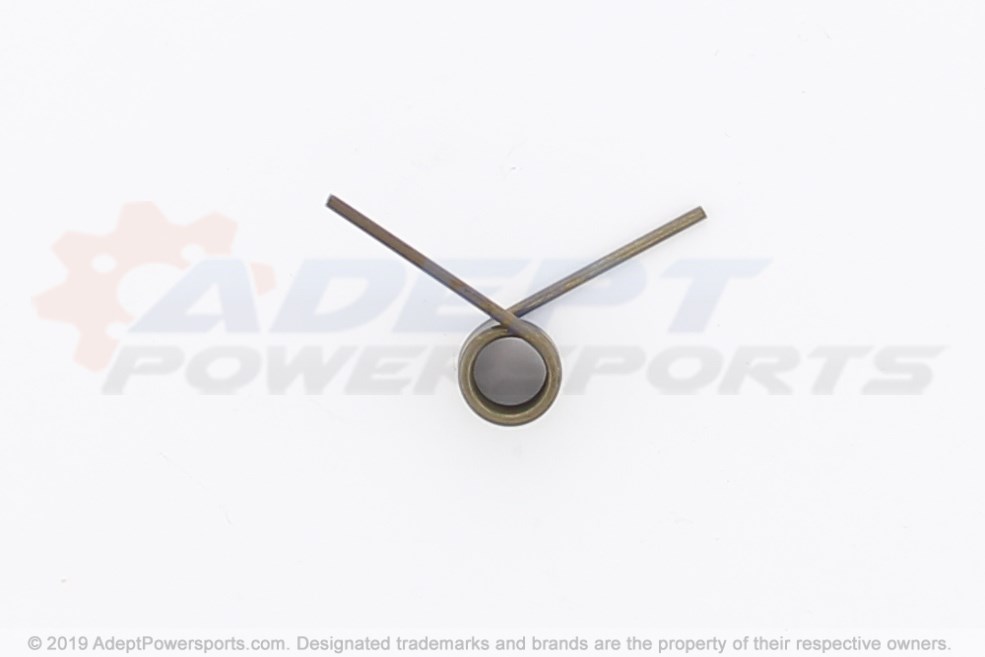

14	SPRING, TORSION Part #: 3233431 Required per assembly: 1 Currently Not Available
15	CAM, CHAIN, TENSIONER Part #: 3233434 Required per assembly: 1 Currently Not Available

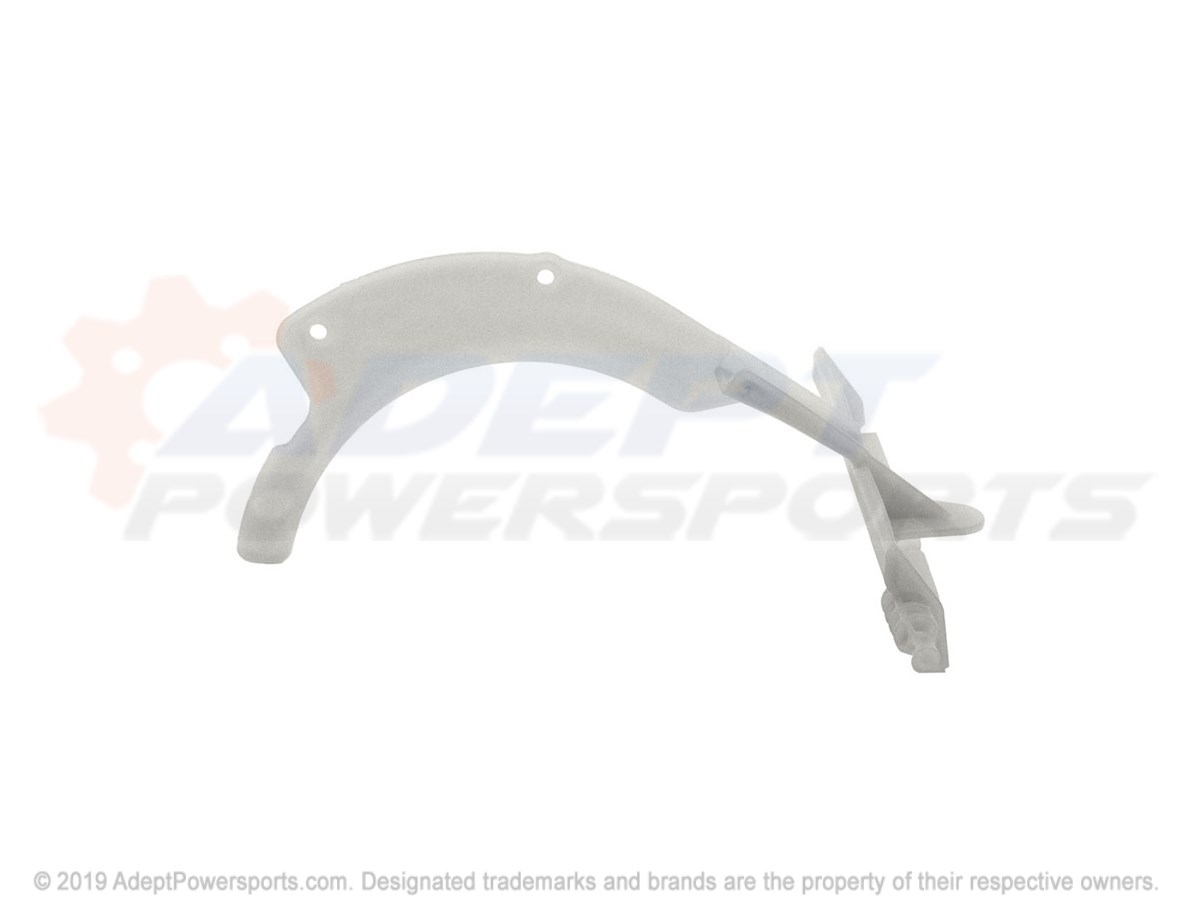

16	SHOE, CHAIN, TENSIONER Part #: 3233433 Required per assembly: 1 Currently Not Available
17	SPRING, TORSION Part #: 3234276 Required per assembly: 1 Currently Not Available
18	PIN, DOWEL Part #: 3233432 Required per assembly: 2 Currently Not Available
19	BEARING Part #: 3233018 Required per assembly: 1 Currently Not Available
20	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
21	SPROCKET, 19T Part #: 3234441 Required per assembly: 1 Currently Not Available
22	RING-RETAINING Part #: 3233699 Required per assembly: 1 Currently Not Available
23	SCREW Part #: 3233749 Required per assembly: 2 Note: Screw Tapping Currently Not Available
24	OIL DEFLECTOR Part #: 3234915 Required per assembly: 1 Currently Not Available
25	GEAR, OUTPUT, 19T Part #: 3234953 Required per assembly: 1 Currently Not Available
26	COVER, BEARING Part #: 3234063 Required per assembly: 1 Currently Not Available
27	RING, RETAINING Part #: 3233364 Required per assembly: 1 Currently Not Available
28	SHIM Part #: 3234271 Required per assembly: 1 Currently Not Available
29	BEARING, BALL Part #: 3234065 Required per assembly: 1 Currently Not Available

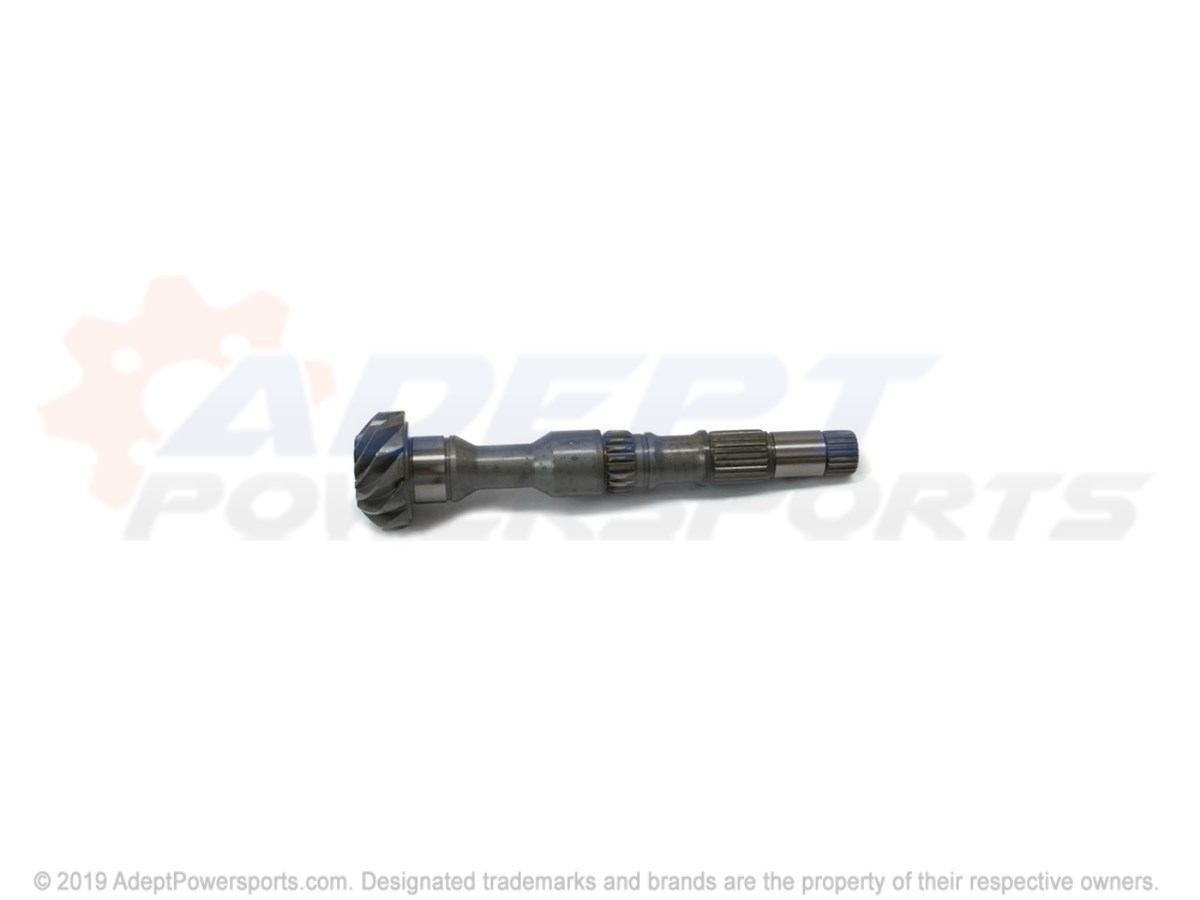

30	PINION, 13T, CENTER, DRIVE Part #: 3234947 Required per assembly: 1 Currently Not Available
31	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
32	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
33	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
34	FORK, SHIFT Part #: 3234077 Required per assembly: 2 Currently Not Available
35	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 $24.99 $14.65 - + Add to cart
36	COLLAR, SHIFT Part #: 3234073 Required per assembly: 1 Currently Not Available
37	RAIL, SHIFT, SHAFT Part #: 3235542 Required per assembly: 1 Currently Not Available
38	DRUM SHIFT Part #: 3235046 Required per assembly: 1 Currently Not Available
39	RING, RETAINING Part #: 3234067 Required per assembly: 1 Currently Not Available
40	WASHER Part #: 3233176 Required per assembly: 1 Currently Not Available

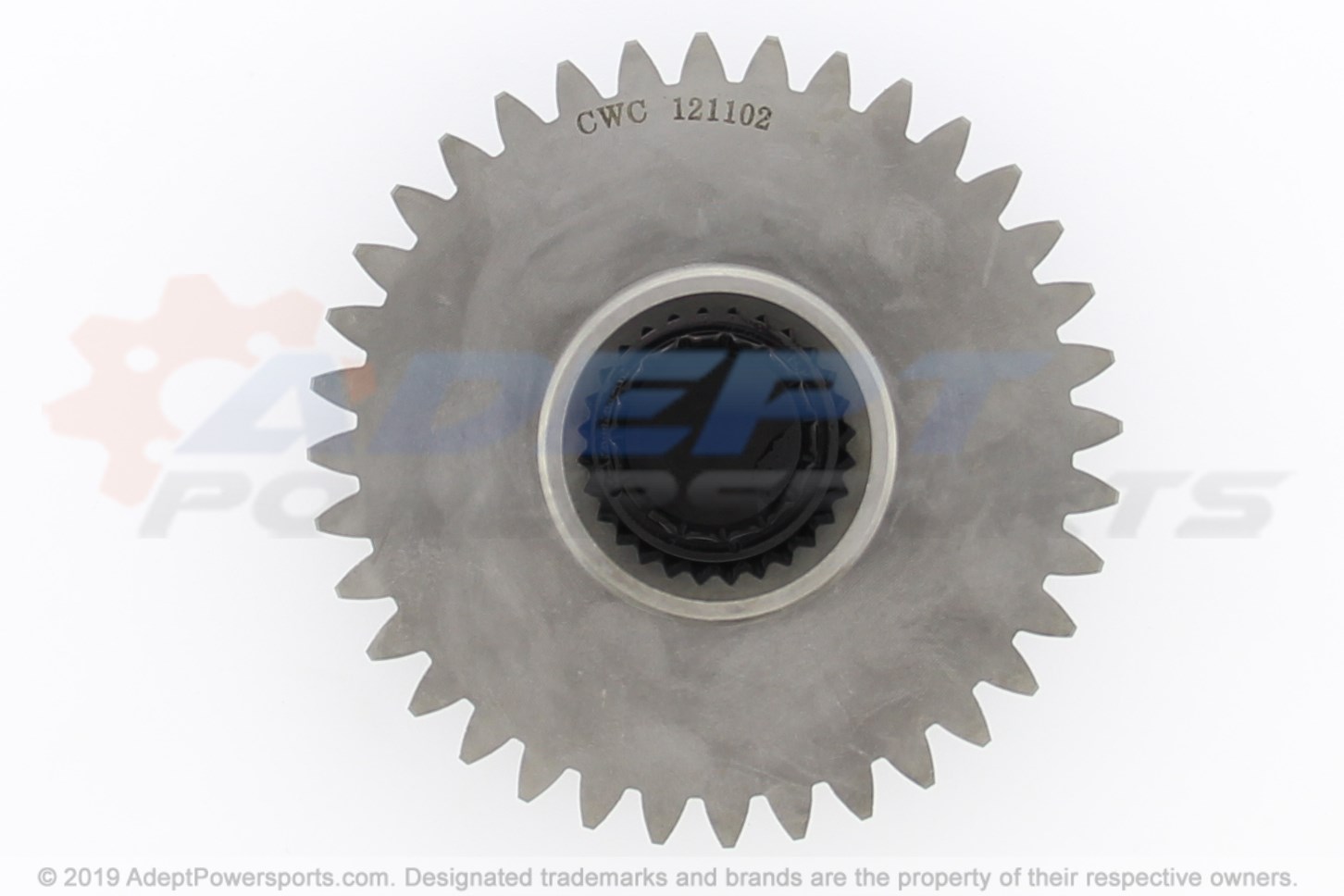

41	GEAR-36T (353181) Part #: 3235368 Required per assembly: 1 Currently Not Available
42	BEARING, NEEDLE Part #: 3233009 Required per assembly: 1 Currently Not Available
43	WASHER Part #: 3233855 Required per assembly: 1 Currently Not Available
44	RING, RETAINING Part #: 3234336 Required per assembly: 1 Currently Not Available
45	ENGAGEMENT DOG Part #: 3234258 Required per assembly: 1 Currently Not Available
46	RING, RETAINING Part #: 3233306 Required per assembly: 2 Note: Ring, Retaining Currently Not Available

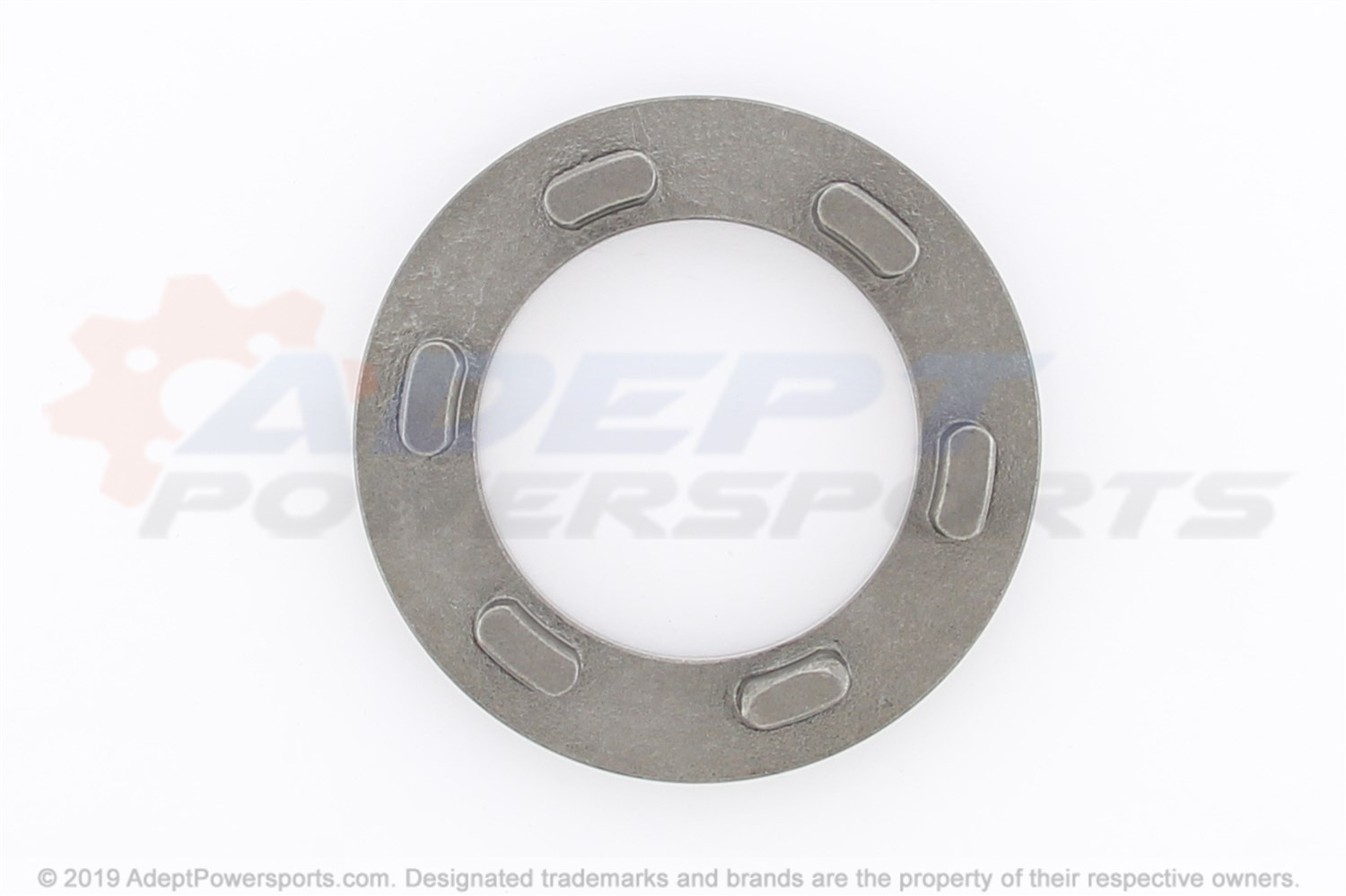

47	WASHER, THRUST Part #: 3234248 Required per assembly: 2 Currently Not Available
48	SPROCKET, 38T Part #: 3234290 Required per assembly: 1 Currently Not Available
49	SHAFT, REVERSE, 26T Part #: 3234948 Required per assembly: 1 Currently Not Available
50	BEARING, NEEDLE Part #: 3233103 Required per assembly: 2 Currently Not Available

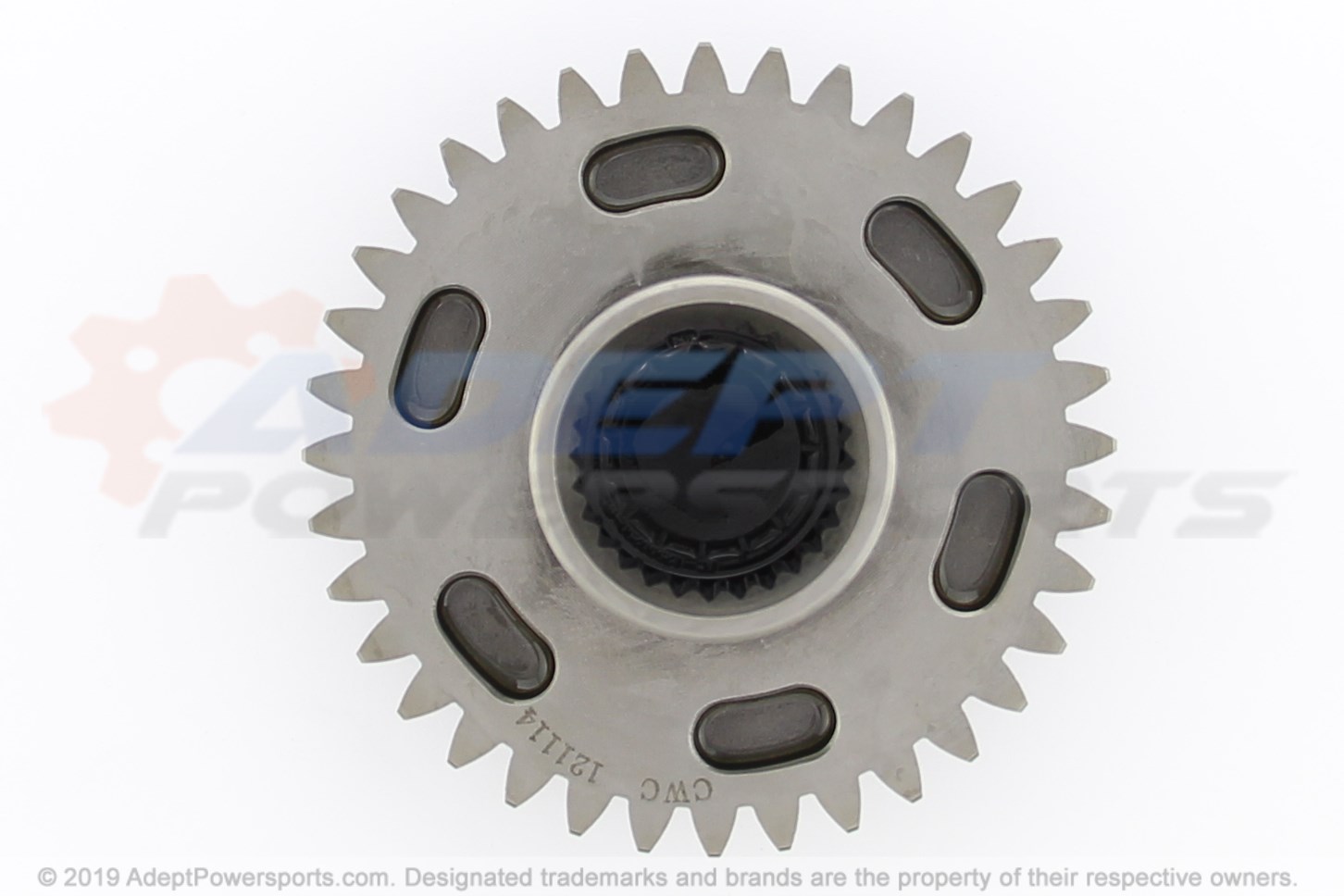

51	GEAR-33T (353178) Part #: 3235363 Required per assembly: 1 Currently Not Available
52	BEARING, BALL, [QTY, 3, ON, [2X4] Part #: 3234274 Required per assembly: 2 Note: Bearing, Ball Currently Not Available
53	CHAIN, SILENT Part #: 3234264 Required per assembly: 1 Currently Not Available
54	SHAFT-35T INPUT (285905) Part #: 3235367 Required per assembly: 1 Currently Not Available
55	BEARING Part #: 3233019 Required per assembly: 1 Currently Not Available
56	DOG-ENGAGEMENT LOW (353179) Part #: 3235364 Required per assembly: 1 Currently Not Available
57	BEARING, BALL Part #: 3234275 Required per assembly: 2 Currently Not Available
