Engine, Throttle Pedal replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Engine, Throttle Pedal

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE-THROTTLE 800 Part #: 7081669 Required per assembly: 1 Currently Not Available

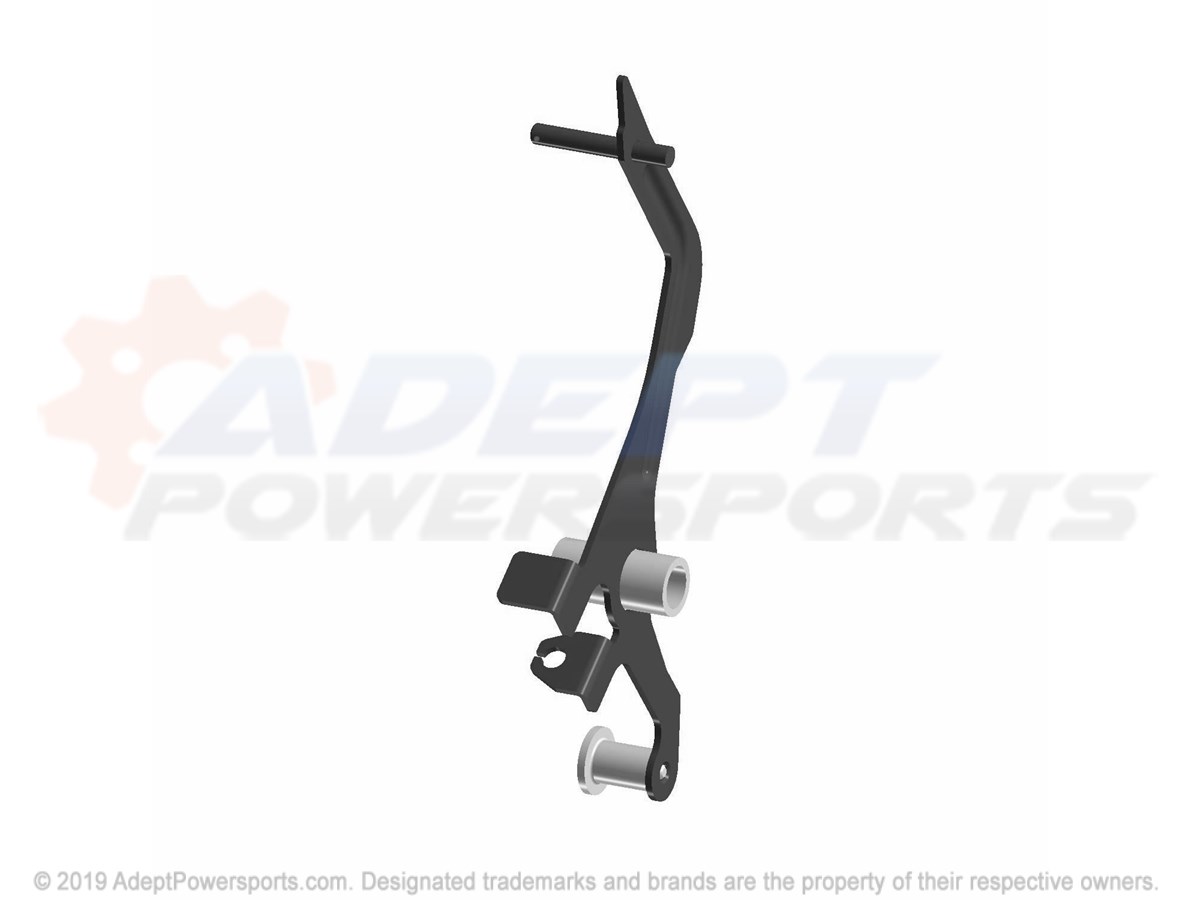

2	WELD-PEDAL MNT BLK Part #: 1018364-329 Required per assembly: 1 Currently Not Available
3	BUSHING-PEDAL PIVOT Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot Currently Not Available
4	RING, RETAINING Part #: 7710901 Required per assembly: 1 Currently Not Available
5	WASHER Part #: 7555954 Required per assembly: 1 Note: Washer Currently Not Available
6	PIN, CLIP Part #: 7661140 Required per assembly: 1 Currently Not Available
7	NUT, FLANGE Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok Currently Not Available
8	PEDAL, THROTTLE Part #: 5438028 Required per assembly: 1 Currently Not Available
9	THROTTLE, BLACK Part #: 1017946-067 Required per assembly: 1 Currently Not Available

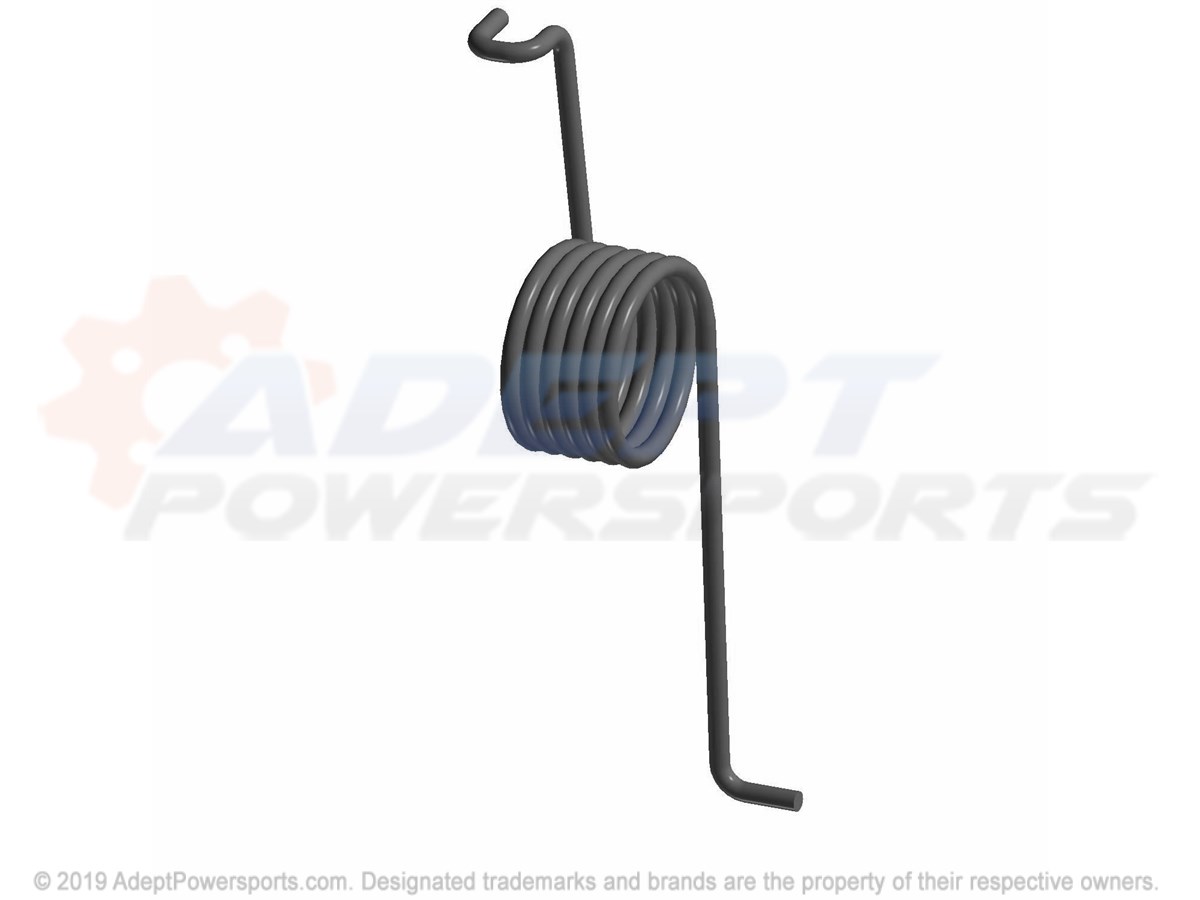

10	SPRING, THROTTLE Part #: 7043078 Required per assembly: 1 Currently Not Available
11	SPRING-ACCELERATOR HEAVY Part #: 7043744 Required per assembly: 1 Currently Not Available
