Steering, Steering Asm. replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Steering, Steering Asm.

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOOT, SEAL, ROD, END Part #: 5412929 Required per assembly: 2 Note: Boot, Seal, Rod End $11.99 $6.90 - + Add to cart
2	ROD-END, 10MM, 1/2-20, LH, 42, DEG Part #: 7061138 Required per assembly: 2 Note: Rod End Currently Not Available
3	NUT, LH, JAM Part #: 7547028 Required per assembly: 2 Note: Nut, Jam, LH $3.99 $2.30 - + Add to cart
8	BOLT Part #: 7518935 Required per assembly: 3 Currently Not Available
9	SCREW Part #: 7517827 Required per assembly: 1 Currently Not Available
10	BOLT Part #: 7517924 Required per assembly: 1 Currently Not Available
11	LOCK WASHER Part #: 7552901 Required per assembly: 1 $1.99 $1.15 - + Add to cart
12	BEARING-STEERING Part #: 3514686 Required per assembly: 2 Currently Not Available

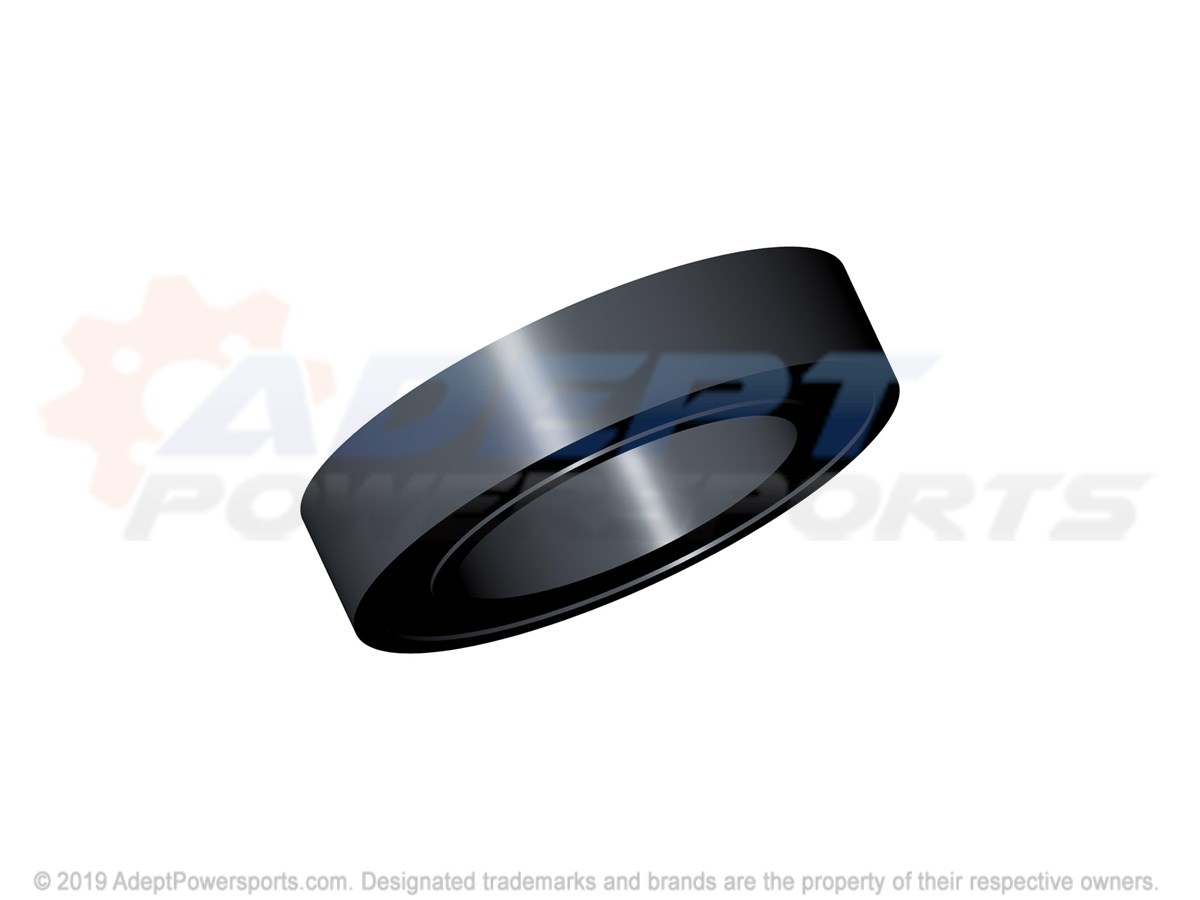

13	SPACER, STEERING, SHAFT Part #: 5252796 Required per assembly: 2 Currently Not Available

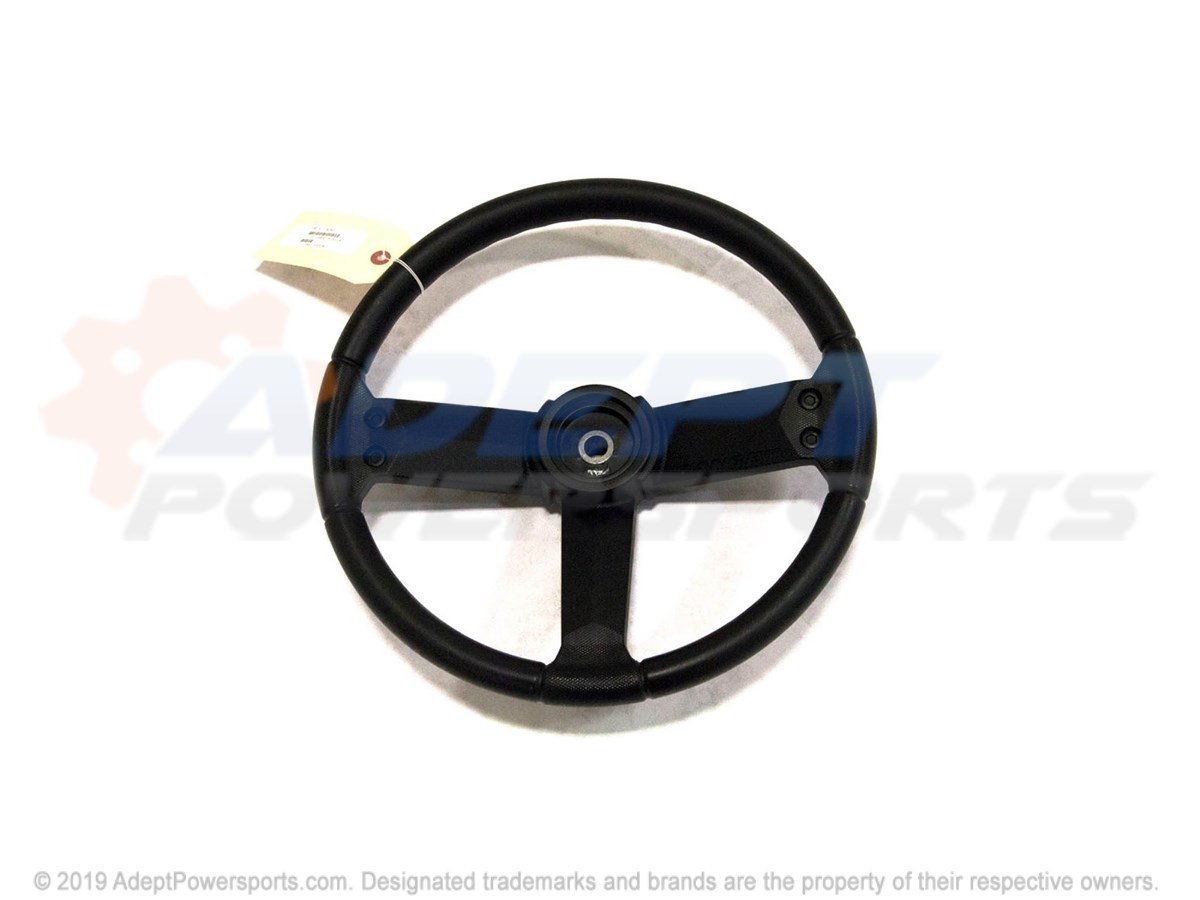

14	WHEEL, STEERING Part #: 1823622 Required per assembly: 1 Currently Not Available
15	NUT Part #: 7547188 Required per assembly: 1 Currently Not Available
16	CAP-STEERING WHEEL Part #: 5438865 Required per assembly: 1 Currently Not Available
17	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
18	WASHER Part #: 7556482 Required per assembly: 3 Currently Not Available
19	WASHER Part #: 7556483 Required per assembly: 3 Currently Not Available
20	SHAFT-STEERING UPPER/LOWER Part #: 1823669 Required per assembly: 1 Currently Not Available
21	NUT, NYLOK Part #: 7547385 Required per assembly: 1 Currently Not Available
22	NUT, FLANGE Part #: 7547332 Required per assembly: 5 Note: Nut, Nylok Currently Not Available
24	BOLT Part #: 7517909 Required per assembly: 2 Note: Bolt Currently Not Available
25	WASHER Part #: 7556099 Required per assembly: 4 Note: Washer, Flat Sold in multiples of 10 only Currently Not Available
26	NUT-M10X1.25-HX-LOCK-Y Part #: 7547177 Required per assembly: 2 Note: Nut Currently Not Available
27	PIN COTTER Part #: 7661203 Required per assembly: 2 $1.99 $1.15 - + Add to cart
28	ASM-GEAR BOX STEERING Part #: 1823795 Required per assembly: 1 Currently Not Available

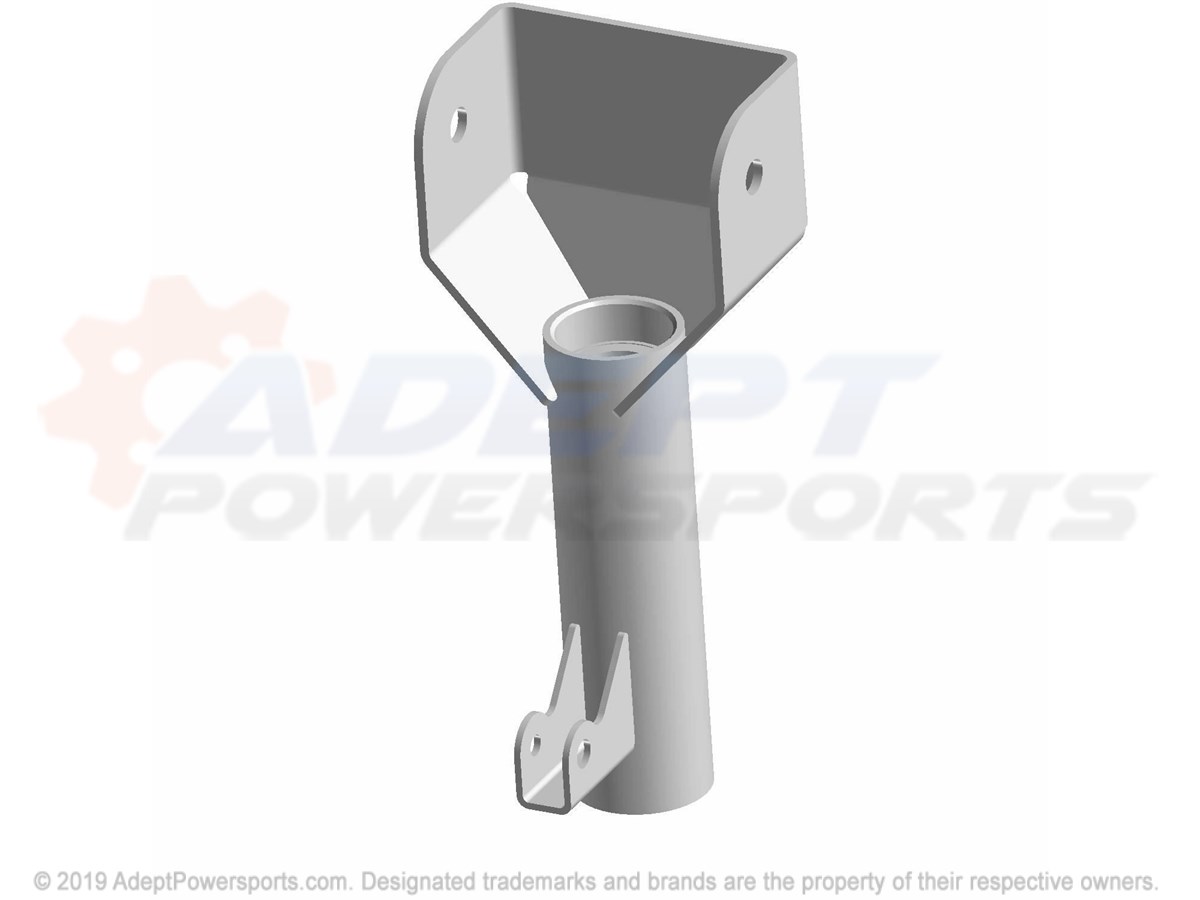

29	ASM-PIVOT TUBE EWB Part #: 1017722-521 Required per assembly: 1 Currently Not Available

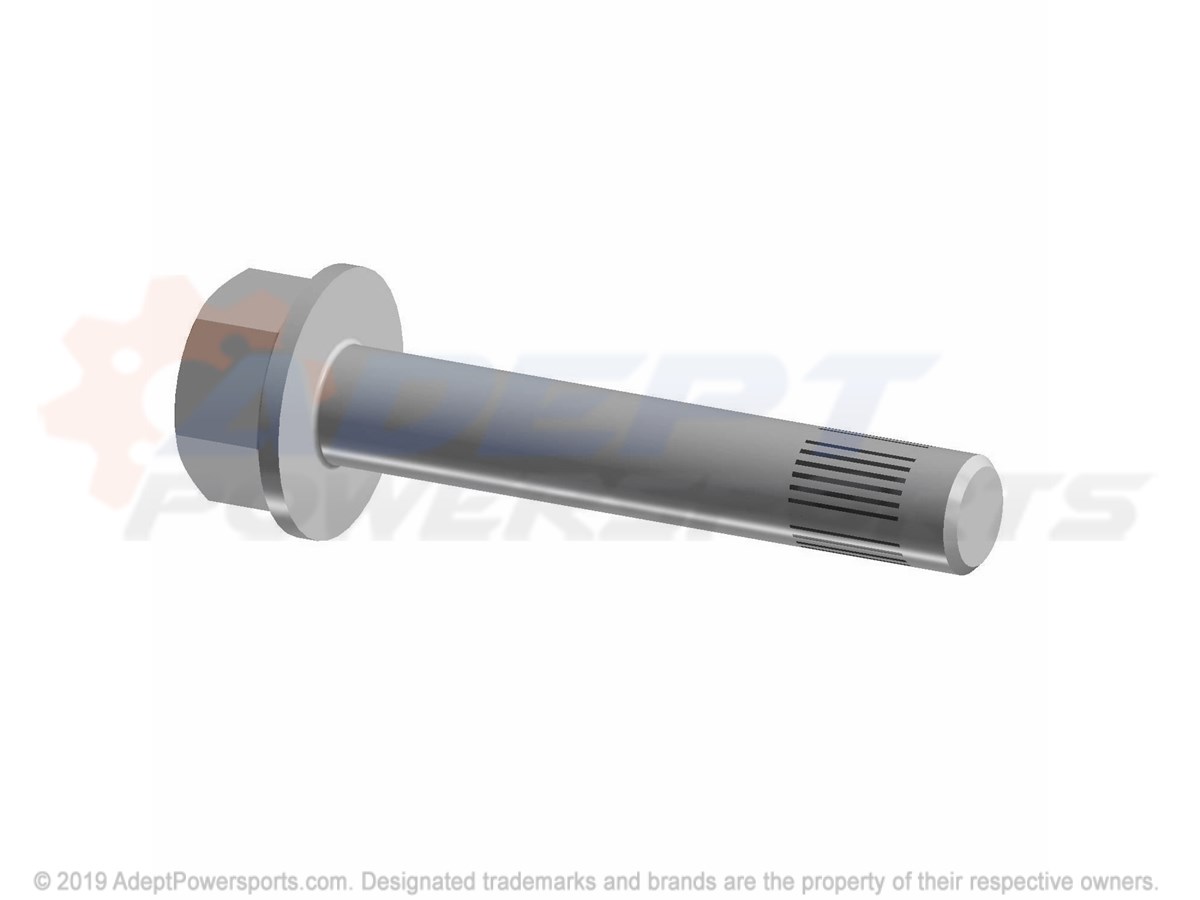

30	BOLT, SHOULDER Part #: 7517607 Required per assembly: 2 Currently Not Available
31	NUT, NYLOC Part #: 7542451 Required per assembly: 2 $1.99 $1.15 - + Add to cart
32	BUSHING, PEDAL, PIVOT Part #: 5431107 Required per assembly: 2 Currently Not Available
33	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available

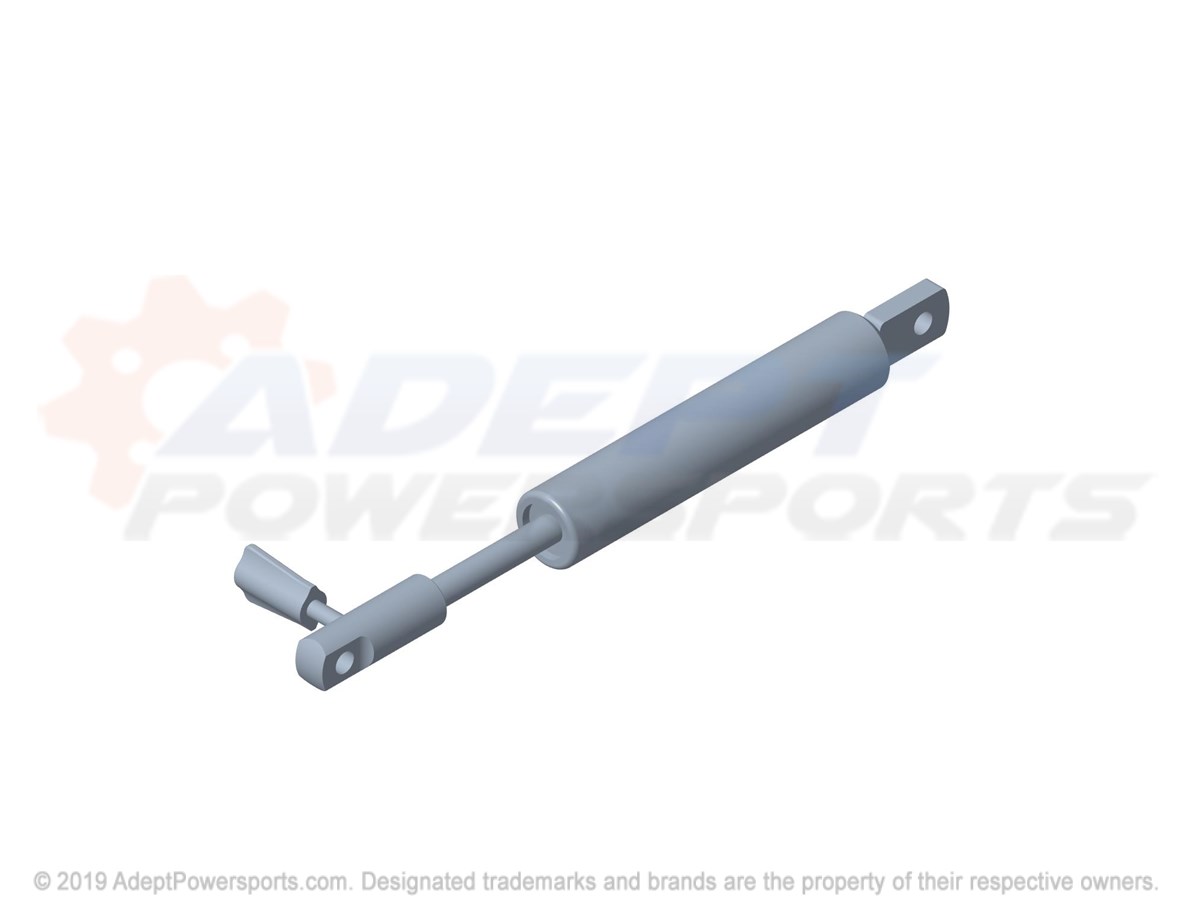

34	ASM-SHOCK OIL LOCKING Part #: 7043810 Required per assembly: 1 Currently Not Available
35	BOLT, SHOULDER Part #: 7518786 Required per assembly: 2 Currently Not Available
36	NUT, METRIC Part #: 7546703 Required per assembly: 2 $1.99 $1.15 - + Add to cart
37	SHAFT-STEERING UPPER Part #: 1823838 Required per assembly: 1 Currently Not Available
38	SHAFT-STEERING EPAS LOWER Part #: 1823812 Required per assembly: 1 Currently Not Available

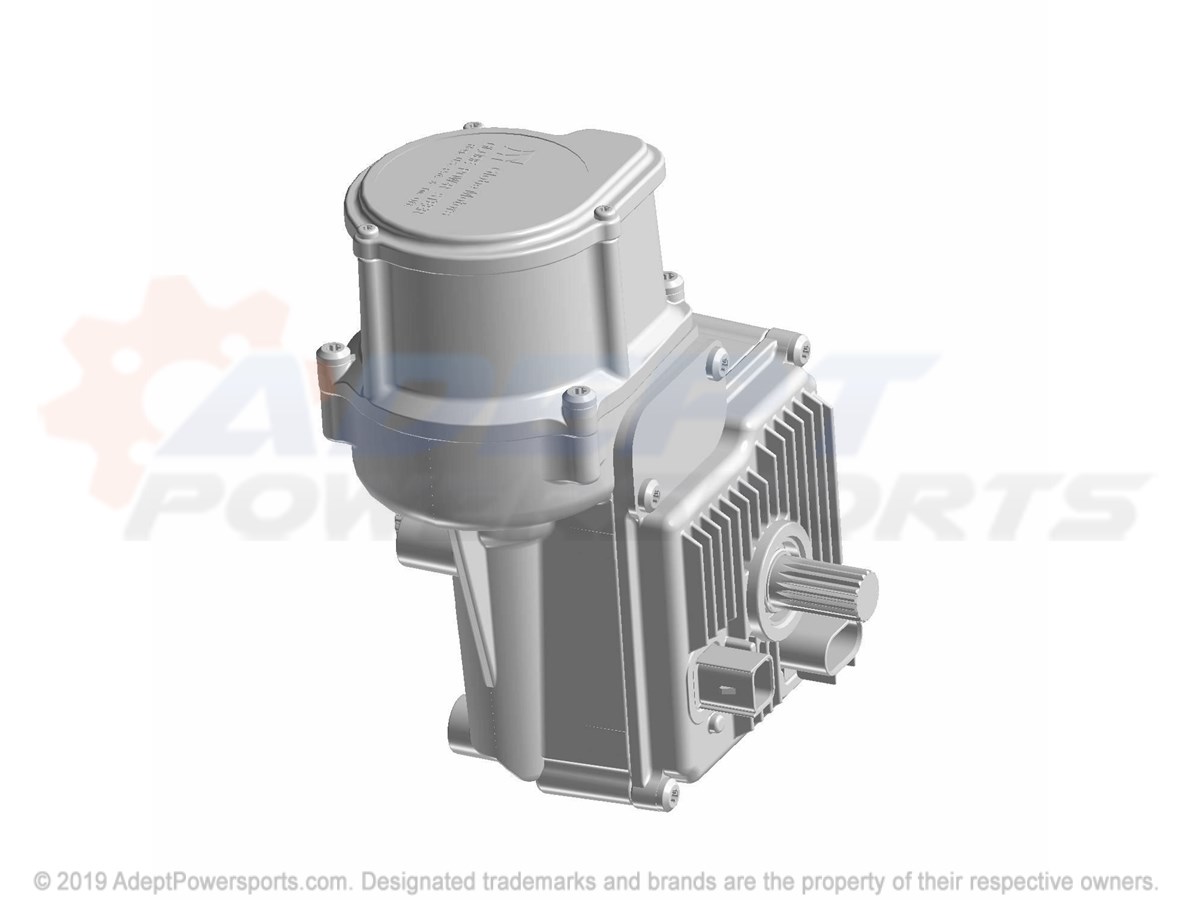

39	ASM-POWER, STEERING, RANGER Part #: 2414880 Required per assembly: 1 Currently Not Available
40	SCREW Part #: 7518558 Required per assembly: 3 Note: Bolt, Flange Currently Not Available
41	SCREW Part #: 7518555 Required per assembly: 3 Note: Bolt, Flange Currently Not Available

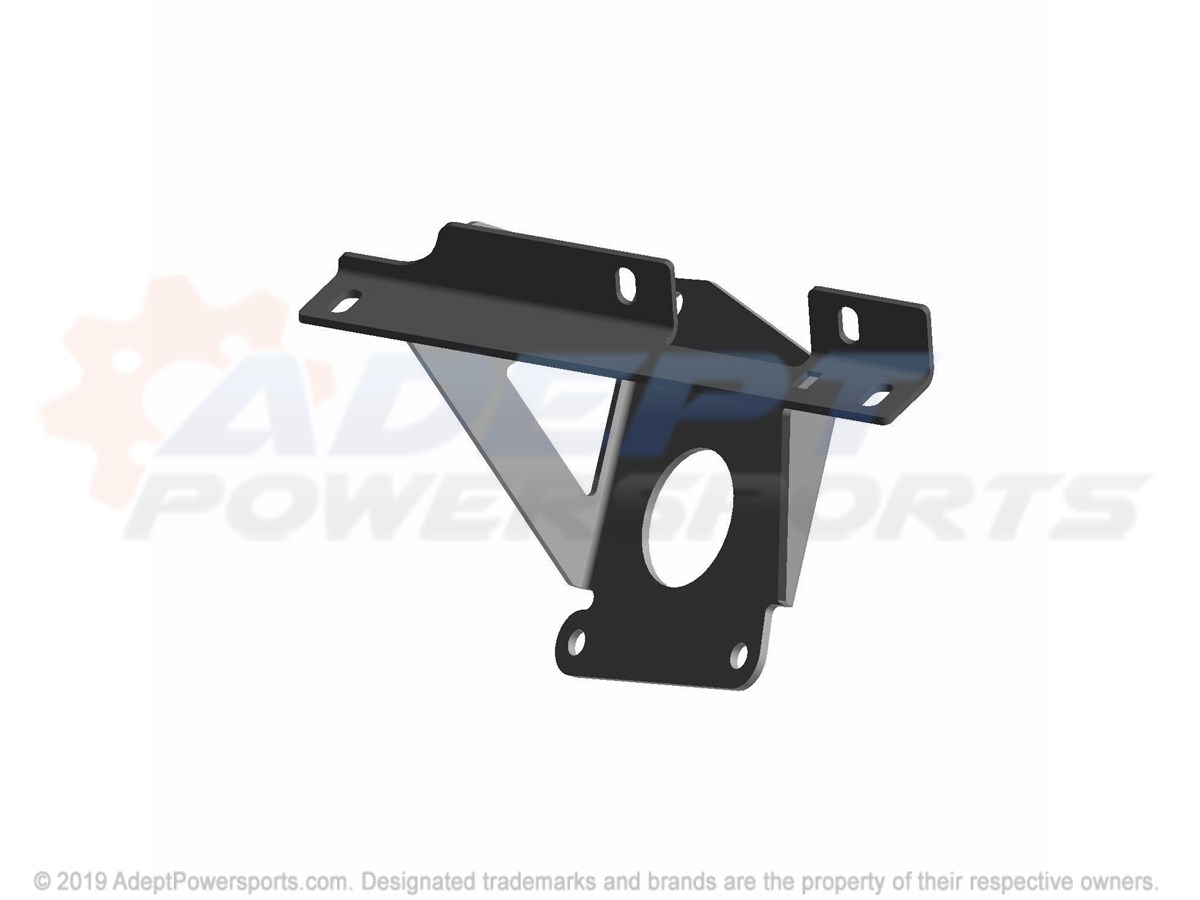

42	MOUNT, EPAS, BLACK, [AN] Part #: 1016413-329 Required per assembly: 1 Note: Mount, EPAS, Black [AN][AZ] Currently Not Available
43	SCREW, FLANGE Part #: 7516827 Required per assembly: 1 Note: Screw, Flange Currently Not Available
44	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available
