Chassis, Frame And Front Bumper replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Chassis, Frame And Front Bumper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518555 Required per assembly: 28 Note: Bolt, Flange Currently Not Available
2	WELD-CAB/SEAT BASE BLK Part #: 1017809-067 Required per assembly: 1 Currently Not Available
3	SUPPORT, FLOOR, BLACK, RH Part #: 1016255-329 Required per assembly: 1 Currently Not Available
4	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
6	FOAM, HOOD, SUPPORT Part #: 5813421 Required per assembly: 1 Currently Not Available

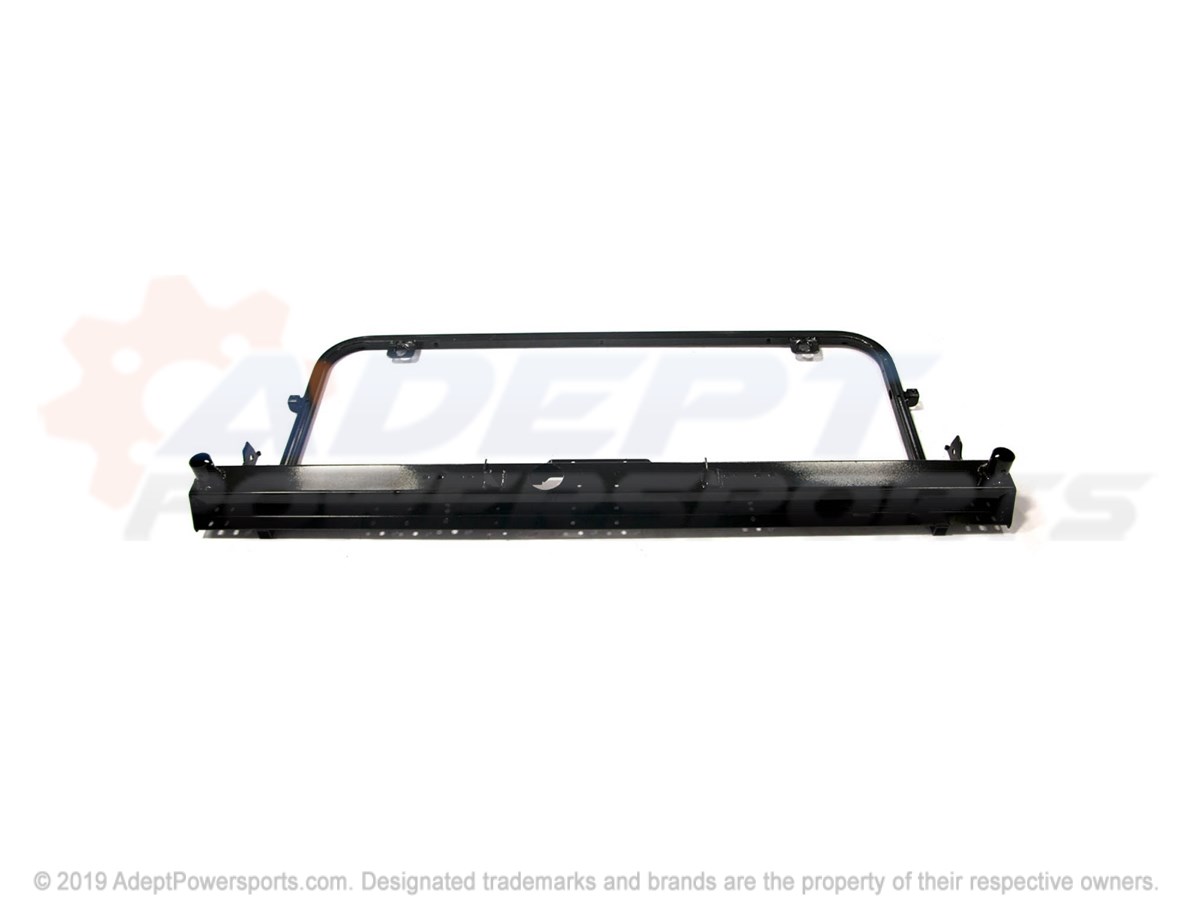

7	WELD-CAB SUPPORT FRT EWB Part #: 1017325-521 Required per assembly: 1 Currently Not Available
8	SUPPORT, FLOOR, BLACK, LH Part #: 1016254-329 Required per assembly: 1 Currently Not Available
9	WELD-MAIN FRAME BLK Part #: 1017646-067 Required per assembly: 1 Currently Not Available
10	SCREW, FLANGE Part #: 7518473 Required per assembly: 2 Currently Not Available
11	CAP, BUMPER Part #: 5434191 Required per assembly: 2 ~~$5.99~~ $3.81 - + Add to cart

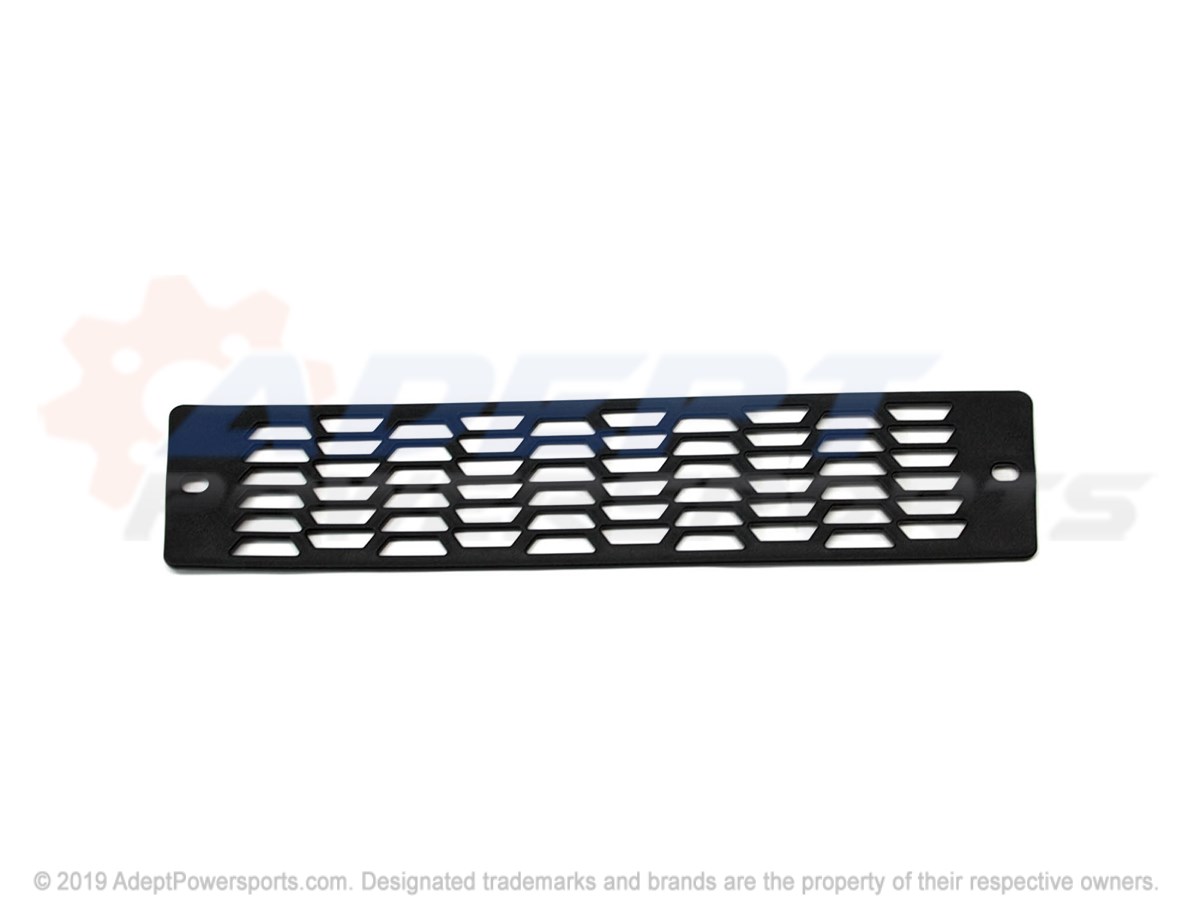

12	SCREEN, FASCIA, BLACK Part #: 5438241-070 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7518981 Required per assembly: 2 ~~$2.89~~ $1.73 - + Add to cart

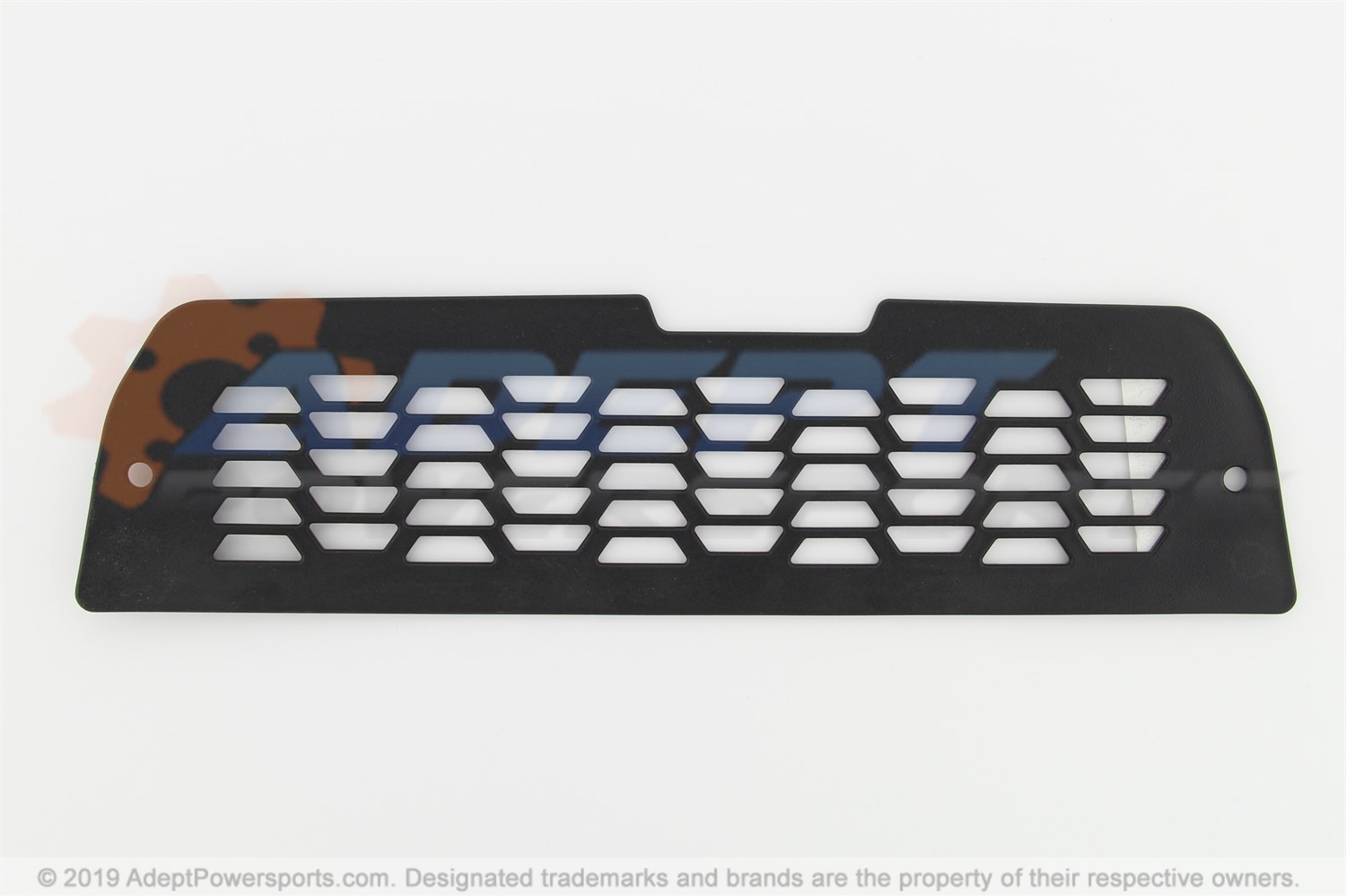

14	SCREEN, BUMPER, UPPER, BLACK Part #: 5438240-070 Required per assembly: 1 Currently Not Available
15	SCREW, FLANGE Part #: 7517281 Required per assembly: 4 Note: Screw Currently Not Available
16	BRACKET, BUMPER, GUARD, BLACK Part #: 5438181-070 Required per assembly: 1 Currently Not Available
17	BUMPER, BLACK Part #: 1016310-521 Required per assembly: 1 Currently Not Available
18	NUT, FLANGE Part #: 7547313 Required per assembly: 2 ~~$2.79~~ $1.73 - + Add to cart
19	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
20	SCREW Part #: 7518158 Required per assembly: 3 Currently Not Available
21	NUT, FLANGE Part #: 7547317 Required per assembly: 4 Currently Not Available
