Engine, Crankcase replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Engine, Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLUG Part #: 7051531 Required per assembly: 1 Note: Plug, Expansion, 9mm Currently Not Available

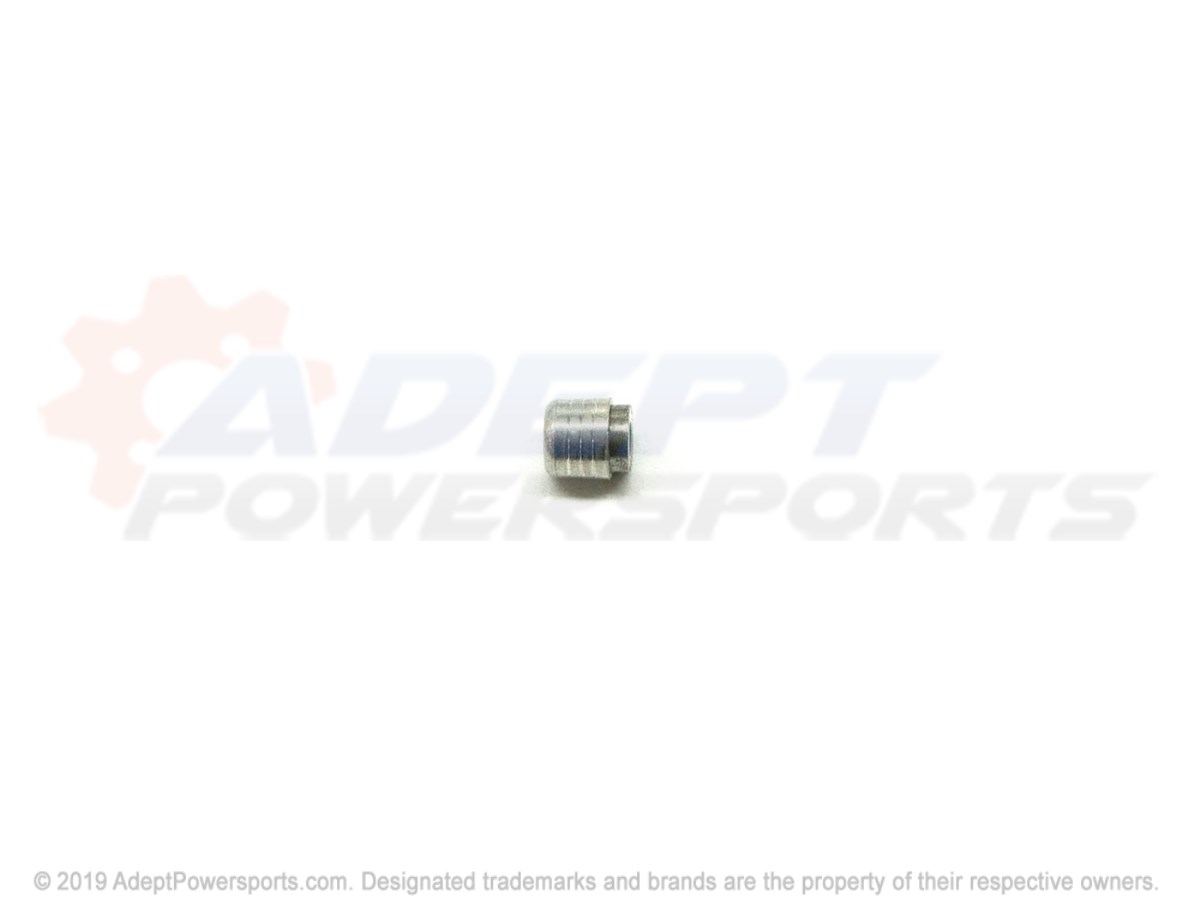

2	DOWEL Part #: 7661175 Required per assembly: 2 Note: Dowel Currently Not Available

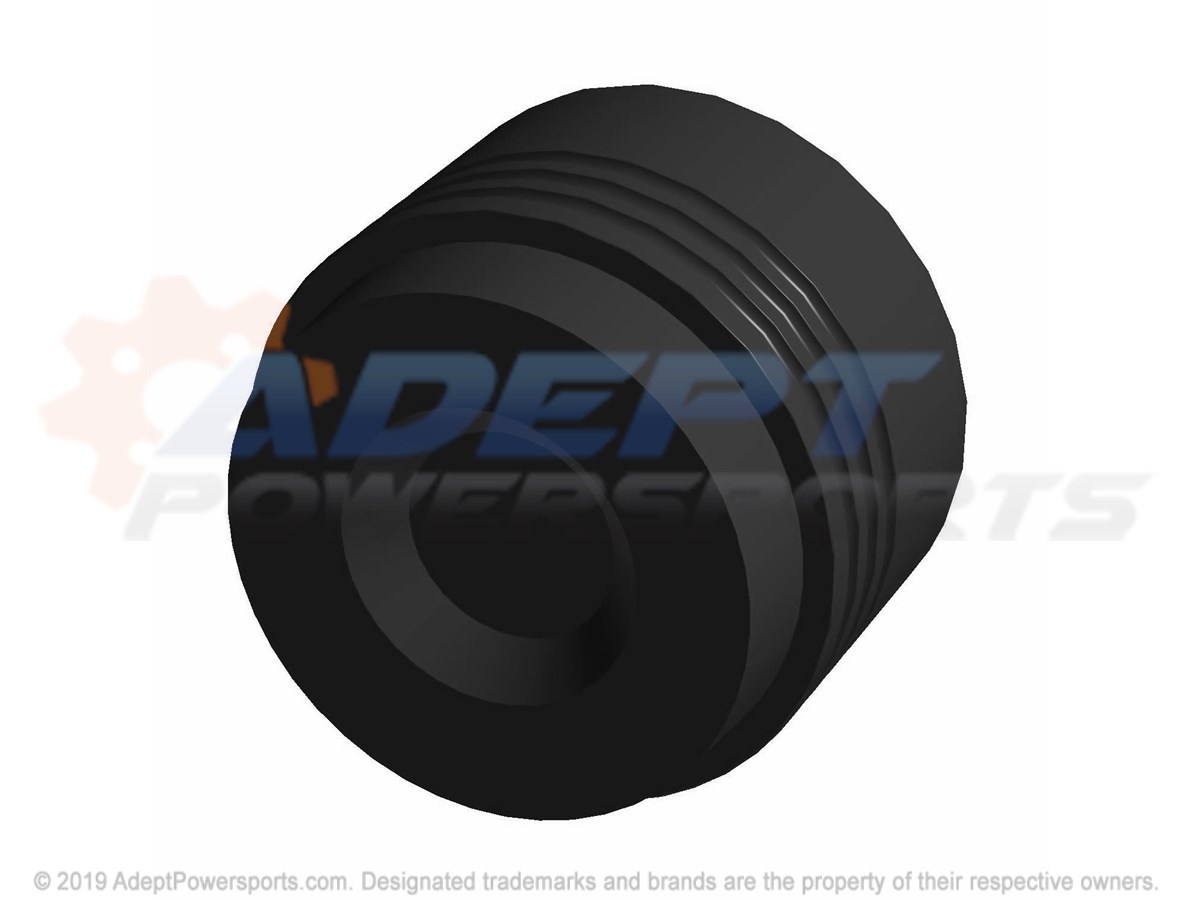

3	PLUG Part #: 7051530 Required per assembly: 1 Note: Plug, Expansion, 19MM Currently Not Available
4	KIT-CRANKCASE 1204194 Part #: 2204395 Required per assembly: 1 Currently Not Available
5	PIN, DOWEL Part #: 7663001 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7516603 Required per assembly: 1 Note: Bolt Currently Not Available
7	PICKUP, OIL Part #: 1202663 Required per assembly: 1 Note: Asm., Oil Pickup Currently Not Available
8	O-RING Part #: 5812016 Required per assembly: 1 Note: Seal, O-Ring Currently Not Available

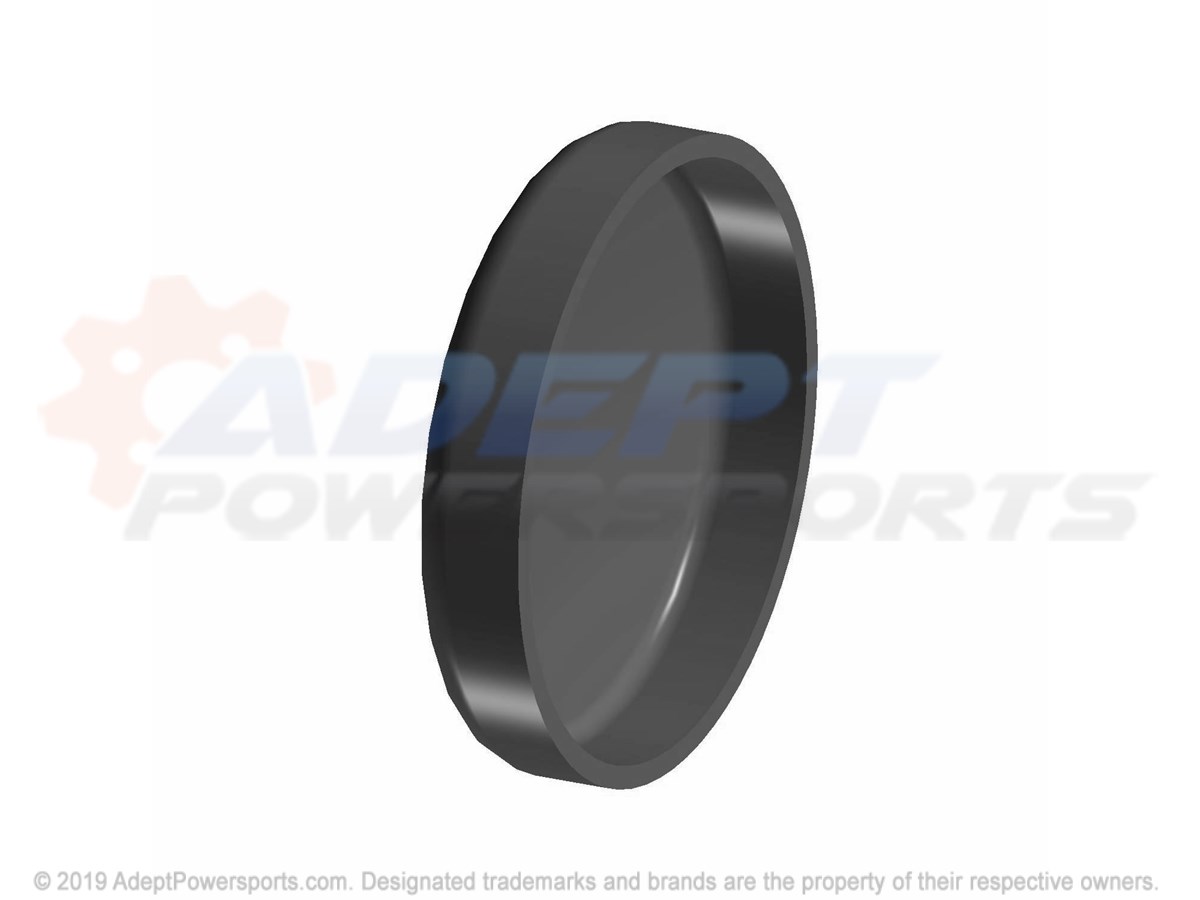

9	PLUG Part #: 3060004 Required per assembly: 1 Note: Plug, Expansion, 42MM Currently Not Available

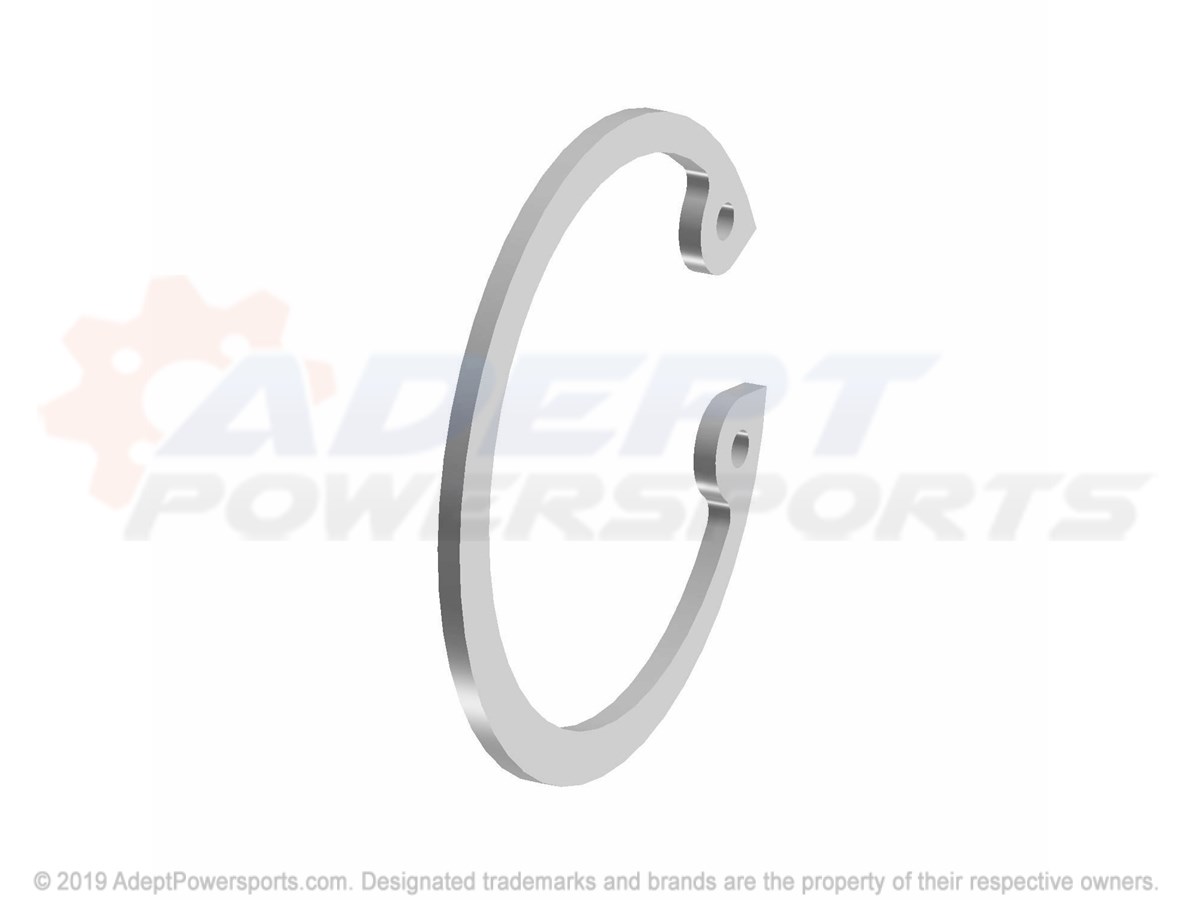

10	RING, RETAINING Part #: 7710512 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7517792 Required per assembly: 6 Currently Not Available
12	SCREW Part #: 7517793 Required per assembly: 9 Currently Not Available
13	WASHER, COPPER Part #: 5812232 Required per assembly: 1 Currently Not Available

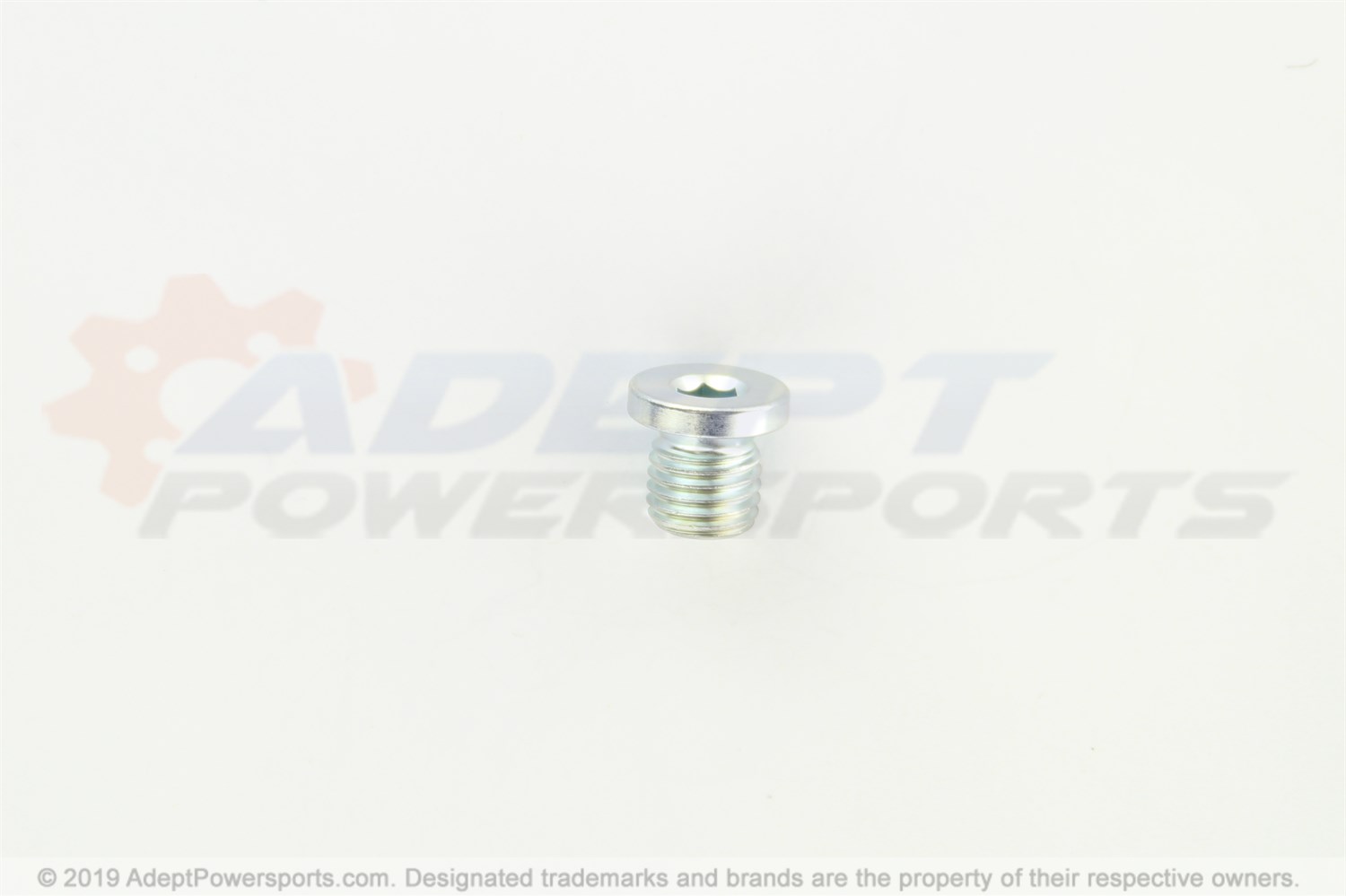

14	PLUG, SOCKET, M12X1.5, DIN, 908A Part #: 7052306 Required per assembly: 1 Note: Plug, Socket Currently Not Available
15	BAFFLE Part #: 5211785 Required per assembly: 1 Note: Plate, Baffle Currently Not Available
16	SCREW Part #: 7518045 Required per assembly: 5 Currently Not Available
17	SCREW Part #: 7517598 Required per assembly: 3 Currently Not Available
18	PLATE, THRUST Part #: 5244286 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7517865 Required per assembly: 1 Currently Not Available
20	WASHER, SPRING Part #: 7556183 Required per assembly: 1 Currently Not Available
21	KIT, GEAR, SET Part #: 2203106 Required per assembly: 1 Currently Not Available
22	KIT, CAMSHAFT Part #: 2203740 Required per assembly: 1 Note: With Cam and Lifters Currently Not Available
23	PLUG Part #: 7052288 Required per assembly: 1 Note: Plug, Expansion, 13mm Currently Not Available
