OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Engine, Thermostat

2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) - Engine, Thermostat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SENSOR, THERMISTER

Part #: 4010644 Required per assembly: 1
Currently Not Available
2

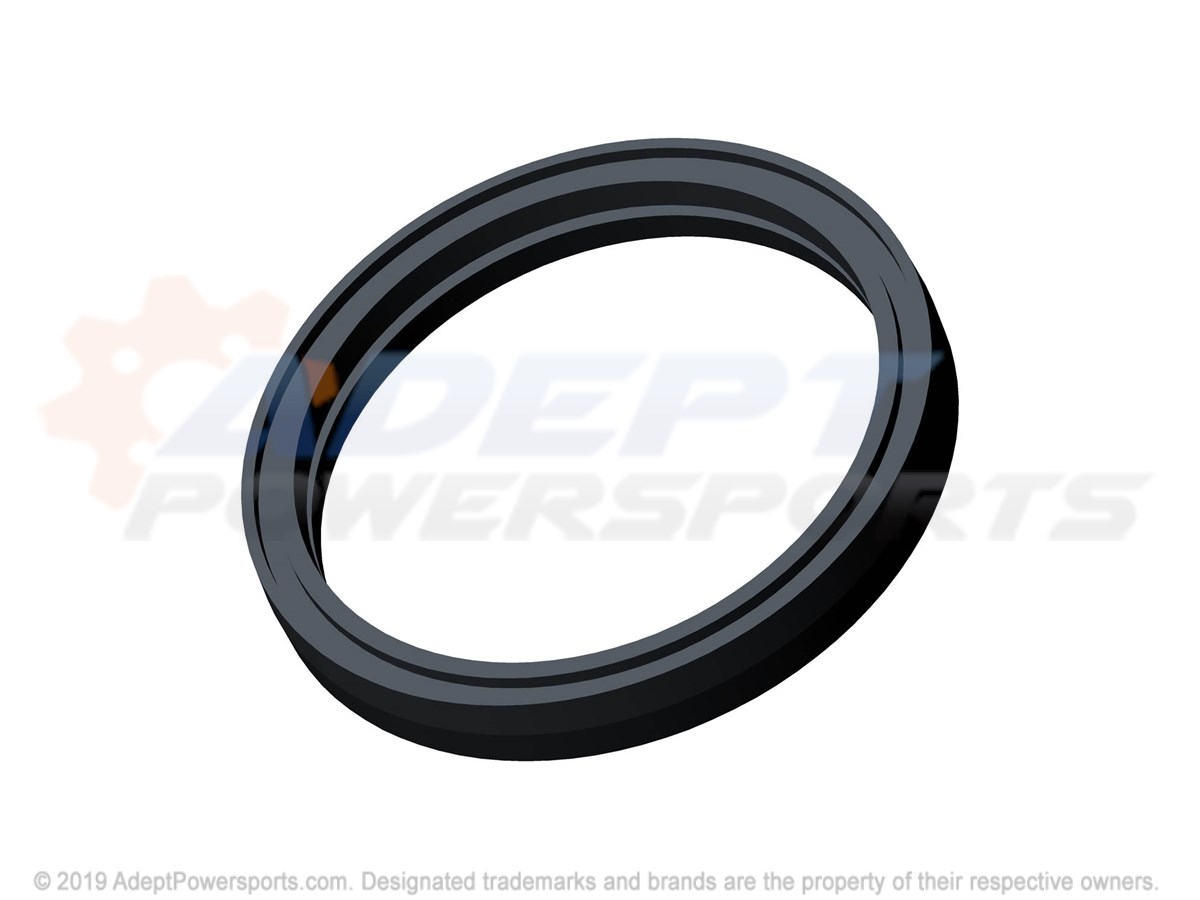

SEAL-THERMOSTAT

Part #: 5413948 Required per assembly: 1
Currently Not Available
3

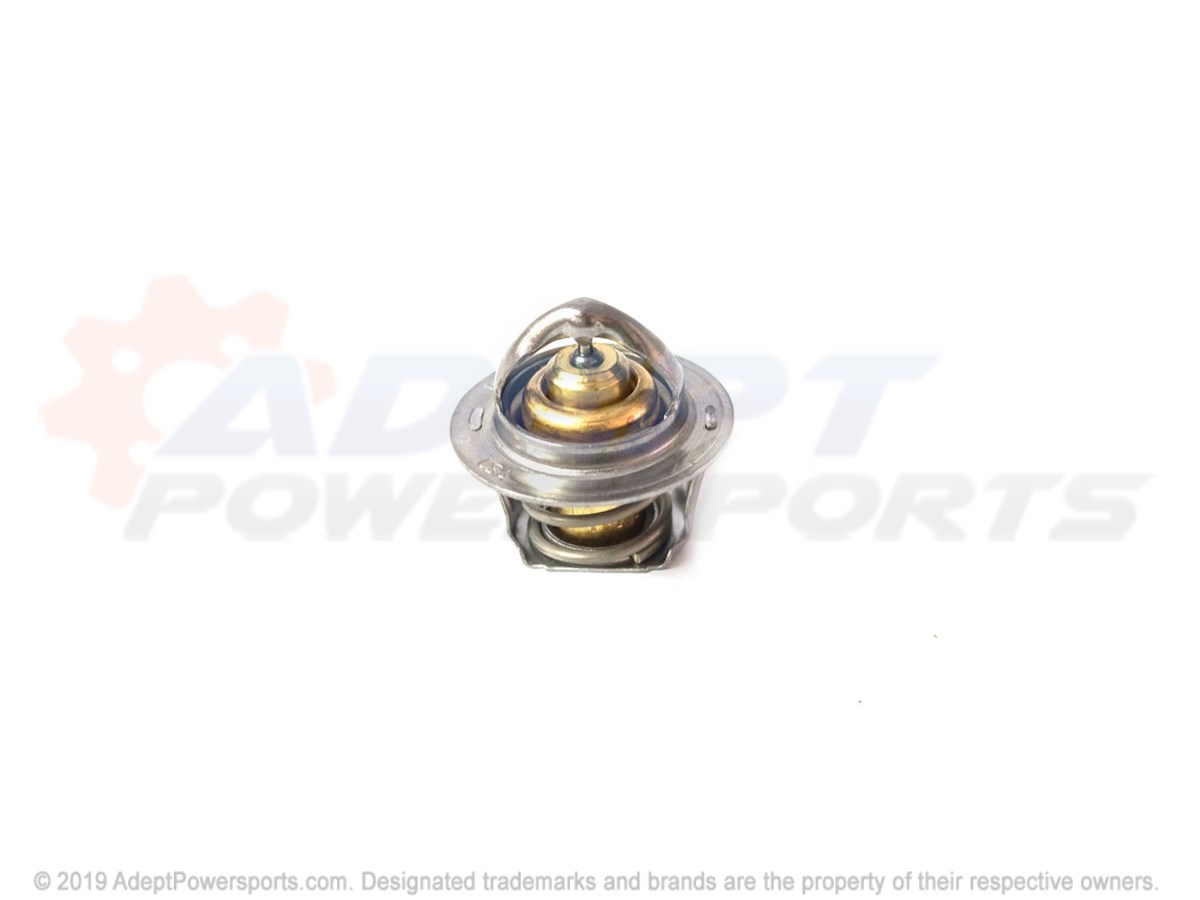

THERMOSTAT-44M FLANGE 180F

Part #: 7052496 Required per assembly: 1
Currently Not Available
4

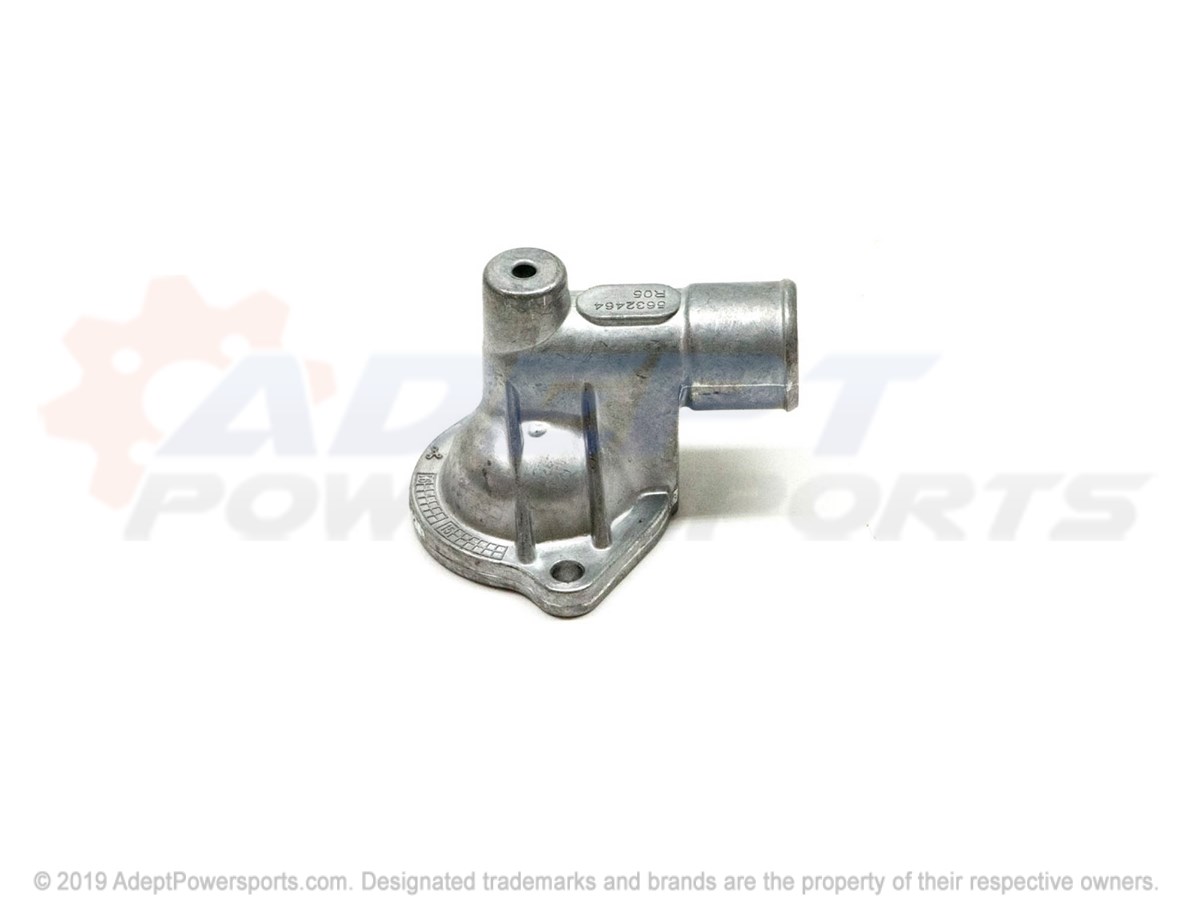

COVER-THERMOSTAT CAST

Part #: 5632464 Required per assembly: 1
Currently Not Available
5

SCREW

Part #: 7516822 Required per assembly: 2
Currently Not Available
6

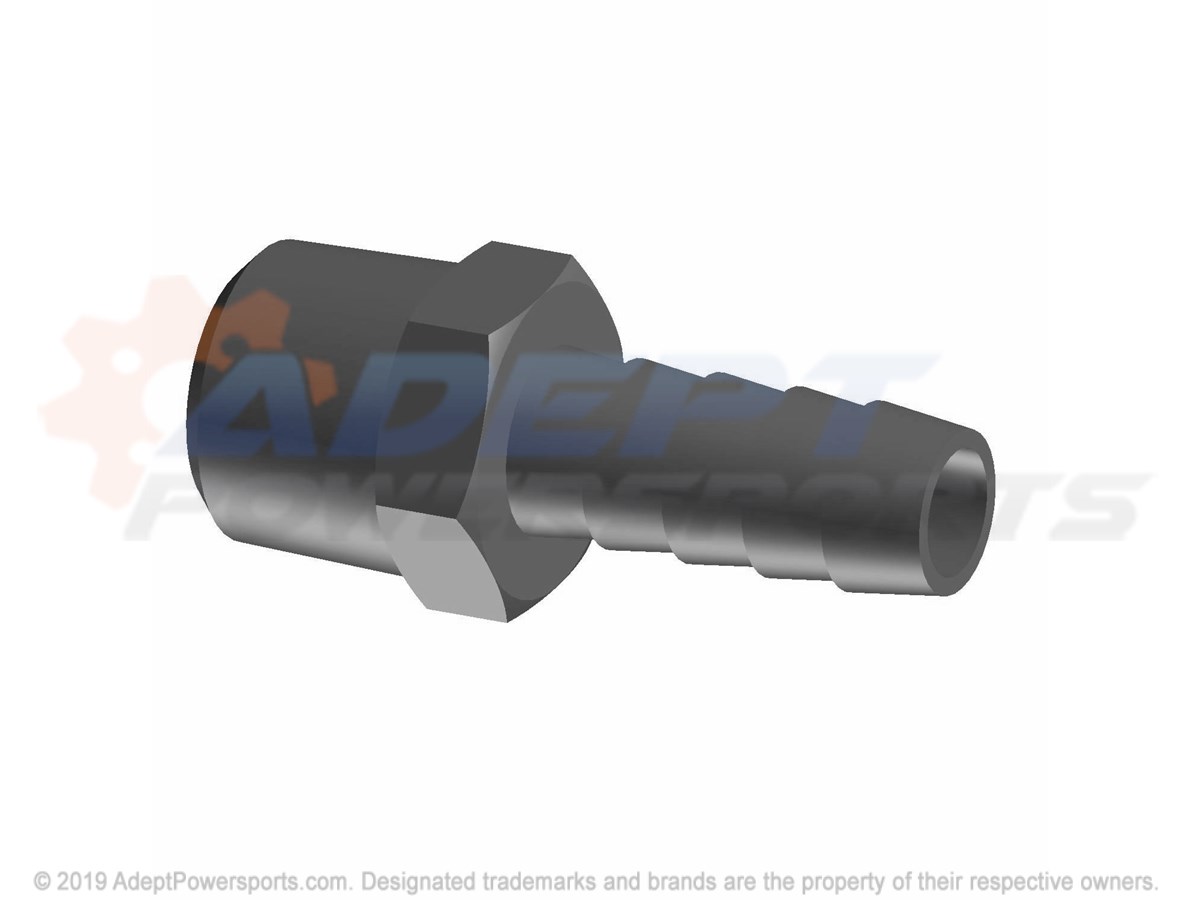

FITTING-3/8NPTF X3/8 HOSE BARB

Part #: 7052495 Required per assembly: 1
Currently Not Available
