Body, Seat And Base replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Body, Seat And Base

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCR-TXPH-#14X3/4 HI/LO RIE Part #: 7519274 Required per assembly: 8 Currently Not Available
2	ASM-SEAT RNGR BACK BLK Part #: 2684885-070 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BLK/B.W.B. Part #: 2684976 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BLK/CAR/RED Part #: 2685009 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BLK/D.STEEL Part #: 2685003 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BLK/P.WHITE Part #: 2685001 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BLK/S.RED Part #: 2684934 Required per assembly: 1 Currently Not Available
2	ASM-SEAT RNGR BACK BROWNING Part #: 2684912 Required per assembly: 1 Currently Not Available
2	ASM-SEAT, RNGR, BACK, S.SKIN, BLK Part #: 2685944-070 Required per assembly: 1 Currently Not Available
3	ASM-SEAT RNGR BTM BLK Part #: 2684884-070 Required per assembly: 1 Currently Not Available
3	ASM-SEAT RNGR BTM BLK/B.W.B. Part #: 2685383 Required per assembly: 1 Currently Not Available
3	ASM-SEAT RNGR BTM BLK/CARB/RED Part #: 2685387 Required per assembly: 1 Currently Not Available
3	ASM-SEAT RNGR BTM BLK/D.STEEL Part #: 2685385 Required per assembly: 1 Currently Not Available
3	ASM-SEAT RNGR BTM BLK/P.WHITE Part #: 2685386 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BLACK Part #: 2685943-070 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BLACK/S., RED, [EAZ][EAZC][6AZ][6AZC] Part #: 2685380 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BTM, BROWNING, [AL][AS] Part #: 2685382 Required per assembly: 1 Note: Asm., Seat, Bottom, Browning [AL] Currently Not Available
4	BRKT-SEAT SUPPORT CENTER BLK Part #: 5255263-329 Required per assembly: 1 Currently Not Available
5	WELD-CAB/SEAT BASE BLK Part #: 1017809-067 Required per assembly: 1 Currently Not Available
6	GROMMET Part #: 5412507 Required per assembly: 2 Currently Not Available
7	ASM-SEAT BELT 3PT Part #: 2634154 Required per assembly: 4 Currently Not Available
8	BOLT Part #: 7512520 Required per assembly: 2 Currently Not Available
9	NUT-7/16-20, NYLOK, Y Part #: 7547066 Required per assembly: 4 Note: Nut, Nylon ~~$3.99~~ $2.30 - + Add to cart
10	ASM-SEAT BELT CENTER Part #: 2634093 Required per assembly: 1 Currently Not Available
11	SHIELD-SEAT BASE Part #: 5813738 Required per assembly: 4 Currently Not Available
12	BOLT-SHOULDER 7/16 X 20 X 0.89 Part #: 7519255 Required per assembly: 2 Currently Not Available
13	SCR-TXPH-#14X3/4 HI/LO CLR Part #: 7519290 Required per assembly: 4 Currently Not Available
14	WASHER, FLAT Part #: 7555859 Required per assembly: 4 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart

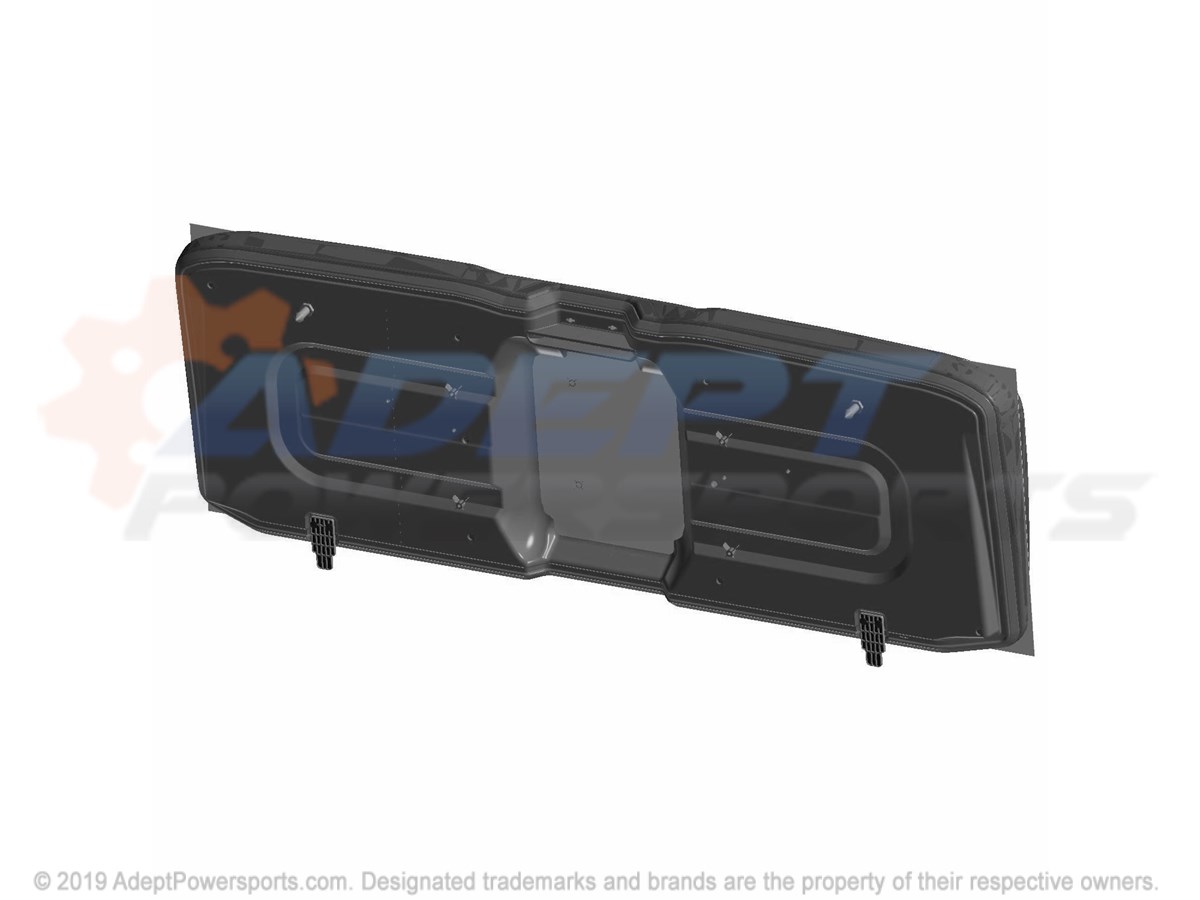

15	COVER-SEAT BACK BLK Part #: 5437641-070 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518280 Required per assembly: 1 Currently Not Available
17	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
18	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 2 Currently Not Available
