OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Drive Train, Gear Selector

2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) - Drive Train, Gear Selector

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

COVER, SHIFTER

Part #: 5412079 Required per assembly: 1
Currently Not Available
2

SCREW

Part #: 7512024 Required per assembly: 1
Currently Not Available
3

KNOB, ASM, HI/REV.

Part #: 3233198 Required per assembly: 1 Note: Knob, Shifter
Currently Not Available
4

BUSHING, PEDAL, PIVOT

Part #: 5431107 Required per assembly: 2
Currently Not Available
5

RING, RETAINING

Part #: 7710901 Required per assembly: 1
Currently Not Available
6

NUT, NYLOK

Part #: 7547144 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart

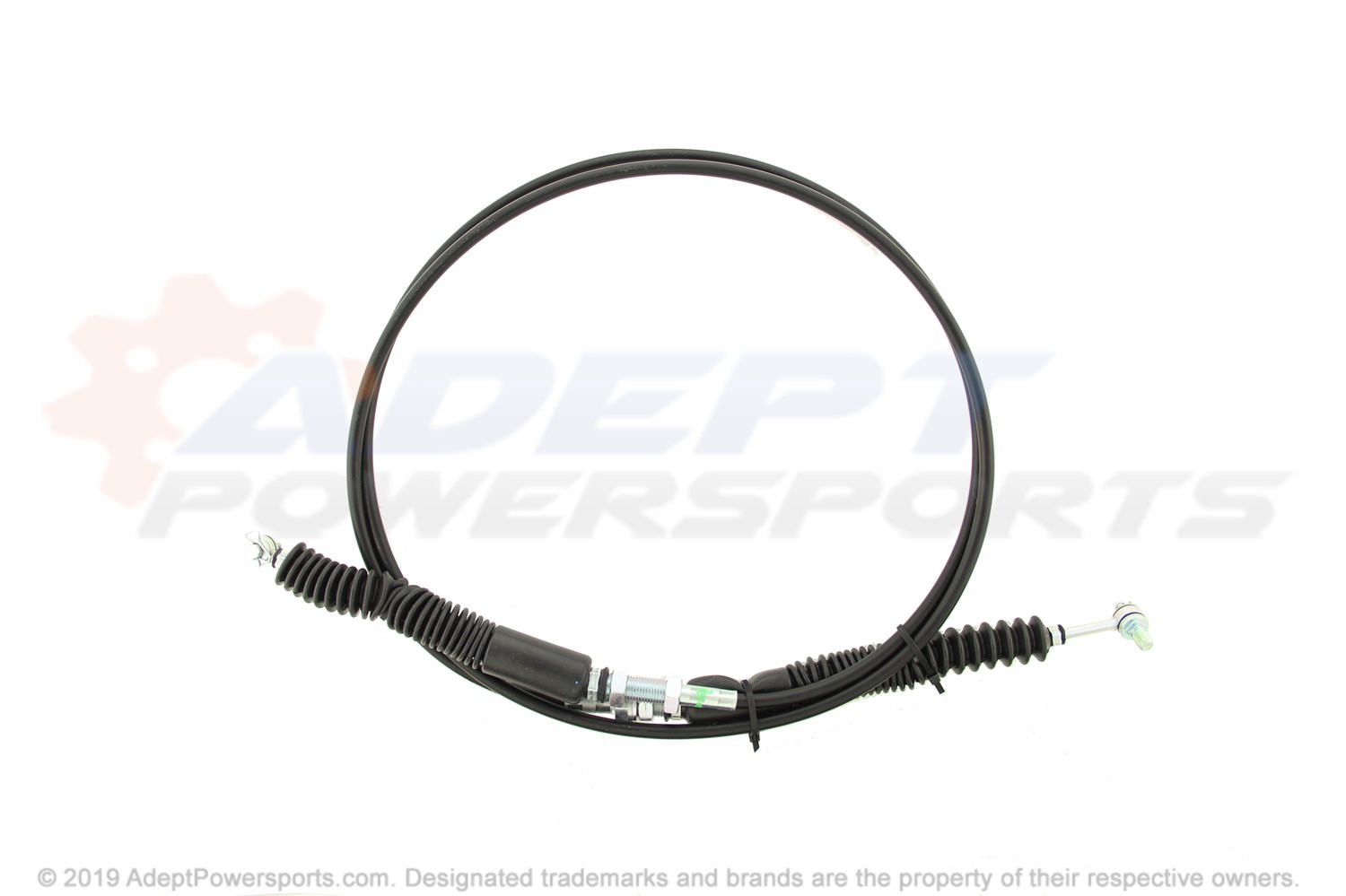

7

CABLE, SHIFT

Part #: 7081753 Required per assembly: 1
Currently Not Available
8

WASHER STEEL

Part #: 7558402 Required per assembly: 1
$1.34
$0.97
-
+
Add to cart
9

PIN, CLIP

Part #: 7661140 Required per assembly: 2
Currently Not Available

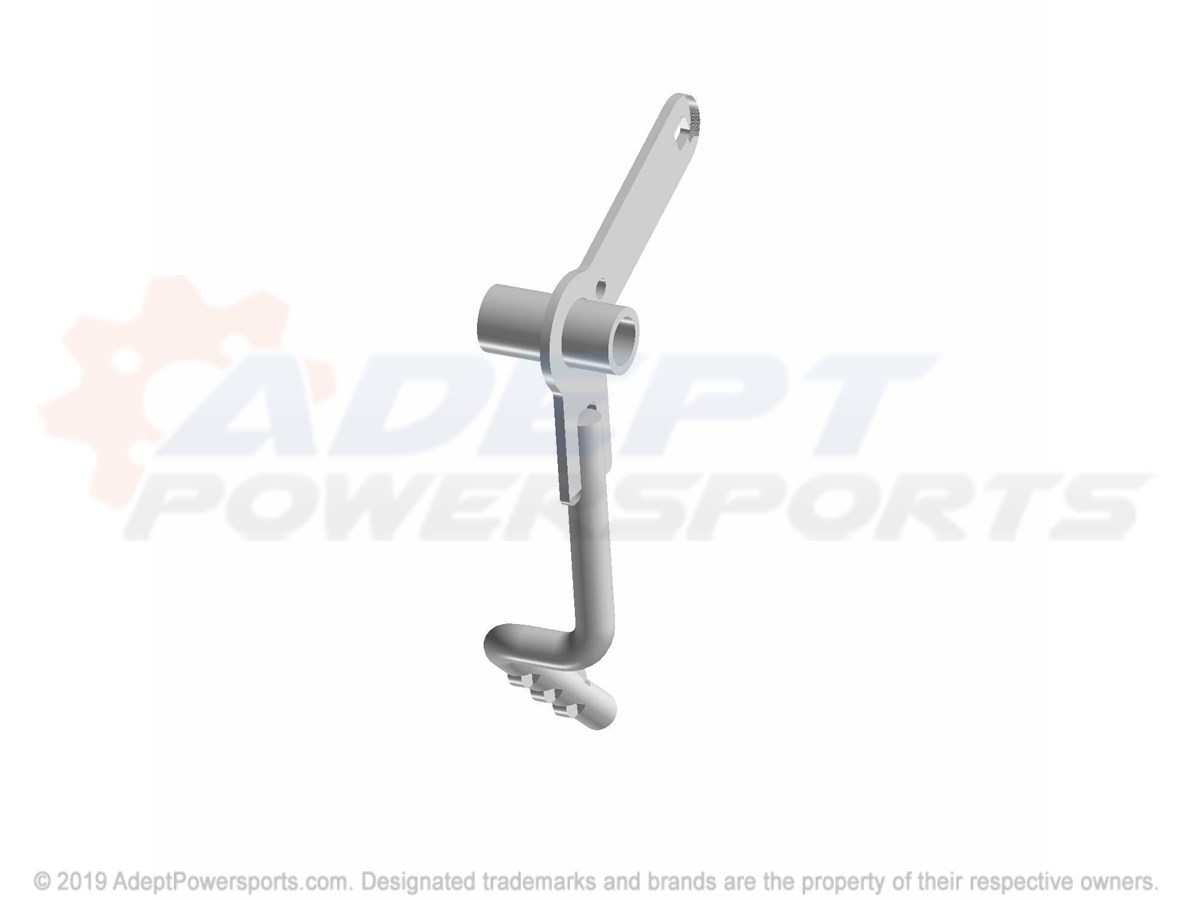

10

LEVER, SHIFTER

Part #: 1542500 Required per assembly: 1
Currently Not Available

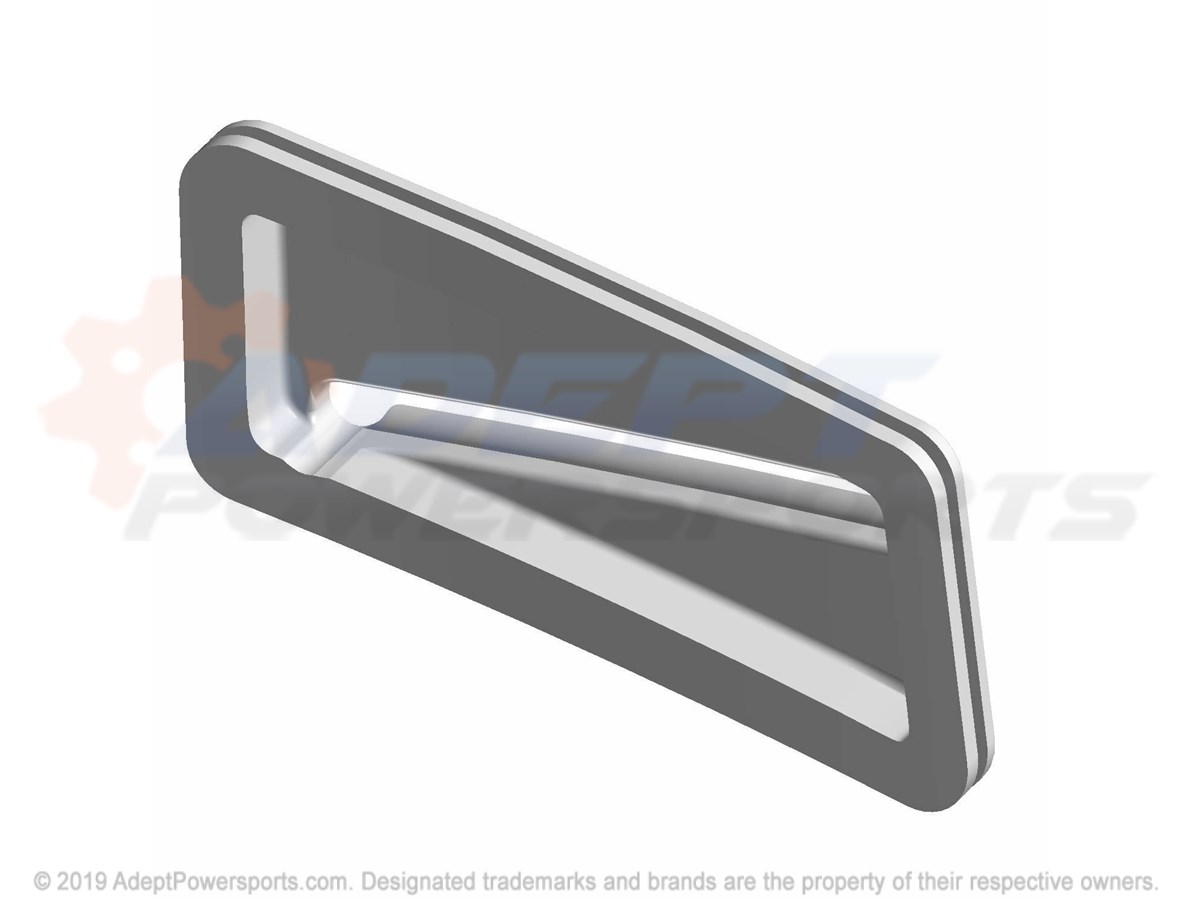

11

GROMMET GEAR SHIFT

Part #: 5413557 Required per assembly: 1
Currently Not Available
