Drive Train, Main Gearcase replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Drive Train, Main Gearcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

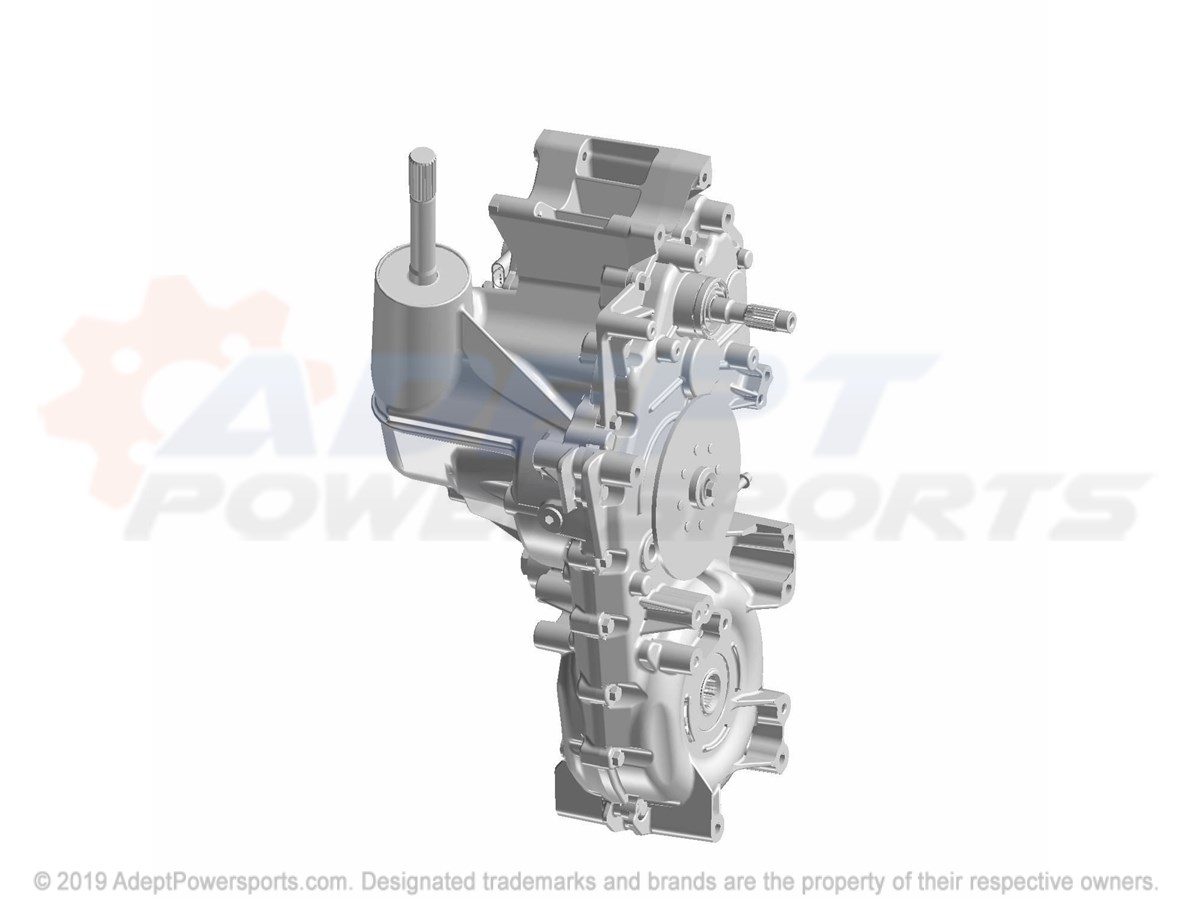

1	ASM-GEARCASE MAIN Part #: 1332961 Required per assembly: 1 Currently Not Available

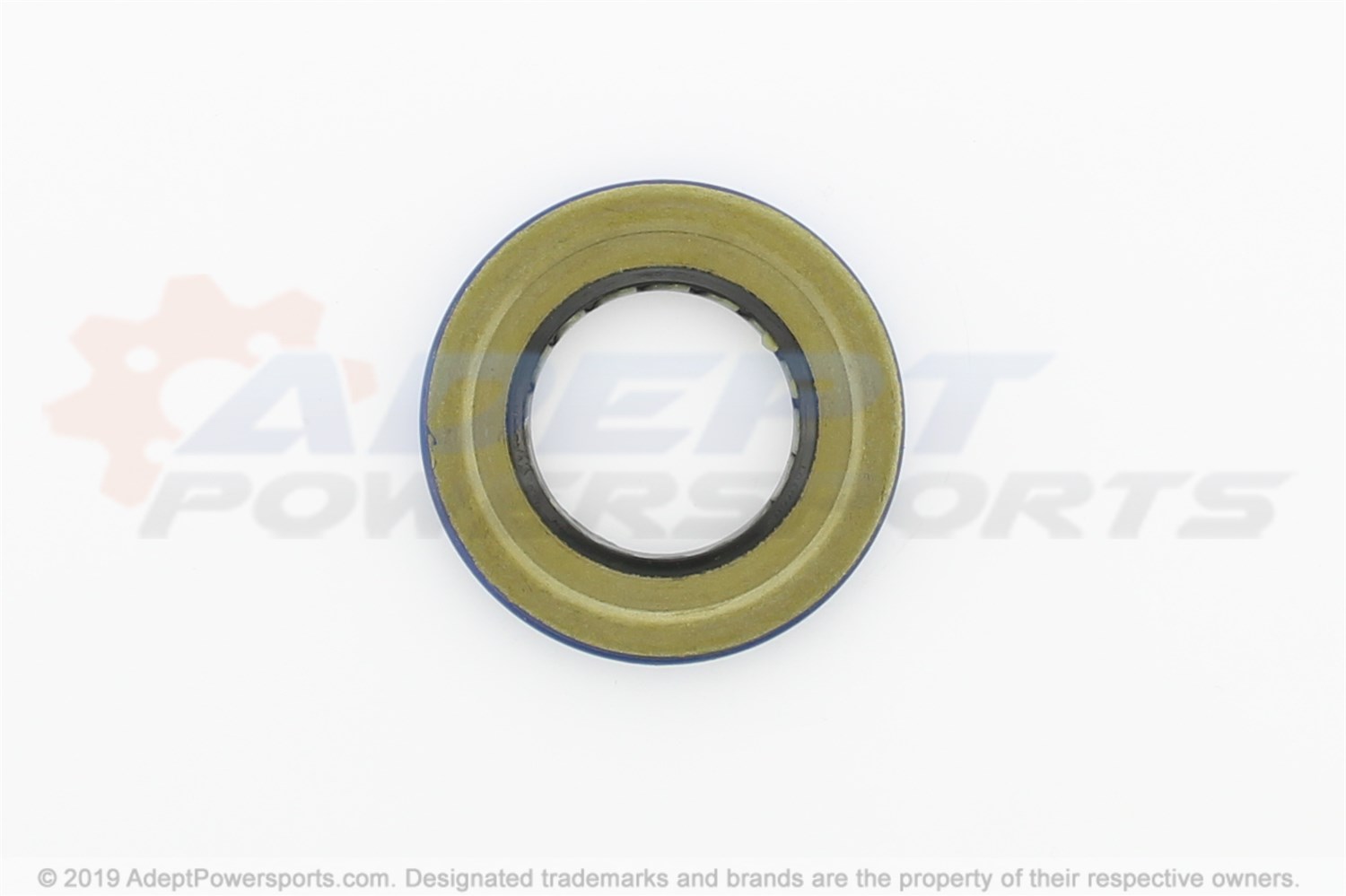

2	SEAL, TRIPLE, LIP Part #: 3234300 Required per assembly: 2 Note: 40 x 70 x 7 Currently Not Available
3	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
4	SCREW Part #: 3235345 Required per assembly: 1 Currently Not Available
5	WASHER Part #: 3234952 Required per assembly: 1 Currently Not Available
6	SUBASM., BRAKE, HUB Part #: 3234951 Required per assembly: 1 Currently Not Available
7	SEAL Part #: 3233788 Required per assembly: 1 Currently Not Available
8	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available

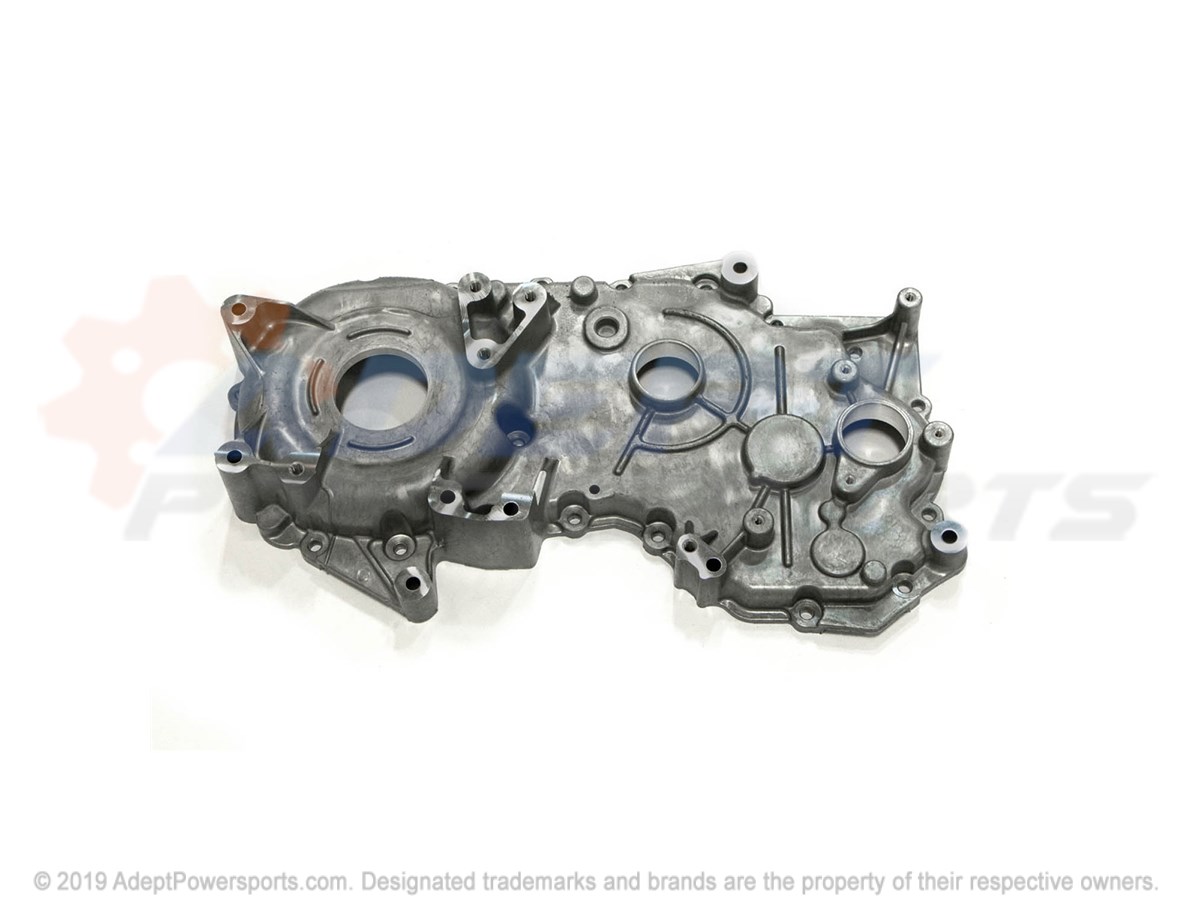

9	COVER, LH Part #: 3234945 Required per assembly: 1 Currently Not Available
10	PIN, DOWEL Part #: 3234244 Required per assembly: 2 Currently Not Available
11	GEAR 13T SNORKEL Part #: 3235050 Required per assembly: 1 Currently Not Available
12	BEARING, BALL Part #: 3233265 Required per assembly: 1 Currently Not Available
13	RING, RETAINING Part #: 3233364 Required per assembly: 1 Currently Not Available
14	TUBE, SNORKEL Part #: 3234278 Required per assembly: 1 Currently Not Available
15	BEARING Part #: 3233019 Required per assembly: 1 Currently Not Available
16	SHIM Part #: 3234272 Required per assembly: 1 Currently Not Available
17	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
18	SHIM Part #: 3234273 Required per assembly: 1 Currently Not Available
19	RING, RETAINING Part #: 3234269 Required per assembly: 1 Currently Not Available

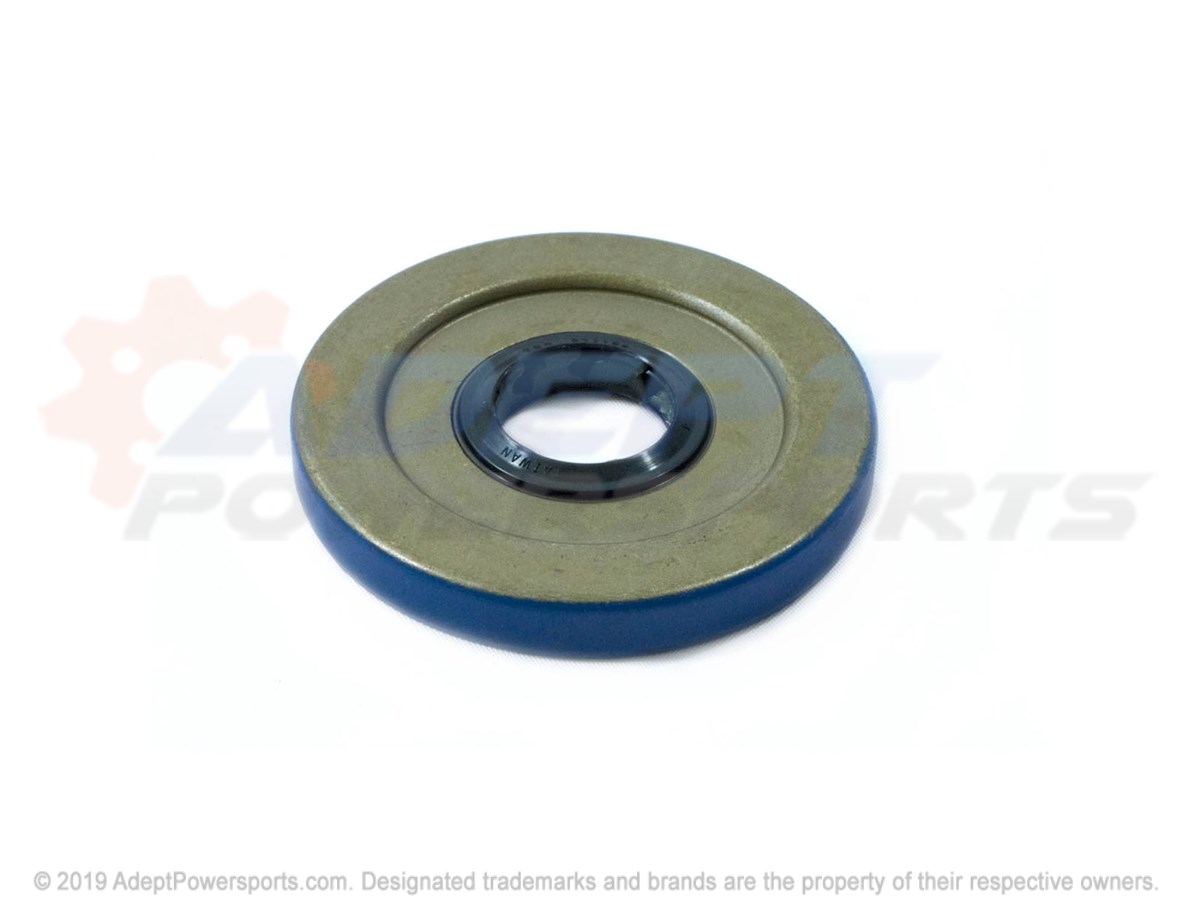

20	TRIPLE, LIP, SEAL, 25, X, 80, X, 10 Part #: 3234113 Required per assembly: 1 Note: Seal, Triple Lip Currently Not Available
21	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
22	SPACER Part #: 3235243 Required per assembly: 1 Currently Not Available
23	STAR, DETENT Part #: 3233837 Required per assembly: 1 Currently Not Available
24	O-RING Part #: 3233076 Required per assembly: 1 Currently Not Available
25	COVER W/PINS Part #: 3234188 Required per assembly: 1 Note: For gasket use p/n 3234123 Currently Not Available
26	SCREW Part #: 3234247 Required per assembly: 6 Currently Not Available
27	PIN-GEAR POSITION SWITCH Part #: 7661999 Required per assembly: 1 Currently Not Available
28	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
29	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available
30	BELLCRANK Part #: 3233825 Required per assembly: 1 Currently Not Available
31	O-RING Part #: 3233869 Required per assembly: 1 Currently Not Available
32	SHAFT, SHIFT Part #: 3233831 Required per assembly: 1 Currently Not Available
33	PAWL, DETENT Part #: 3233829 Required per assembly: 1 Currently Not Available
34	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
35	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
36	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
37	SPRING, COMPRESSION Part #: 3233830 Required per assembly: 1 Currently Not Available
38	PLUG-HEX, HOLLOW, W/O-RING, (FB) Part #: 3233794 Required per assembly: 1 Note: Plug, Hex, Hollow w/O-Ring Currently Not Available
39	PLUG-HEX, HOLLOW, W/O-RING, (FB) Part #: 3233794 Required per assembly: 2 Note: Plug, Hex, Hollow w/O-Ring Currently Not Available
40	SOLENOID Part #: 3235478 Required per assembly: 1 Currently Not Available
41	SPRING, COMPRESSION Part #: 3234277 Required per assembly: 1 Currently Not Available
42	CASE RH Part #: 3235343 Required per assembly: 1 Currently Not Available
43	SCREW Part #: 3234114 Required per assembly: 20 Currently Not Available
