Drive Train, Front Gearcase Internals replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Drive Train, Front Gearcase Internals

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEARCASE FRONT Part #: 1332971 Required per assembly: 1 Currently Not Available
2	K-OUTPUT, HUB, OST Part #: 3236672 Required per assembly: 1 Currently Not Available
3	KIT, BOLT Part #: 3234405 Required per assembly: 1 Note: Kit, Bolt [Incl. All Bolts] Currently Not Available

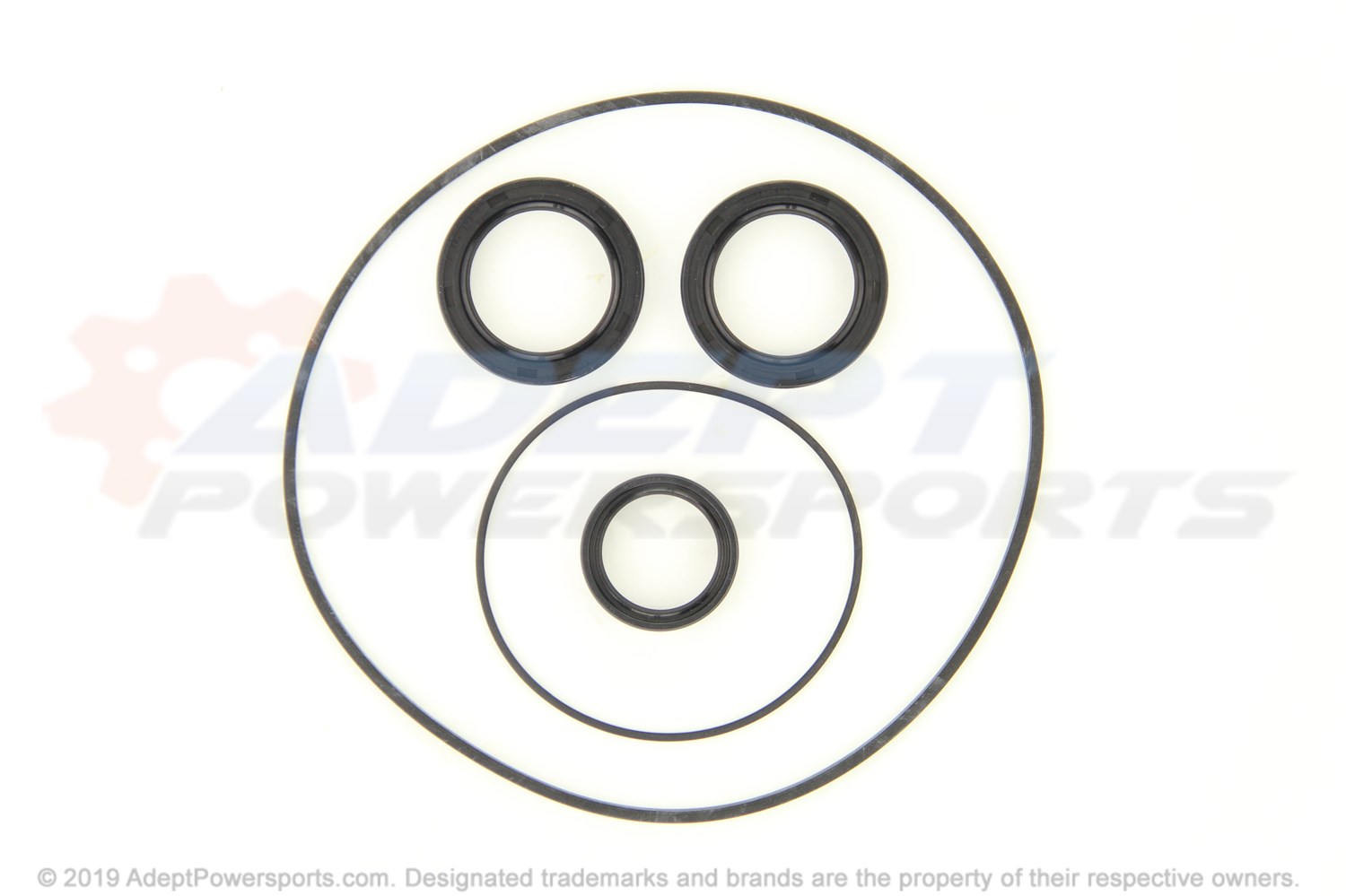

4	KIT-REPAIR SEAL 6203-9U-114 Part #: 3235330 Required per assembly: 1 Currently Not Available
5	PLATE, ARMATURE Part #: 3234407 Required per assembly: 1 Currently Not Available
6	SCREW, SET Part #: 3234408 Required per assembly: 1 Note: Set, Screw Currently Not Available
7	ASSEMBLY, THRUST, BUTTON Part #: 3234594 Required per assembly: 1 Note: Asm., Thrust Button [Incl. Seal] Currently Not Available
8	PLATE-THRUST DU Part #: 3235183 Required per assembly: 1 Currently Not Available
9	BEARING Part #: 3234390 Required per assembly: 1 Currently Not Available
10	ROLLER Part #: 3234393 Required per assembly: 1 Note: Kit, Roller (priced each, sold as pack of 20 rollers) $3.99 $2.58 - + Add to cart

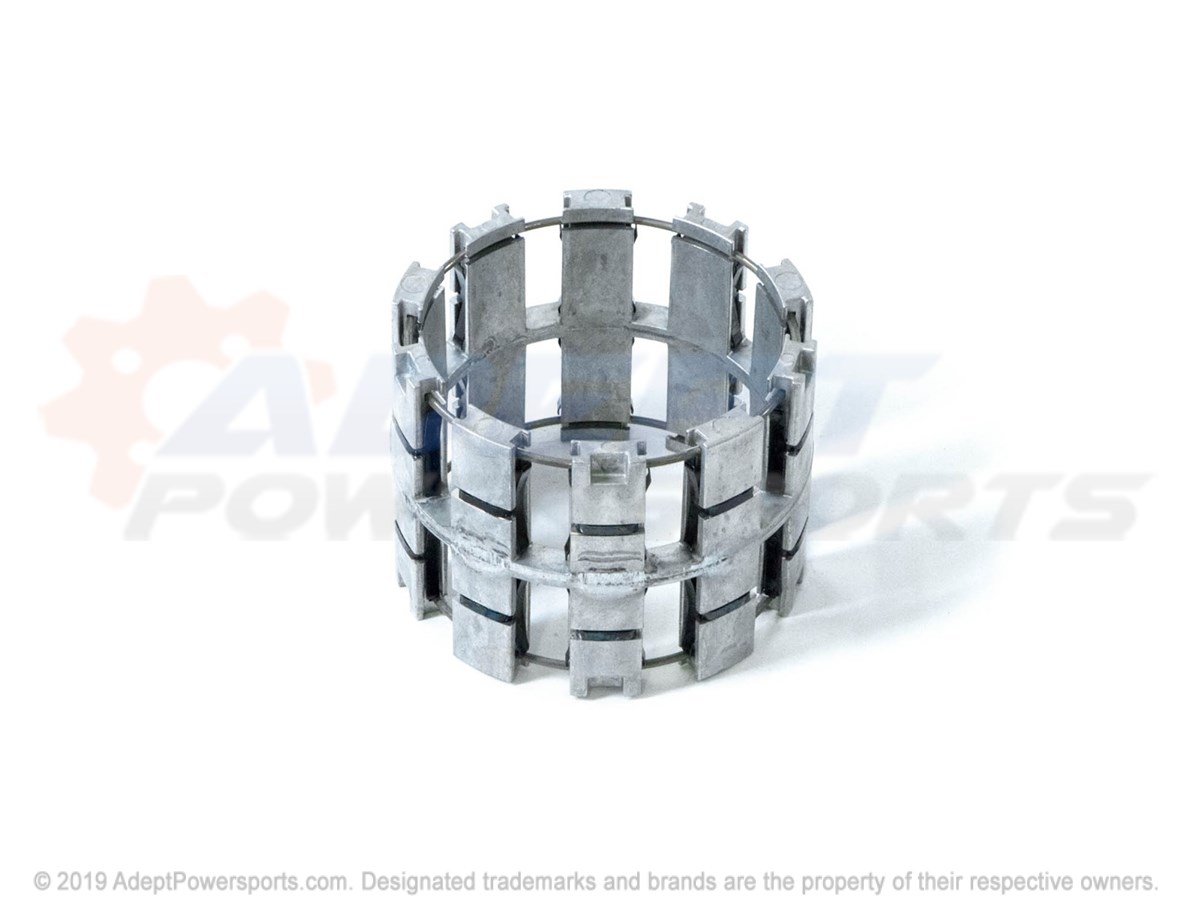

11	ASM-ROLL CAGE ZN Part #: 3235261 Required per assembly: 1 Currently Not Available
12	ASSEMBLY, GEARCASE Part #: 3234411 Required per assembly: 1 Note: Asm., Gearcase [Incl. Bushings, Seal, Vent, Plugs] Currently Not Available
13	ASSEMBLY, DRAIN, PLUG, MAGNETIC Part #: 3234412 Required per assembly: 1 Note: Asm., Plug, Drain Currently Not Available
14	ASM-COVER, OUTPUT Part #: 3236663 Required per assembly: 1 Note: $584.99 $369.33 - + Add to cart
15	PLUG, OIL, FILL Part #: 3233942 Required per assembly: 1 Currently Not Available
16	RING, RETAINING Part #: 3234416 Required per assembly: 1 Currently Not Available
17	ASSEMBLY, INPUT, COVER, PLATE Part #: 3234413 Required per assembly: 1 Currently Not Available
18	RING, SPACER, GEAR Part #: 3234437 Required per assembly: 1 Currently Not Available
19	KIT-SPRING Part #: 3234908 Required per assembly: 1 Currently Not Available
20	RING-RETAINING EXTERNAL BOW Part #: 3235177 Required per assembly: 1 Currently Not Available

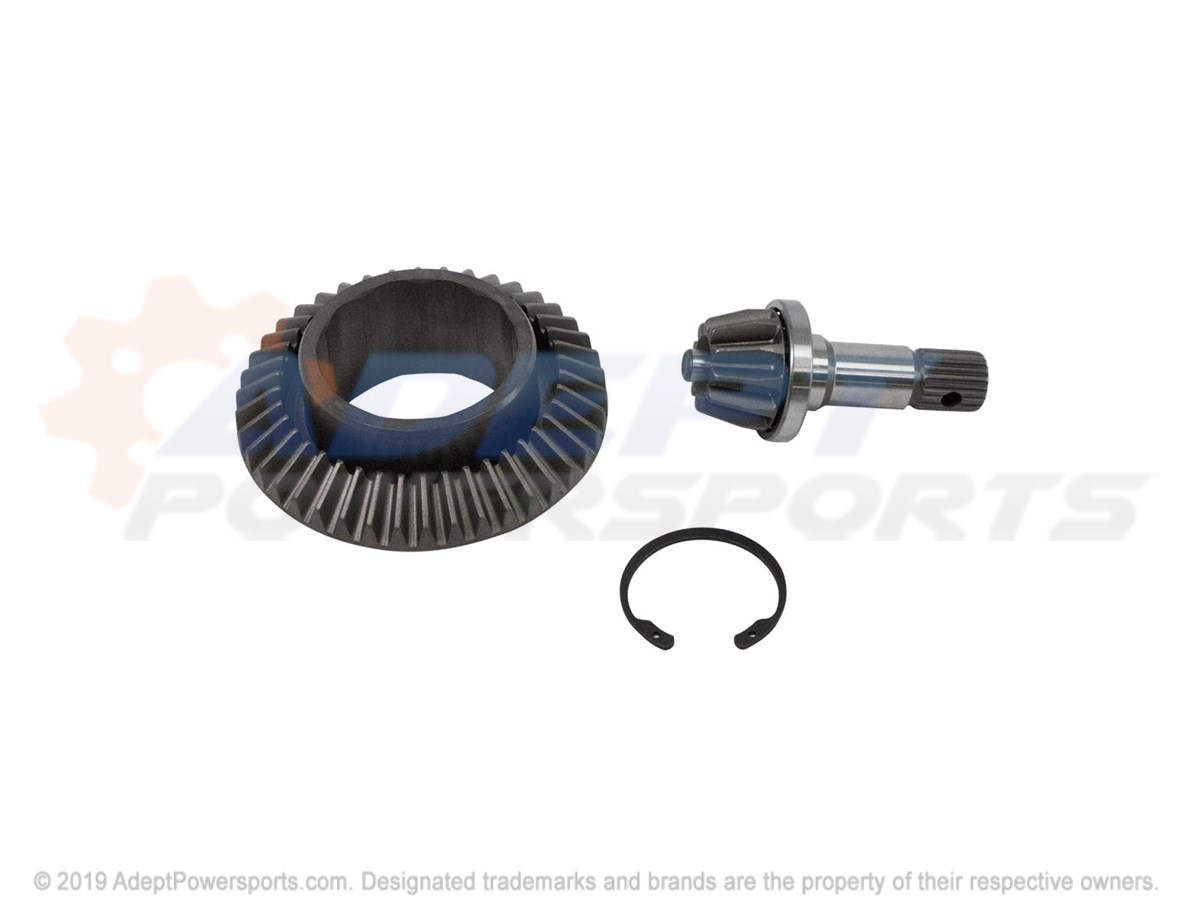

21	ASM-RING & PINION GEAR NON ADC Part #: 3235188 Required per assembly: 1 Currently Not Available
