Engine, Air Intake replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Engine, Air Intake

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FILTER, INTAKE Part #: 5812253 Required per assembly: 1 Currently Not Available

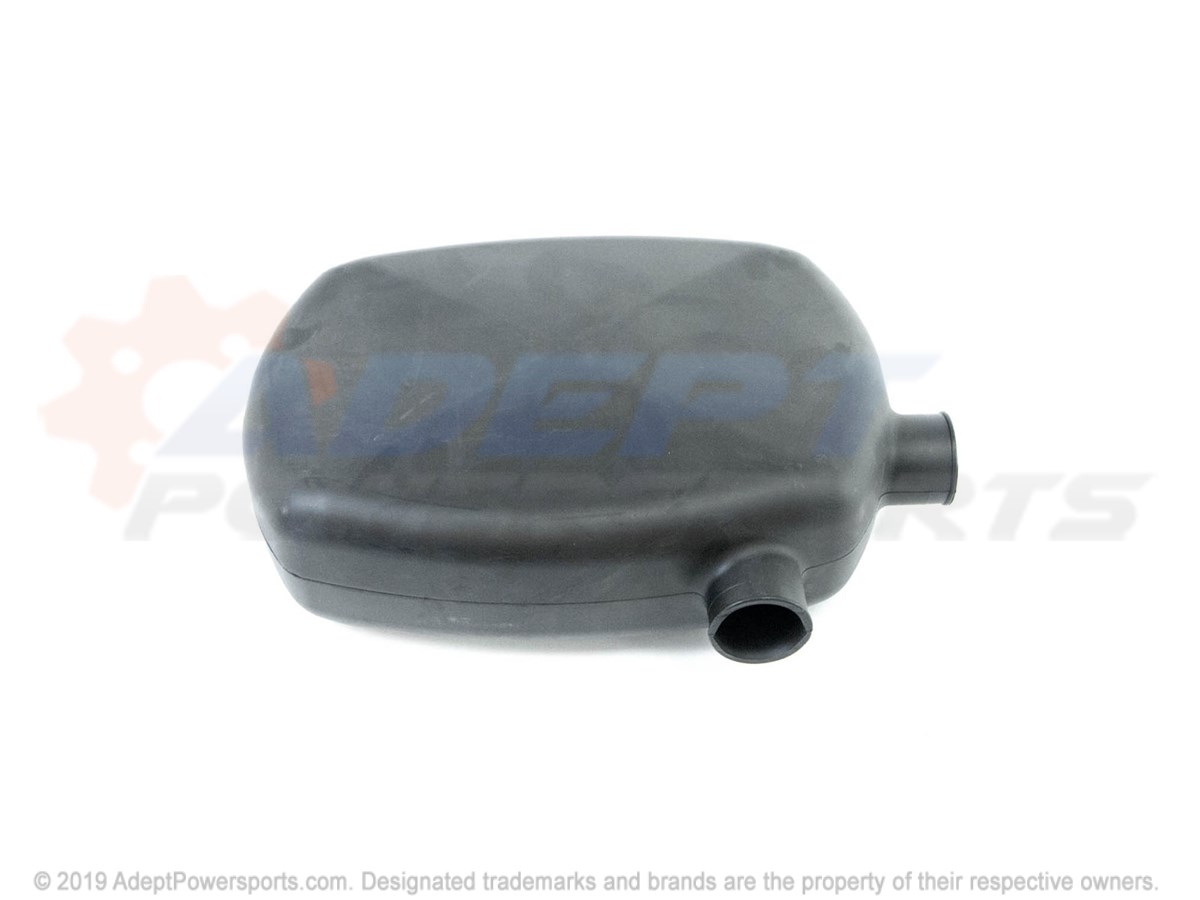

2	BOX, BAFFELING, SIDE Part #: 5439297 Required per assembly: 1 Currently Not Available
3	CLAMP, HOSE Part #: 7080451 Required per assembly: 1 $6.99 $4.03 - + Add to cart
4	HOSE-AIRBOX FRONT Part #: 5414033 Required per assembly: 1 Currently Not Available
5	CLAMP, NARROW, BAND(1.77/2.75) Part #: 7080909 Required per assembly: 5 Note: Clamp, Narrow Band Currently Not Available
6	ASSEMBLY, DUCT, AIR, INTAKE Part #: 2633898 Required per assembly: 1 Note: Asm., Duct, Air Intake [Incl. 6,26] Currently Not Available
7	HOSE-ENGINE INTAKE REAR Part #: 5438491 Required per assembly: 1 Currently Not Available
8	SCREW Part #: 7518514 Required per assembly: 2 Note: Bolt Currently Not Available
9	BRKT-MOUNT AIRBOX BLK Part #: 5254060-329 Required per assembly: 1 Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
11	ASSEMBLY, DUCT, AIR, INTAKE Part #: 2633898 Required per assembly: 1 Note: Asm., Duct, Air Intake [Incl. 6,26] Currently Not Available
13	HOSE-AIRBOX LOWER Part #: 5414032 Required per assembly: 1 Currently Not Available
14	ASM-BOX AIR BAFFEL CLUTCH Part #: 1240594 Required per assembly: 1 Currently Not Available
15	HOSE-CLUTCH INTAKE Part #: 5414270 Required per assembly: 1 Currently Not Available
16	COVER-BAFFLE CLUTCH REAR Part #: 5438550 Required per assembly: 1 Currently Not Available
17	BAFFLE, ENGINE, REAR Part #: 5437693 Required per assembly: 1 Currently Not Available
18	SCR-1/4-20X3/4-TR/TX/TAP-M Part #: 7517916 Required per assembly: 2 Note: Screw $6.99 $4.03 - + Add to cart
19	FILTER-INTAKE CLUTCH Part #: 5813607 Required per assembly: 1 Currently Not Available
20	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 1 Note: Clamp, Narrow Band $4.99 $2.88 - + Add to cart
21	SCR-TXPH-#14X3/4 HI/LO RIE Part #: 7519274 Required per assembly: 4 Currently Not Available
22	FOIL Part #: 5810129 Required per assembly: 2 Note: Tape, Foil Currently Not Available
23	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
24	SCREW Part #: 7518280 Required per assembly: 2 Currently Not Available
