Engine, Fuel Injector replacement parts for 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E)

OEM Parts Polaris 2012 Polaris RANGER XP 800 (R12TH76/TH7E/TX7E) Engine, Fuel Injector

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-INJECTOR FUEL BLACK MAG Part #: 1204318 Required per assembly: 1 Currently Not Available
2	FUEL RAIL-DT800/700 Part #: 2521027 Required per assembly: 1 Currently Not Available
3	SCR-SH-M8X1.25X30 8.8 ZY Part #: 7519232 Required per assembly: 1 Currently Not Available
4	ASM-DAMPER FUEL RAIL Part #: 2521101 Required per assembly: 1 Currently Not Available
5	ASM-INJECTOR FUEL GRAY PTO Part #: 1204319 Required per assembly: 1 Currently Not Available

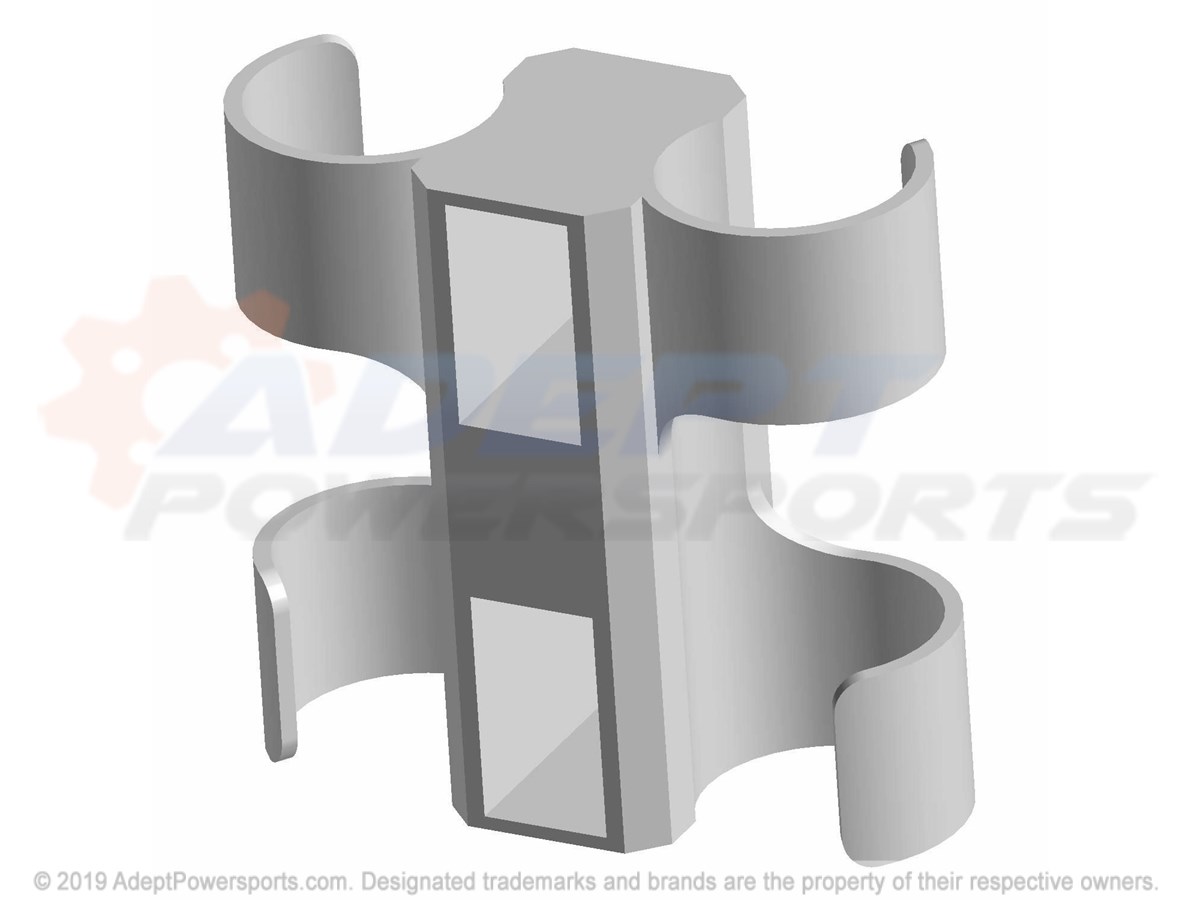

6	CLIP-INJECTOR HARNESS Part #: 5438664 Required per assembly: 1 Currently Not Available

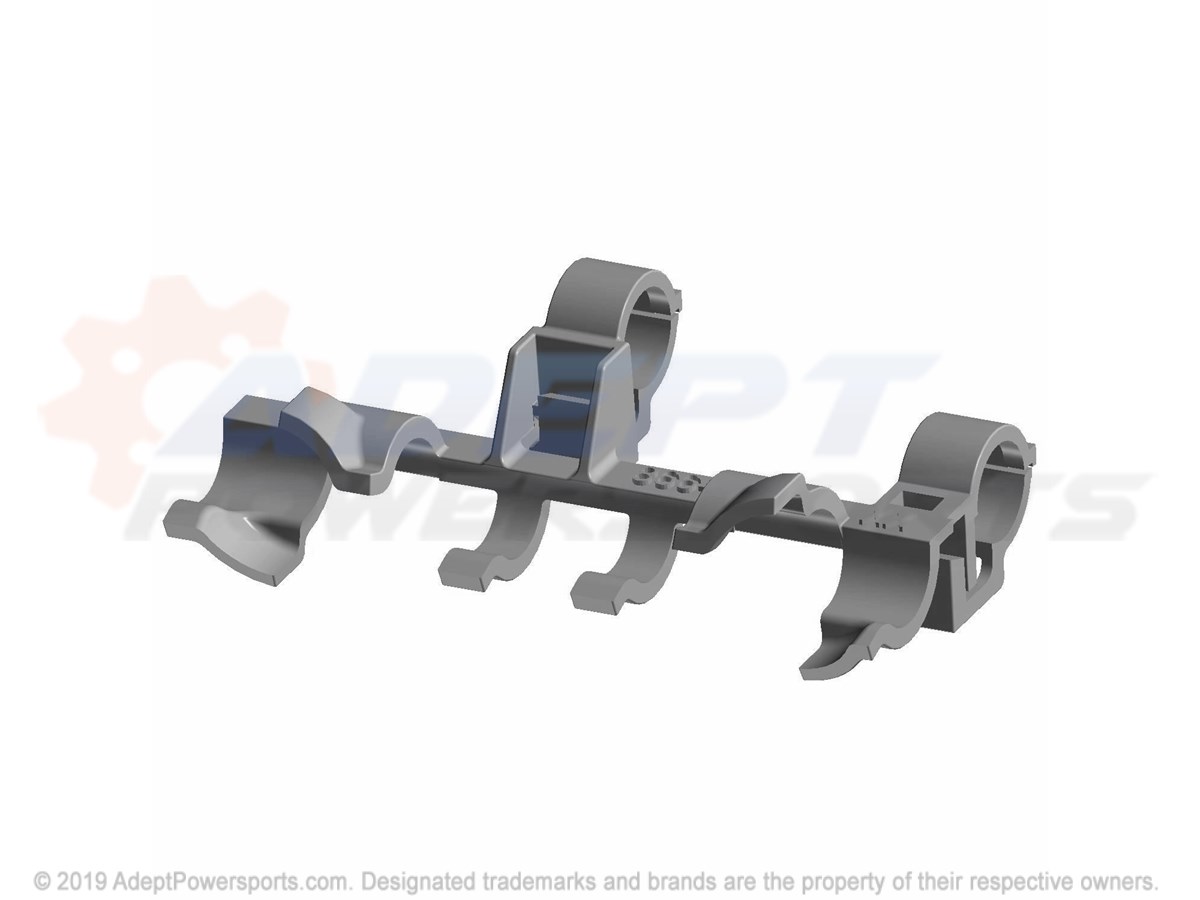

7	T-CLIP T15 Part #: 7081689 Required per assembly: 1 Currently Not Available
