Doors replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Doors

DOORS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

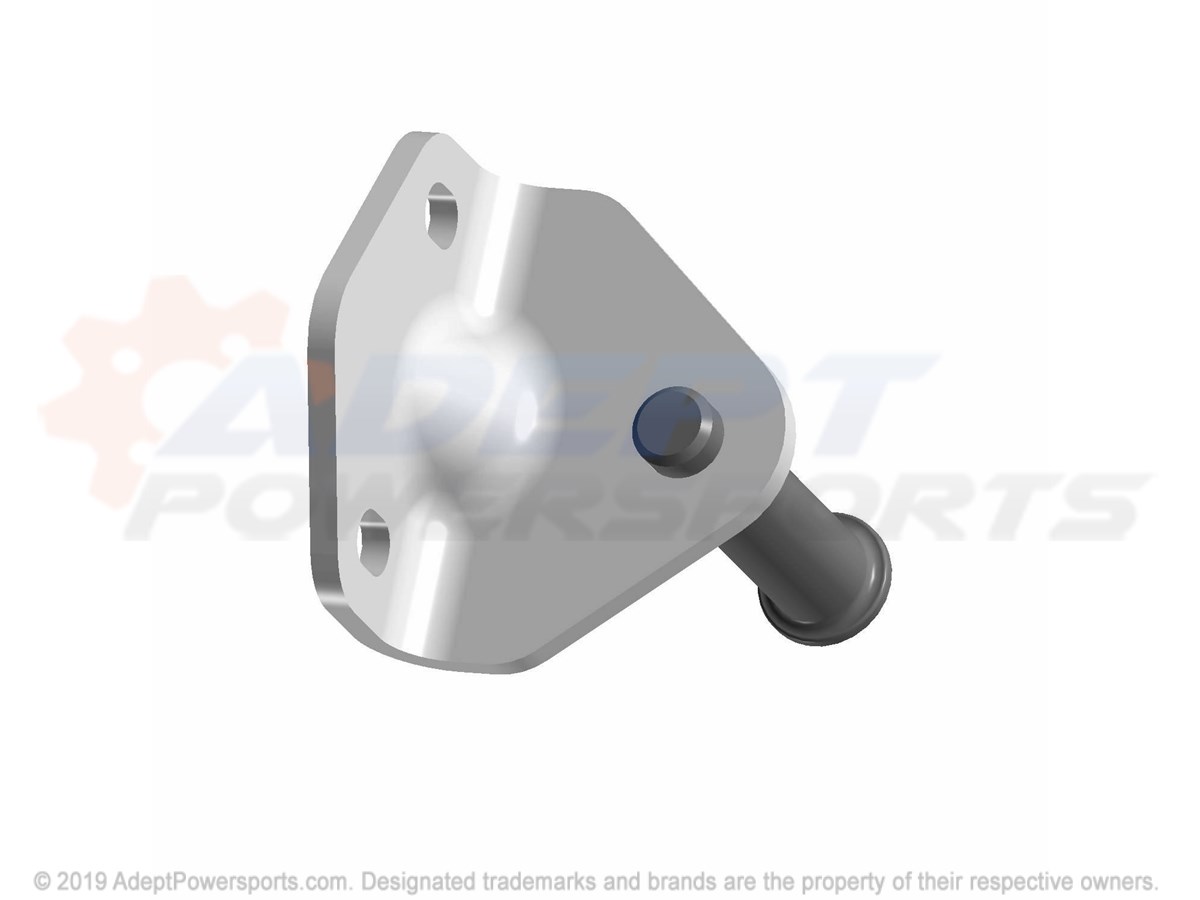

1	WELD-STRIKER Part #: 1026523 Required per assembly: 2 Currently Not Available
2	ASM-LATCH, DOOR, RH Part #: 2637040 Required per assembly: 1 Currently Not Available
2	ASM-LATCH, DOOR, LH Part #: 2637039 Required per assembly: 1 Currently Not Available
3	ASM-ACTUATOR, LATCH, RH Part #: 2637403 Required per assembly: 1 Currently Not Available
3	ASM-ACTUATOR, LATCH, LH Part #: 2637402 Required per assembly: 1 Currently Not Available
4	BRKT-TRIM, DOOR Part #: 5267829 Required per assembly: 2 Currently Not Available
5	K-DOOR-BUMPER-2-DOORS-PER-KIT Part #: 2208914 Required per assembly: 2 Note: Contains 5140211 (Qty 4) - SLEEVE-SHLD,15.5OD,10 OD,6.5ID 5417528 (Qty 4) - BUMPER-DOOR 7519297 (Qty 4) - SCR-HXFLG,M6X1.0X25,10.9 TO 03/02/20 Currently Not Available
5	K-DOOR-BUMPER-2-DOORS-PER-KIT Part #: 2208914 Required per assembly: 2 Note: Contains 5140211 (Qty 4) - SLEEVE-SHLD,15.5OD,10 OD,6.5ID 5417528 (Qty 4) - BUMPER-DOOR 7519297 (Qty 4) - SCR-HXFLG,M6X1.0X25,10.9 FROM 03/02/20 Currently Not Available
6	PANEL-DOOR, REAR, LH, BLK Part #: 5455214-070 Required per assembly: 1 Note: LT Currently Not Available
6	PANEL-DOOR, REAR, RH, BLK Part #: 5455215-070 Required per assembly: 1 Note: LT Currently Not Available
6	PANEL-DOOR, REAR, RH, PII, BLUE Part #: 5455215-795 Required per assembly: 1 Note: LC Currently Not Available
6	PANEL-DOOR, REAR, LH, TTMM Part #: 5455214-653 Required per assembly: 1 Note: LR Currently Not Available
6	PANEL-DOOR, REAR, LH, PII, BLUE Part #: 5455214-795 Required per assembly: 1 Note: LC Currently Not Available
7	PANEL-DOOR, FRT, PAINT, RH, WH, LTG Part #: 5455961-599 Required per assembly: 1 Note: LC Currently Not Available
7	PANEL-DOOR, FRT, PAINT, RH, I.RED Part #: 5455961-293 Required per assembly: 1 Note: LR Currently Not Available
7	PANEL-DOOR, FRT, PAINT, LH, WH, LTG Part #: 5455960-599 Required per assembly: 1 Note: LC Currently Not Available
7	PANEL-DOOR, FRT, PAINT, LH, I.RED Part #: 5455960-293 Required per assembly: 1 Note: LR Currently Not Available
7	PANEL-DOOR, FRONT, LH, BLK Part #: 5455189-070 Required per assembly: 1 Note: LT Currently Not Available
7	PANEL-DOOR, FRONT, RH, BLK Part #: 5455190-070 Required per assembly: 1 Note: LT Currently Not Available

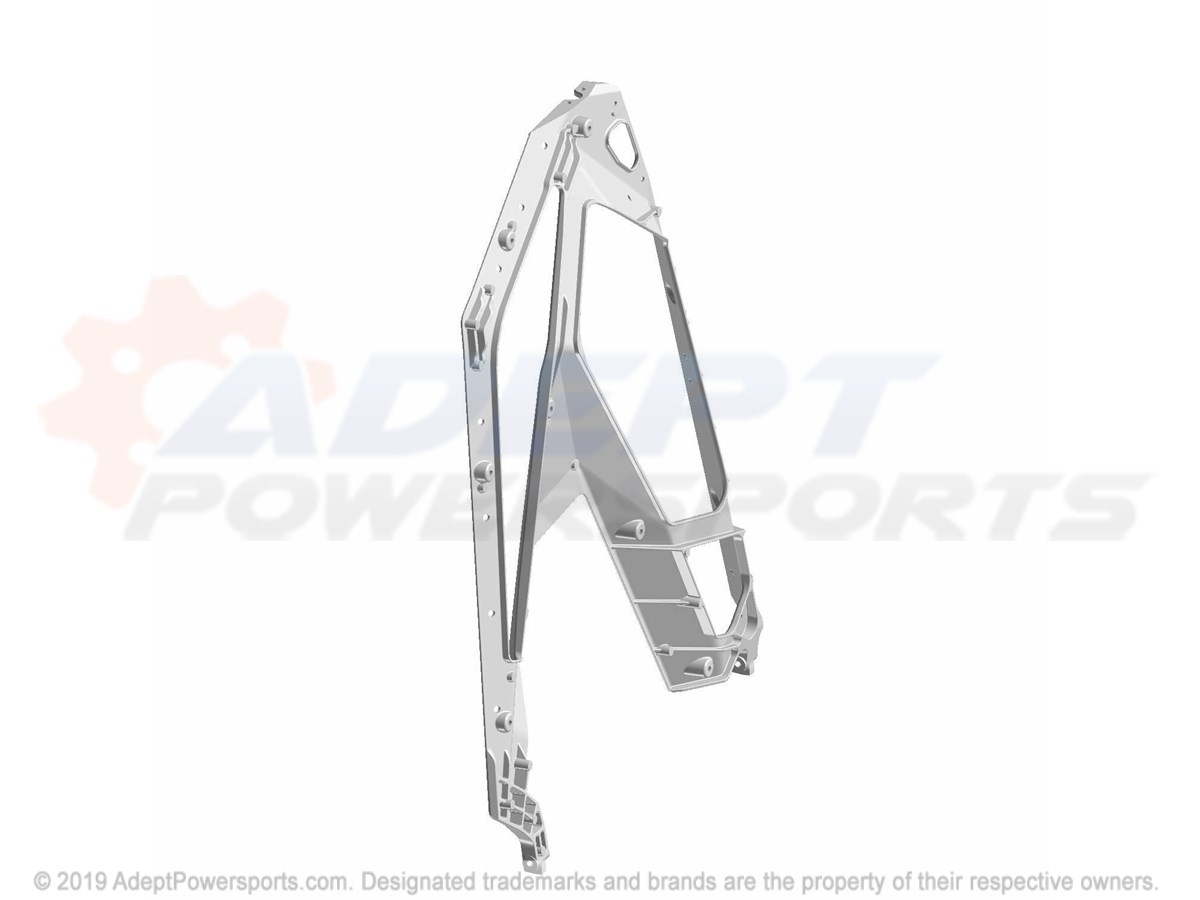

8	CASTING-DOOR, FRAME, RH, BLK Part #: 5634425-458 Required per assembly: 1 Currently Not Available
8	CASTING-DOOR, FRAME, LH, BLK Part #: 5634424-458 Required per assembly: 1 Currently Not Available

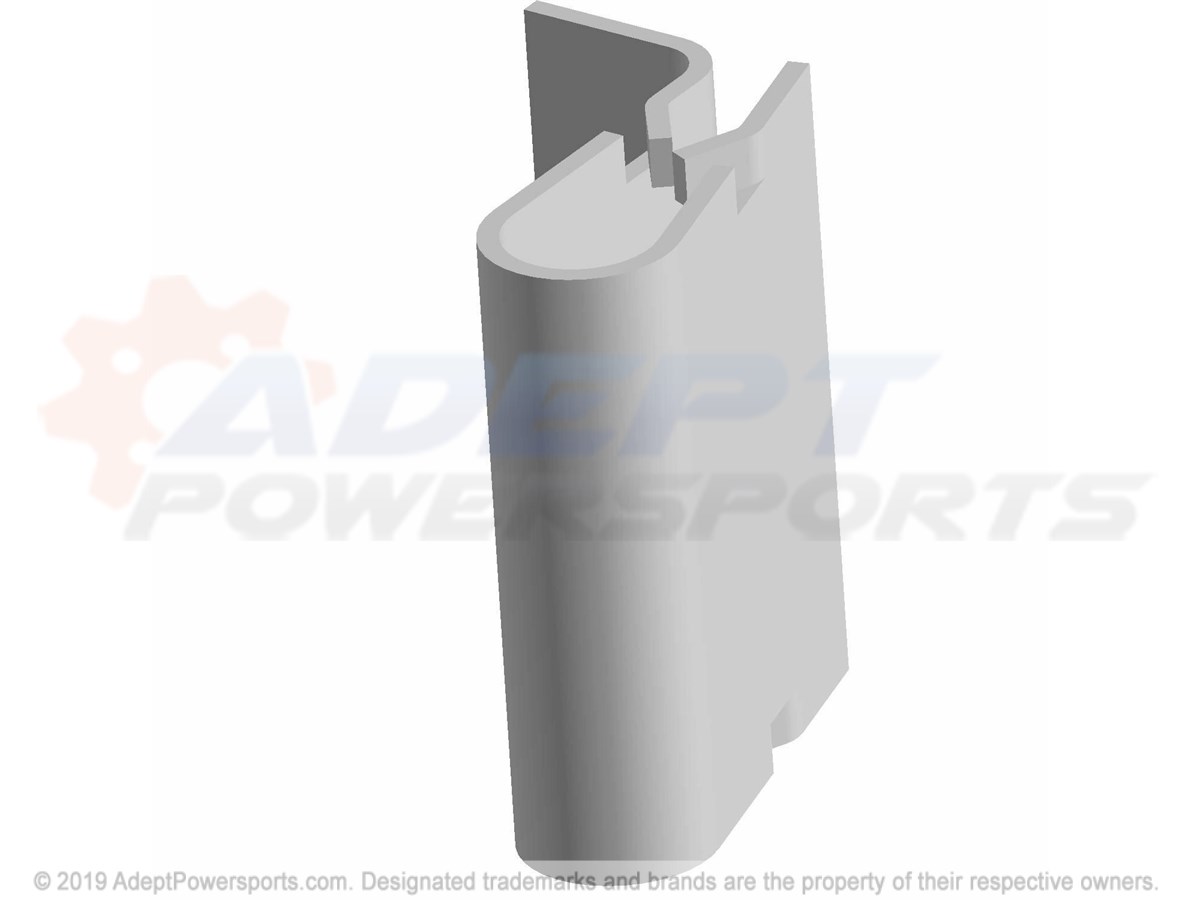

9	U-TYPE, SPEED, NUT Part #: 7081305 Required per assembly: 22 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
10	SCREW Part #: 7518936 Required per assembly: 22 Currently Not Available
11	SCREW Part #: 7519045 Required per assembly: 4 Currently Not Available
12	SCREW Part #: 7519063 Required per assembly: 4 Currently Not Available
13	SCREW Part #: 7519297 Required per assembly: 4 Currently Not Available
14	CLIP-U TYPE Part #: 7670040 Required per assembly: 6 Currently Not Available

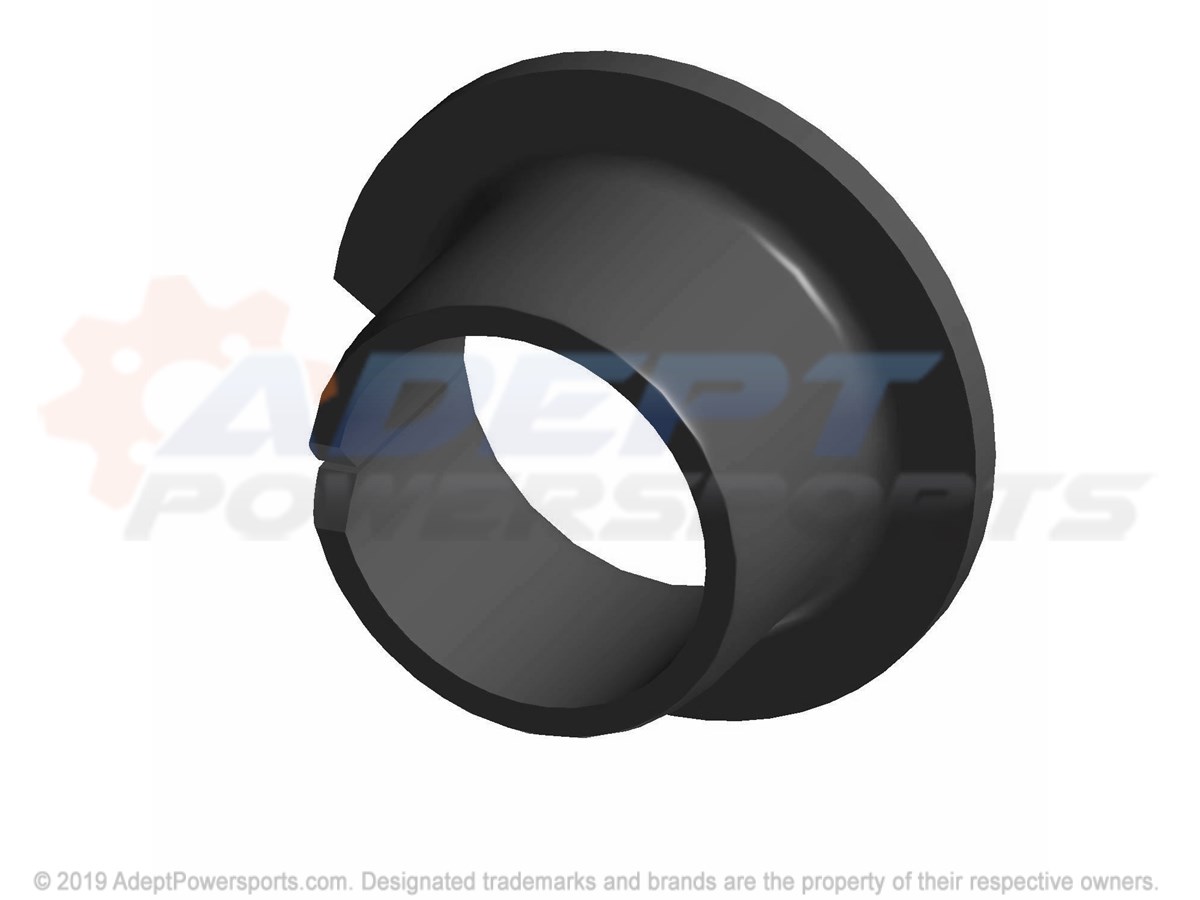

15	BUSHING-DOOR PIVOT Part #: 5266311 Required per assembly: 8 Currently Not Available

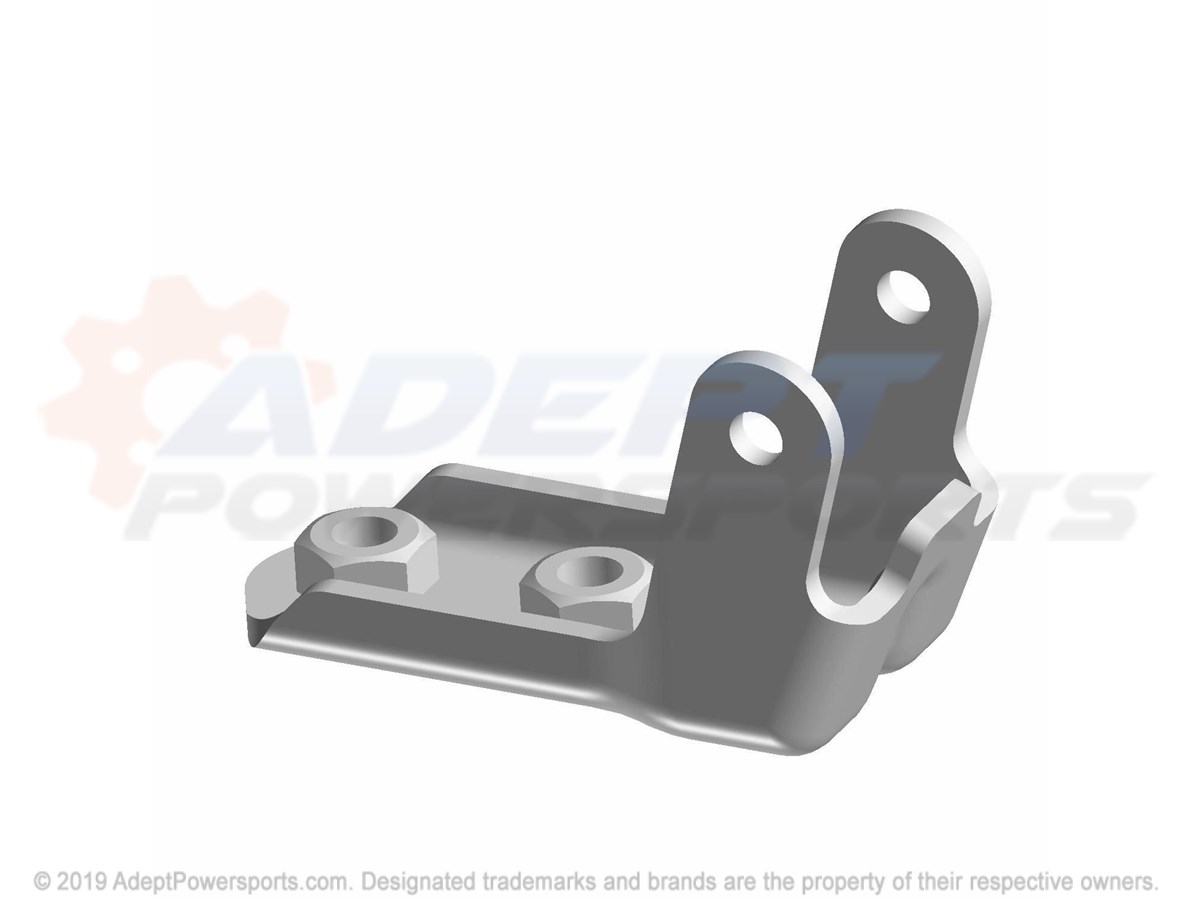

16	BRKT-DOOR HINGE Part #: 5267526 Required per assembly: 4 Currently Not Available
17	SCREW, FLANGE Part #: 7518450 Required per assembly: 8 Currently Not Available
18	SCREW Part #: 7518656 Required per assembly: 4 Note: Bolt Currently Not Available

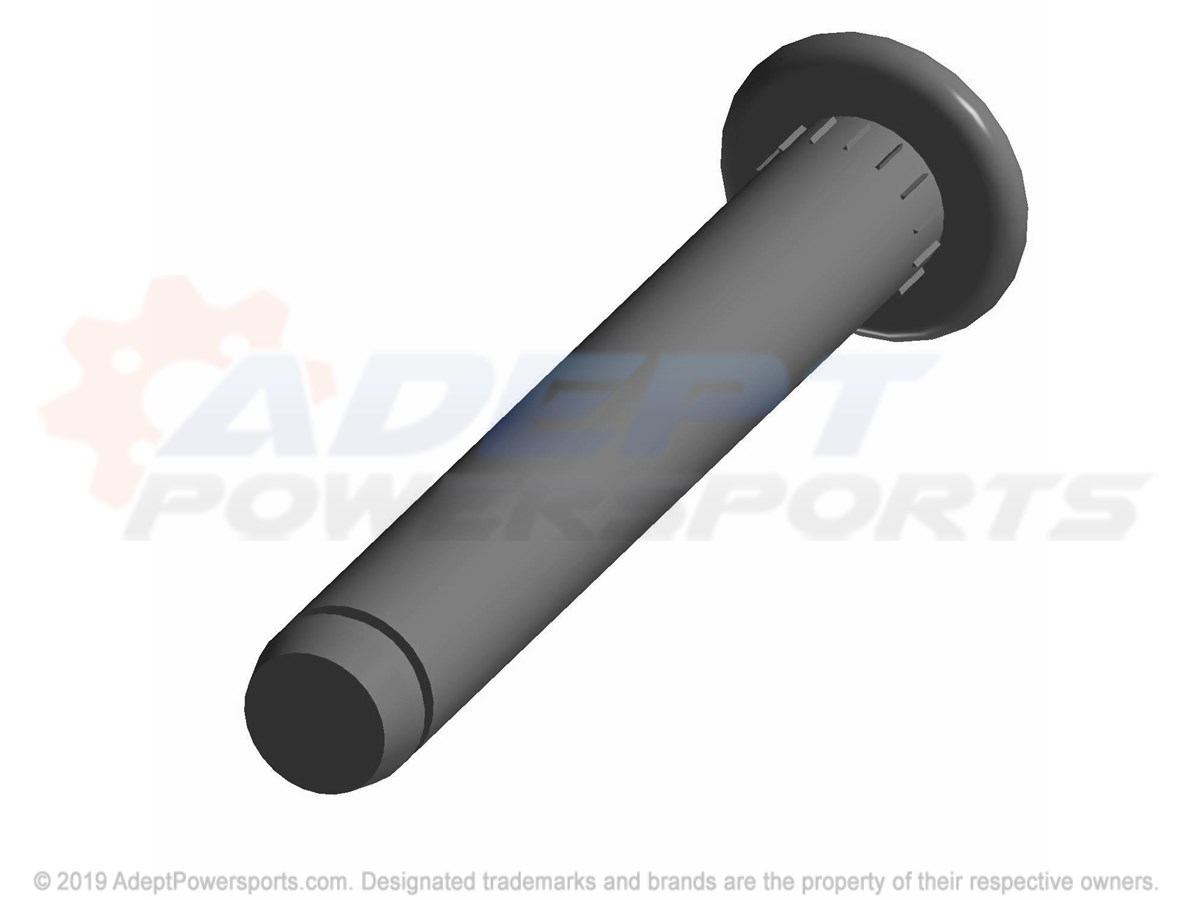

19	PIN-DOOR HINGE Part #: 7662356 Required per assembly: 4 Currently Not Available
20	E-CLIP Part #: 7710466 Required per assembly: 4 Currently Not Available
21	BOLT-SHOULDER SLEEVE Part #: 5140211 Required per assembly: 4 Currently Not Available
