Rear Bumper replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Rear Bumper

REAR BUMPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

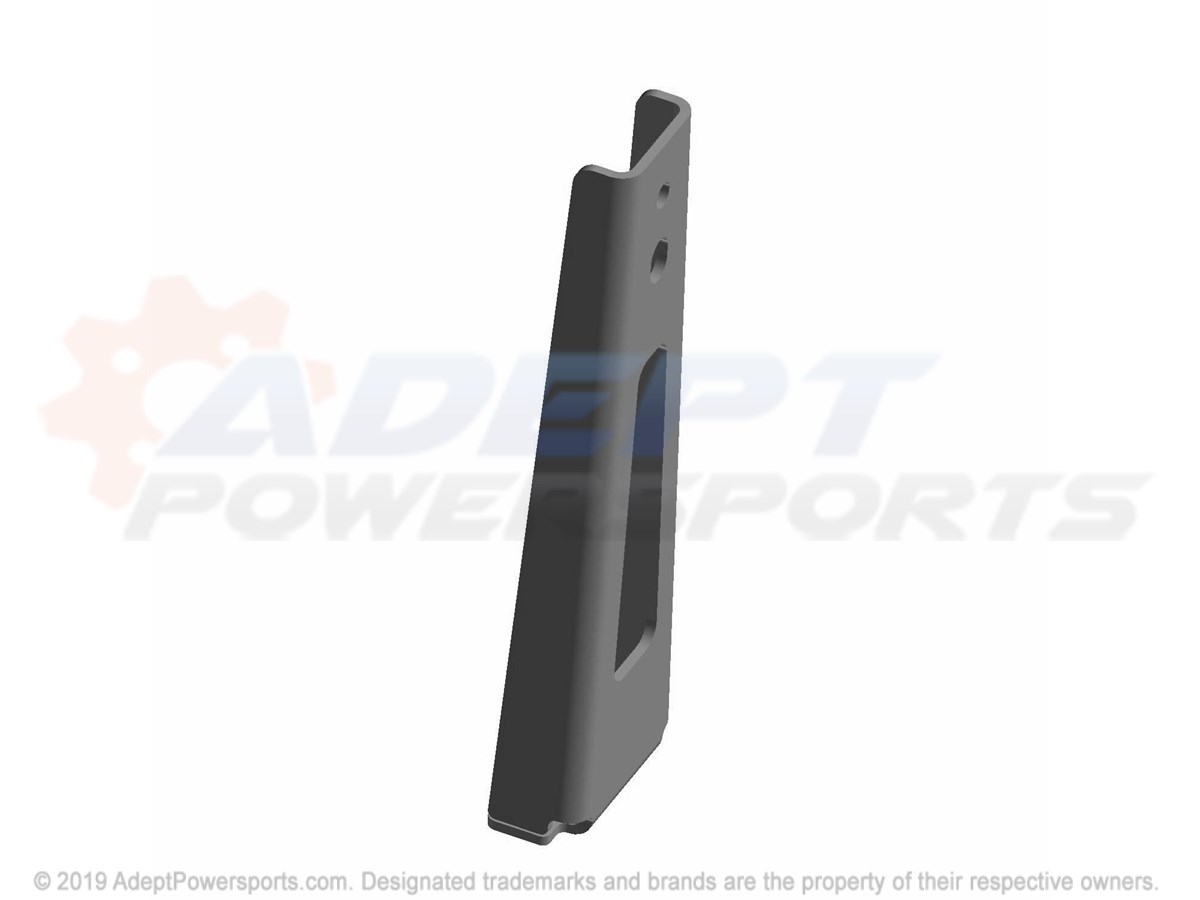

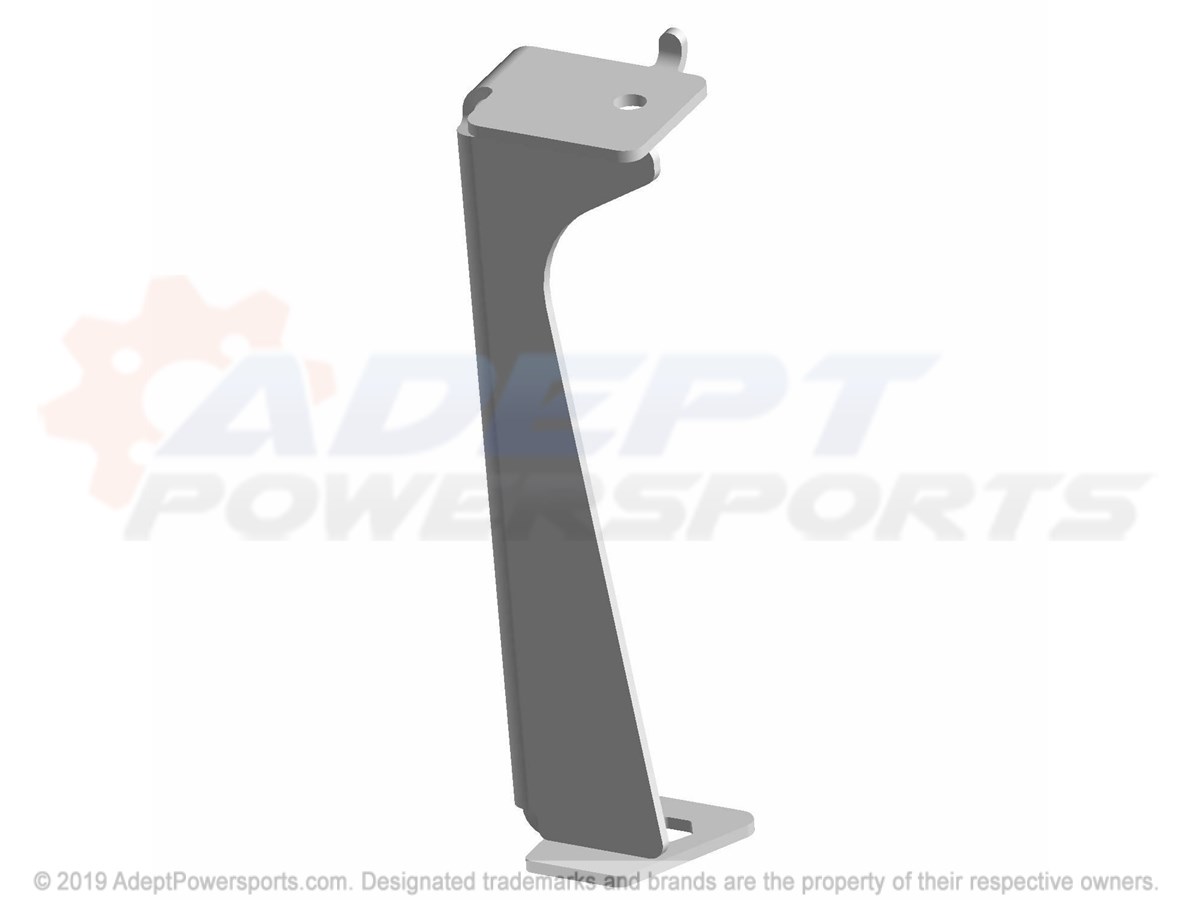

1	BRKT-MOUNT, FASCIA, REAR, LOWER Part #: 5266803 Required per assembly: 2 Currently Not Available

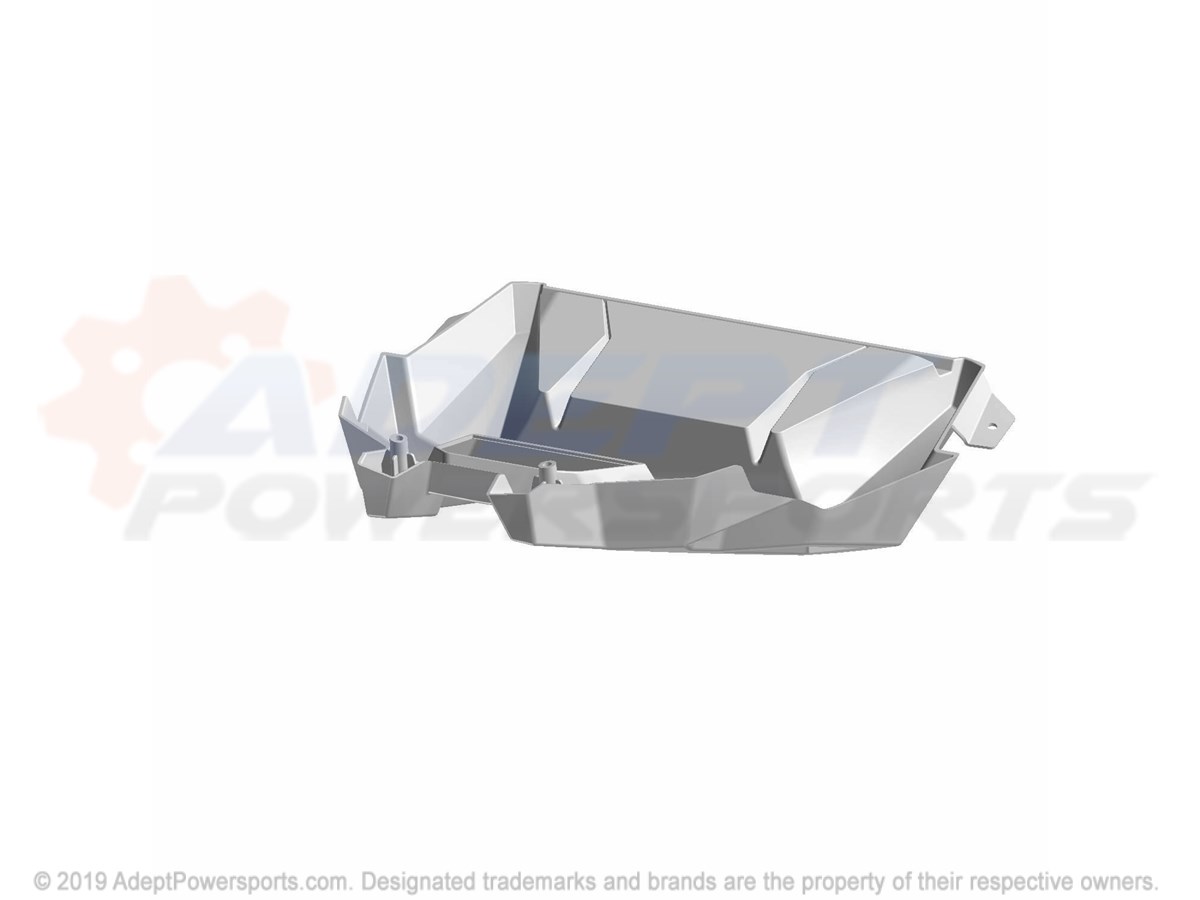

2	BRKT-MOUNT, FASCIA, BOX Part #: 5268384 Required per assembly: 1 Currently Not Available

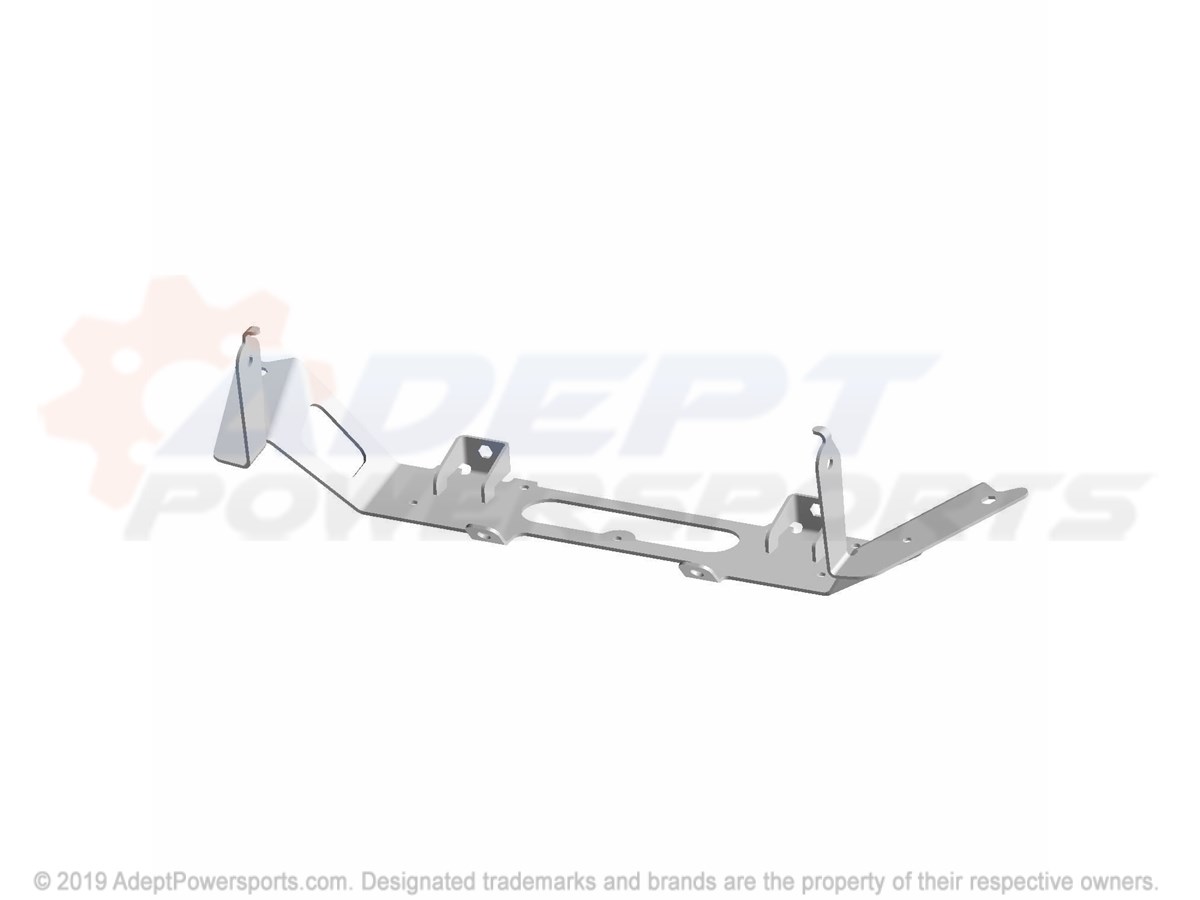

3	BRKT-MNT, BUMPER, REAR, LWR, LH Part #: 5266747 Required per assembly: 1 Currently Not Available

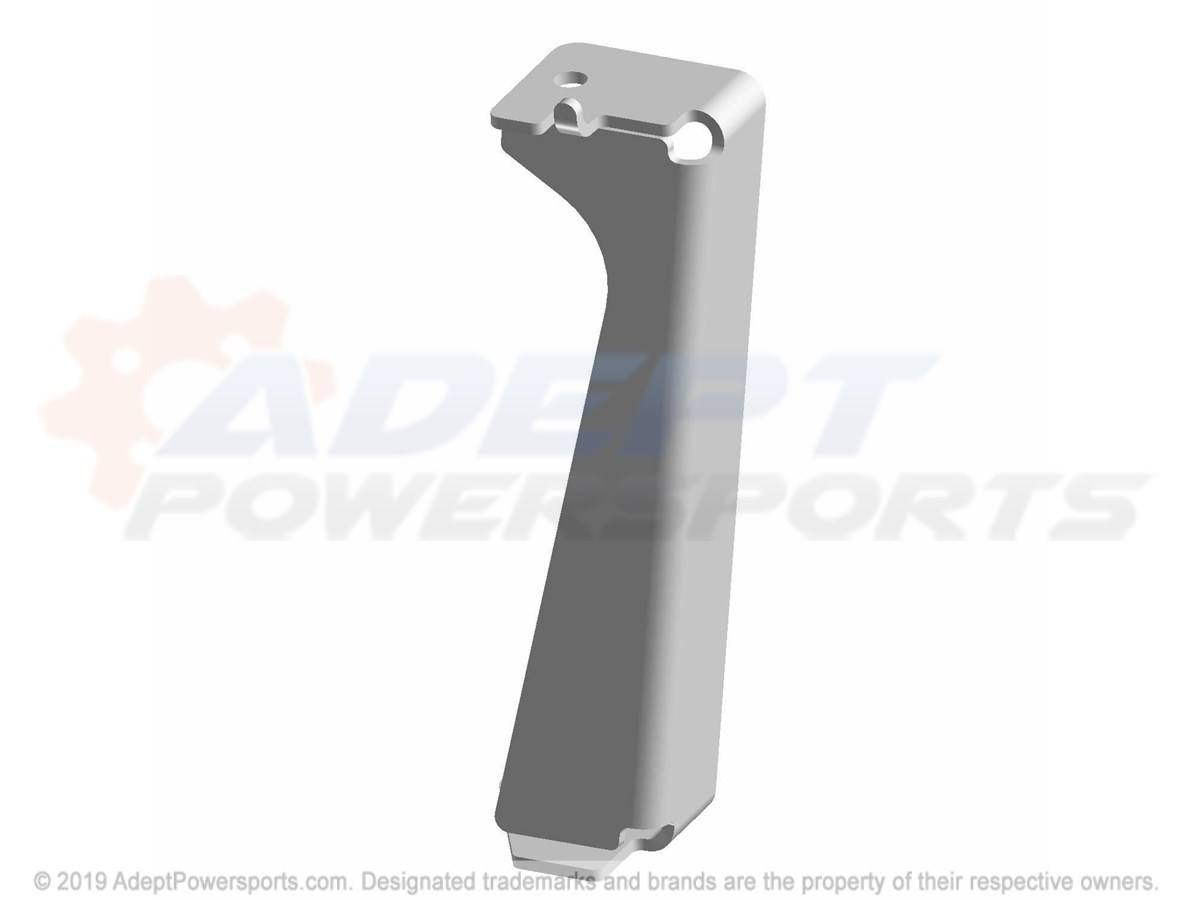

4	BRKT-MNT, BUMPER, REAR, LWR, RH Part #: 5266748 Required per assembly: 1 Currently Not Available

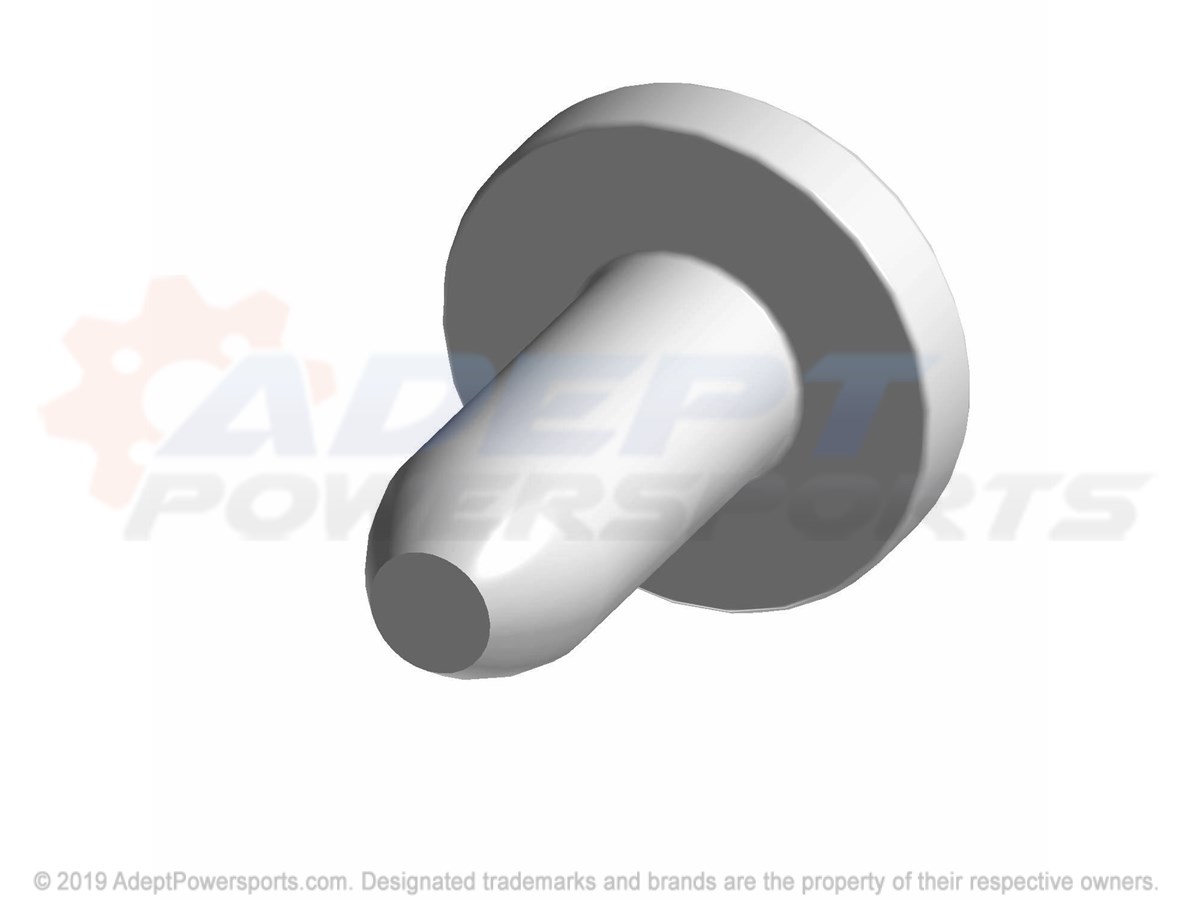

5	SCREW Part #: 7518529 ~~$2.99~~ $1.73 - + Add to cart

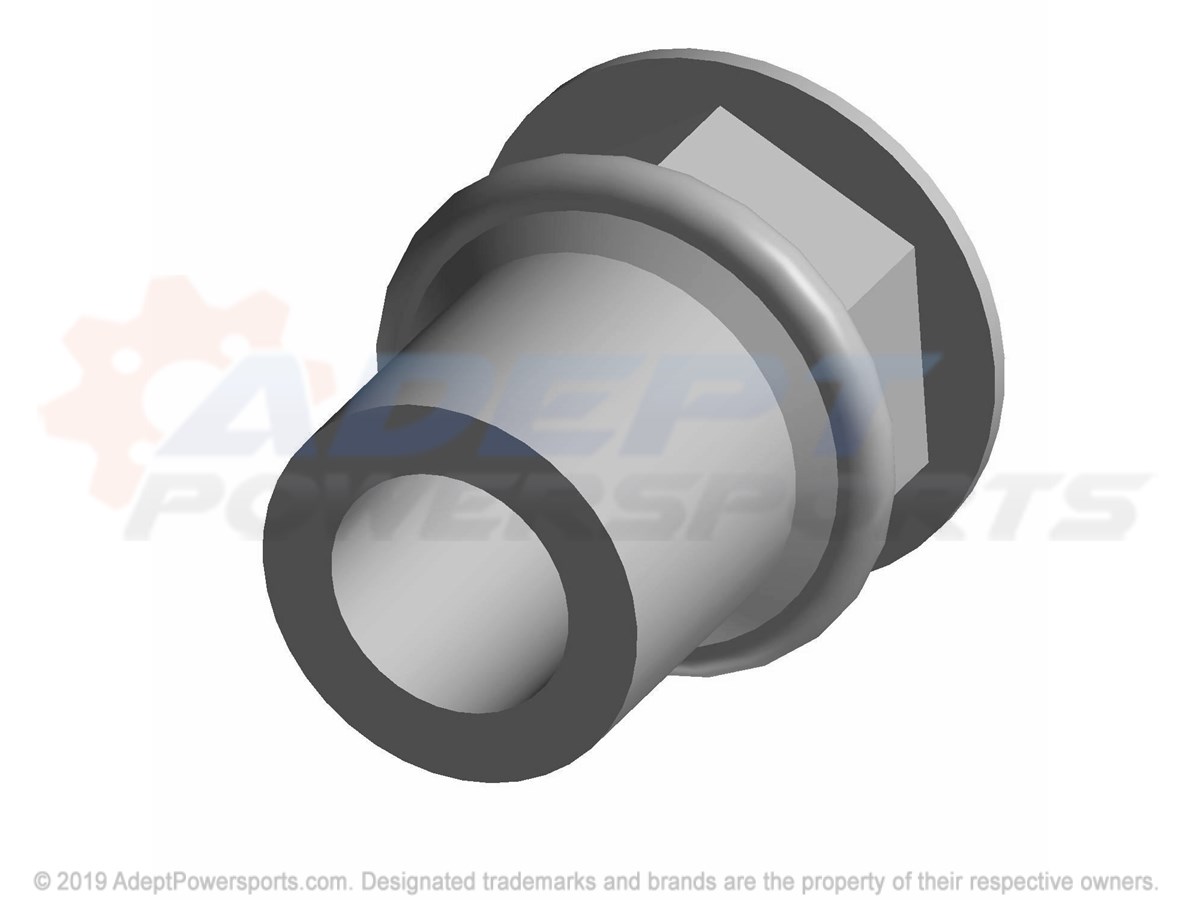

6	NUT-RIVNUT, HEX, M6X1.00 Part #: 7547790 Required per assembly: 4 Currently Not Available

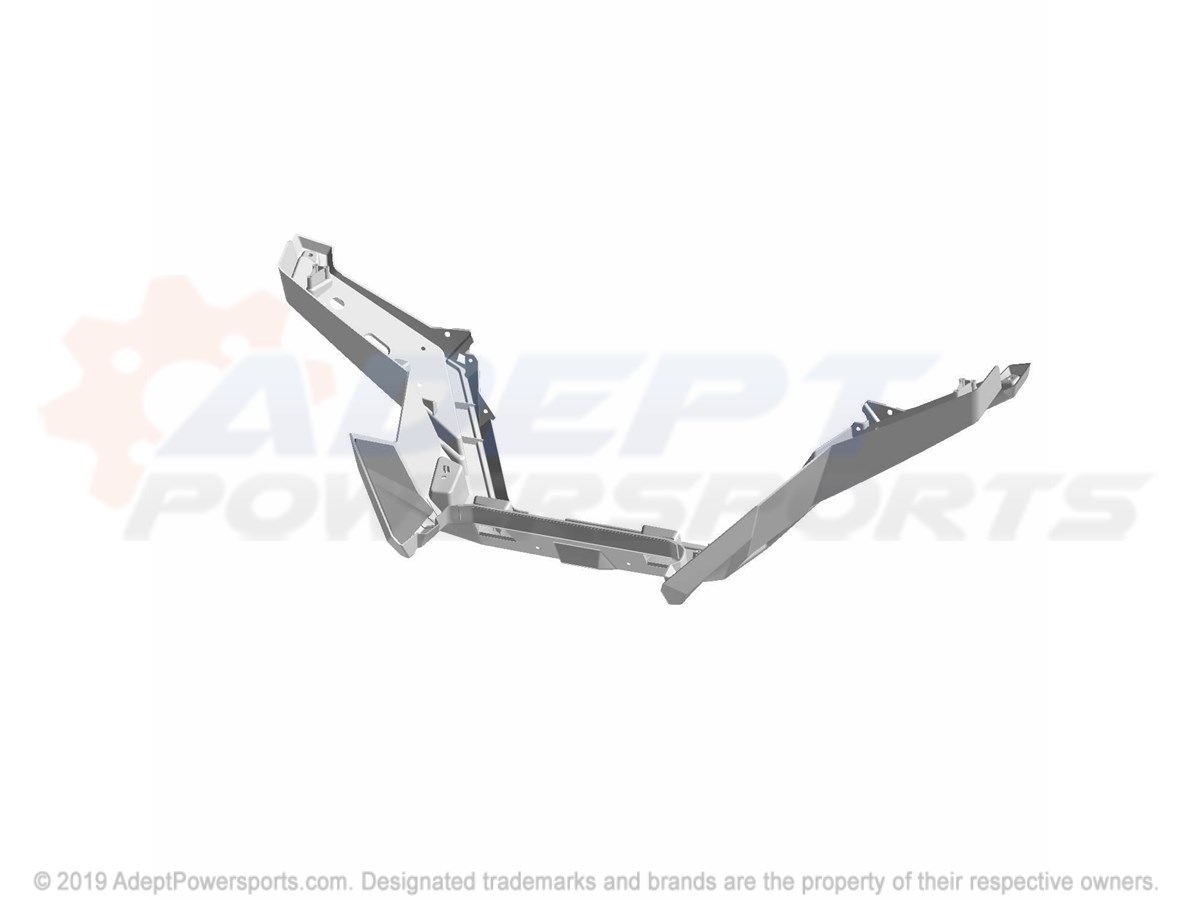

7	ASM-REAR FASCIA Part #: 2637675 Required per assembly: 1 Note: INCL 8-9 Currently Not Available

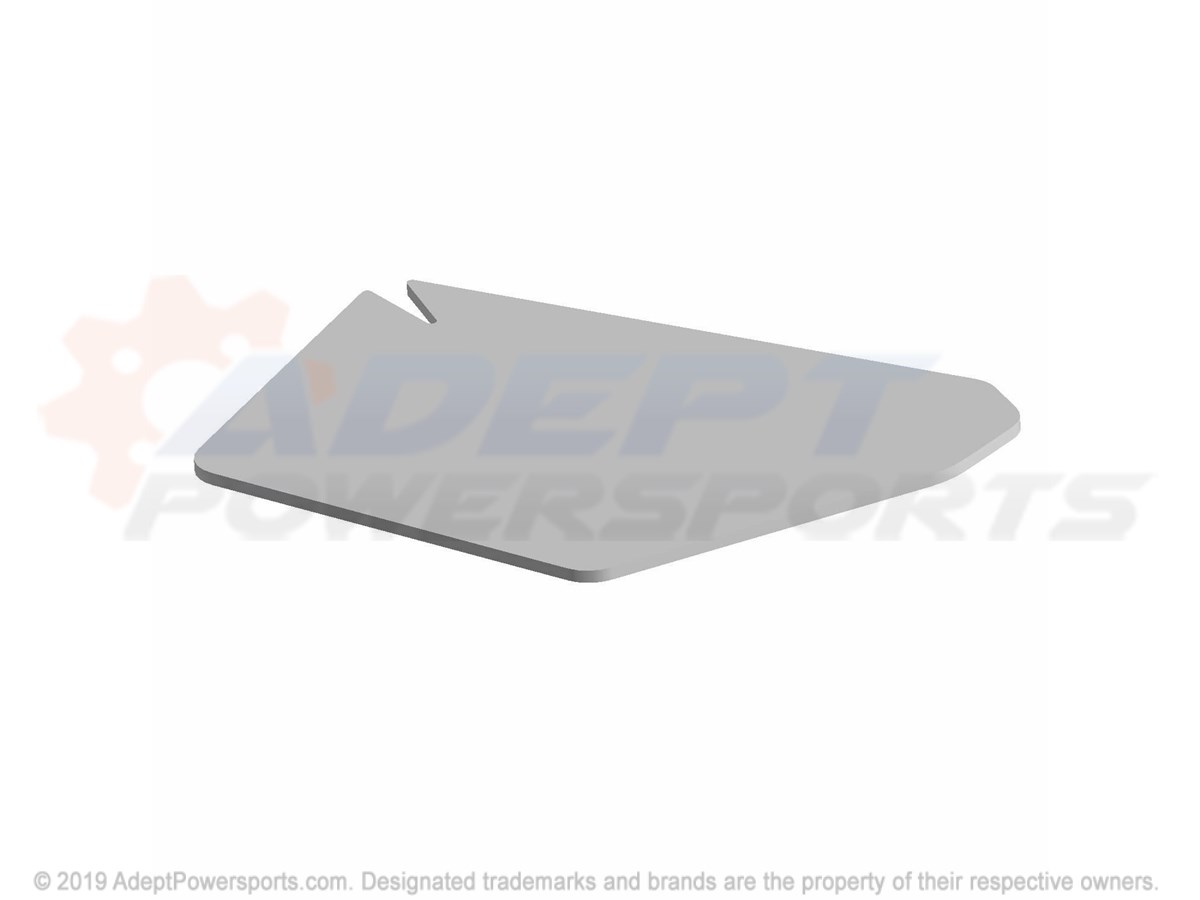

8	SHIELD-FASCIA, LH Part #: 5814909 Required per assembly: 1 Currently Not Available
9	SHIELD-FASCIA, RH Part #: 5814910 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
11	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
12	BUMPER-REAR, BLK Part #: 5455181-070 Required per assembly: 1 Currently Not Available
13	SCR-TXPH-1/4X1/2 ZBK SPC Part #: 7521141 Required per assembly: 4 Currently Not Available
14	NUT, U-TYPE Part #: 7547674 ~~$2.99~~ $1.73 - + Add to cart
