Throttle Pedal replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Throttle Pedal

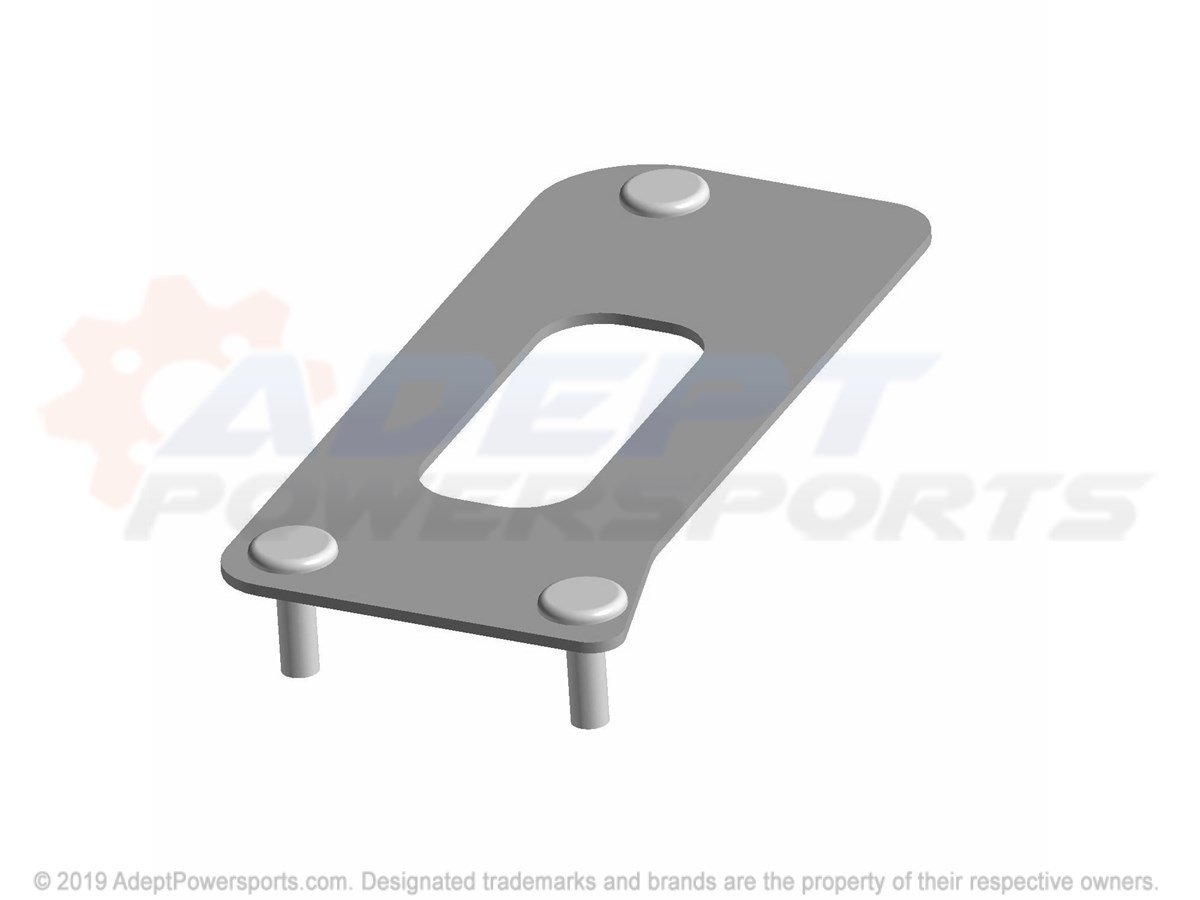

THROTTLE PEDAL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PEDAL-ELECTRONIC THROTTLE Part #: 4017988 Required per assembly: 1 Currently Not Available
2	NUT, METRIC Part #: 7546703 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
3	WSHR-6.4X18.0X1.6 ZC Part #: 7556565 Required per assembly: 3 Currently Not Available
4	BRKT-MNT, THROTTLE, PEDAL, ECOAT Part #: 5267613-329 Required per assembly: 1 Currently Not Available
