OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Rear Rack

2020 Polaris RZR Turbo PRO XP LT (R03) Z20RAB92LR/D92LC/E92LT - Rear Rack

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

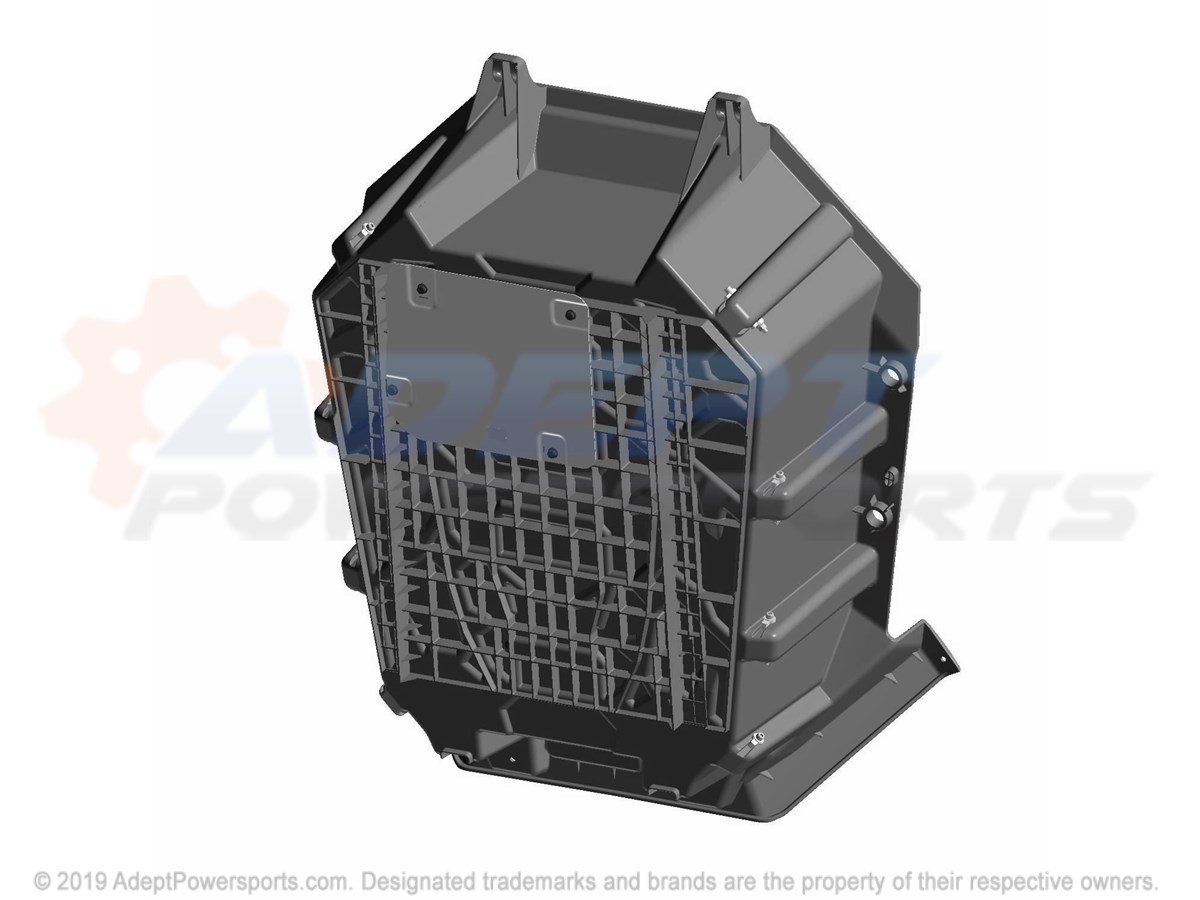

Polaris 2637391 Asm-Box, Cargo

ASM-BOX, CARGO

Part #: 2637391 Required per assembly: 1 Note: INCL ALL
Currently Not Available
2

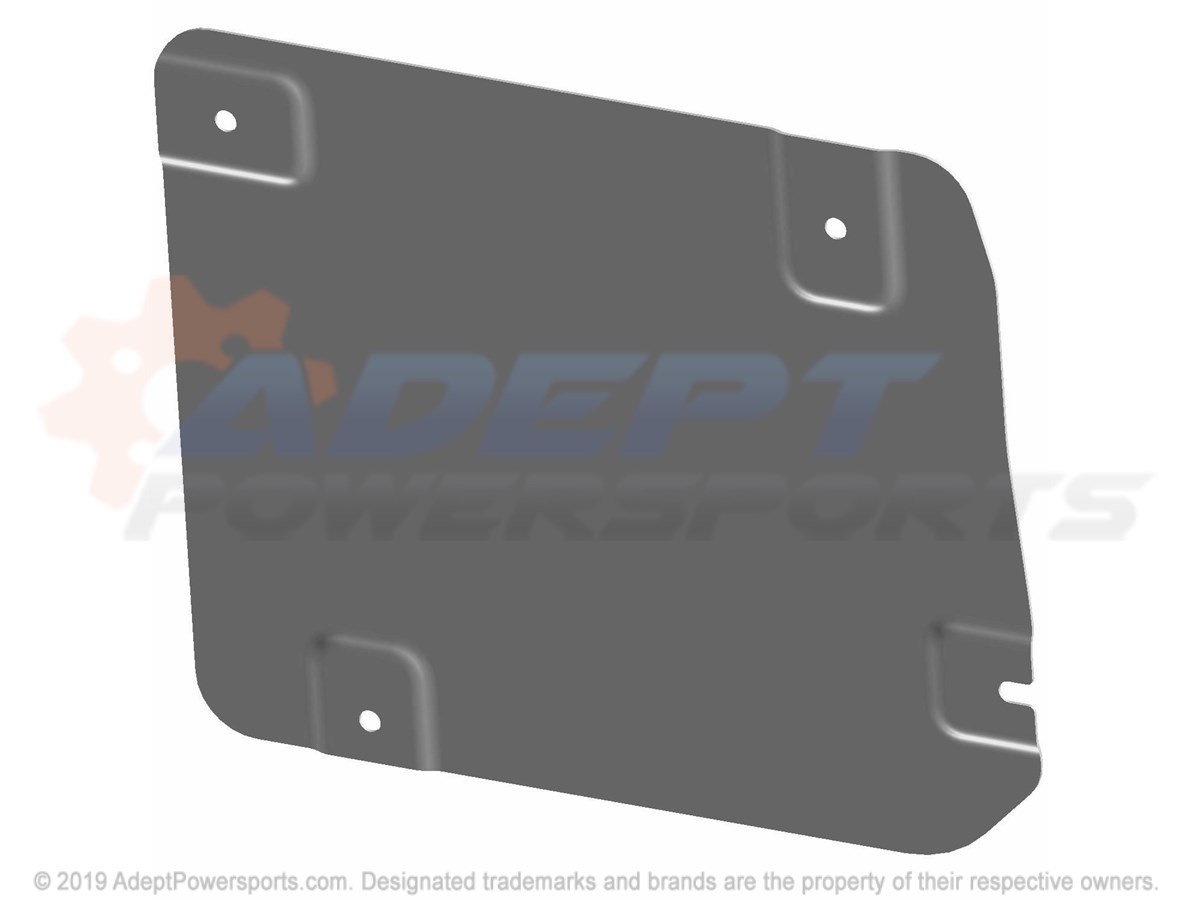

Polaris 5266247 Shield-Tub

SHIELD-TUB

Part #: 5266247 Required per assembly: 1
Currently Not Available
3

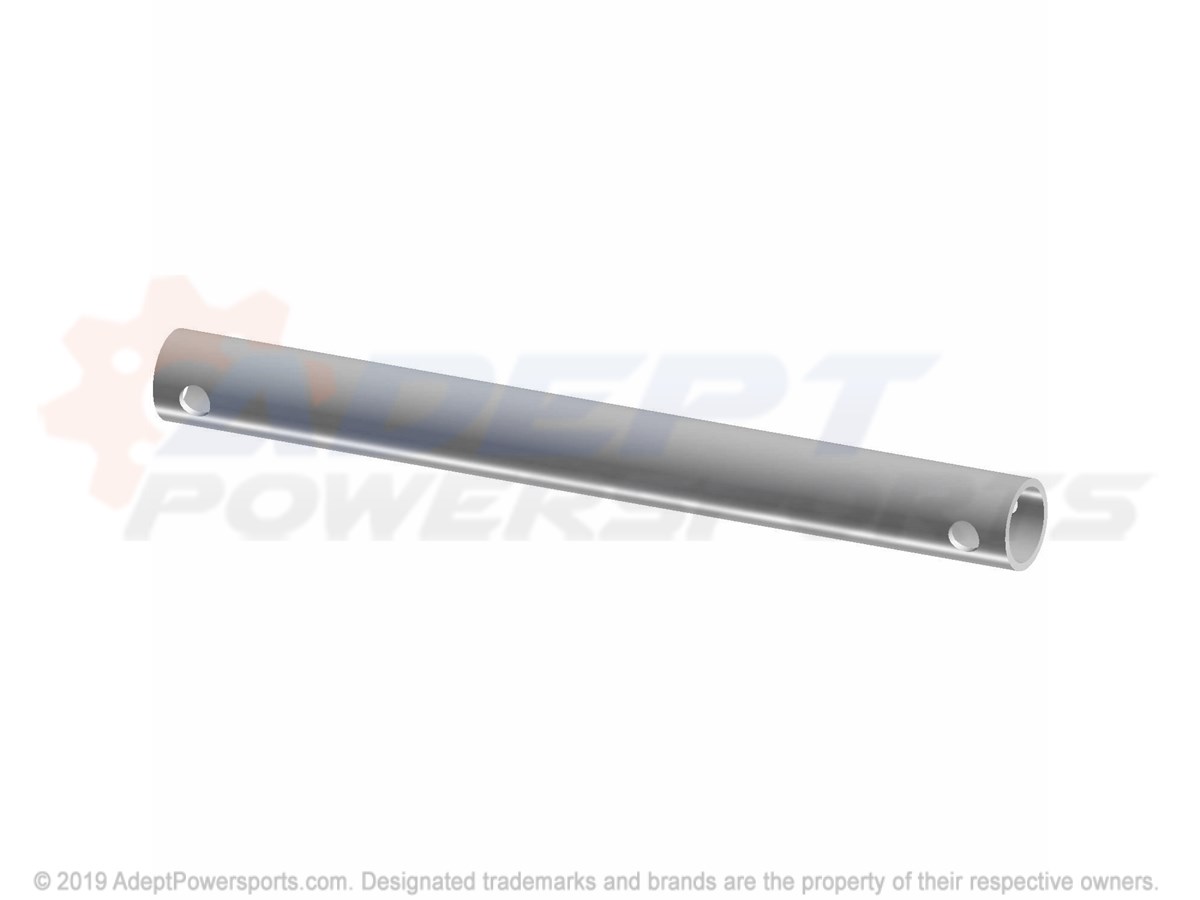

Polaris 5341536-458 Tube-Handle, Box, Blk

TUBE-HANDLE, BOX, BLK

Part #: 5341536-458 Required per assembly: 1
Currently Not Available
4

WASHER

Part #: 7558203 Required per assembly: 16 Note: Washer
Currently Not Available
5

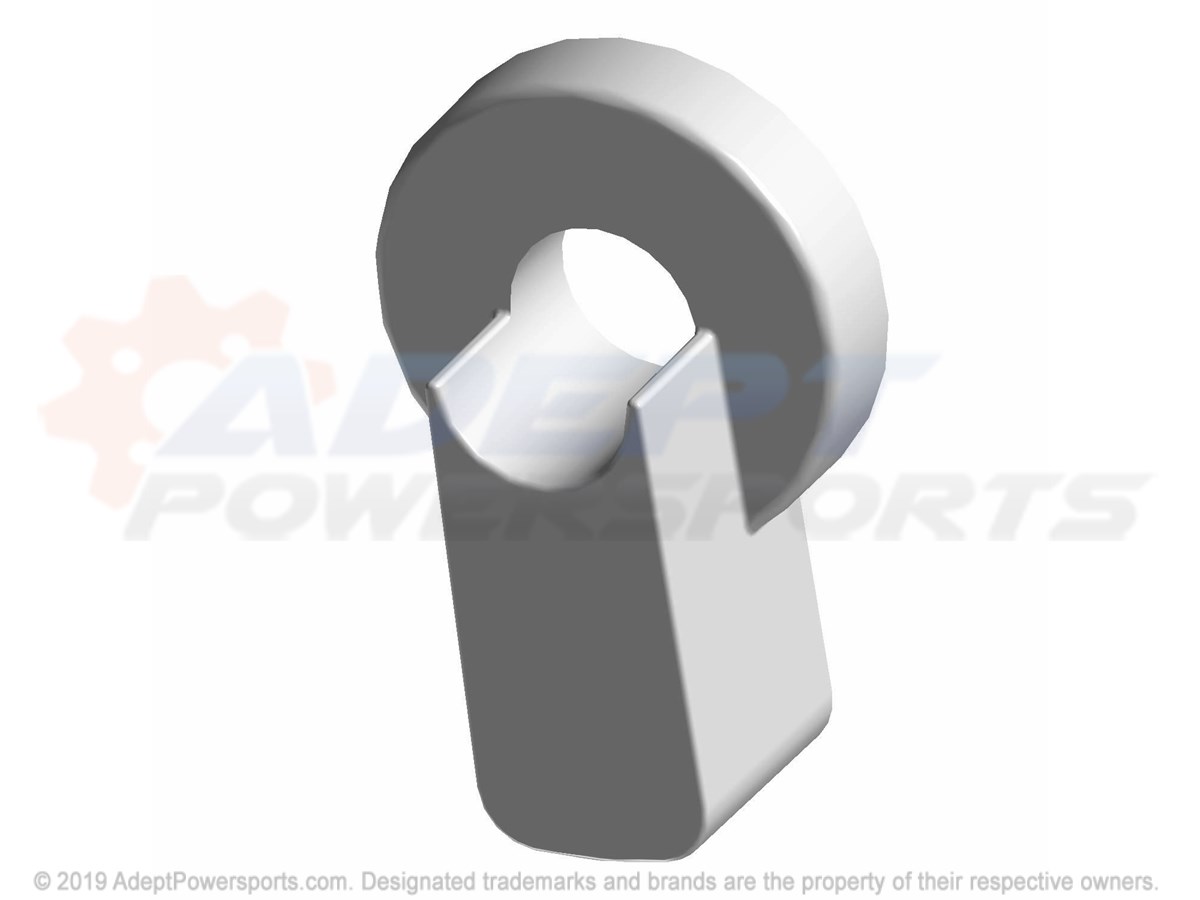

Polaris 5417208 Seal-Cargo Box

SEAL-CARGO BOX

Part #: 5417208 Required per assembly: 16
Currently Not Available
6

U-TYPE, SPEED, NUT

Part #: 7081305 Required per assembly: 4 Note: Clip, U Speed Nut [Built 12/07/09 and Before]
Currently Not Available
7
Polaris 7517807 Screw

SCREW

Part #: 7517807 Required per assembly: 8 Note: TO 04/25/20
Currently Not Available
7

SCR-M6X1.0X70MM SOC/CAP-ZINC

Part #: 7521340 Required per assembly: 8 Note: FROM 04/25/20
Currently Not Available
8
Polaris 7518158 Screw

SCREW

Part #: 7518158 Required per assembly: 2
Currently Not Available
9
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 8 Note: Nut, Flange
Currently Not Available
10
Polaris 7516822 Screw

SCREW

Part #: 7516822 Required per assembly: 4
Currently Not Available
